Emotiva XPA-2 Gen3 2 Channel Audiophile Power Amplifier

Description

XPA-2 Gen3

The new XPA-2 Gen3 is a two-channel audiophile-grade power amplifier designed to perfectly power a superb quality stereo or 2.1 channel music system, as well as the two critical main channels in a 5.1 or 7.1 home theater setup. By adding an XPA-2 to your existing high-quality AVR, you can dramatically enhance your two-channel music listening experience, unlocking new levels of enjoyment and audio fidelity.

Configuration: 2 x High-Powered Single-Channel Modules

This amplifier features two high-powered single-channel modules and includes five additional slots for future expansion, giving you the flexibility to grow your system over time.

Power output

The XPA-2 Gen3 delivers impressive power output, providing 300 watts per channel RMS into 8 ohms, and 490 watts per channel RMS into 4 ohms, with both channels driven simultaneously for robust, dynamic sound reproduction.

Regulated Switch Mode Power Supply (SMPS)

A key enhancement in the XPA series is the newly designed, high current regulated Switch Mode Power Supply (SMPS). This powerful, intelligent supply combines the benefits of traditional transformer-based designs while eliminating their typical drawbacks. Capable of delivering over 3 kW of fully regulated power, it ensures optimum performance across diverse load conditions and dynamic musical peaks without compression or limitation. The SMPS is also notably more efficient, reliable, and lighter than conventional power supplies.

Class A/B Sound Quality Meets Optimized Class H Efficiency

The XPA-2’s high-powered single-channel modules employ a fully analog Class A/B output stage, coupled with Emotiva’s Soft-Switch™ Optimized Class H power supply topology. This design significantly improves efficiency without compromising the rich, detailed sound expected from Class A/B amplifiers. At low power demands, the amplifier operates on lower voltage rails to conserve energy and reduce heat, switching instantaneously to higher voltages during peak demand to maintain clean, unclipped signals. This continuous real-time adaptation enhances efficiency, promotes cooler operation, extends component lifespan, reduces power consumption, and boosts reliability.

Sound Quality First

Engineered with sound quality as the highest priority, the XPA-2 Gen3 excels across all types of audio systems and music genres. It features low noise, low distortion, and a wideband amplifier design with a traditional Class A/B output stage to deliver smooth, detailed sound without any strain or harshness. The amplifier remains stable with real-world speakers in practical systems, not just in controlled test environments.

Modern Efficient Circuit Design

Thanks to the optimized Soft-Switch Class H™ power supply topology, the amplifier achieves enhanced efficiency without sacrificing audio performance. The Switched Mode Power Supply further combines the sonic benefits of traditional linear power supplies with increased efficiency, reliability, and lighter overall weight.

Quality Construction

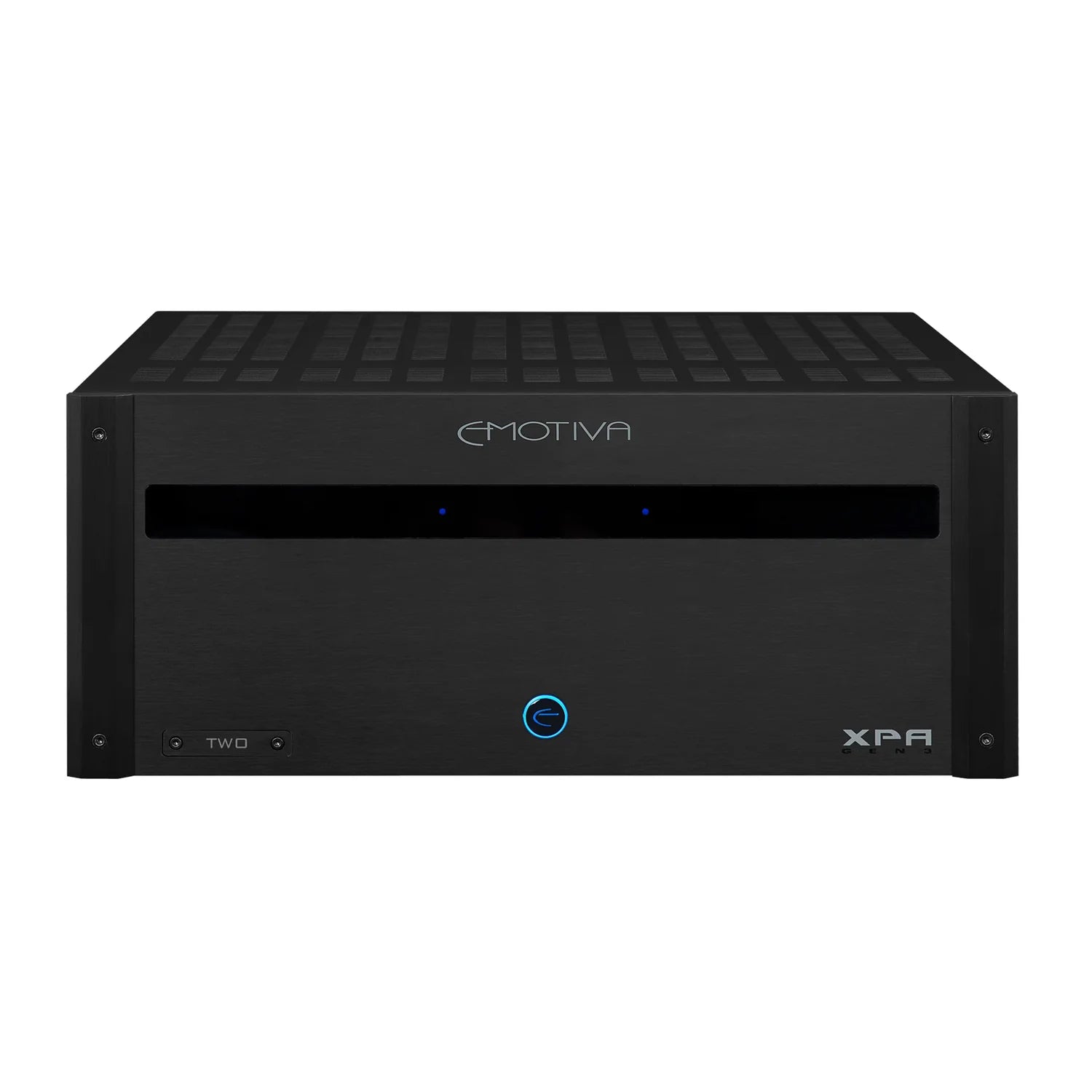

Built with top-tier components and craftsmanship, the XPA-2 Gen3 is designed for years of reliable, trouble-free service. It’s housed in a heavy-duty steel 4RU chassis with a milled aluminum faceplate, balancing rugged strength with sleek aesthetics. The amplifier features solid machined gold-plated RCA input connectors for dependable connections to a variety of audio sources. Its fully modular architecture allows you to add more channels as needed, making it a flexible investment. The unit is proudly designed, assembled, and tested in the USA at Emotiva’s facility in Franklin, Tennessee.

Flexible Signal Connections and Power Options

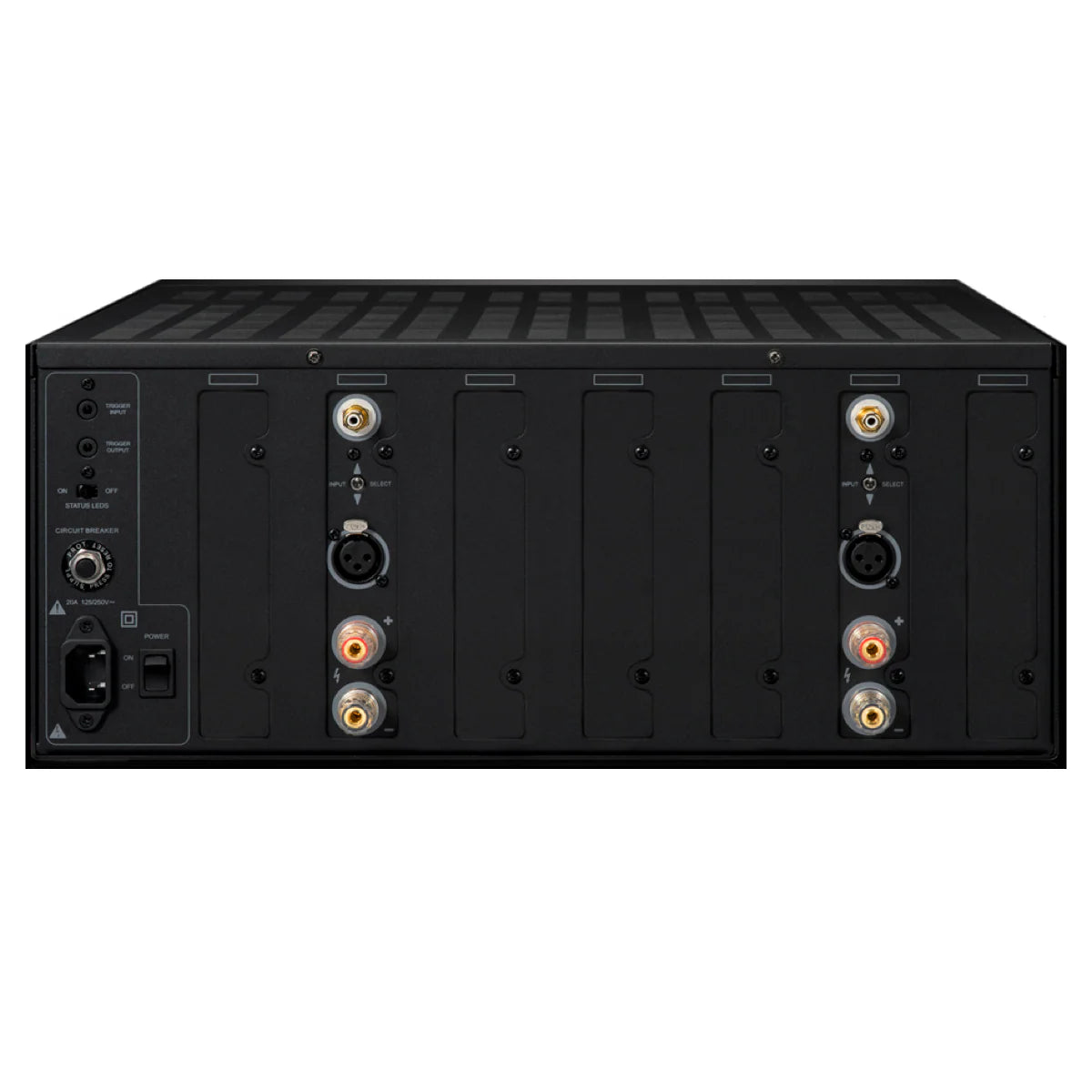

The amplifier offers gold-plated five-way speaker binding posts with clear shields, compatible with bare wires, lugs, or banana plugs. Each channel provides the choice of balanced or unbalanced inputs, independently selectable via durable metal toggle switches. Remote trigger input and output connections allow seamless control integration with other trigger-enabled equipment. The XPA-2 Gen3 supports worldwide AC line voltages from 100 VAC to 250 VAC (50/60 Hz) and uses a standard IEC power inlet compatible with most audiophile power cables.

Protection

The amplifier incorporates audiophile-grade fault protection that remains transparent during normal operation while safeguarding the amplifier and connected equipment from virtually all common faults. Additionally, it features a rugged resettable rear panel push-button circuit breaker for protection against AC line faults. Backed by a full five-year warranty, the XPA-2 Gen3 is built to deliver outstanding performance and durability for years to come.

Technical Specifications
