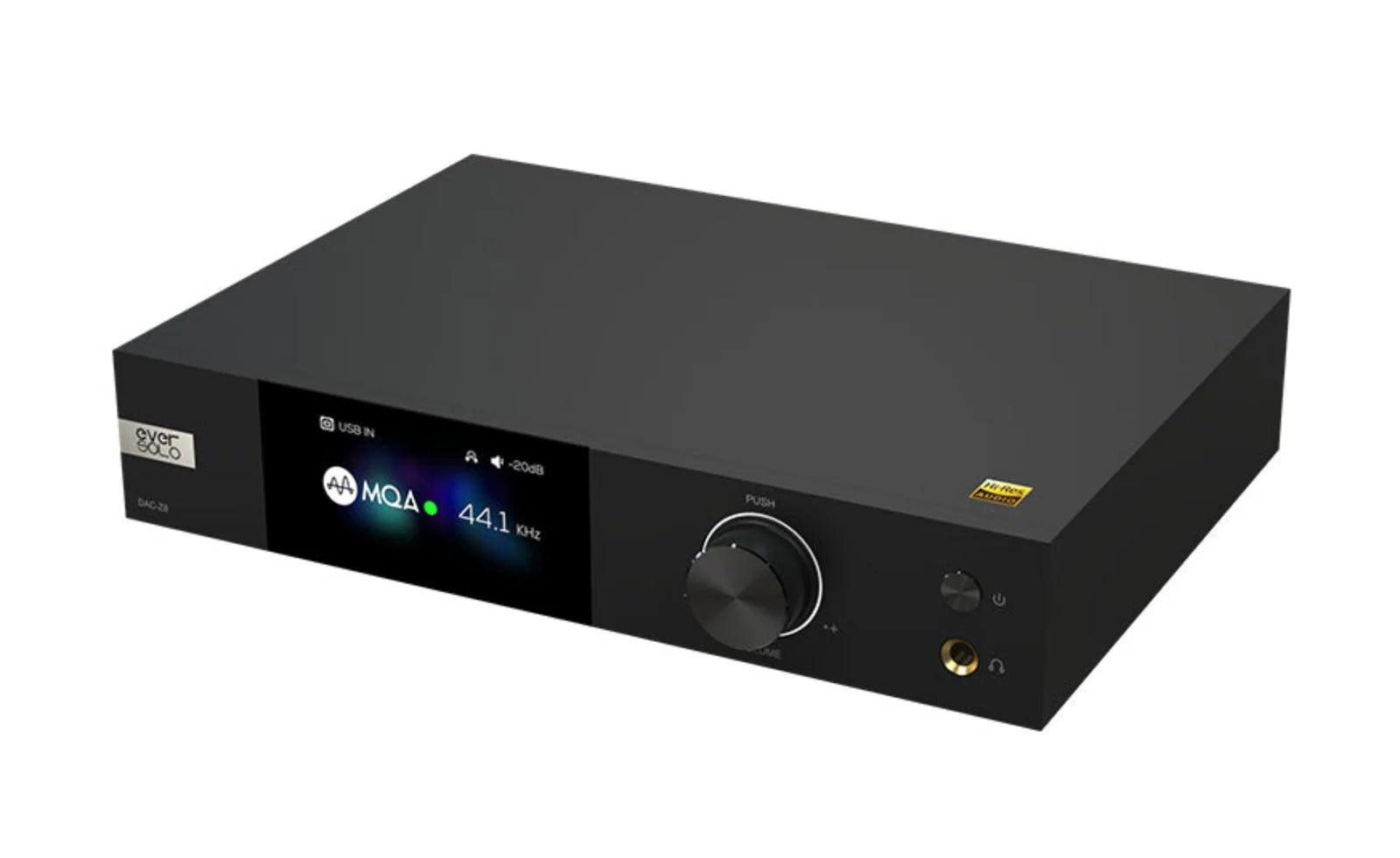

Eversolo DAC-Z8 Digital to Analog Converter

Description

The Eversolo DAC-Z8 is a high-end digital-to-analog converter designed for audiophiles who demand superior sound quality. Powered by the ESS Sabre flagship ES9038Pro 32-bit D/A converter chip and the 3rd generation XMOS XU316 processor, this DAC delivers exceptional performance with high precision and low jitter. It supports up to DSD512 Native and PCM768KHz@32Bit decoding, ensuring pristine audio reproduction.

With features like the OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology, and fully balanced audio architecture, the DAC-Z8 provides a pure and immersive listening experience. It also includes MQA full decoding and rendering via Optical, Coaxial, and USB inputs, along with Qualcomm QCC5125 Bluetooth 5.0 for wireless convenience.

A high-performance headphone amplifier capable of driving 16-300 ohm headphones, a 3-inch LCD screen with diverse VU meter modes, and a low ripple power supply add to its versatility and reliability. The exclusive mobile phone controller app allows for global control, making the Eversolo DAC-Z8 an ideal choice for any audio setup.

High-Performance ESS ES9038Pro DAC

At the heart of the Eversolo DAC-Z8 lies the ESS Sabre flagship ES9038Pro 32-bit DAC, widely regarded as an industry benchmark for high-fidelity digital-to-analog conversion. Renowned for its ultra-low noise floor and extremely low total harmonic distortion, this DAC delivers a transparent, detailed, and natural sound signature. It allows listeners to experience music exactly as the artist intended, with exceptional clarity, depth, and realism across all genres.

Advanced XMOS XU316 USB Audio Processing

The DAC-Z8 integrates the 3rd generation XMOS XU316 USB audio processor, offering significantly higher processing speed and bandwidth. This advanced USB interface ensures stable, lossless transmission of high-resolution audio data, supporting formats up to DSD512 Native, PCM 768kHz/32-bit, and full MQA decoding. The result is precise timing, improved signal integrity, and uncompromised digital audio performance.

High-Precision Dual Clock Oscillators

To achieve accurate audio decoding, the DAC-Z8 employs two ultra-low jitter clock oscillators operating at 45.1584MHz and 49.152MHz. These clocks correspond precisely to 44.1kHz and 48kHz sampling families, enabling synchronous processing and reducing timing errors. This refined clock architecture ensures superior accuracy, cleaner transients, and enhanced musical detail.

Professional Calibration and Reference-Grade Performance

Developed with extensive expertise in analog circuit design, the DAC-Z8 undergoes professional calibration to achieve outstanding audio measurements. It delivers an ultra-low total harmonic distortion of -124dB (0.000062%), along with an impressive signal-to-noise ratio and dynamic range of 133dB. These industry-leading specifications form a solid foundation for its remarkably clean, dynamic, and natural sound reproduction.

Shunt Compensation with 8 OPA1612 I/V Circuit

The DAC-Z8 features an advanced I/V conversion stage built around eight high-performance OPA1612 operational amplifiers. Using multi-channel shunt compensation technology, each amplifier handles precise signal conversion before being combined into parallel outputs. This sophisticated design enhances channel separation, improves dynamic range, and preserves signal integrity across XLR, RCA, and headphone outputs without any loss of detail.

Fully Balanced Differential Amplifier Architecture

The analog audio section of the DAC-Z8 is designed with a fully balanced differential amplifier circuit. All outputs, including XLR, RCA, and the headphone stage, benefit from this balanced topology, which effectively eliminates crosstalk and shared-loop noise. This design ensures superior channel separation, refined volume control, and high-fidelity preamp performance without the need for an external preamplifier.

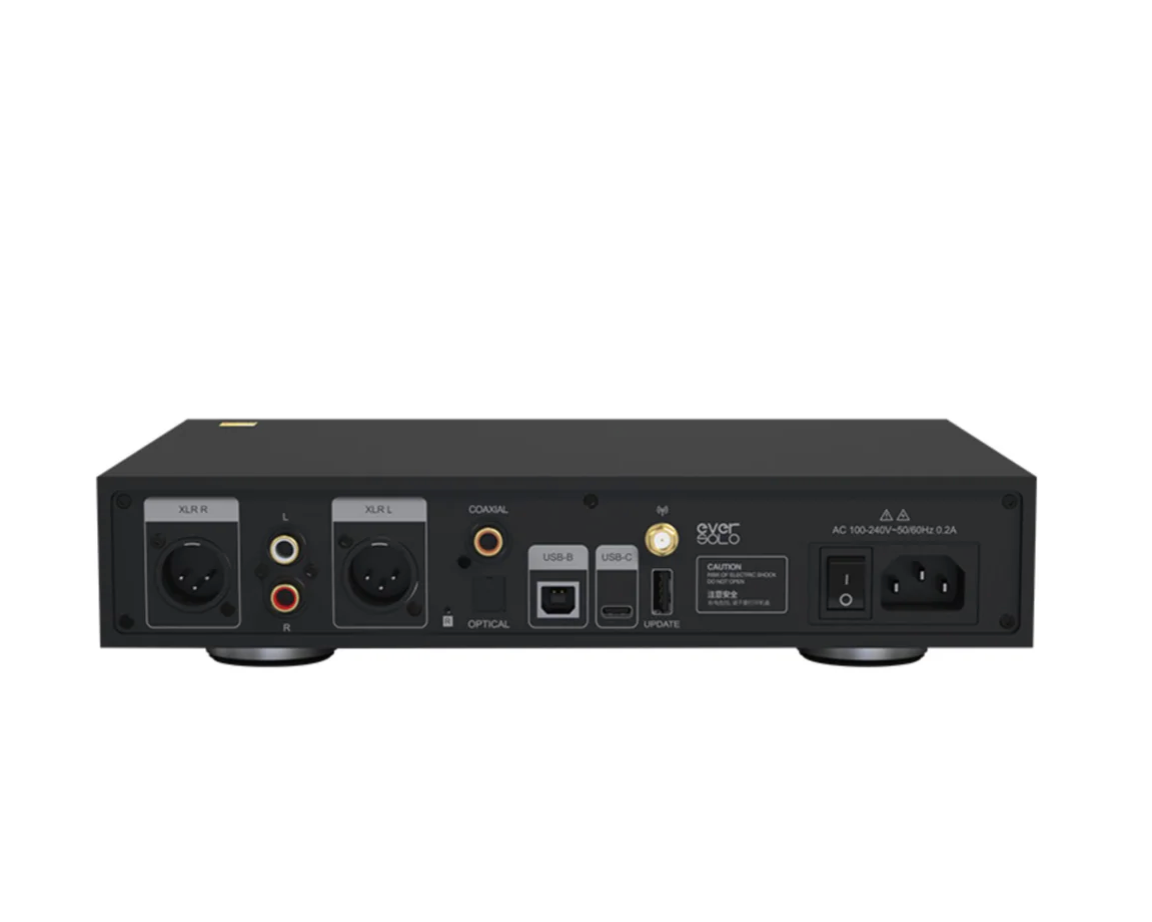

Separate RCA and XLR Output Design

To further reduce signal interference, the DAC-Z8 employs independent output paths for RCA and XLR connections. This separation enhances audio performance and measurement accuracy, ensuring cleaner output signals. Users can still enable simultaneous RCA and XLR output through manual settings when system flexibility is required.

Monitor-Level Headphone Amplifier

Equipped with a professional-grade headphone amplifier, the DAC-Z8 delivers powerful and controlled output capable of driving headphones ranging from 16 to 300 ohms. With selectable high and low gain modes, it adapts effortlessly to both sensitive in-ear monitors and demanding high-impedance headphones, offering detailed, dynamic, and distortion-free headphone listening.

MQA Full Decoding and Rendering

The DAC-Z8 supports full MQA (Master Quality Authenticated) decoding and rendering across USB, optical, and coaxial inputs. This allows listeners to enjoy studio-quality playback from MQA-enabled files and streaming services, faithfully reproducing the sound of the original master recording.

Qualcomm QCC5125 Bluetooth 5.0 Module

For high-quality wireless playback, the DAC-Z8 incorporates the Qualcomm QCC5125 Bluetooth 5.0 module. It supports SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, delivering near-CD-quality sound over Bluetooth. This enables convenient, high-fidelity streaming from smartphones, tablets, and computers.

Abundant Digital Filter Options

The DAC-Z8 provides extensive sound customization with seven PCM digital filters and four DSD filter modes. These filters allow users to tailor the sound signature according to personal preference, whether prioritizing smoothness, detail, or dynamic impact across different music styles.

Low Ripple Power Supply Design

A low-noise regulated power supply with dedicated audio-grade filter capacitors ensures clean and stable power delivery to the DAC-Z8’s circuitry. By minimizing ripple and electrical interference, this power design contributes to a purer background, enhanced micro-detail, and improved overall sonic clarity.

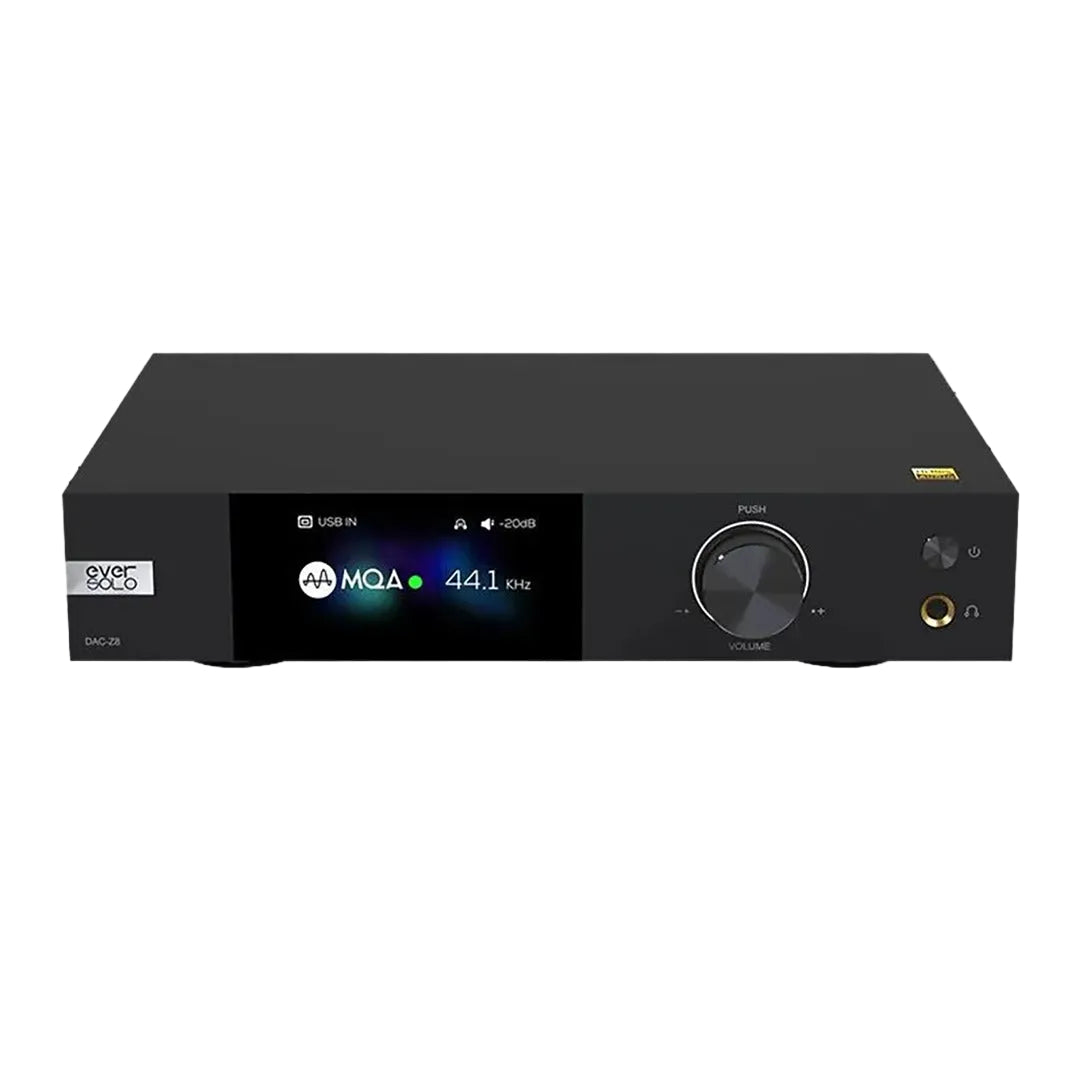

Colorful and Practical User Interface

The front-panel 3-inch LCD screen presents a vibrant and intuitive user interface, displaying input selection, system settings, audio information, and multiple VU meter styles. With customizable visual modes and a clean layout, it offers both functional clarity and visual appeal.

Exclusive Mobile Controller App

The DAC-Z8 can be fully controlled using the Eversolo Controller mobile app via Bluetooth. Almost all system settings, including input selection, filters, and output options, can be managed remotely, offering effortless and flexible system control.

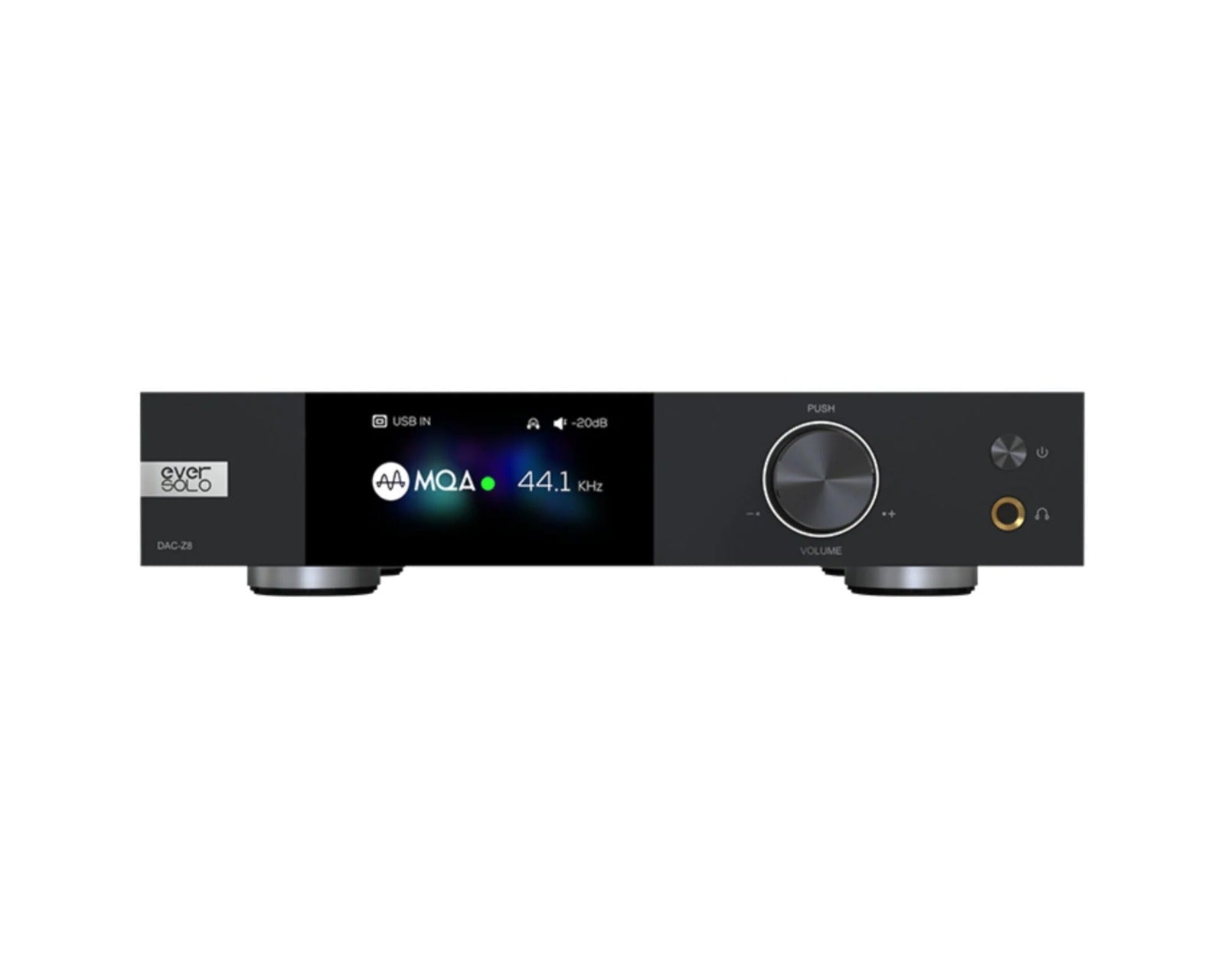

Multifunctional Control Knob

A precision multifunction knob on the front panel allows seamless control of volume, input switching, output selection, filter modes, VU meter styles, language settings, and firmware updates. Enhanced with ambient lighting, it combines tactile precision with a modern, high-tech aesthetic.

Precision-Crafted Aluminum Chassis

The DAC-Z8 is housed in a CNC-machined aviation-grade aluminum chassis, offering excellent structural rigidity and effective shielding from external interference. Its refined industrial design blends durability, elegance, and modern aesthetics, making it a perfect match for premium audio systems.
