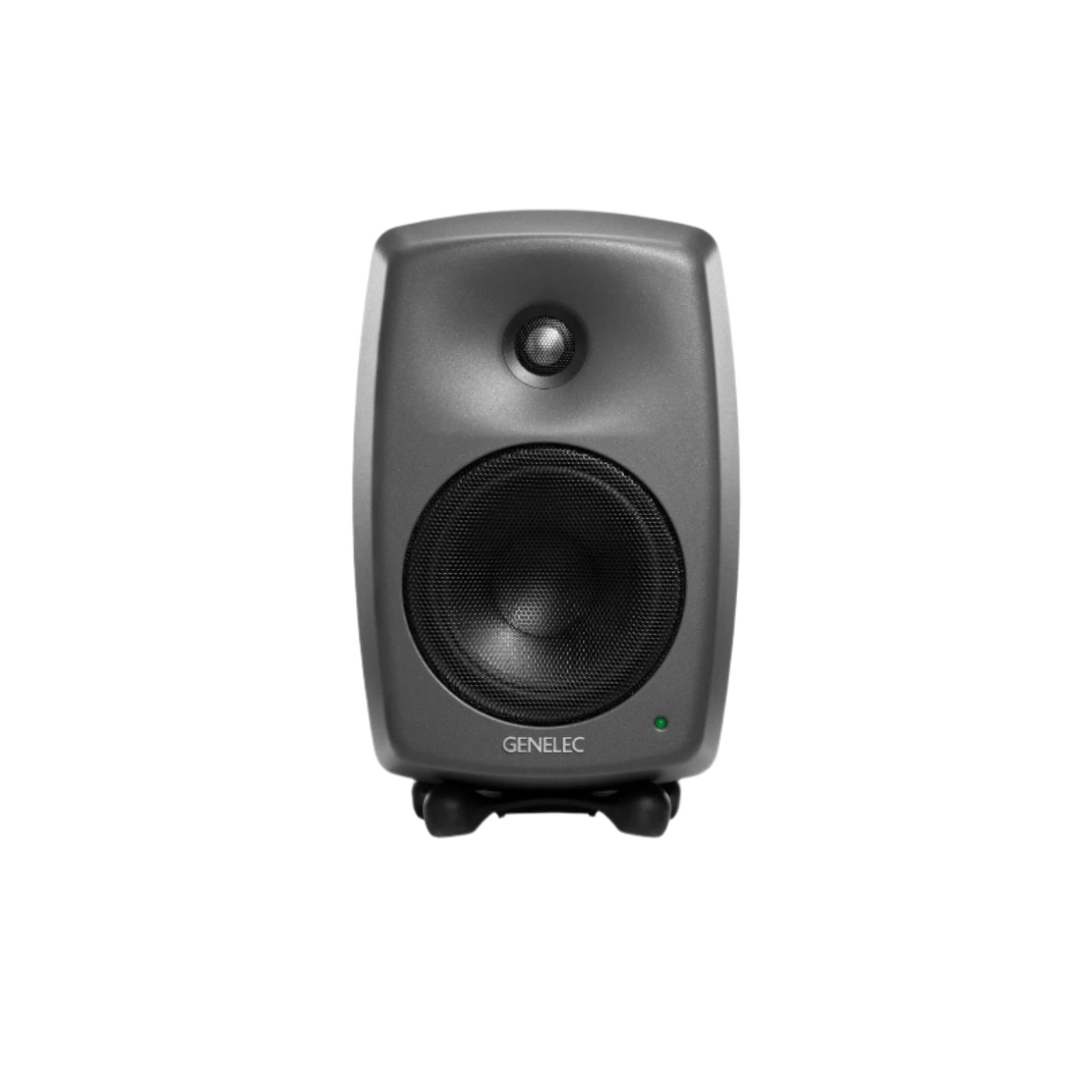

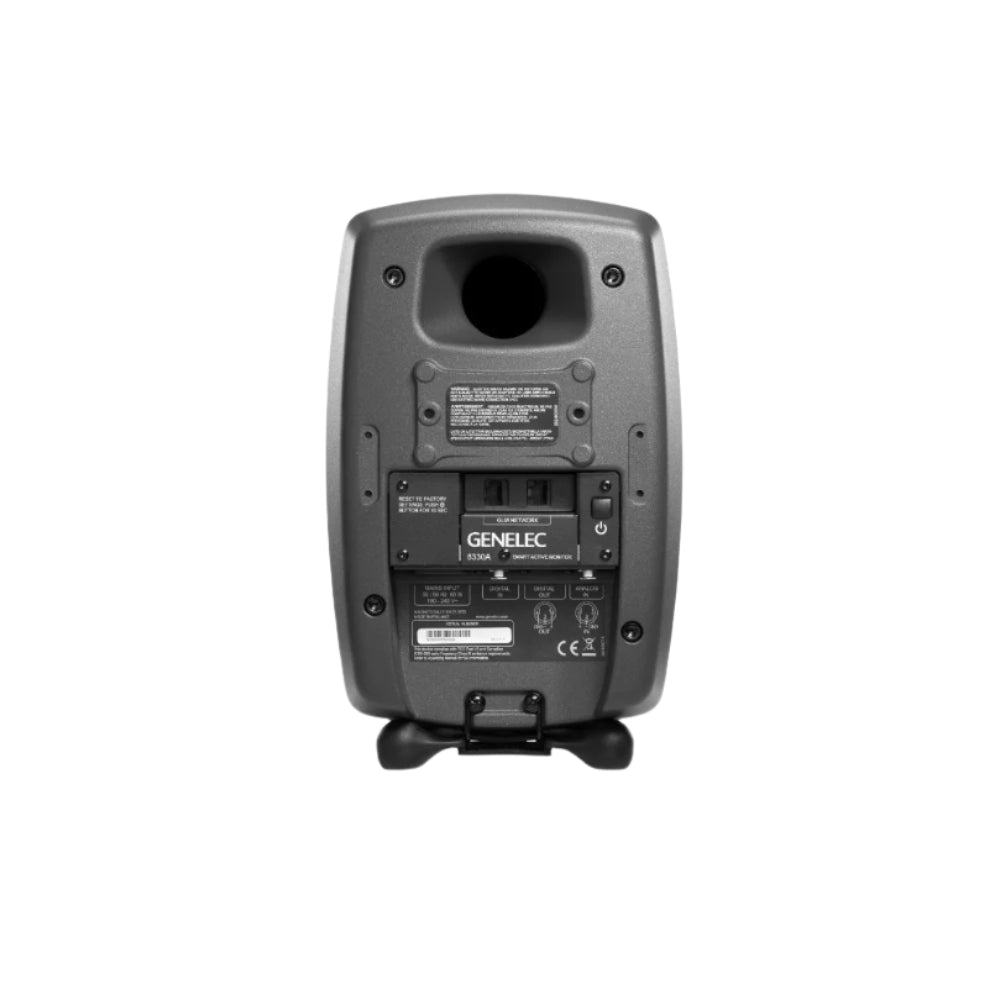

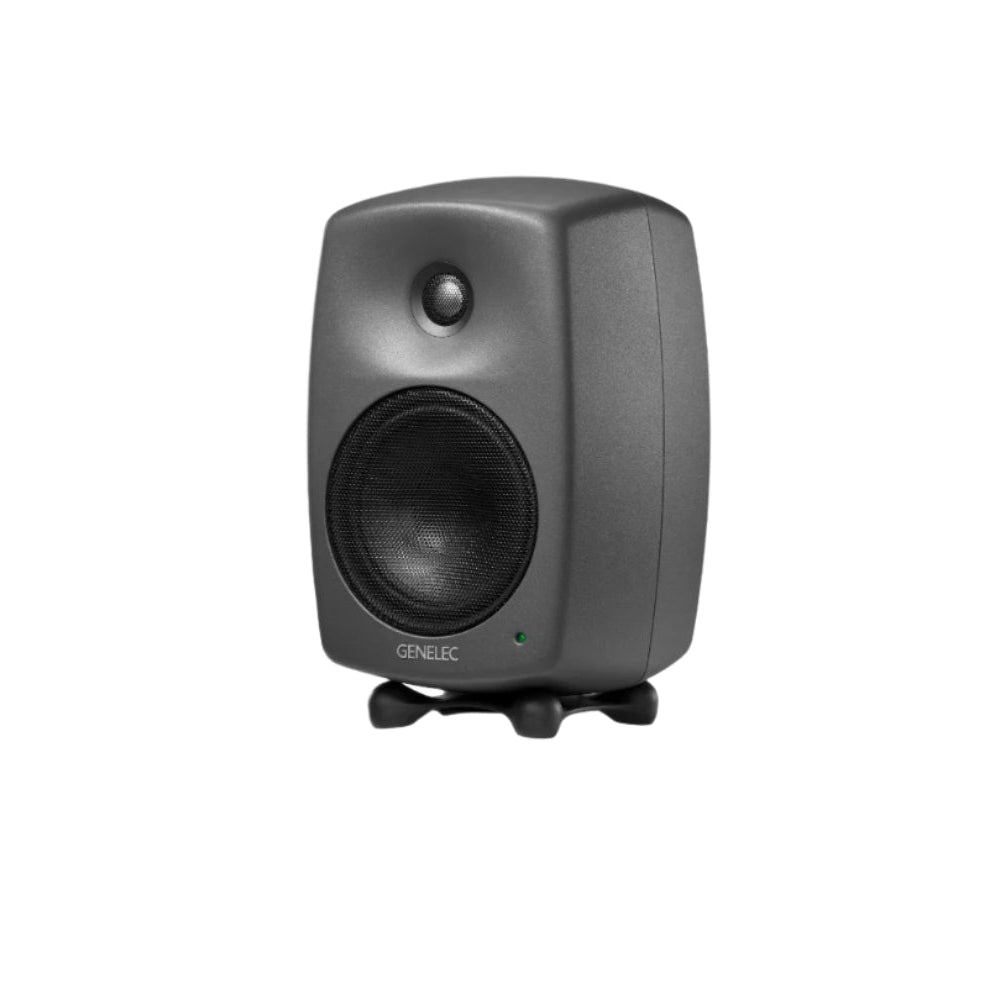

Combining precision, adaptability and a small footprint, the 8330A offers colour-free performance and powerful room compensation features.
The professional’s choice
The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A’s wide uncoloured sweet spot means you are always in a position to make accurate, reliable mix decisions.
Truly optimised monitoring
As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8330A is your compact but clever monitoring companion.
Technical Specifications
Frequency Response
Spec
Details
Flat Range (±1.5 dB)
58 Hz – 20 kHz
Low Cutoff (–6 dB)
45 Hz
High Cutoff (–6 dB)
23 kHz
SPL (Sound Pressure Level)
Spec
Details
Peak SPL (per pair)
≥110 dB (1 m, with music material)
Short-Term Max SPL
≥104 dB (100 Hz – 3 kHz, sine wave, 1 m)
Long-Term Max SPL
≥96 dB (RMS, IEC weighted noise, with protection, 1 m)
Self-Generated Noise
≤5 dB SPL (A-weighted, free field, on axis)
Dimensions & Weight
Spec
Details
Height
285 mm (11 1/4 in)
Height with Iso-Pod
299 mm (11 3/4 in)
Width
189 mm (7 1/2 in)
Depth
178 mm (7 in)
Weight
5.1 kg (11.2 lb)
Enclosure
Spec
Details
Material
Die-cast aluminium
Type
Reflex port
Drivers
Spec
Details
Bass Driver
130 mm (5 1/8 in) cone
Treble Driver
19 mm (3/4 in) metal dome
Directivity
Vertical and Horizontal (not numerically specified)
Harmonic Distortion
50–100 Hz ≤2%, >100 Hz ≤0.5%
Group Delay
2.9 ms (Extended Phase Linearity OFF)
Amplifier Section
Spec
Details
Bass Amplifier
50 W (Class D)
Treble Amplifier
50 W (Class D)
Power Consumption
Mode
Consumption
ISS Active
≤0.5 W
Idle
≤3 W
Full Output
50 W
Signal Processing & I/O
Spec
Details
Inputs
1 × XLR female (analog, balanced 10 kΩ)
Additional Input
1 × XLR female IN
Output
1 × XLR male OUT
Control Ports
2 × RJ45 (CAT5) GLM network connectors
