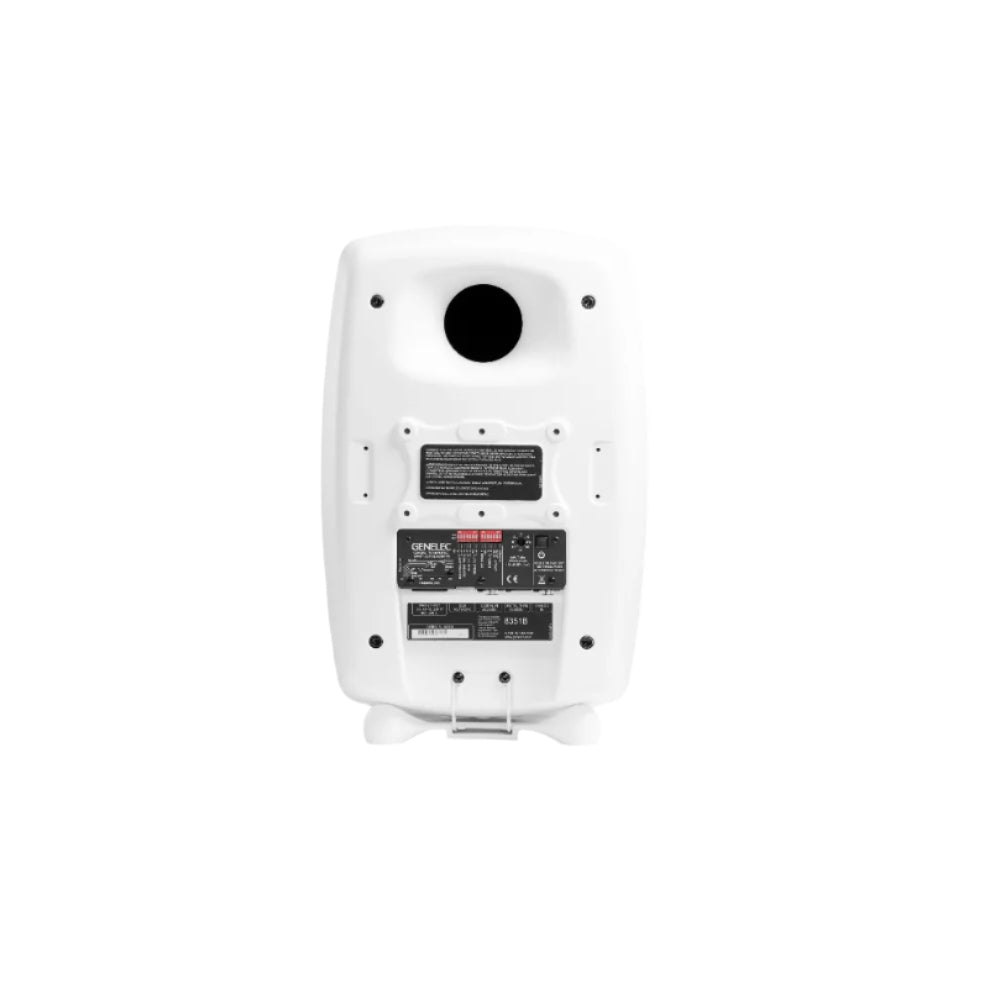

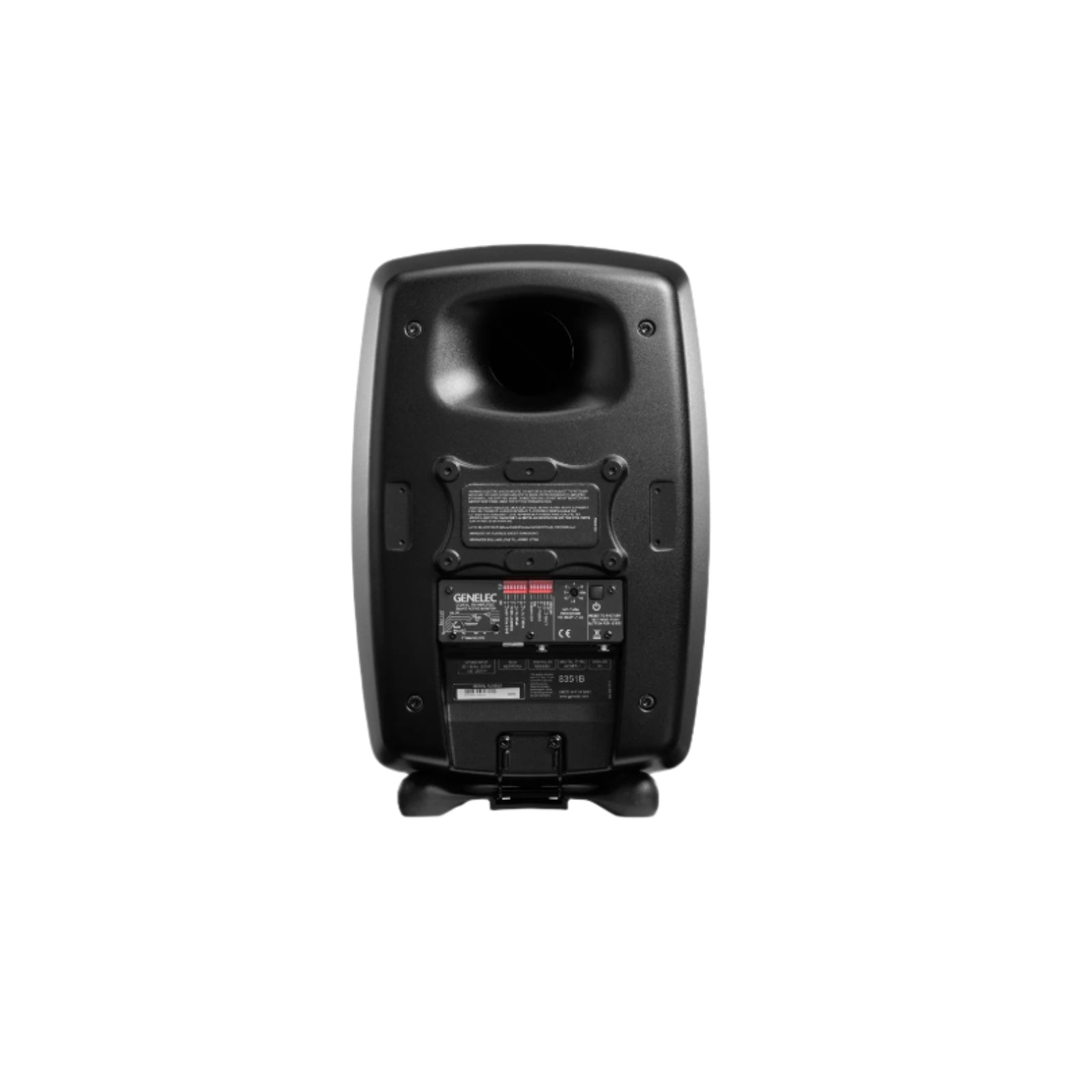

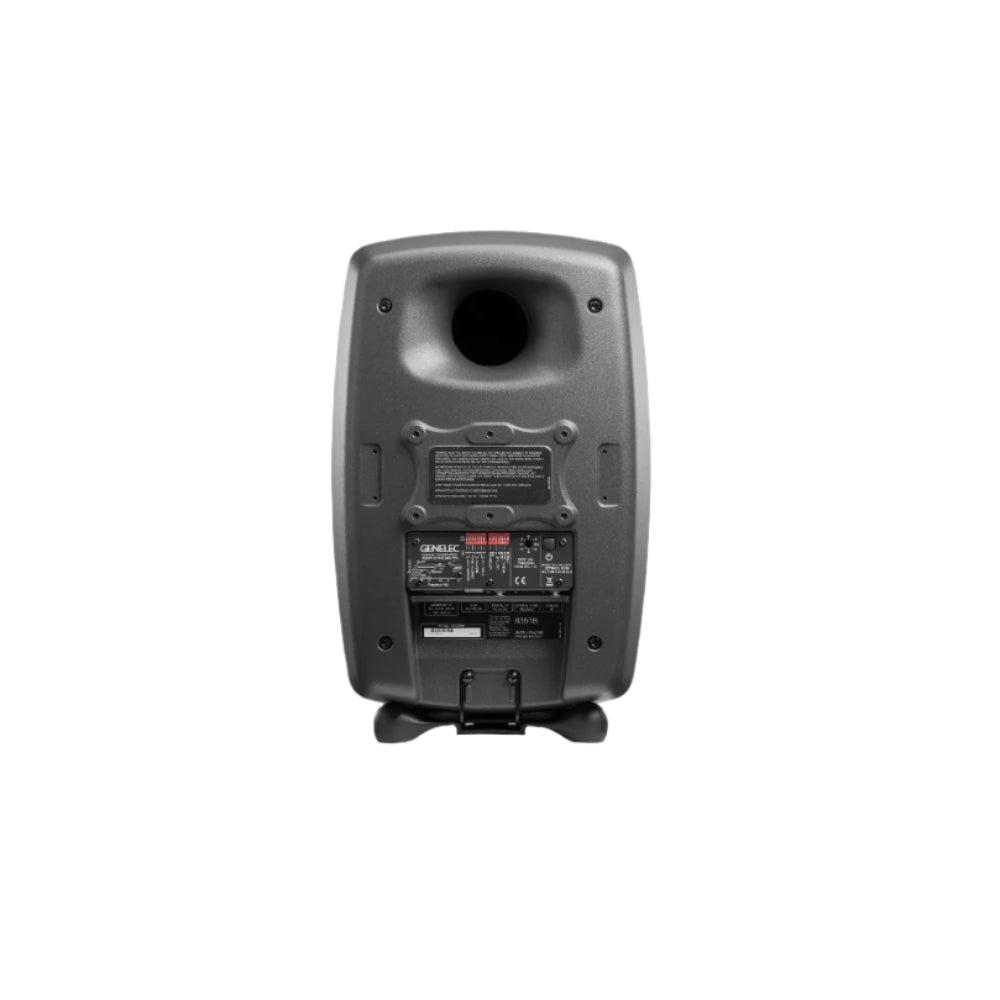

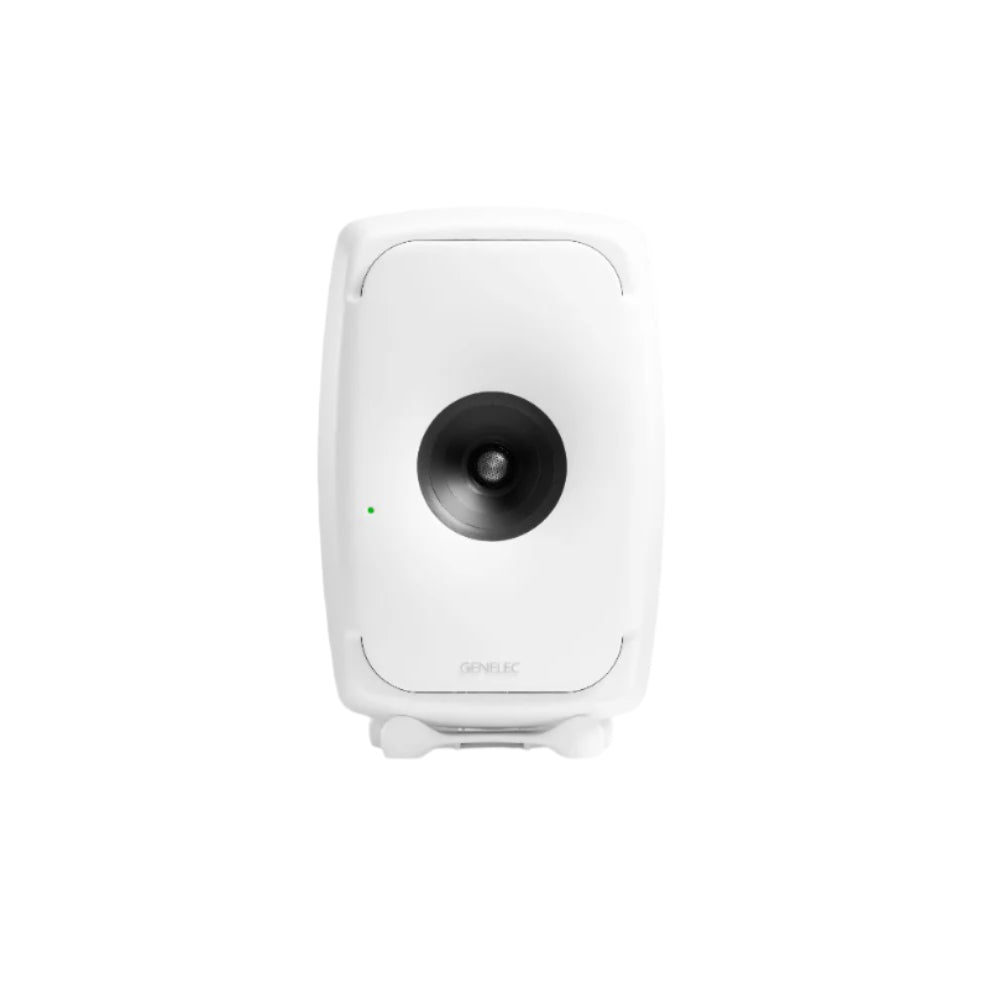

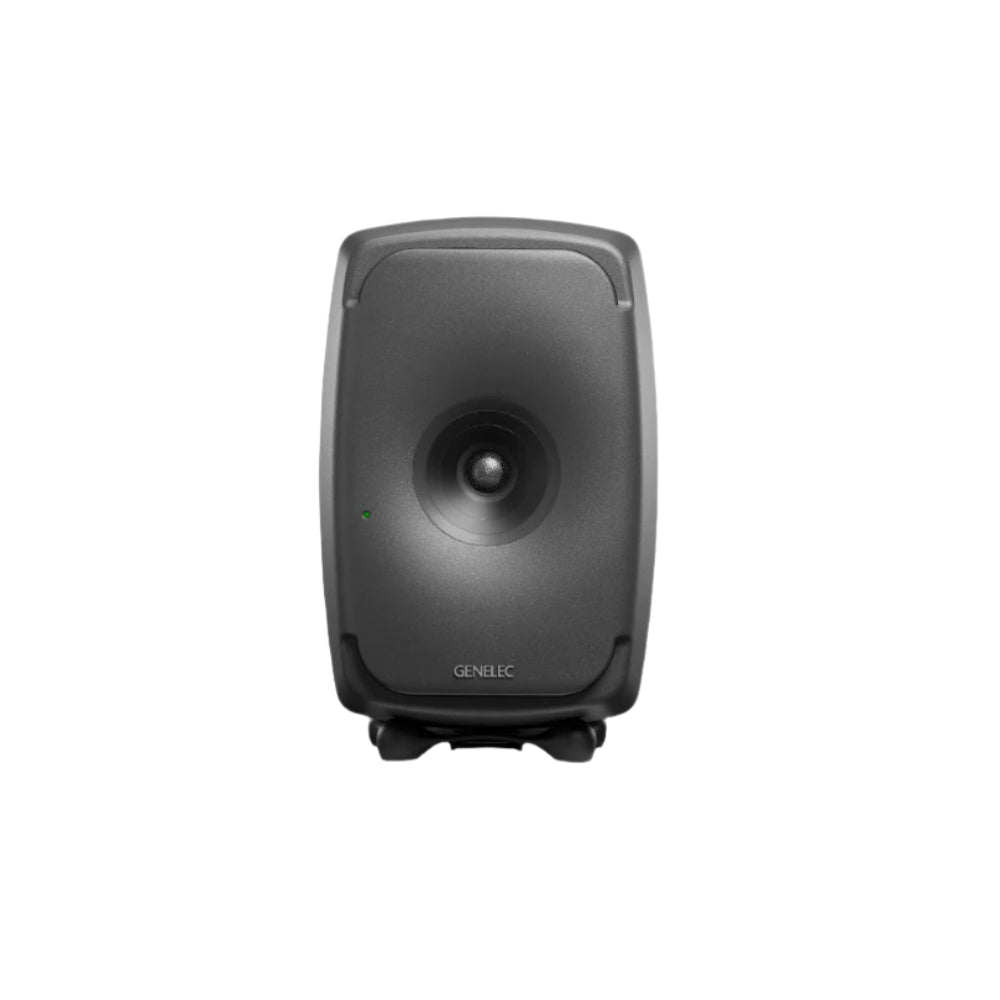

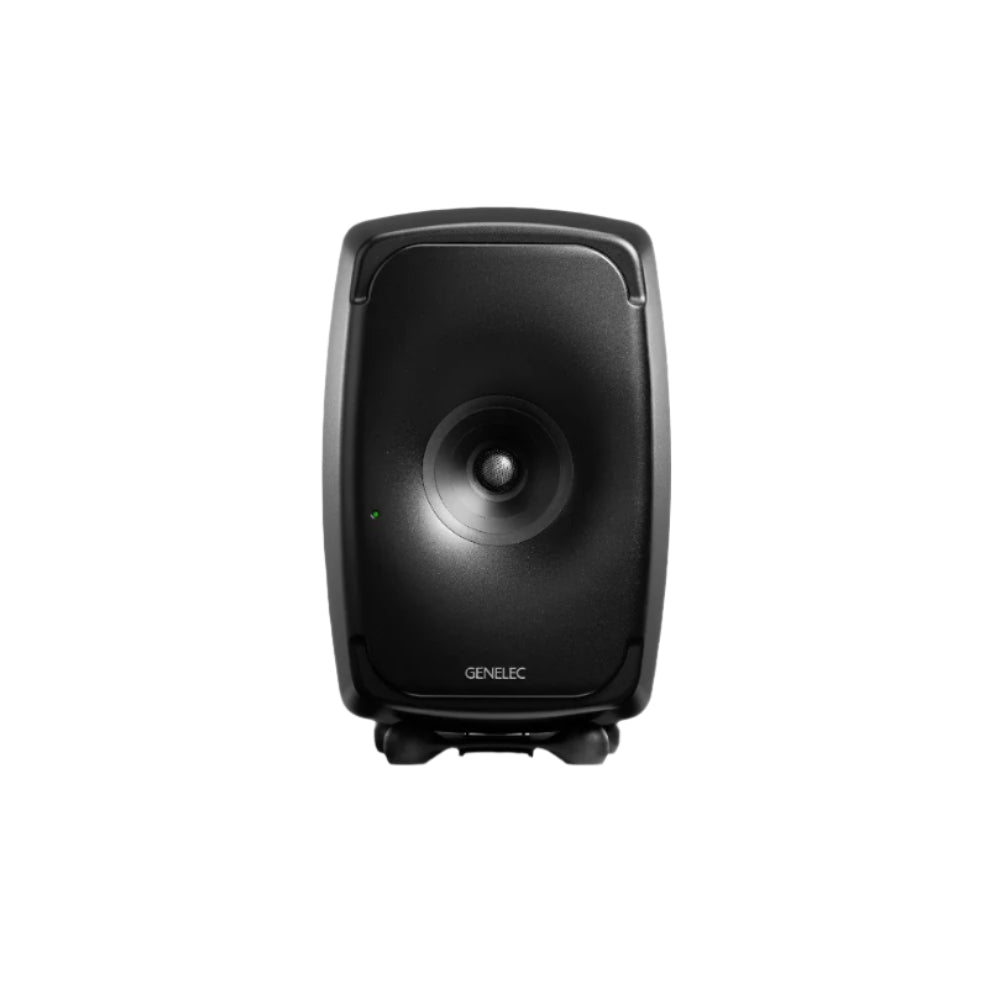

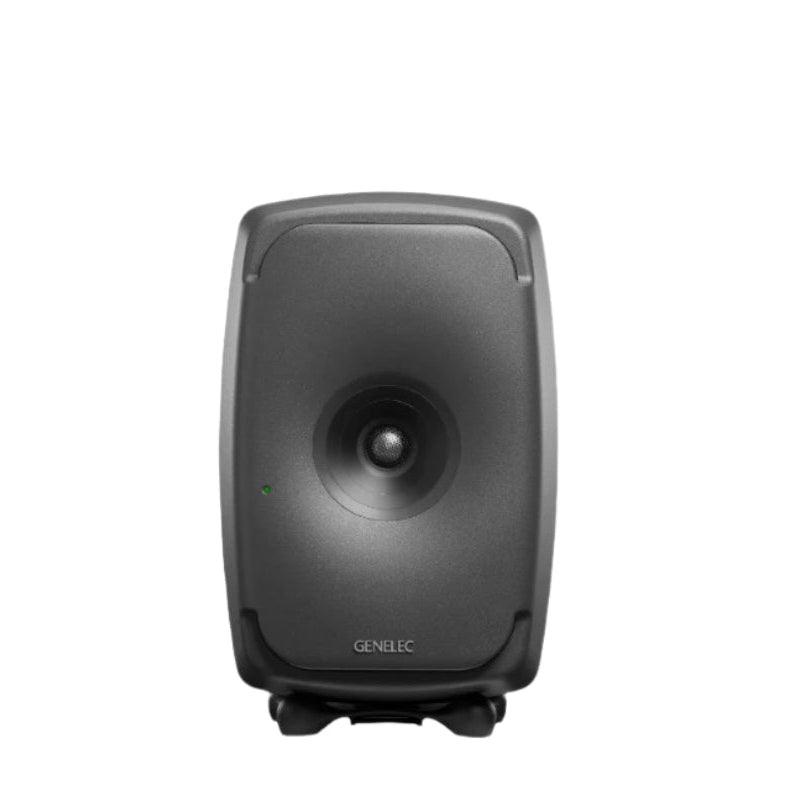

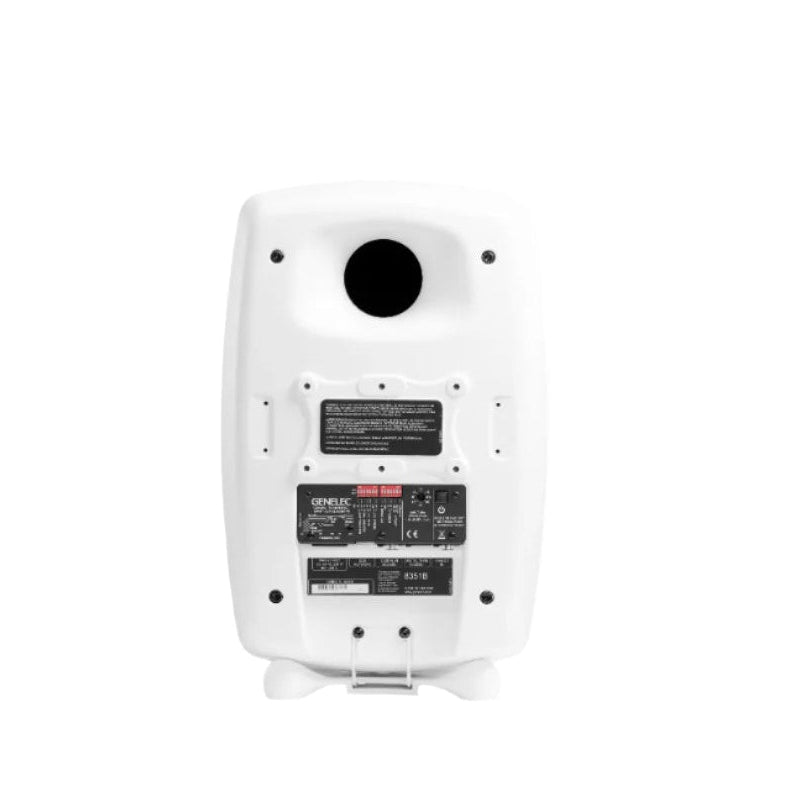

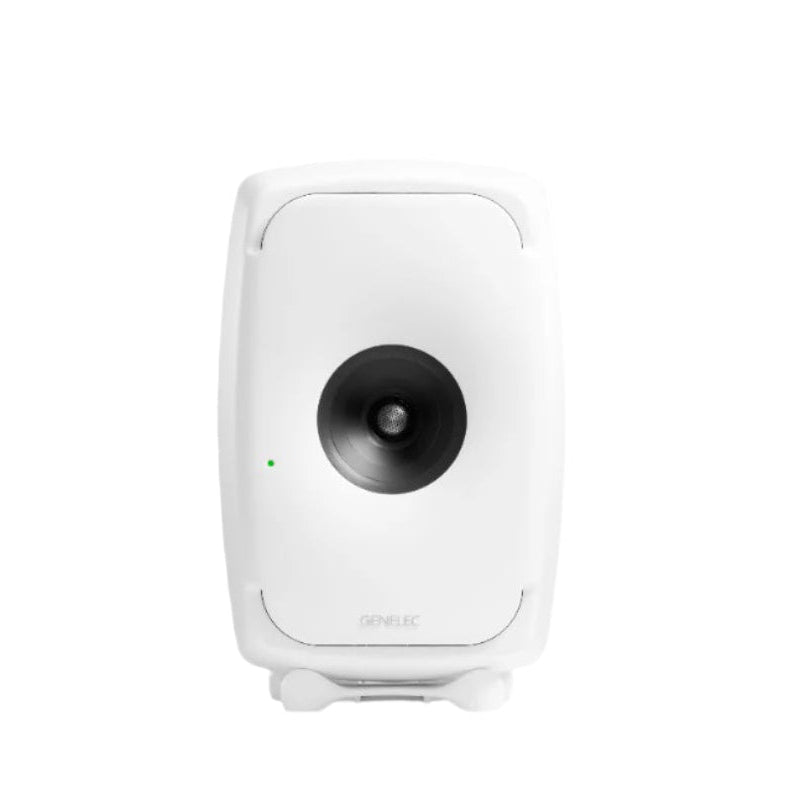

A revolution in three-way monitor design, the 8351B boasts a unique look, compact size and a performance that has to be heard to be believed.
Uncoloured precision
The upgraded 8351B now offers increased SPL, additional room compensation EQs, equalised delay and enhanced HF response. Offering the same extraordinary imaging and uncoloured precision of its smaller 8331A and 8341A siblings, the 8351B provides even greater LF extension, while its higher maximum SPL enables longer listening distances.
Work faster, for longer
The 8351B promotes faster and more consistent decision making, but also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And in conjunction with our GLM software, it will adapt to your space and compensate for detrimental room influences. From mono to immersive, you can be confident of producing mixes that will translate beautifully to other rooms and systems.
Technical Specifications
Frequency Response
Spec
Value
Frequency Response
38 Hz – 20 kHz (±1.5 dB)
Low Cutoff (-6 dB)
32 Hz
High Cutoff (-6 dB)
43 kHz
Sound Pressure Level (SPL)
Spec
Value
Peak SPL
≥118 dB (per pair, on console, 1 m, music material)
Short-Term Max SPL
≥113 dB (1 m on axis, 100 Hz – 3 kHz, sine wave)
Long-Term Max SPL
≥103 dB (1 m, IEC weighted noise, driver protection limited)
Self-Generated Noise
≤5 dB SPL (A-weighted, 1 m in free field)
Dimensions & Weight
Spec
Value
Height (w/o Iso-Pod)
433 mm (17 in)
Height (with Iso-Pod)
454 mm (17 7/8 in)
Width
287 mm (11 1/4 in)
Depth
278 mm (11 in)
Weight
14.3 kg (31.5 lb)
Enclosure
Spec
Details
Material
Die-cast aluminium
Type
Reflex port
Drivers
Driver Type
Details
Bass
Racetrack – Dual 218 × 101 mm (8 5/8 × 4 in obround cones)
Midrange
Coaxial – 130 mm (5 1/8 in) cone
Treble
Coaxial – 25 mm (1 in) metal dome
Directivity & Distortion
Spec
Value
Directivity
Vertical and horizontal (specific values not listed)
Harmonic Distortion
50–100 Hz: ≤2% >100 Hz: ≤0.5%
Group Delay
Mode
Delay
GLM OFF
3.1 ms
GLM ON
7.5 ms
Amplification
Driver
Power Output
Amplifier Type
Bass
250 W
Class D
Midrange
150 W
Class D
Treble
150 W
Class D
Power Requirements
Spec
Value
Mains Voltage
100–240 VAC, 50/60 Hz
Power Consumption (ISS)
≤1 W
Idle
≤16 W
Full Output
200 W
Signal Processing & Connectivity
Connection
Type / Standard
Analog Input
XLR female (10 kOhm input impedance)
Digital Input
XLR female (IEC 60958-4 compliant)
Digital Output / Thru
XLR male (IEC 60958-4 compliant)
Control Ports
2 × CAT5 (RJ45) – GLM network
Crossover Frequencies
Stage
Frequency
Bass to Midrange
320 Hz
Midrange to Treble
2800 Hz
