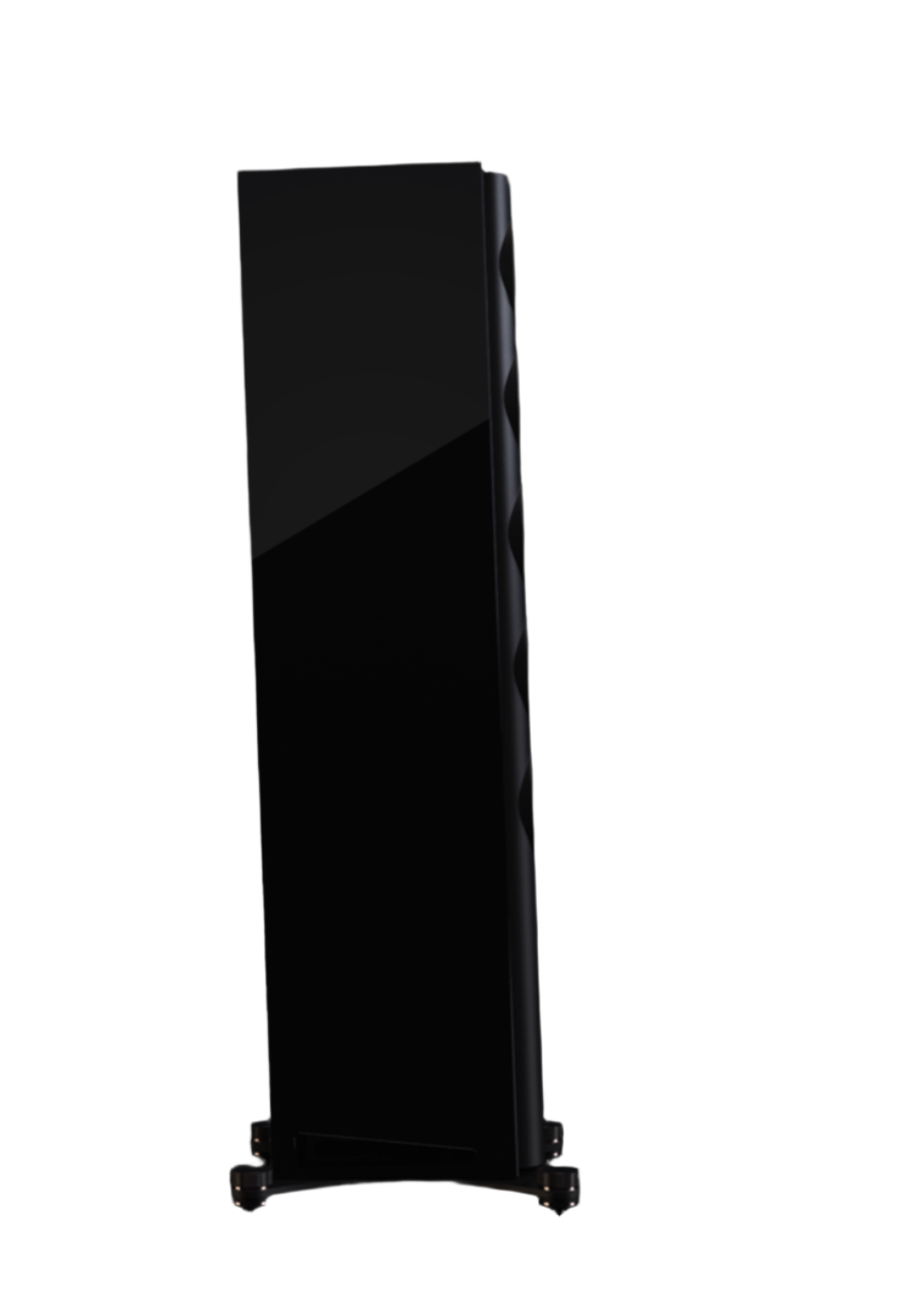

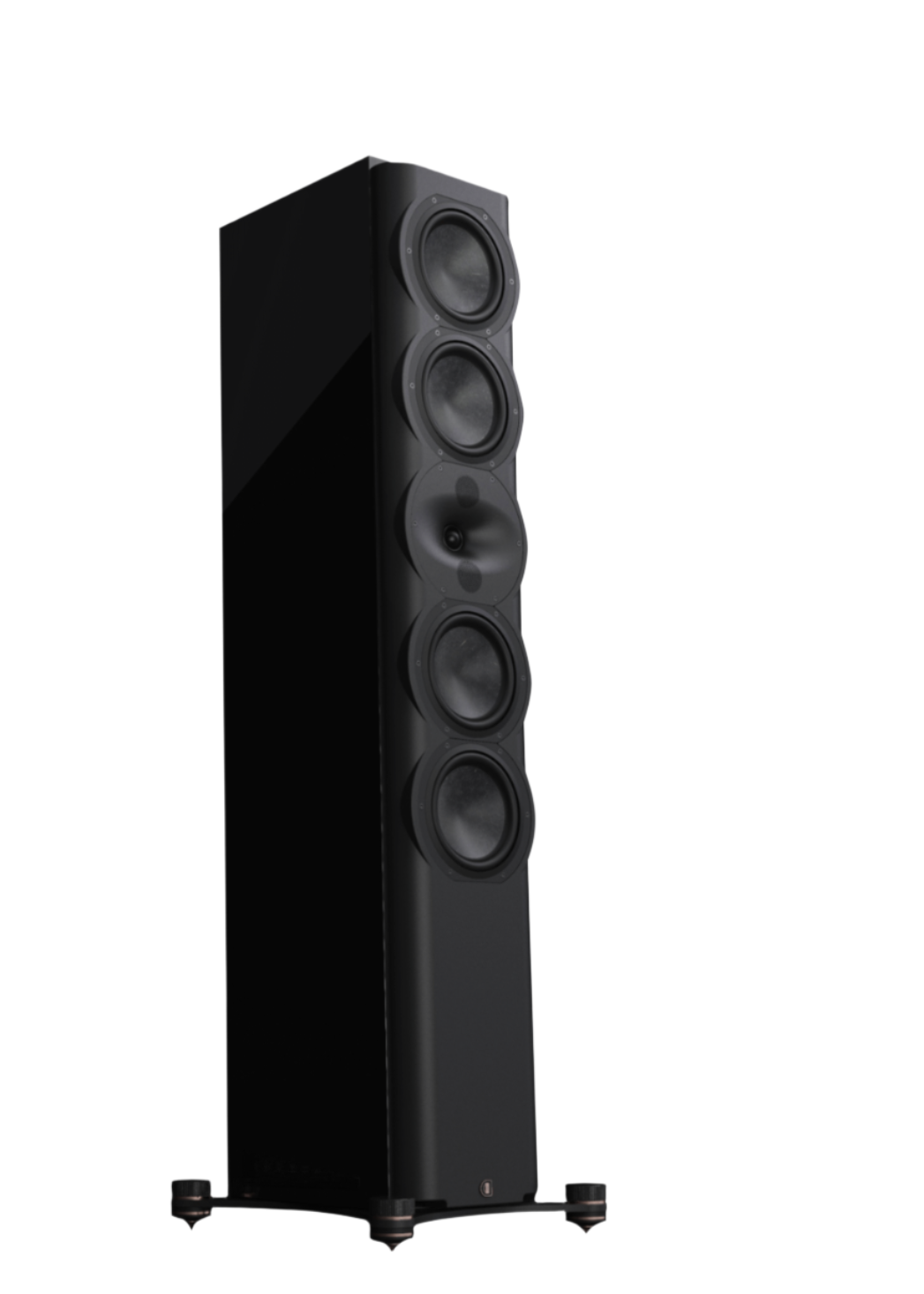

Perlisten R7t Towers

Designed as a stand alone 2ch high fidelity speaker with the versatility to be used as part of multi-channel systems. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. The R7t can be aligned as bass reflex or acoustic suspension depending on specific tastes. Rich, dynamic bass matched with advanced mid/treble directivity pattern control and silky highs offer best in class performance.

Technical Specifications

Spec.	Details
Enclosure Alignment	4-way bass reflex / acoustic suspension
Driver Compliment	DPC-array:- 26mm (3) Silk domeWoofers:- 165mm (4) HPF diaphragms
Sensitivity	90.0 dB / 2.83V / 1.0m
Impedance	4Ω nominal / 3.1Ω minimum
Response Linearity	80 – 20 kHz ±1.5 dB window
Frequency Response (-10dB)	Bass reflex: 27 – 32 kHzAcoustic suspension: 38 – 32 kHz
Typical In-Room Bass Extension	Bass reflex: 19 HzAcoustic suspension: 30 Hz
Dimensions (HxWxD)	1268 x 230 x 350 mm49.9 x 9.0 x 13.7 inches
Weight	48.0 kg / 105.6 lbs
Recommended Amplifier Power	100 – 400W RMS
SPL Capability @1m (100–20kHz)	116.0 dB peak (<3% - 2nd, 3rd Harmonics)
Certification	THX Dominus, THX Ultra
Available Finishes	Piano Black
