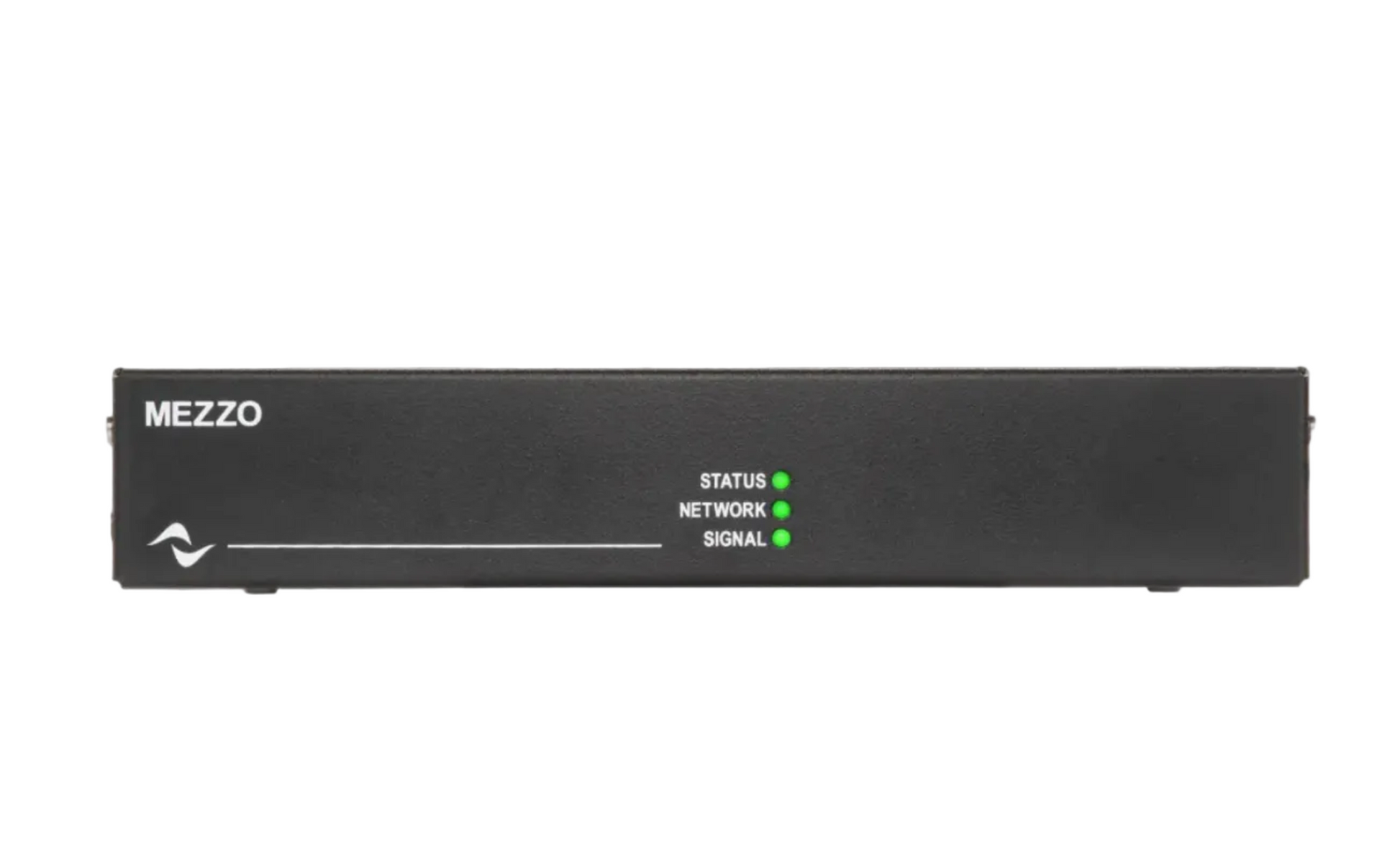

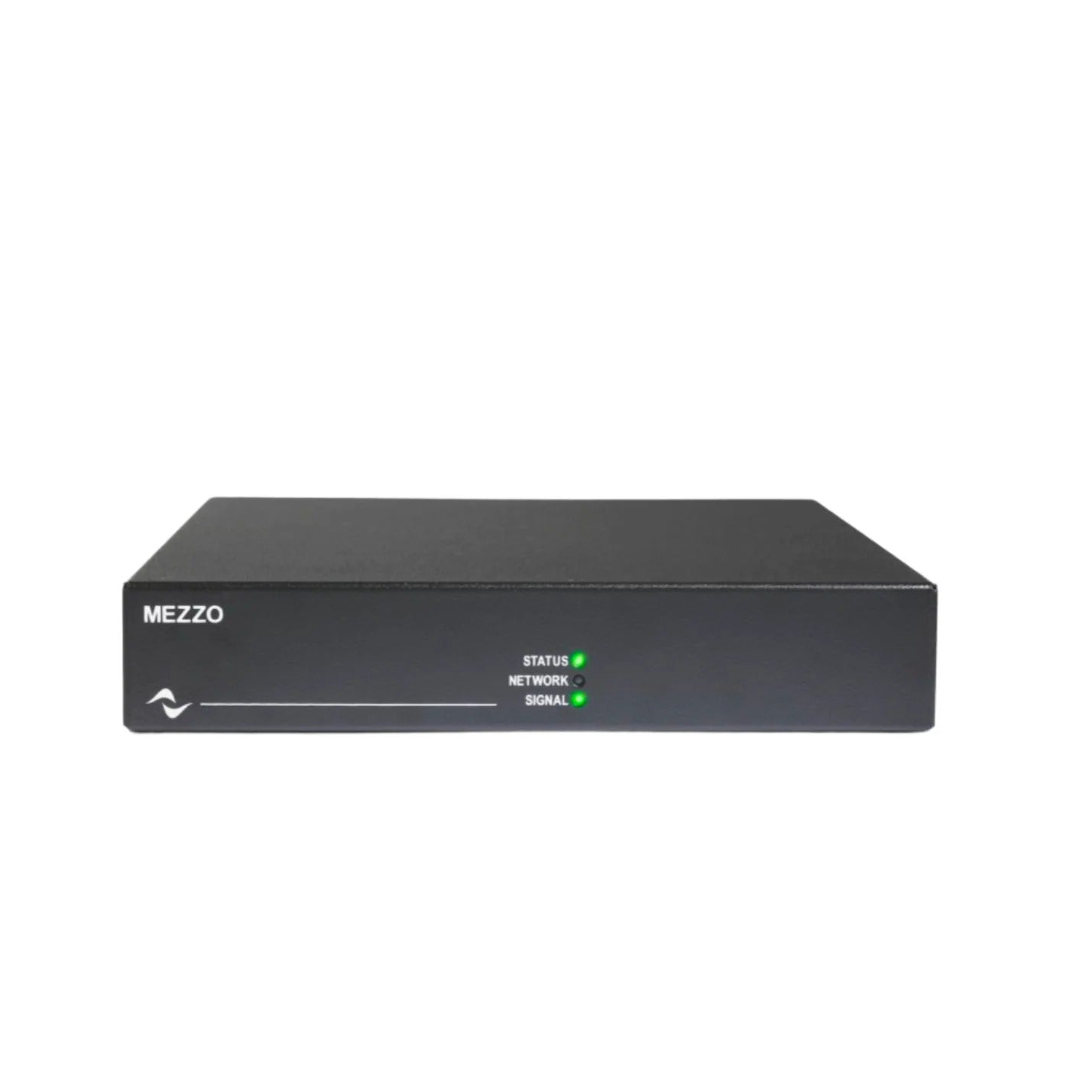

Mezzo 602 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions of Mezzo also feature 2 line-level outputs, further extending routing options.
Features
This system offers multiple mounting options, providing flexibility to install it in racks, under desks, or on walls. The auto-setup feature ensures automatic configuration, making deployment and setup quick and hassle-free. With power-sharing technology, it can dynamically distribute power across output channels as needed for optimal efficiency. Additionally, the system supports full remote control through third-party control platform
Technical Specifications
| Category | Details |
|---|---|
| Per Channel Output Power | 200 W @ 2 Ω300 W @ 4 Ω / 8 Ω |
| Maximum Power Sharing (Per Channel) | 400 W @ 4 Ω600 W @ 8 Ω |
| Maximum Unclipped Output Voltage | 142 V peak |
| Maximum Output Current | 15.6 A peak |
| Power Supply | Universal, regulated switch-mode power supply with PFC |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage Range | 90 V – 264 V |
| Power Consumption (Idle) | 12 W @ 115 V / 14 W @ 230 V |
| Current Draw (Idle) | 0.24 A @ 115 V / 0.19 A @ 230 V |
| Power Consumption (1/8 Max Output @ 4 Ω) | 126 W @ 115 V / 123 W @ 230 V |
| Current Draw (1/8 Max Output @ 4 Ω) | 1.13 A @ 115 V / 0.64 A @ 230 V |
| Thermal Dissipation (Idle) | 40 BTU/h @ 115 V / 46 BTU/h @ 230 V |
| Thermal Dissipation (1/8 Max Output @ 4 Ω) | 112 BTU/h @ 115 V / 123 BTU/h @ 230 V |
