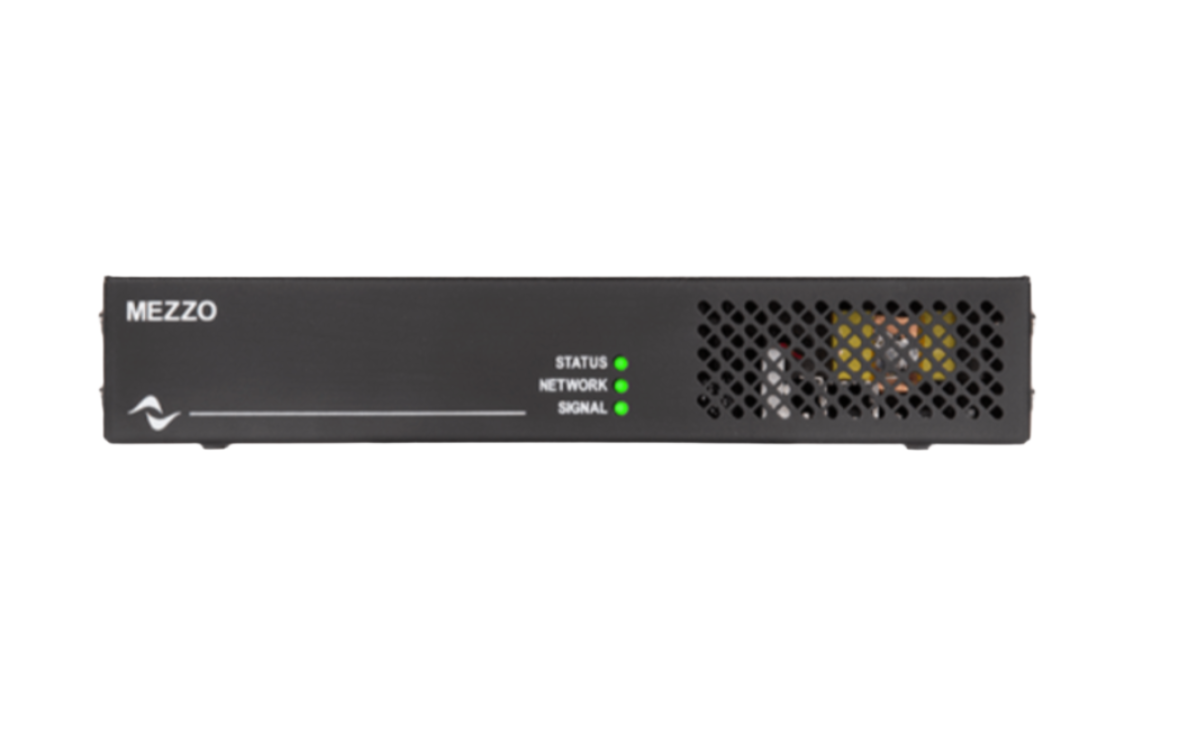

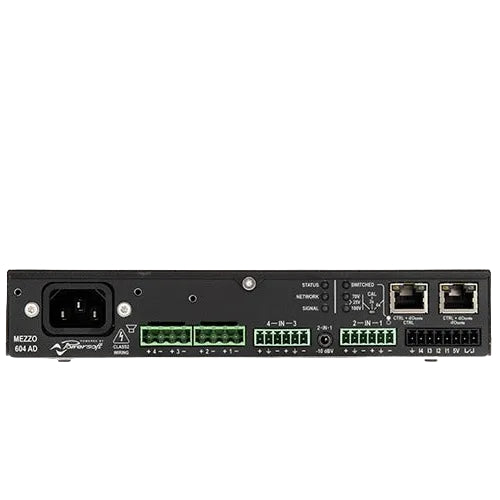

Powersoft Mezzo 604 AD 600W/ 4 Channel Compact Amplifier with DSP and Dante™
- Regular price
- Rs. 145,350.00
- Sale price
- Rs. 145,350.00
- Regular price
-
Couldn't load pickup availability
Description
Mezzo 604 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit.
Features
The Powersoft Mezzo 604 AD is engineered for compact yet high-performance installations, offering exceptional flexibility and intelligent system control. Its multiple mounting options allow seamless integration into racks, walls, ceilings, or discreet AV environments where space efficiency matters. The Auto-Setup feature simplifies configuration by automatically optimizing system parameters for reliable and consistent performance. With advanced power-sharing technology, the amplifier dynamically allocates available power across channels based on real-time demand, ensuring maximum efficiency and balanced output. In addition, full remote control via third-party control systems enables centralized monitoring, adjustments, and seamless system management, making it ideal for modern networked audio installations.
Technical Specifications
| Category | Spec |
|---|---|
| Output Power (Per Channel) | 150 W @ 2 Ω150 W @ 4 Ω150 W @ 8 Ω |
| Maximum Power-Sharing Capacity (Per Channel) | 400 W @ 4 Ω600 W @ 8 Ω |
| Maximum Unclipped Output Voltage | 142 V peak |
| Maximum Output Current | 15.6 A peak |
| Power Supply | Universal, regulated switch-mode power supply with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage Range | 90 V – 264 V |
| Power Consumption (Idle) | 16 W @ 115 V / 17 W @ 230 V |
| Current Draw (Idle) | 0.275 A @ 115 V / 0.21 A @ 230 V |
| Power Consumption (1/8 Max Output @ 4 Ω) | 130 W @ 115 V / 129 W @ 230 V |
| Current Draw (1/8 Max Output @ 4 Ω) | 1.17 A @ 115 V / 0.67 A @ 230 V |
| Thermal Dissipation (Idle) | 53 BTU/h @ 115 V / 59 BTU/h @ 230 V |
| Thermal Dissipation (1/8 Max Output @ 4 Ω) | 126 BTU/h @ 115 V / 139 BTU/h @ 230 V |
