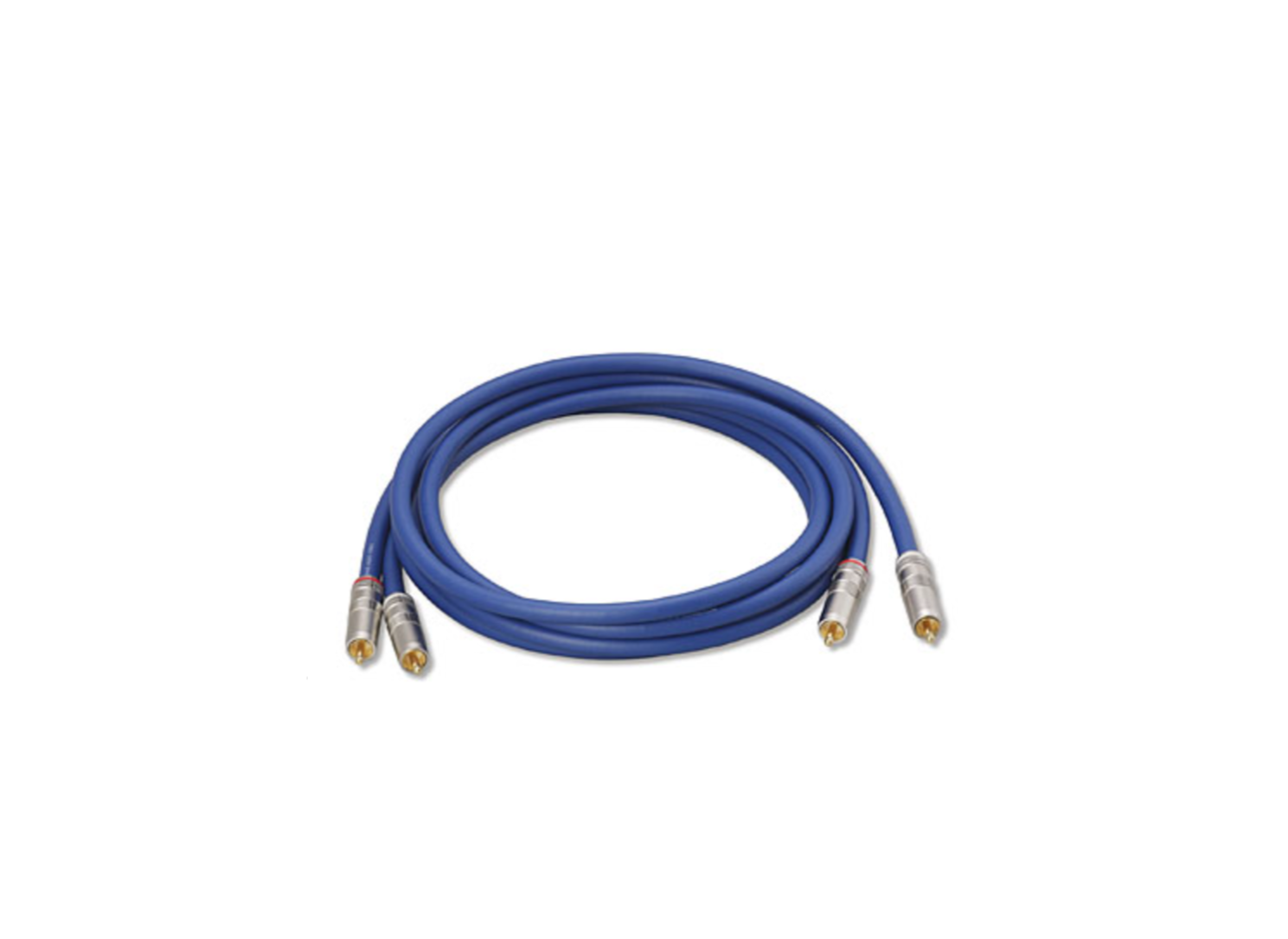

Accuphase AL-50 OFC Series 5m Audio Cable
- Regular price
- Rs. 64,000.00
- Sale price
- Rs. 64,000.00
- Regular price
-
Couldn't load pickup availability
Description
Since RCA-type phono plugs are normally inserted and removed many times, they must be highly resistant to abrasion and provide superior conductivity even after extended use. Another important consideration is the ability to withstand corrosion which can be caused by sulfuric gases and other contamination in the atmosphere. The thick gold plating of the plugs perfectly fulfils all of these requirements.
The Accuphase Oxygen-Free Copper Series cables use a densely braided outer conductor of oxygen-free copper, reliably shielding the two twisted internal conductors also made of highly pure copper. The result is a high-quality cable with negligible transfer losses and excellent resistance to induced noise. The superb performance of these cables ensures that the sonic character of top-quality audio components connected in a system is fully preserved. Listeners are able to enjoy utterly natural, well-balanced sound that gives free expression to the full musical spectrum.
The center conductor core wires of the Accuphase Oxygen-Free Copper Series cables are meticulously engineered using a combination of highly pure oxygen-free copper wires and silver-plated soft copper wires, delivering excellent signal transfer characteristics. These center conductors integrate two different diameters of oxygen-free copper strands along with a low-resistance silver-plated copper wire, optimizing conductivity and minimizing transmission loss. Surrounding this is a triple-layer insulation system composed of high dielectric polyethylene and foamed polyethylene, structured in a dual-core design to ensure minimal DC resistance and superior signal integrity. For shielding, the cable employs a dual-layer system: 192 ultra-fine (0.1 mm) high-purity copper wires braided to a high density, paired with an aluminum foil tape layer. This advanced shielding provides low capacitance and robust protection against externally induced noise, maintaining a clean and accurate audio signal throughout.
Technical Specifications
| Attribute | Details |
|---|---|
| Model Number | AL-50 (special-order product) |
| Cable Length | 5.0 m × 2 (stereo pair) |
| Plug Type | RCA-type phono plug |
| Configuration | 2-conductor shielded cable |
| Dielectric | Polyethylene + Foamed Polyethylene |
| Jacket | Blue PVC (Polyvinyl chloride) |
| Center Conductors | [Oxygen-free copper wire, silver-plated soft copper wire] × 58 |
| Shielded Conductor | Oxygen-free copper wire × 192 |
| Total DC Loop Resistance | 33 mΩ/m |
| Interelectrode Capacitance | 260 pF/m |
| Capacitance Between Conductors | – |
| Interelectrode Inductance | 230 nH/m |
| Insulation Resistance | 40 MΩ/km |
