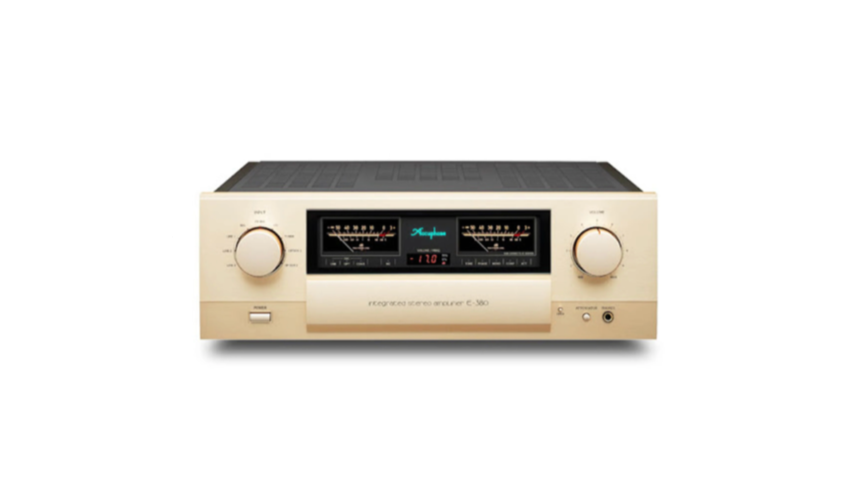

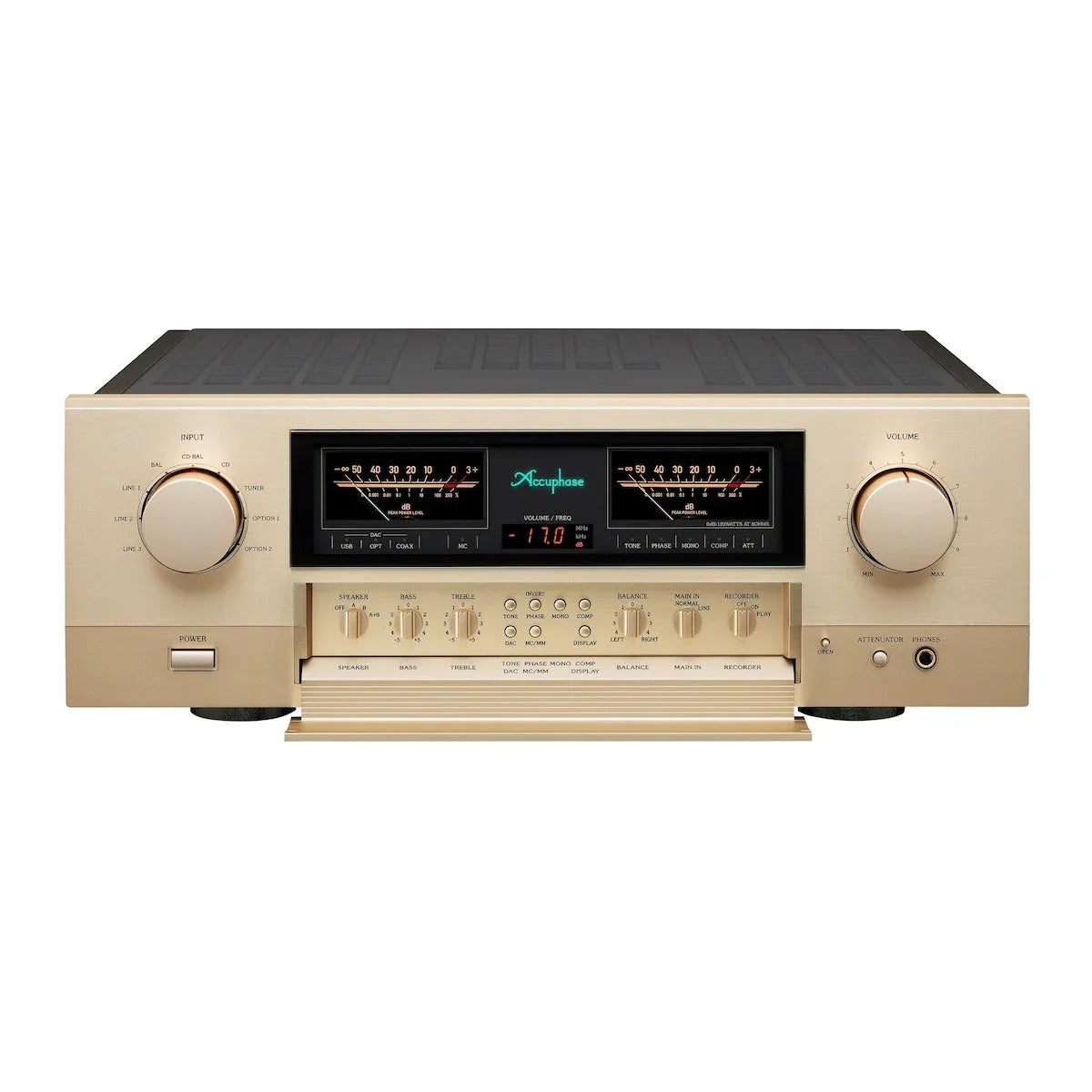

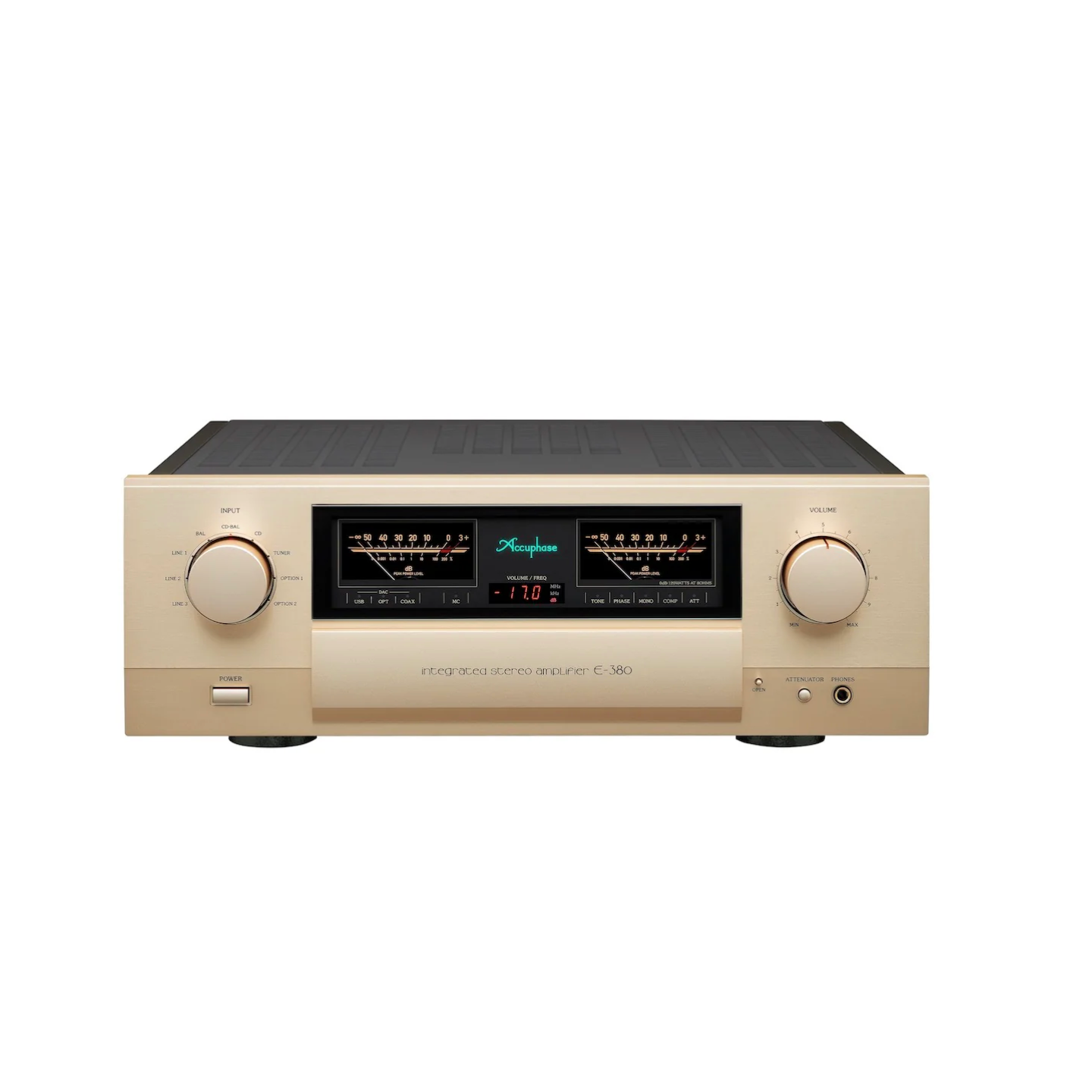

Accuphase E-380 Integrated Stereo Amplifier
- Regular price
- Rs. 1,000,000.00
- Sale price
- Rs. 1,000,000.00
- Regular price
-
Couldn't load pickup availability
Description
The E-380 realizes a 20% increase in rated output power thanks to a reinforced power amplification stage and power supply. The further evolved AAVA volume control system allows music enjoyment at any level without even the slightest degradation of signal quality. The power amplifier section utilizes the instrumentation amplifier principle to achieve outstanding S/N ratio. Low impedance design of the output circuitry results in a damping factor of 500, ensuring that the potential of every speaker can be brought out to the fullest. Enjoy a musical performance of amazing transparency and dynamism.
Features
The Accuphase E-380 features an AAVA volume control and a power amplification stage with bipolar transistors in a double parallel push-pull configuration. It is rated for 180 watts into 4 ohms and 120 watts into 8 ohms, with a high damping factor of 500. The power amplification stage is configured as an instrumentation amplifier and uses a current feedback amplification topology. Logic-control relays provide the shortest signal paths, while a strong power supply with a massive high-efficiency transformer and large filtering capacitors supports stable operation. MOS-FET switch-based protection circuitry provides protection during operation.
Integrated Stereo Amplifier
The E-380 realizes a 20% increase in rated output power through its reinforced power amplification stage and power supply. Its further evolved AAVA volume control system allows music enjoyment at any level without even the slightest degradation of signal quality. The power amplifier section utilizes the instrumentation amplifier principle to achieve an outstanding S/N ratio, while the low-impedance output circuitry results in a damping factor of 500, ensuring that the potential of every speaker can be brought out to the fullest. The E-380 delivers a musical performance with amazing transparency and dynamism.
Power Supply Circuitry Designed for Optimum Stability
The E-380 features a large transformer and massive 33,000 μF filtering capacitors with 10% more capacitance, providing rock-stable, high-quality power.
Power Amplification Stage with Bipolar Transistors
The power amplification stage features bipolar transistors in a double parallel push-pull configuration, providing powerful and stable amplification performance.
Option Boards

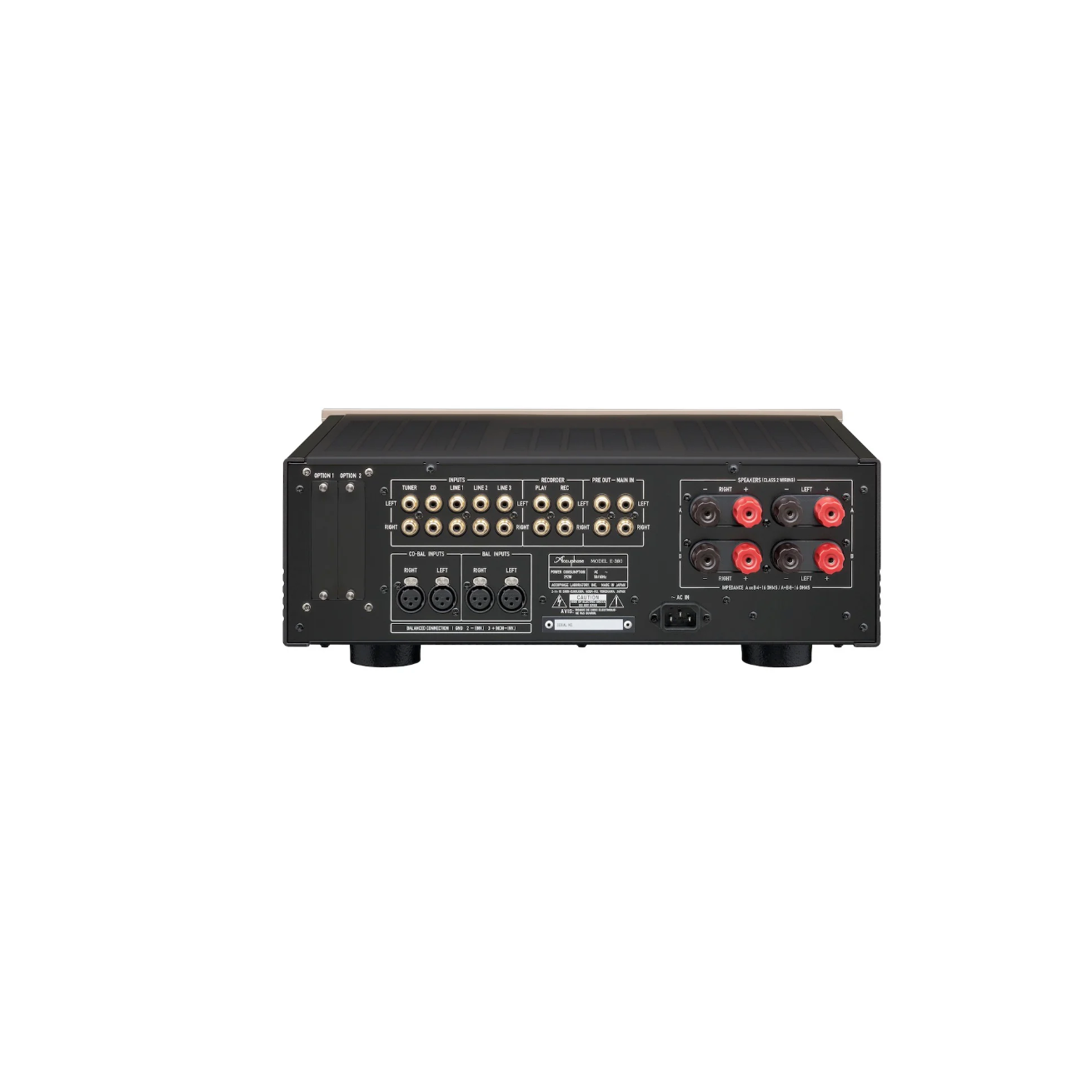

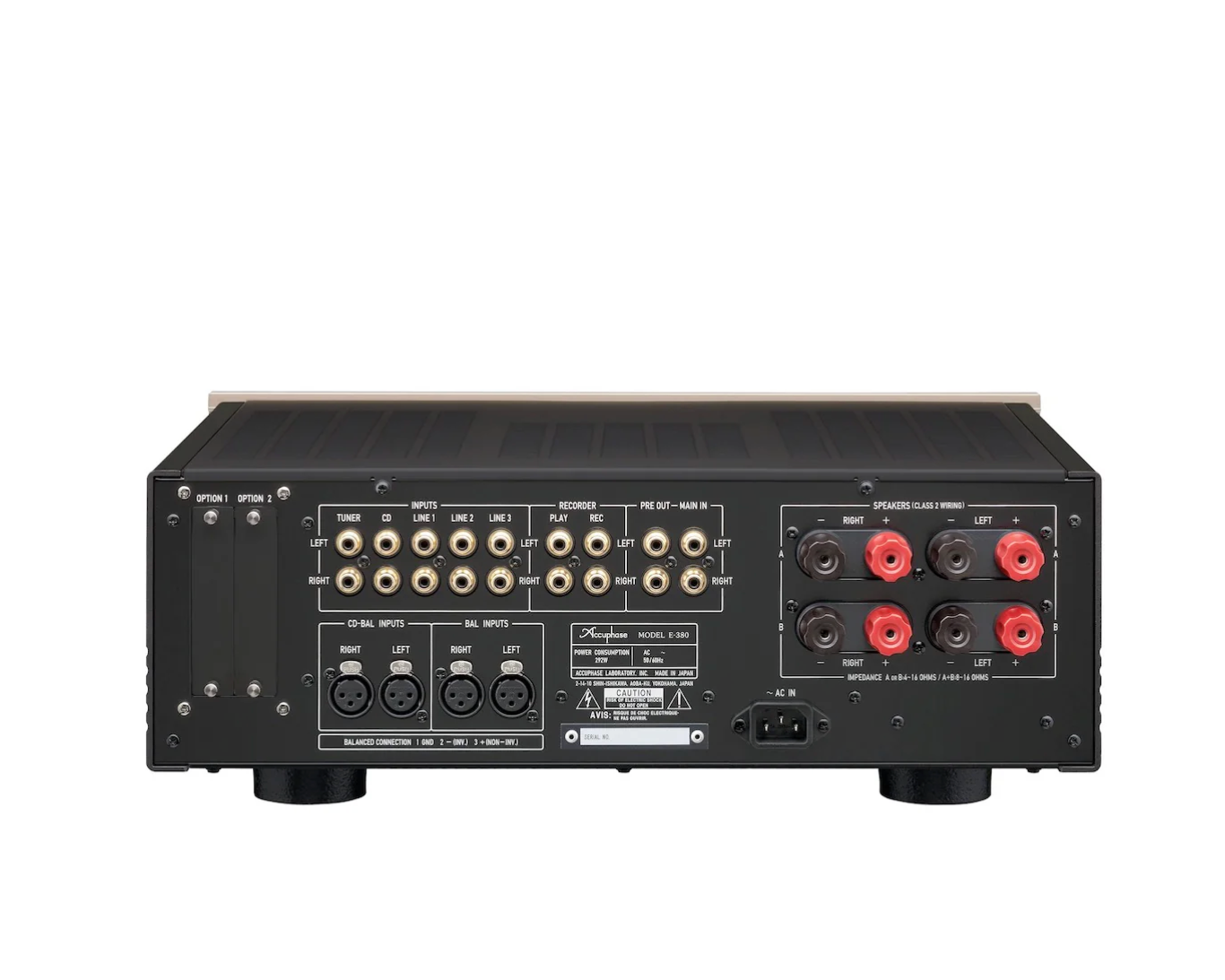

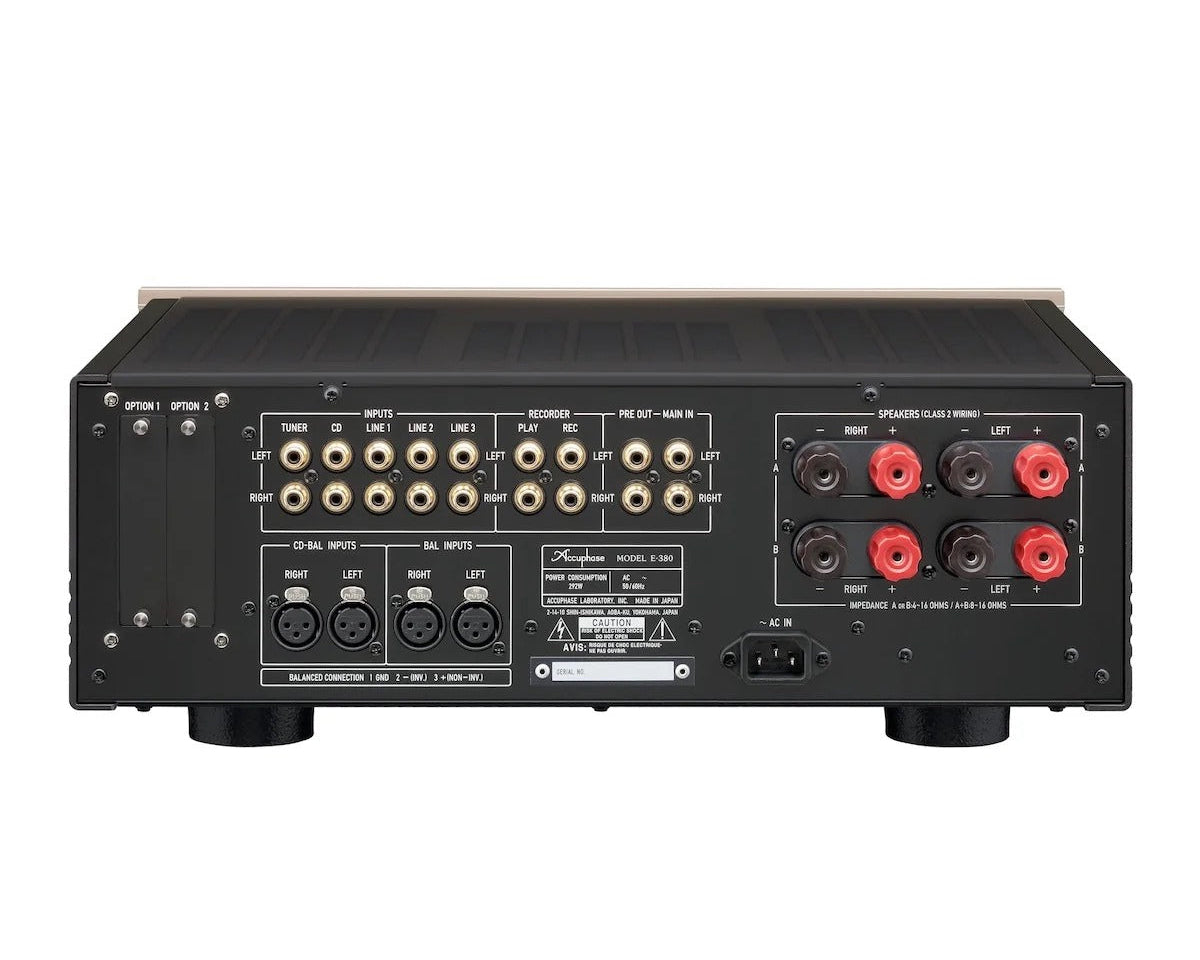

The rear-panel expansion slot allows the use of one of the available AD-30 phono preamplifier or DAC-40 digital-to-analog converter option boards, providing additional flexibility for system configuration.
Technical Specifications
| Spec | Details |
|---|---|
| Volume Control | AAVA type |
| Output Stage | Bipolar transistors, double parallel push-pull configuration |
| Power Output | 180 W / 4Ω, 120 W / 8Ω |
| Damping Factor | 500 |
| Amplification Stage | Configured as instrumentation amplifier |
| Amplification Topology | Current feedback type |
| Signal Switching | Logic-control relays for shortest signal paths |
| Power Supply | Massive high-efficiency transformer with large filtering capacitors |
| Protection Circuitry | MOS-FET switches |
