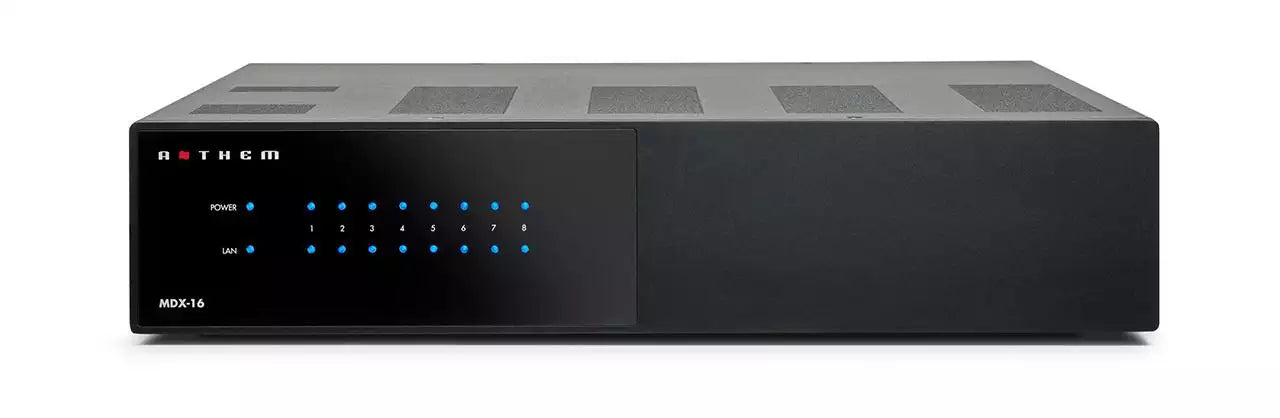

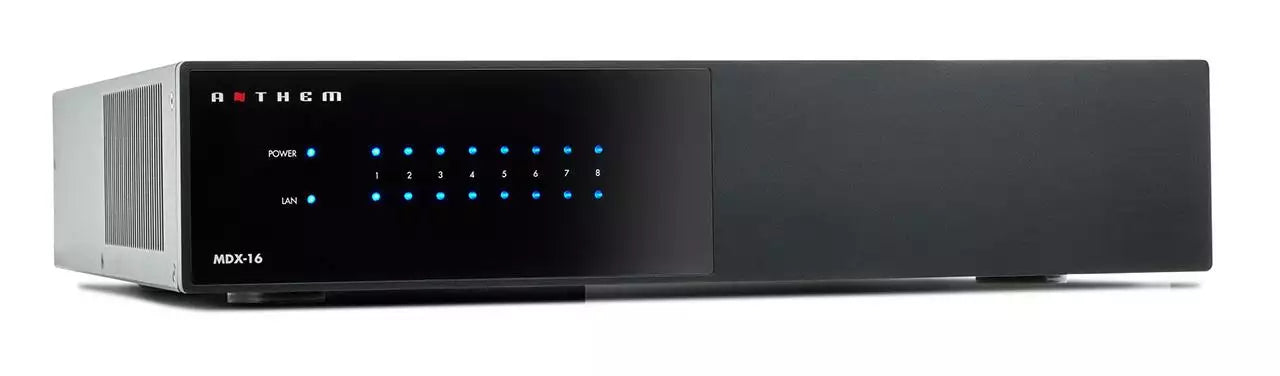

Anthem MDX -16 AVR
- Regular price
- Rs. 360,000.00
- Sale price
- Rs. 360,000.00
- Regular price
-
Rs. 360,000.00
Couldn't load pickup availability
Description
New Anthem MDX Series are the first distribution systems to feature fully powered independent-zone subwoofer connections, as well as ARC® Genesis room correction for each zone.
MDX Series features today’s cutting-edge Anthem amplifier technology so you can expect smooth, efficient, consistent high power and reliability. MDX Series is engineered to simplify your next custom audio system installation, and to blow your clients away with extreme performance in any setup.
Web-Based Setup
On-site configuration and calibration using Web-based controls. The specially designed, adaptive user interface works on any device. Custom configure zones, from input assignments to zone names. Adjust levels (and every aspect of performance) independently.
Automation Compatibility
Robust IP/RS-232 connection capability ensures compatibility with leading home automation systems, with easily downloaded drivers.
Drivers available for these systems: Control, CRESTRON, SAVANT, ELAN, URC
Digital Inputs, Digital Switching
Fast, efficient Ultra-Class-D amplification is supported by proprietary Advanced Load Monitoring technology, delivering reliable performance under even the most demanding loads. Our high-efficiency design meets and exceeds global power-saving standards.
Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow daisy-chaining of multiple MDX units.
Dedicated Subwoofers For Each Zone
Install and control subwoofers independently in separate zones, with dedicated outputs (both low and high level, including bridge mode), and zone-independent settings for the new, more advanced Anthem Room Correction (ARC® Genesis).
Toggle ARC Genesis on/off in each zone to hear the benefits of premium room optimization.
Zone Configuration Options
Zones can have custom names, multiple inputs, independent playback, and tuning controls. Bridge zones for more power. Enable subwoofer bass management in any zone, instantly set crossover frequency, level, phase, and polarity.
Only the MDX Series gives you this much control over multiple zones, supporting more creative system designs and more thrilling audio performance.
Analog/Digital Matrix Switching
Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.
Features
| Feature | Description |
|---|---|
| Power Handling | 60W @ 8Ω / 120W @ 4Ω all channels driven, 200W bridged @ 8Ω |
| Amplification | 8- or 16-ch Ultra-Class-D with Advanced Load Monitoring |
| DAC | 24-bit/192kHz digital-to-analog converter |
| DSP | Custom preset DSP settings |
| Bass Management | Zone-specific, via passive (RCA) or active (bridged) connections |
| Bridging Support | Up to 200W for high-power applications (e.g., subwoofers) |
| Digital Linking | Link digital inputs between MDX units |
| Analog Pass-through | Allows daisy-chaining of multiple units |
| Speaker Terminals | Phoenix-style blocks, support up to 12 AWG wire |
| Control Interfaces | IP, RS232, 12V trigger, and audio sensing |
| Power Saving | High-efficiency design meets global standards |
| Mounting | Rack-mount arms included |
Specifications
| Spec. | Value |
|---|---|
| Channels / Zones | 16 channels / Up to 8 zones |
| Power Output (8Ω) | 60W RMS per channel |
| Power Output (4Ω) | 120W RMS per channel |
| Bridged Output (8Ω) | 200W RMS |
| Frequency Response | 10Hz – 20kHz ±0.5dB |
| DAC Type | PCM up to 24-bit/192kHz |
| Analog Inputs | 8x RCA pairs (L/R) |
| Digital Inputs (S/PDIF) | 2x coaxial RCA, 2x Toslink optical |
| Network Input | RJ-45 Ethernet port |
| Trigger Input | 1x 3.5mm (5–24V DC/AC) |
| Other Inputs | Micro-USB (ARC), RS-232 |
| Speaker Outputs | 8x Phoenix connectors (L/R), up to 12 AWG |
| Analog Passthrough | 2x RCA pairs |
| Subwoofer Outputs | 8x RCA with bass mgmt. & ARC |
| Digital Matrix Output | 1x Toslink |
| Other Outputs | 1x 3.5mm 12V trigger |
| Audio Matrix | Yes |
| Advanced Load Monitoring | Yes |
| Web-Based Controls | Bass ±6dB, Treble ±6dB, Level ±10dB per zone |
| Rear Panel Controls | Auto/Trigger/External Power, Reset buttons, Power On/Off |
| Room Correction | Anthem ARC® |
| Microphone | Dual-input mic (3.5mm & mini-USB) included |
| Setup | Web-based user interface |
| Automation Drivers | Control4, Crestron, Savant, URC, Elan |
| Power Supply | 120V ~ 50/60Hz |
| Rack Mounting | Ears included, 2U height (feet removed) |
| Dimensions (HxWxD) | 3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm) |
| Weight | 24 lbs (10.8 kg) |
