Axiom LFR880HP Omnidirectional Speakers

Based on the stellar accolades of the LFR1100 omnidirectional speakers from both our customers and professional reviewers we have developed an entire line of LFR products, the wouldn’t be complete without a model based on our famous M80. Hence the LFR880 and LFR880HP (High Powered) have been created. The High Powered version has very heavy duty 6.5” woofers for added maximum SPL output and no compression in the bass region. The entire LFR series is the brainchild of Andrew Welker and Ian Colquhoun, this omnidirectional wonder solves the problem of typical bipole or dipole speakers: they typically provide incredible depth of soundstage, but images tend to be ill-defined and washed-out.

By using a sophisticated DSP to tailor the response of each complement of drivers, front and rear, Axiom was able to overcome this bipole/dipole limitation to create the first omnidirectional speaker that preserves the spacious sound enthusiasts love, but with the same neutral tonal balance and pinpoint imaging for which Axiom speakers are renowned. The result? 2-D imaging is suddenly brought into a 3-D soundstage, immersing the listener and enveloping your senses.

Traditionally, bipole/dipole designs have been plagued by a persistent problem: the spacious presentation sounds great for a while, but eventually it becomes off-putting because you can't isolate soloists or pinpoint actions. Axiom met this challenge by innovating a way to apply psychoacoustic principles to create speakers that offer the best of both forward radiating and bipole designs.  Extensive customisation of the frequency response of the rear drivers, working in conjunction with a more subtle customisation of the front drivers, creates a seamless soundstage with minimal roll-off at the top end, even at extreme angles away from the sweet spot. You'll still marvel at the sense of the speakers' sound-field opening up before you, but the image detail doesn't shift at all.

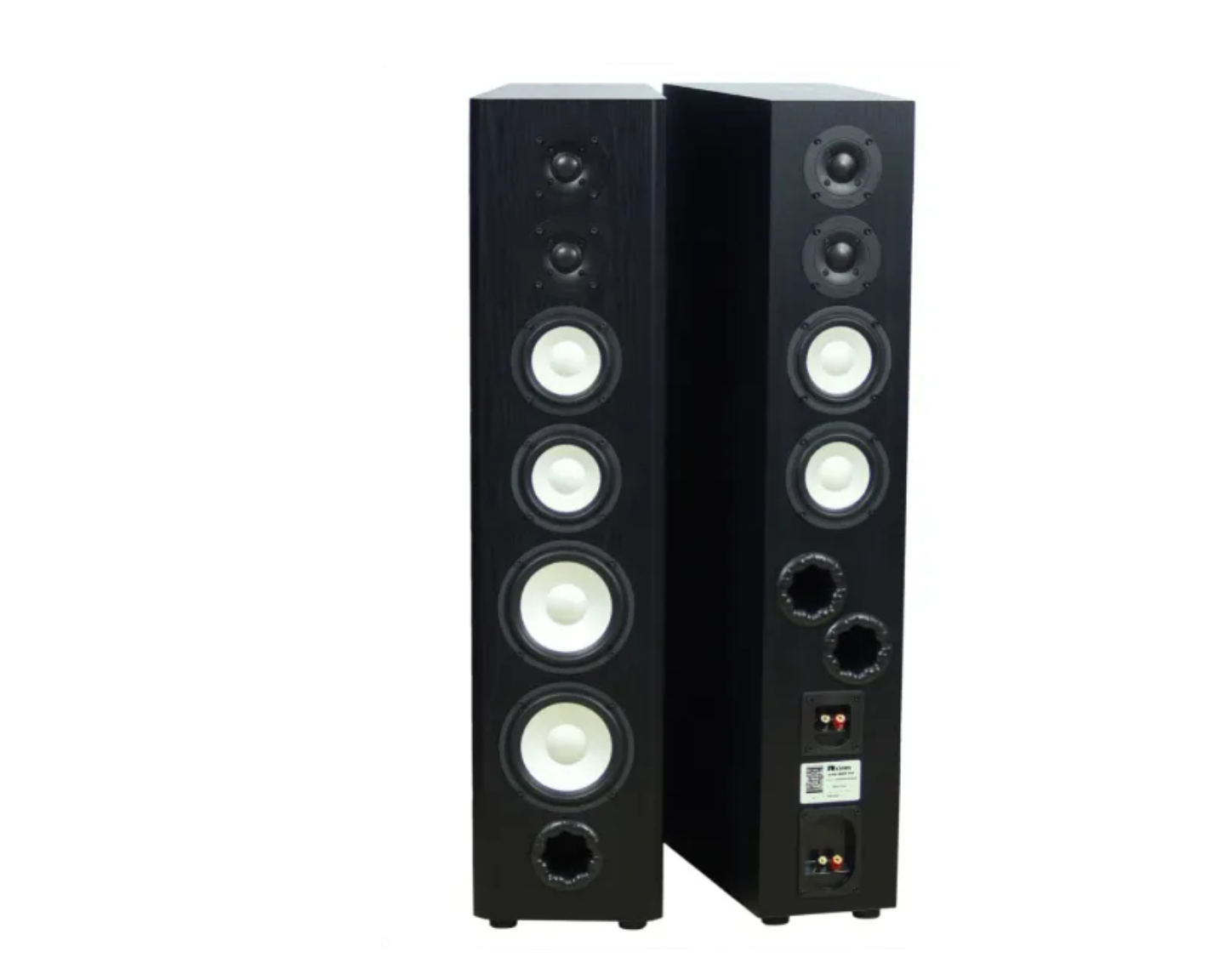

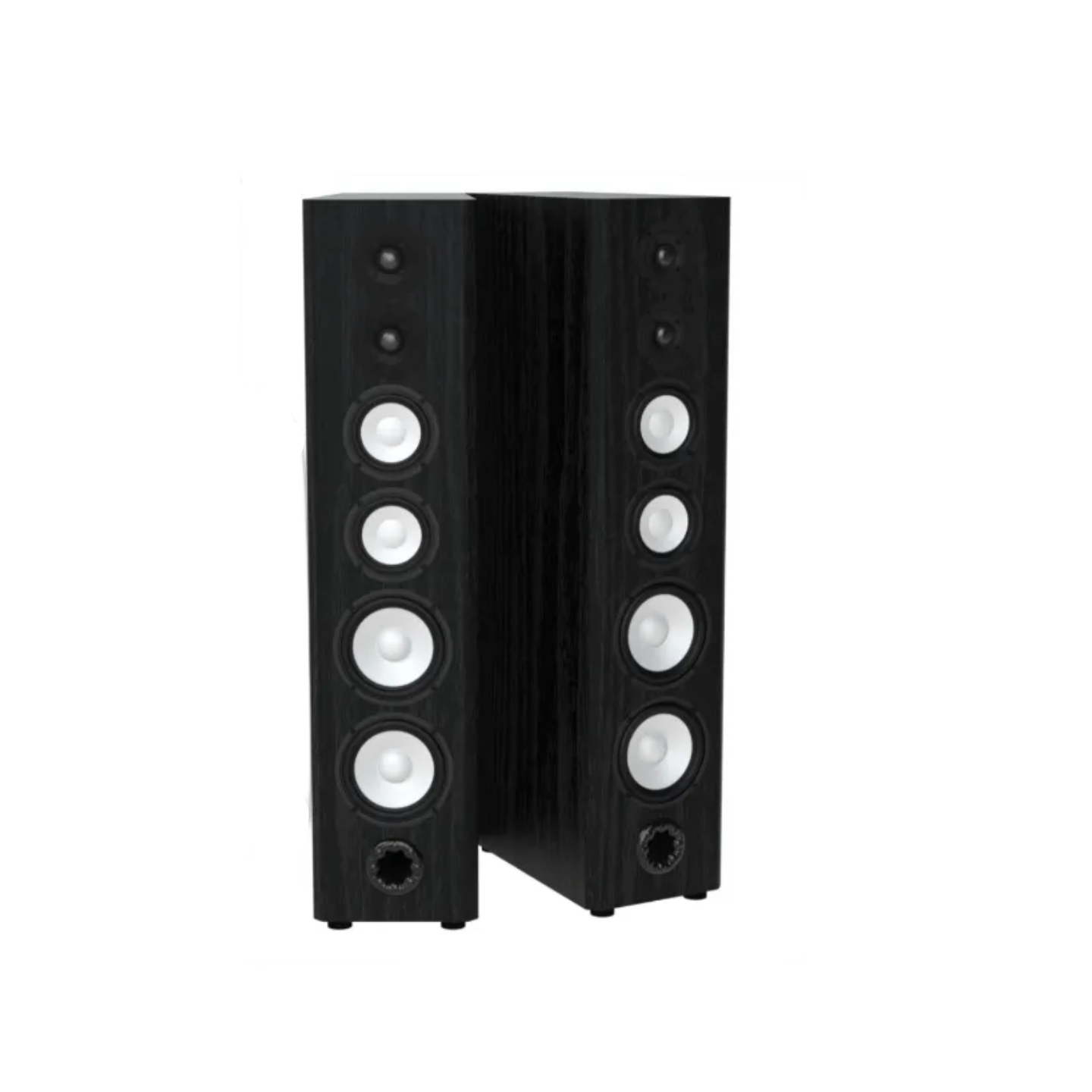

The LFR880 front baffle features two 6.5-inch woofers, two 5.25-inch midrange/woofers, and two 1-inch tweeters, with our signature vortex port in the bottom. The rear baffle adds two more vortex ports, two more 5.25-inch midrange/woofer, and two more 1-inch tweeter. It requires four channels of amplification to drive these speakers right front, left front, right rear, and left rear all need to be powered separately.

The DSP included with the LFR880s separates the front right and left channels into these four channels.The DSP included is in a stand-alone case that sits between your preamplifier or receiver and the amplifier.  The DSP accepts the main right and left channels from the preamplifier through RCA connects or from your receiver through High Level speaker connections and outputs right front, right rear, left front, and left rear channels for your amplifier.

By selecting More Finishes and Options above, you have the ability to choose optional upgraded and integrated versions of the DSP.  There is another stand-alone version of the DSP that does not have High Level inputs but instead has both RCA and Balanced (XLR) inputs and outputs.  There are also two versions of an integrated DSP and amplifier. Both versions include our ADA1000-4 amplifier with the DSP built into it.  One version accepts either a pre-out or high level (speaker wire) out from your pre-amp or receiver.  The other version has an integrated preamplifier that will accept up to 3 independent line-level sources (iPod, CD player, etc.) and has an input selector switch and a volume control on the front panel.

Technical Specifications

Feature	Spec.
Tweeters	4 × 1" Titanium
Midrange Drivers	4 × 5.25" Aluminum
Woofers	Dual 6.5" Aluminum
Enclosure Type	Triple Vortex / Reflex
Cabinet Design	Anti-Standing-Wave Construction
Port Design	Vortex-Ported
Binding Posts	5-way Gold-Plated
Maximum RMS Amplifier Wattage	400 W
Maximum Dynamic Amplifier Wattage	1600 W
Minimum Amplifier Power	10 W
Frequency Response (±3 dB)	38 Hz – 20 kHz
Frequency Response (+3 dB / –10 dB)	28 Hz – 20 kHz
Impedance	4 Ω
SPL (In-Room, 1W/1m)	92 dB
SPL (Anechoic, 1W/1m)	88 dB
Crossover Frequencies	220 Hz & 1.8 kHz
Dimensions (H × W × D, in)	39.5" × 9.25" × 17"
Dimensions (H × W × D, mm)	1003 × 235 × 432 mm
Weight (each)	62 lbs / 28 kg

DSP Module Specifications

Feature	Spec.
Maximum Output	2 Vrms
Gain	Unity
Total Harmonic Distortion (THD)	< 0.008% @ 1 Vrms
Signal-to-Noise Ratio	102 dB (22 Hz–20 kHz, unweighted, Ref. 2V)
Digital Conversion	24-bit Sigma-Delta ADCs & DACs @ 96 kHz
Power Consumption	13 W
RCA Output (Single-Ended)	Yes
High-Level Input	Yes
AC Input Voltage	115 V or 230 V
Dimensions (H × W × D, in)	3.5" (H) × 17.7" (W) × 16.7" (D)*
Dimensions (H × W × D, mm)	88 × 450 × 425 mm
Weight	27 lbs / 12 kg
