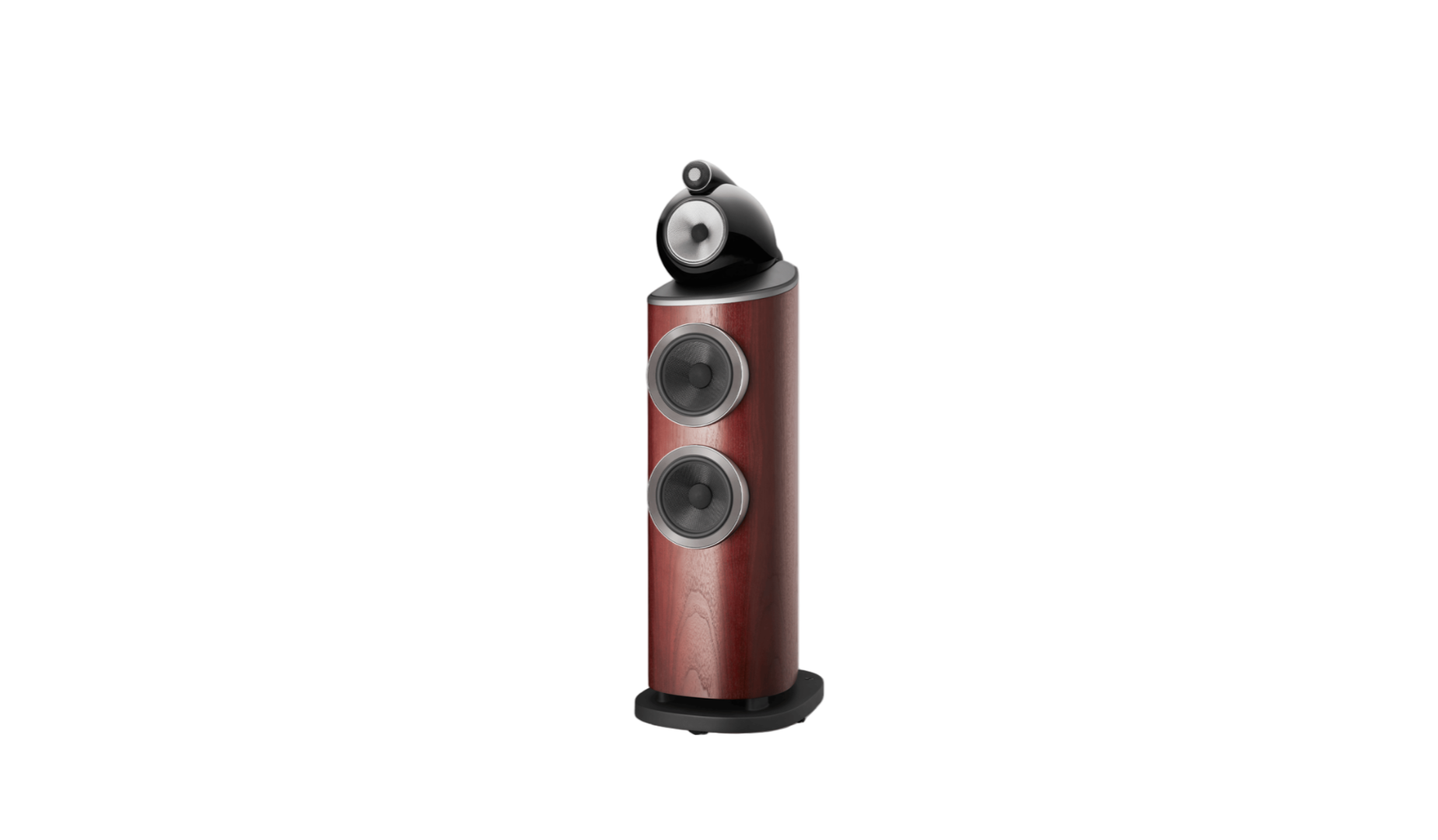

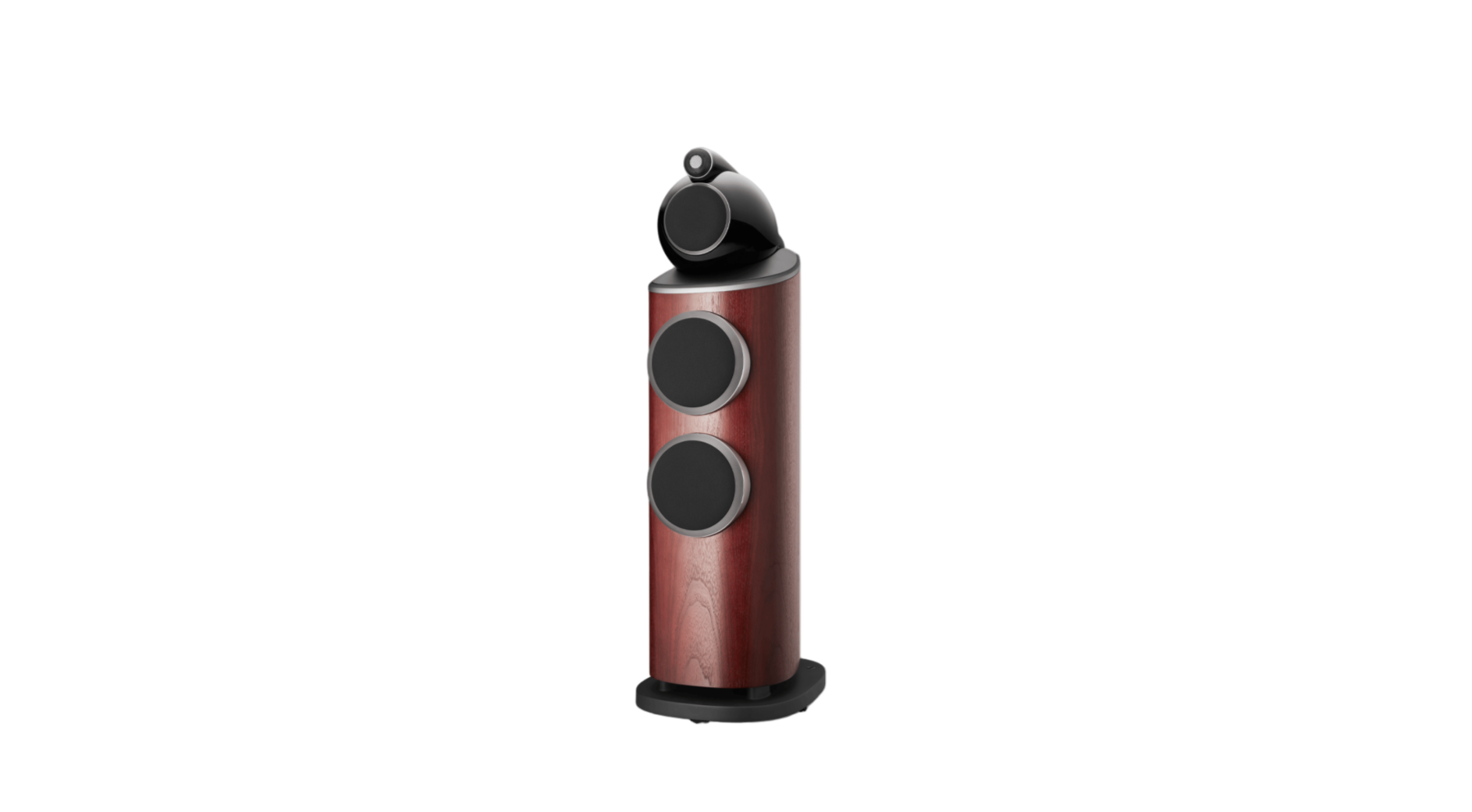

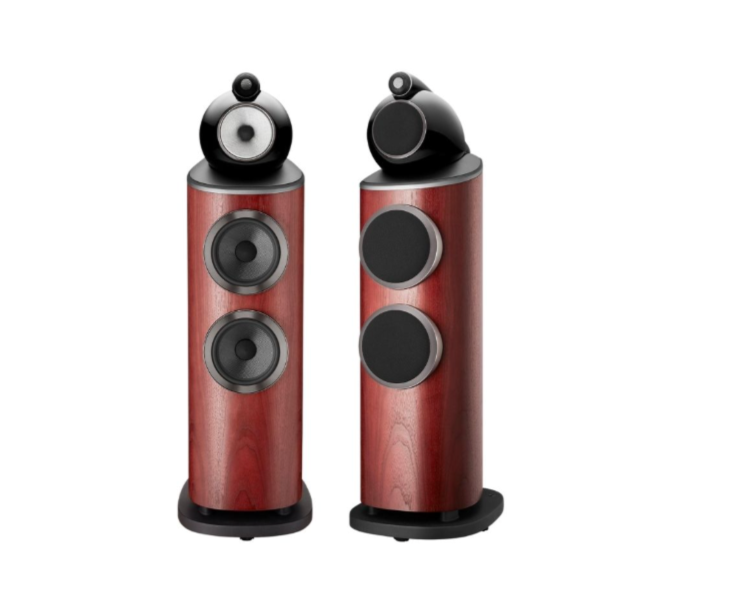

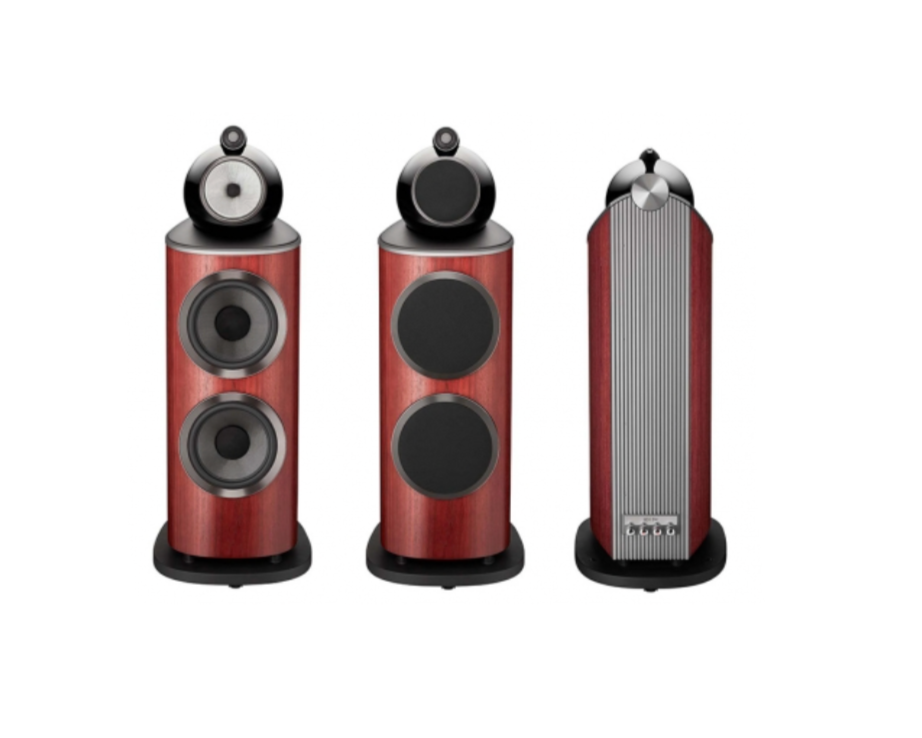

Bowers & Wilkins 803 D4
- Regular price
- Rs. 3,700,000.00
- Sale price
- Rs. 3,700,000.00
- Regular price
-
Couldn't load pickup availability
Description

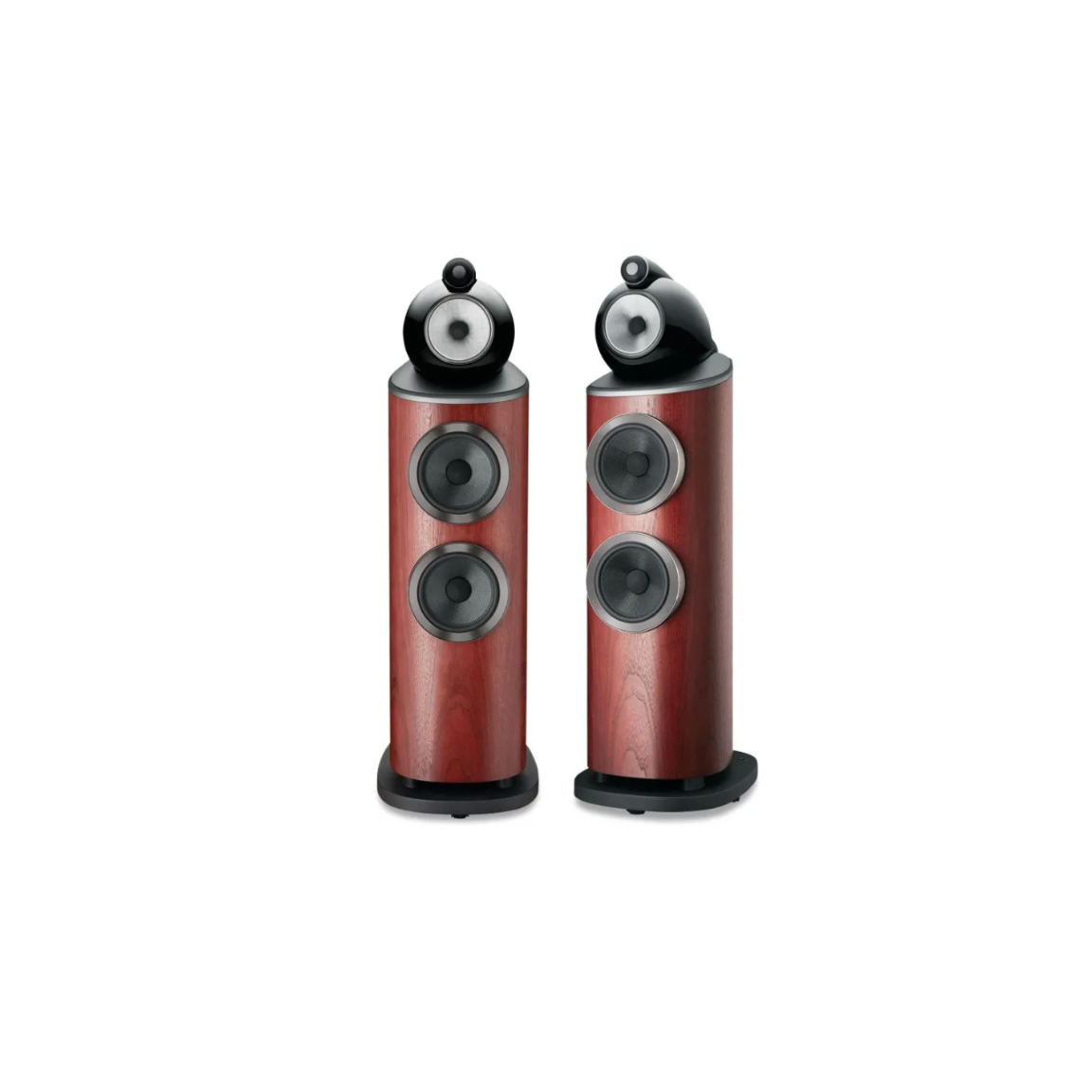

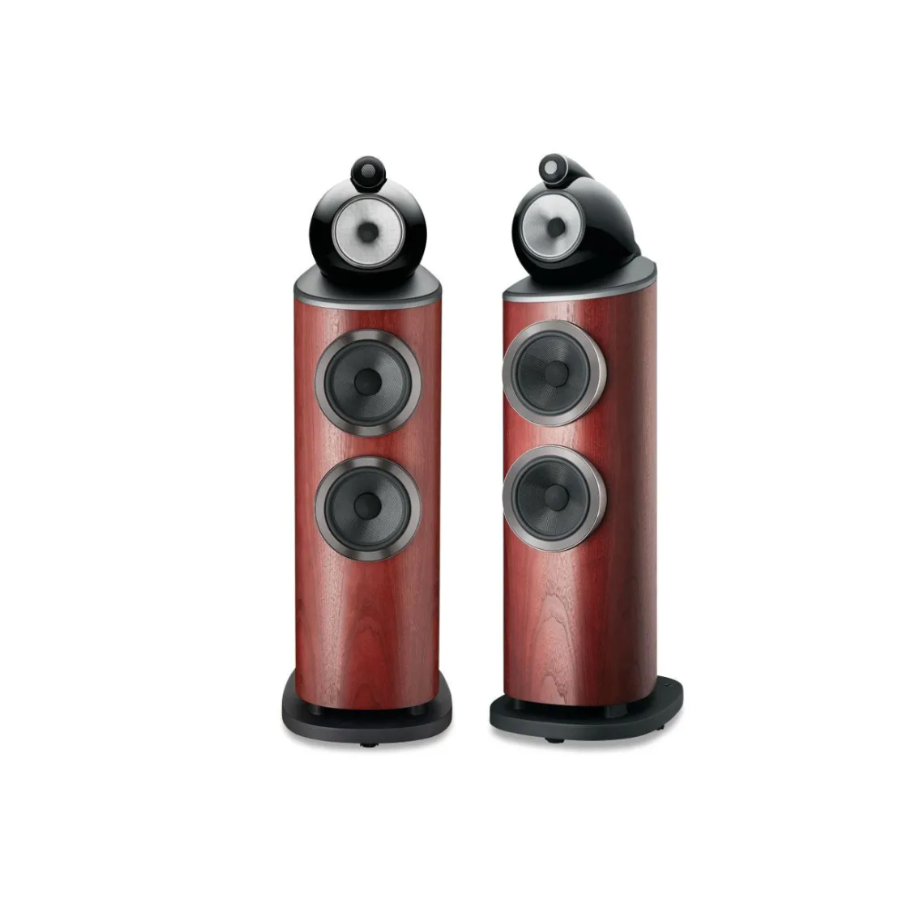

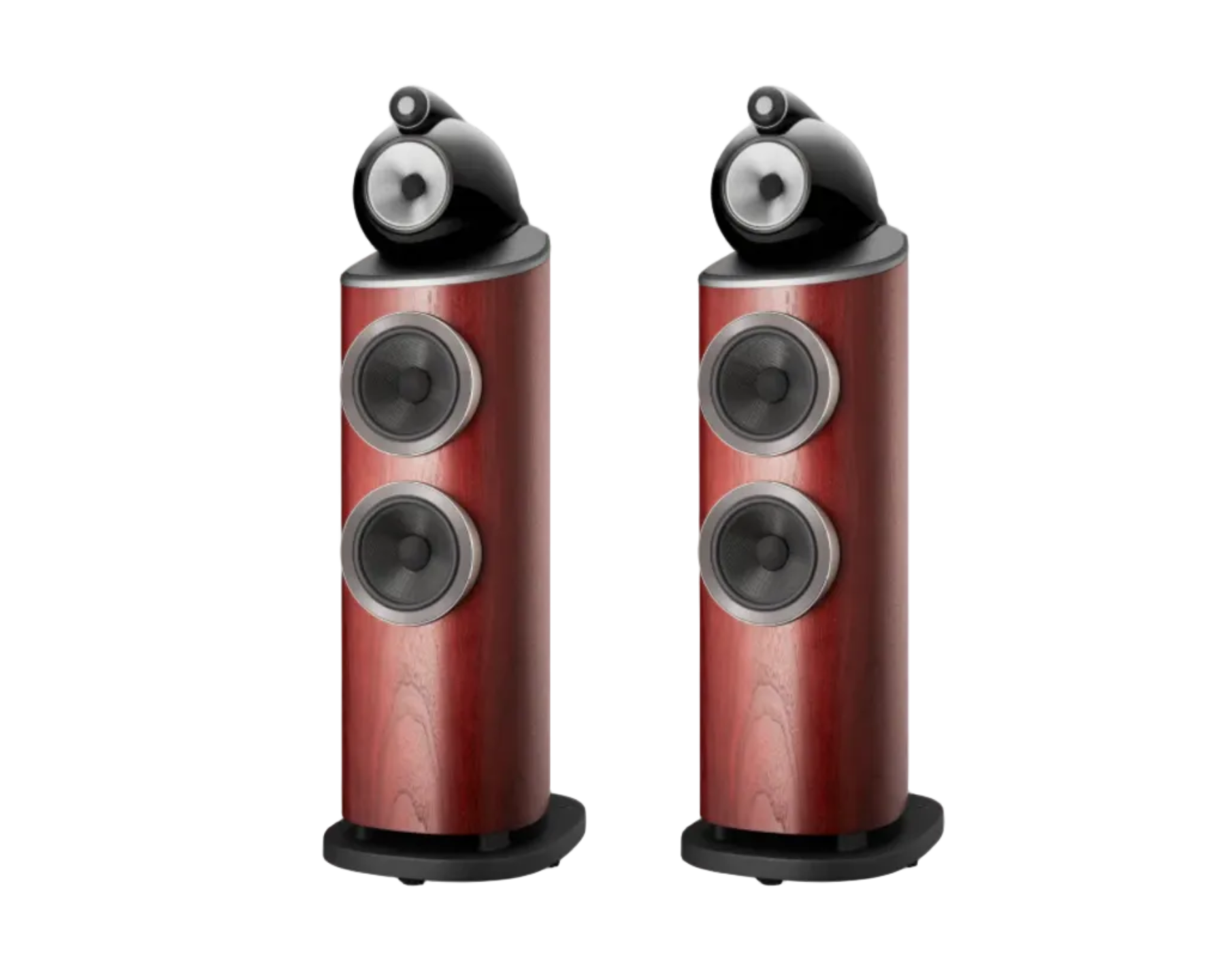

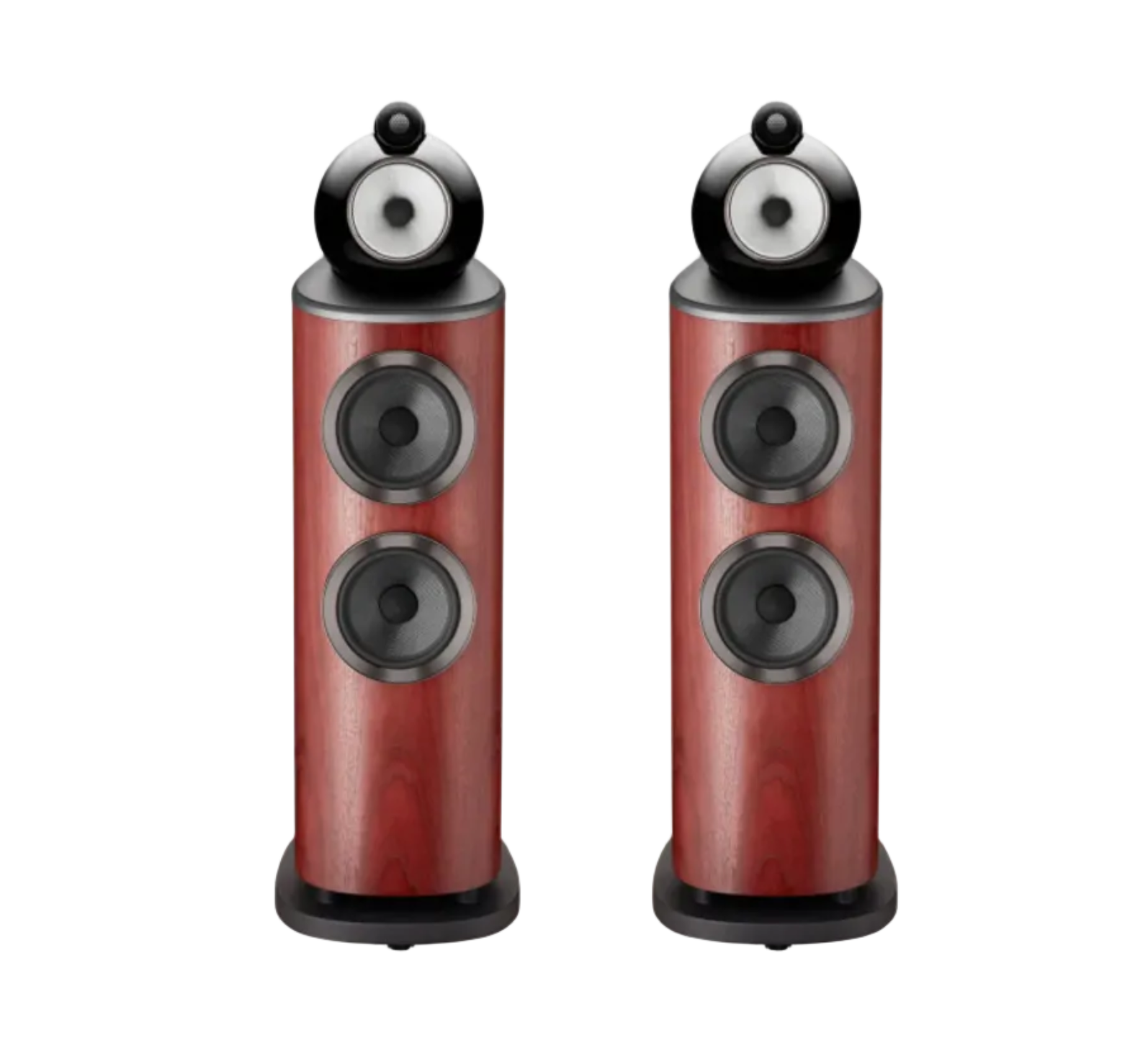

The Bowers & Wilkins 803 D4 is the most compact floor-standing model in the 800 Series Diamond™ range to feature the iconic Turbine™ Head enclosure. This advanced design provides a dedicated, decoupled housing for the midrange driver, ensuring exceptional clarity, openness, and precision across the critical vocal and instrumental frequencies. By isolating the midrange cone from unwanted vibrations, the Turbine™ Head allows the speaker to reproduce sound with remarkable detail and realism, even at high volumes. Despite its reduced footprint compared to its larger siblings, the 803 D4 delivers powerful, full-range performance, making it perfectly suited for modern living spaces where both size and style matter. It blends cutting-edge acoustic technology with elegant design, proving that true reference-quality sound can be achieved in a speaker that integrates seamlessly into any home environment.
Small Wonder
Reverse Wrap Cabinet

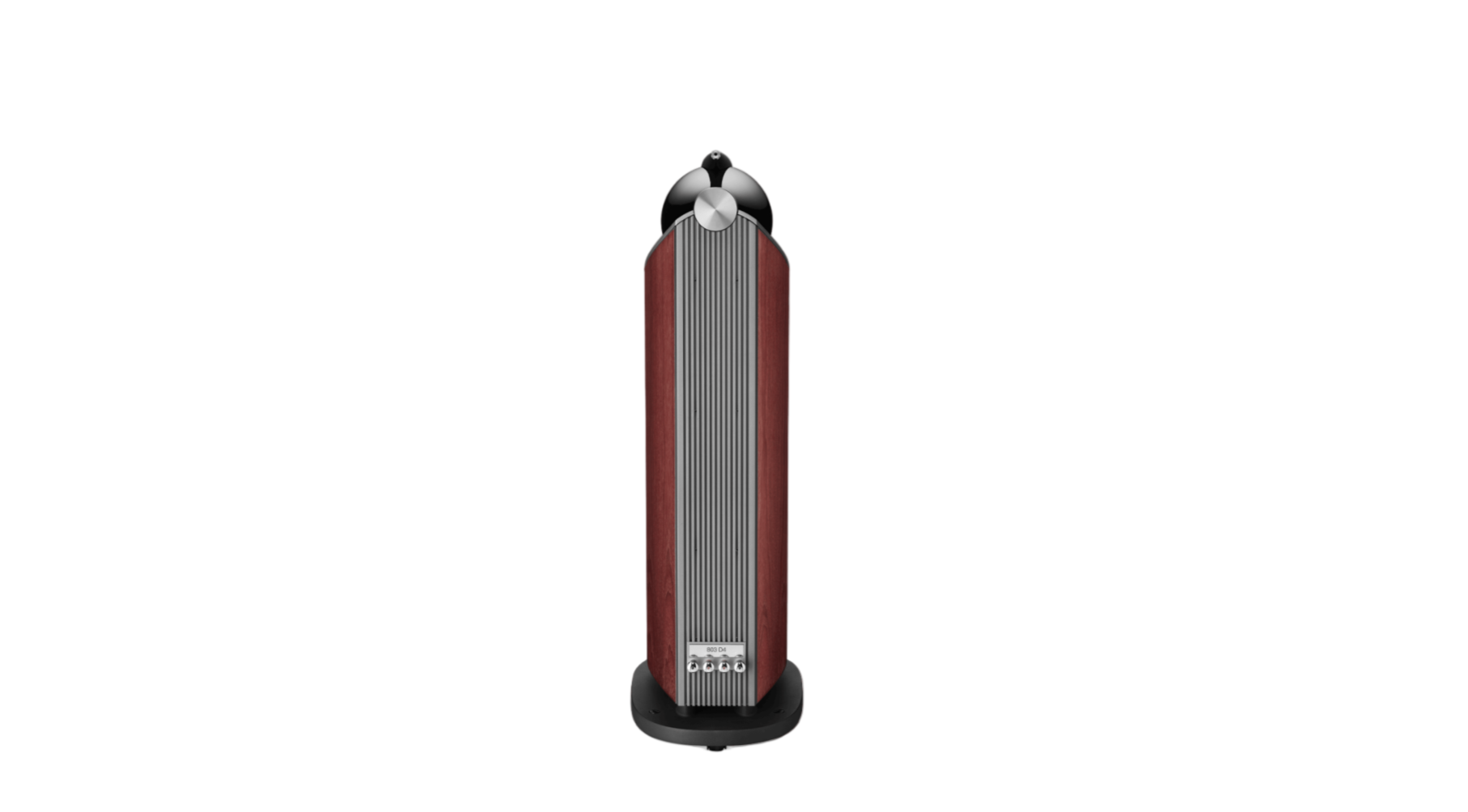

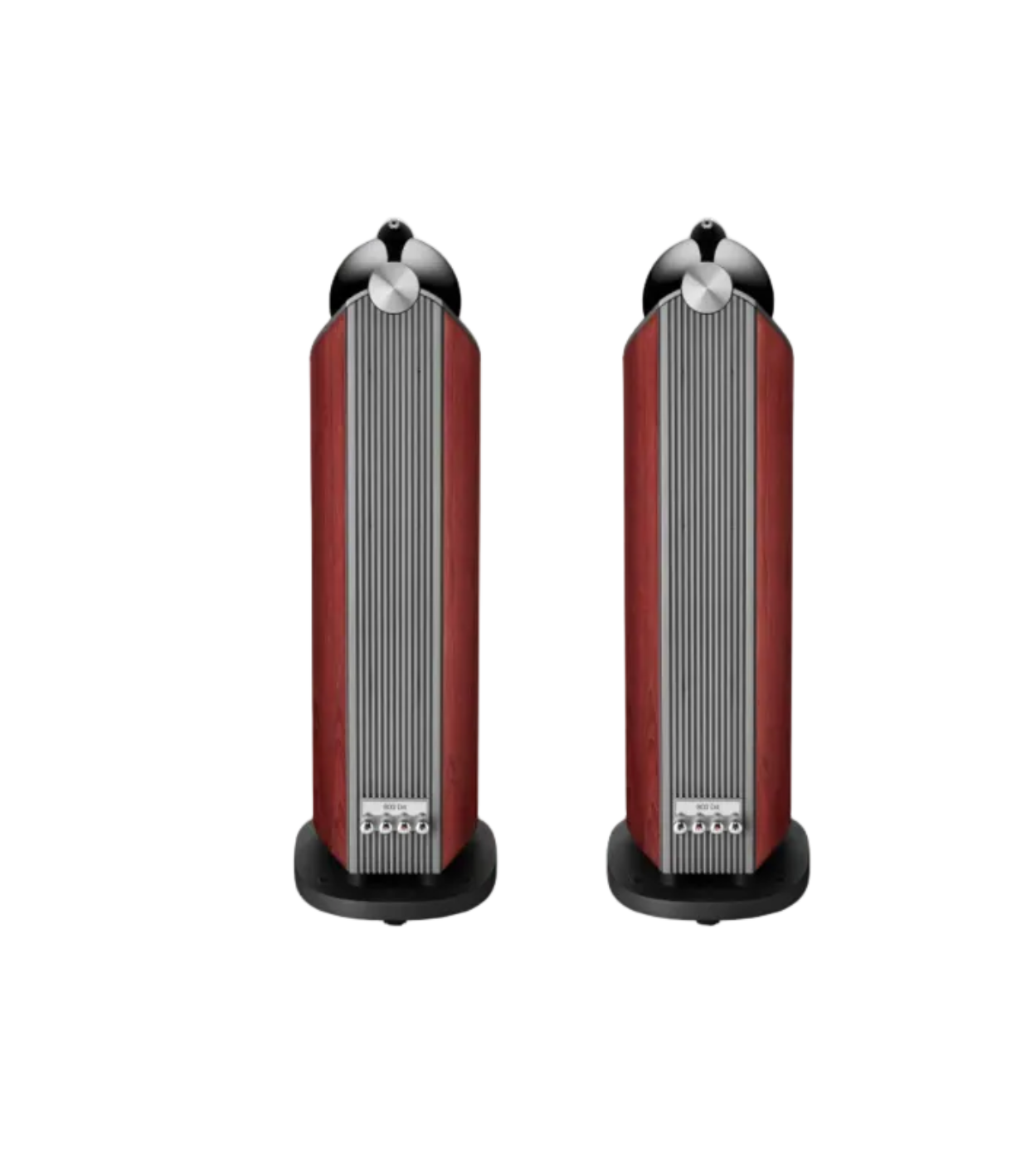

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Enhanced Matrix™
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.
Aluminium Bass Pods
803 D4 mounts two Aerofoil™ bass cones in twin solid aluminium bass pods, each of which is clamped into an aluminium plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
The Science Of Sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.

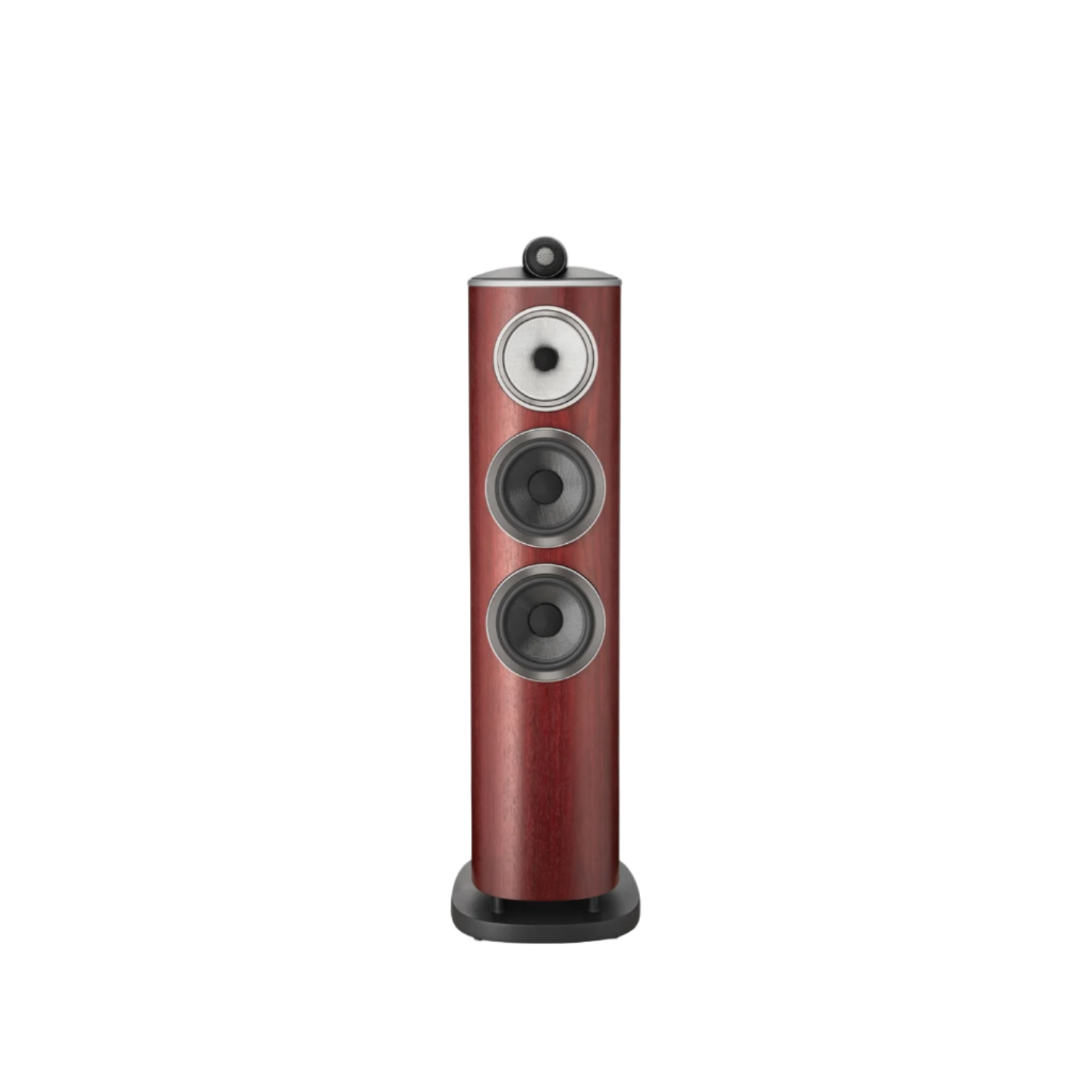

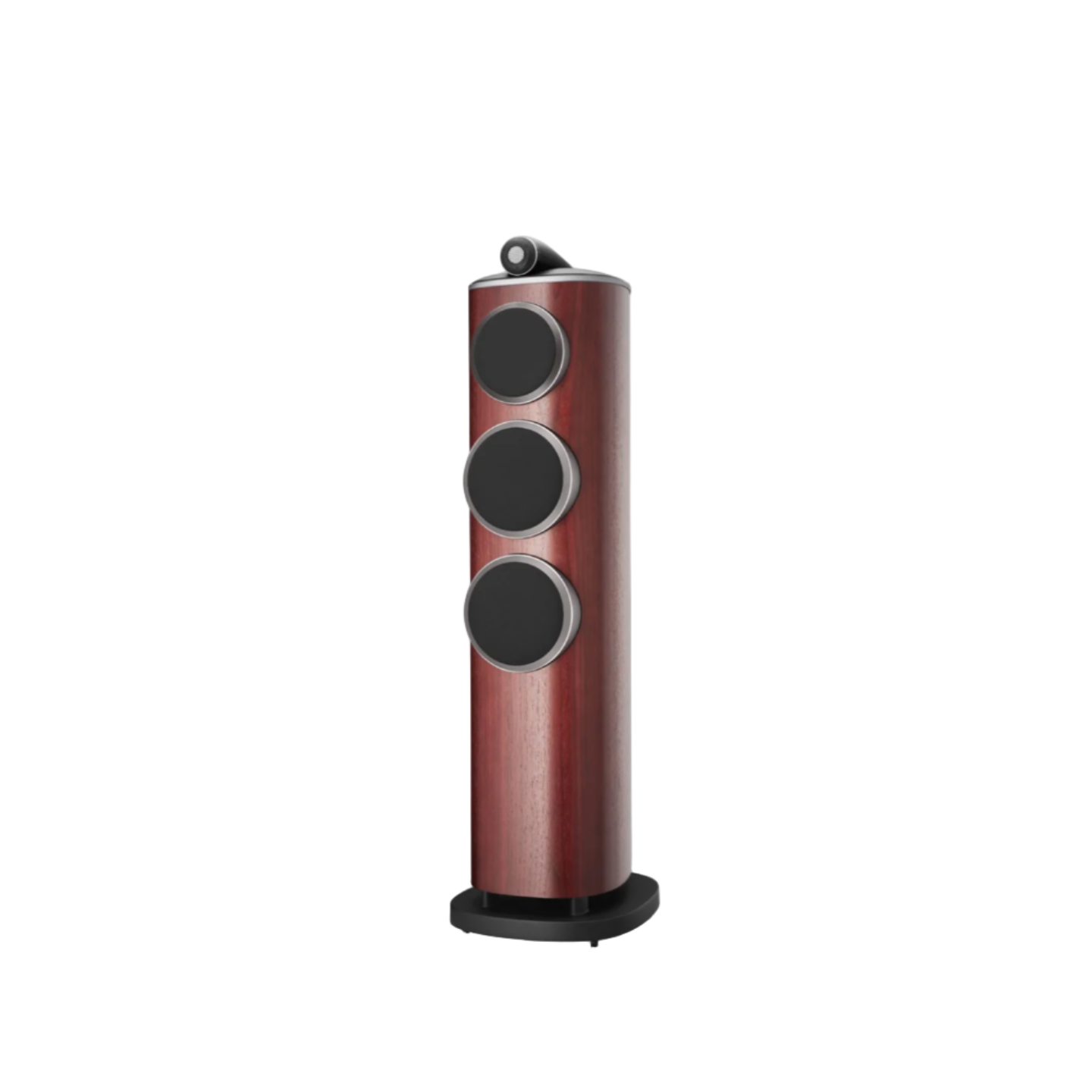

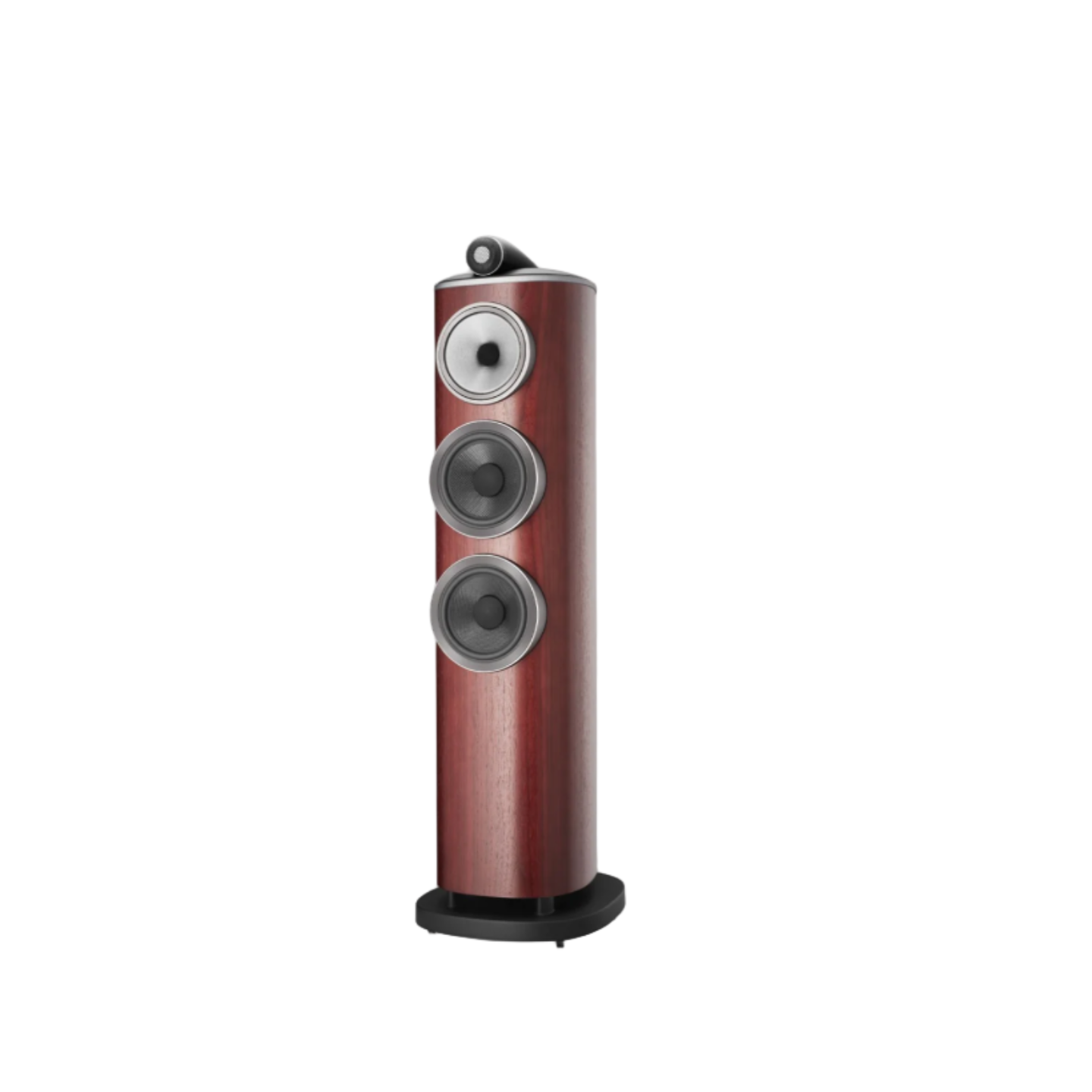

Step Up For More Power
Technical Specification
| Category | Details |
|---|---|
| Technical Features | Diamond Tweeter, Solid Body Tweeter-on-Top, Continuum™ cone FST, Matrix™, Anti-Resonance Plug, Biomimetic Suspension, Turbine™ Head, Aerofoil™ cone bass units, Flowport |
| Description | 3-way vented-box system |
| Drive Units | 1 × Ø25mm (1in) Diamond Dome high-frequency 1 × Ø130mm (5in) Continuum™ cone FST midrange 2 × Ø180mm (7in) Aerofoil™ cone bass units |
| Frequency Range | 16Hz – 35kHz |
| Frequency Response | 19Hz – 28kHz (±3dB from reference axis) |
| Sensitivity | 90dB (2.83Vrms, 1m on axis) |
| Harmonic Distortion | 2nd & 3rd harmonics (90dB, 1m on axis): <1% (80Hz – 20kHz) <0.3% (100Hz – 20kHz) |
| Nominal Impedance | 8Ω (minimum 3.0Ω) |
| Recommended Amplifier Power | 50W – 500W into 8Ω on unclipped programme |
| Max Recommended Cable Impedance | 0.1Ω |
| Net Weight | 62.15kg (137lb) |
| Dimensions (H × W × D) | 1165mm × 357mm × 511mm (45.9in × 14.1in × 20.1in) |
| Cabinet Finishes | Gloss Black, White, Satin Rosenut, Satin Walnut |

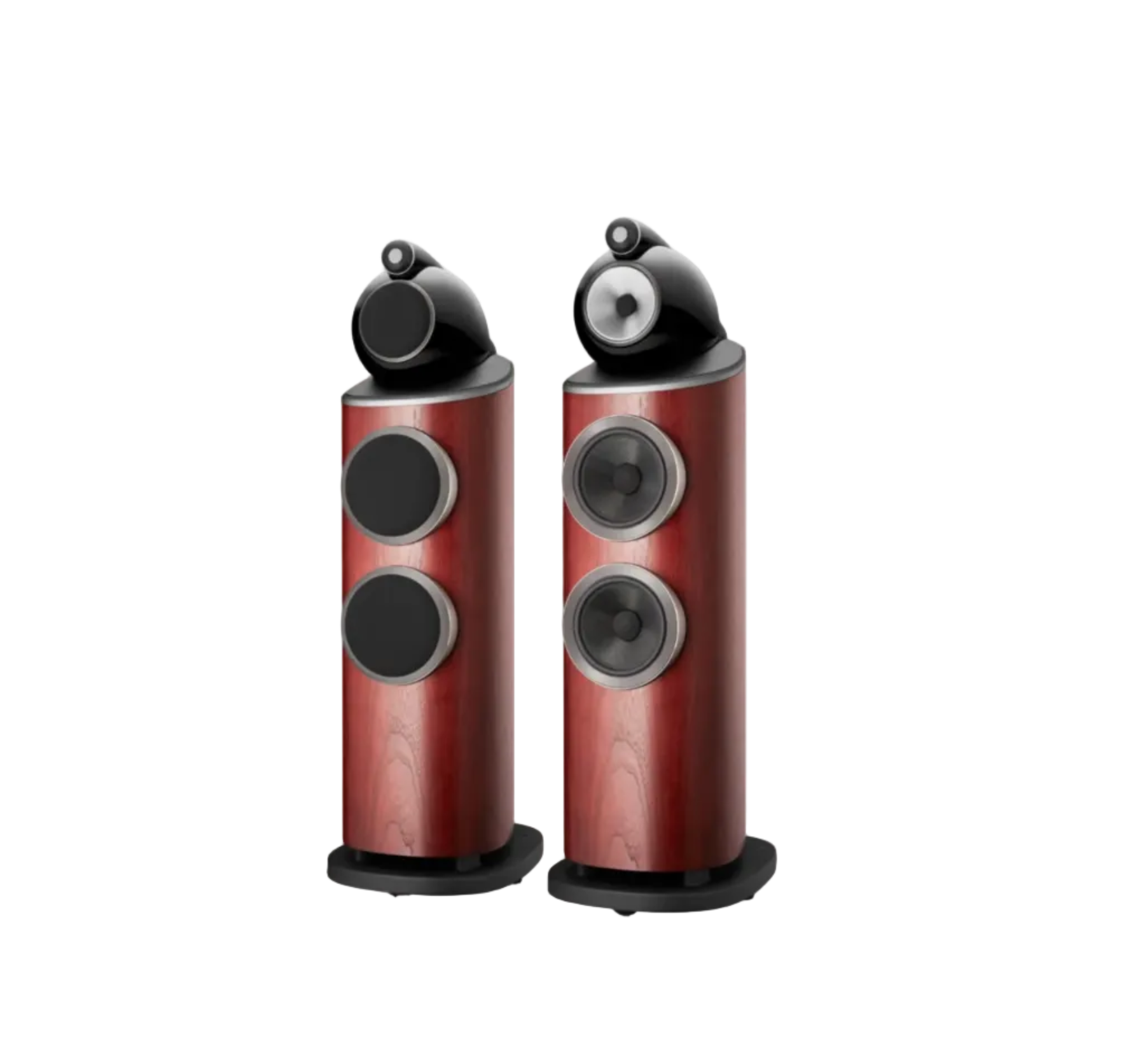

| Grille Finishes | Black, Grey |
