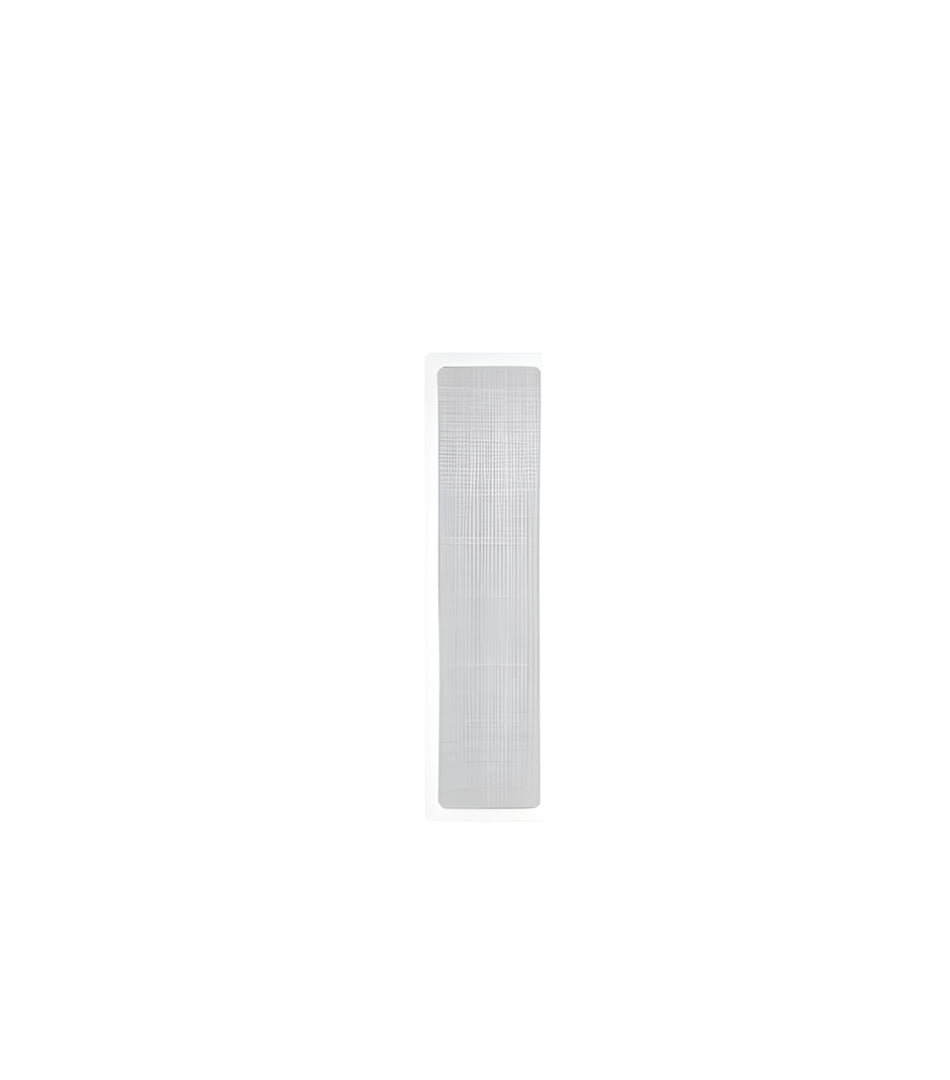

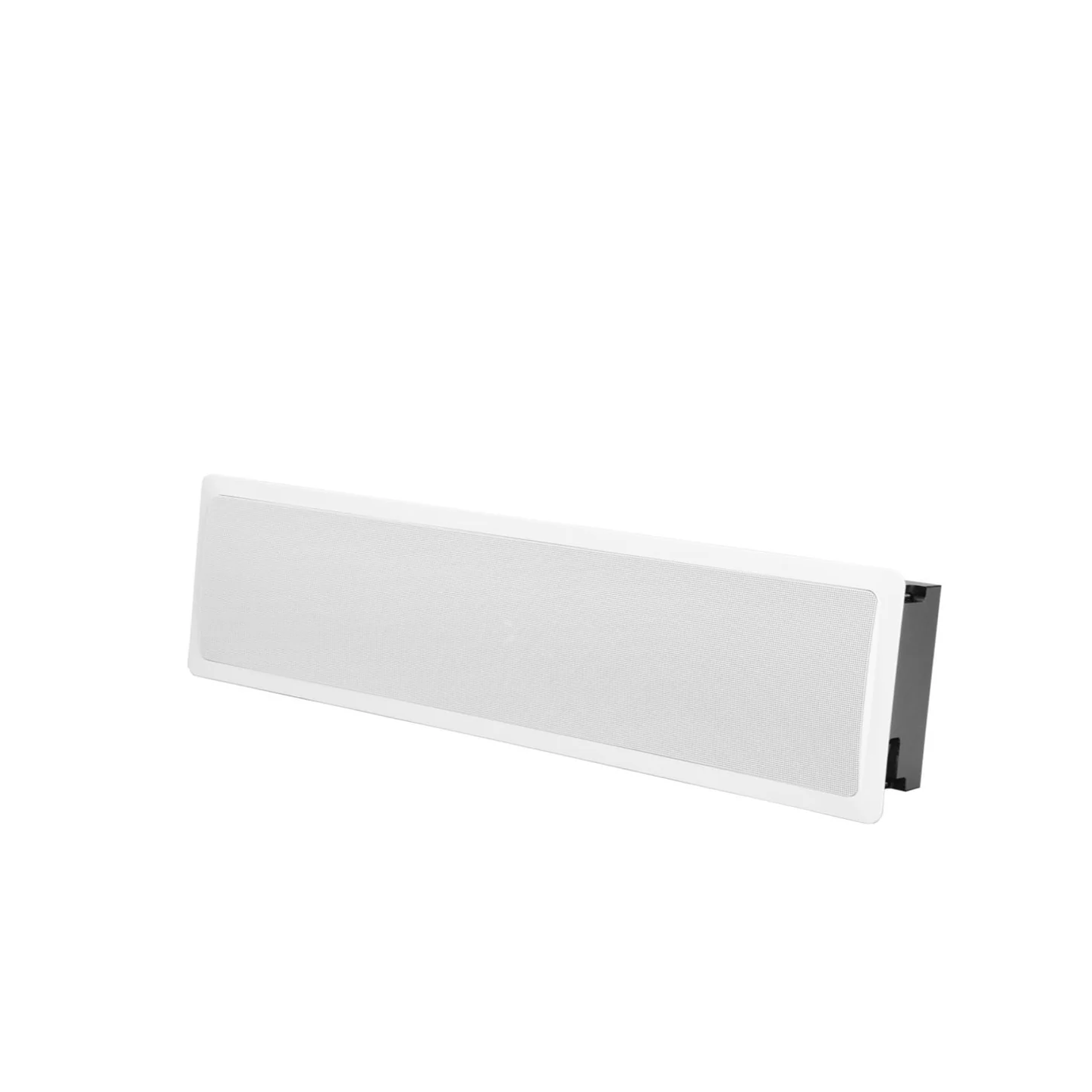

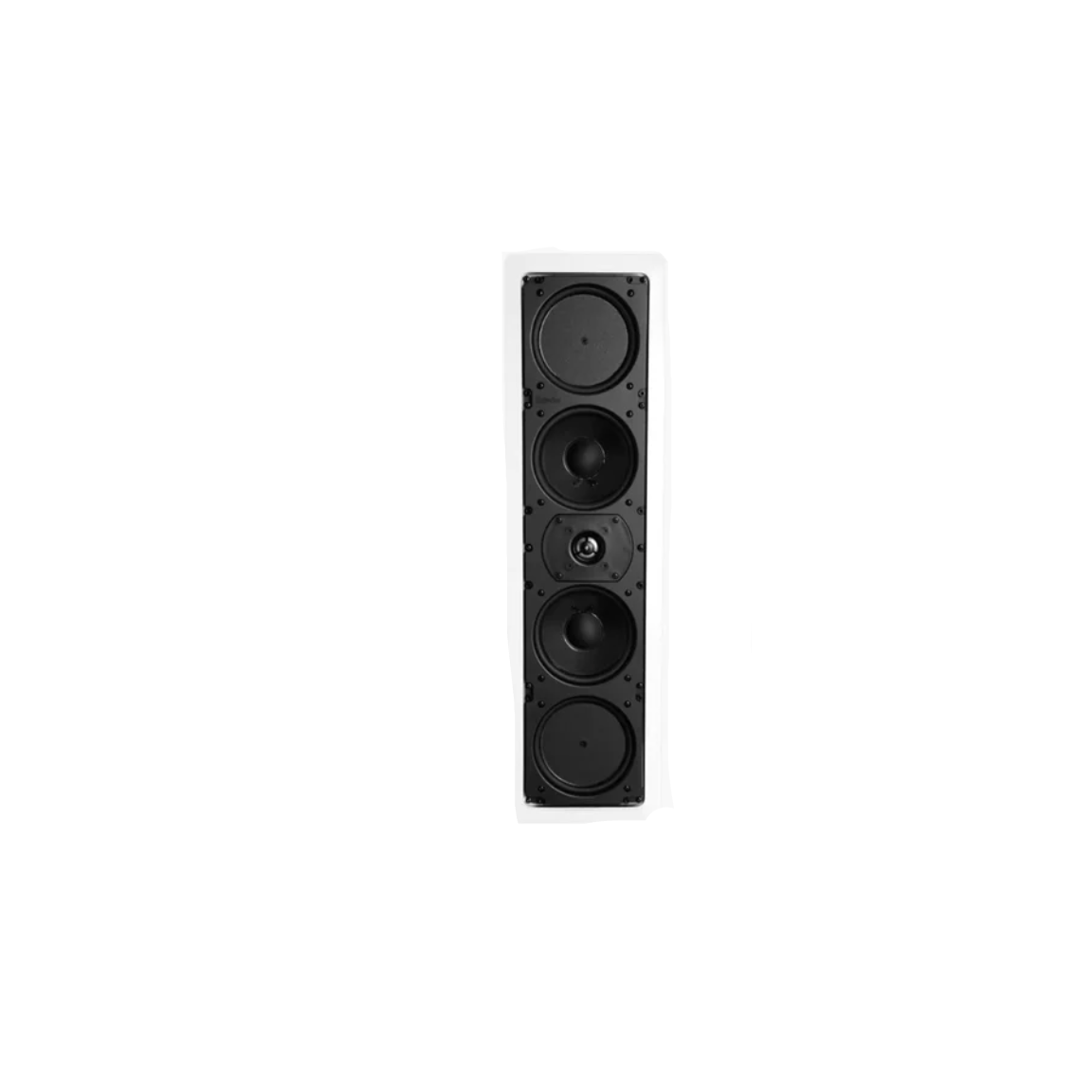

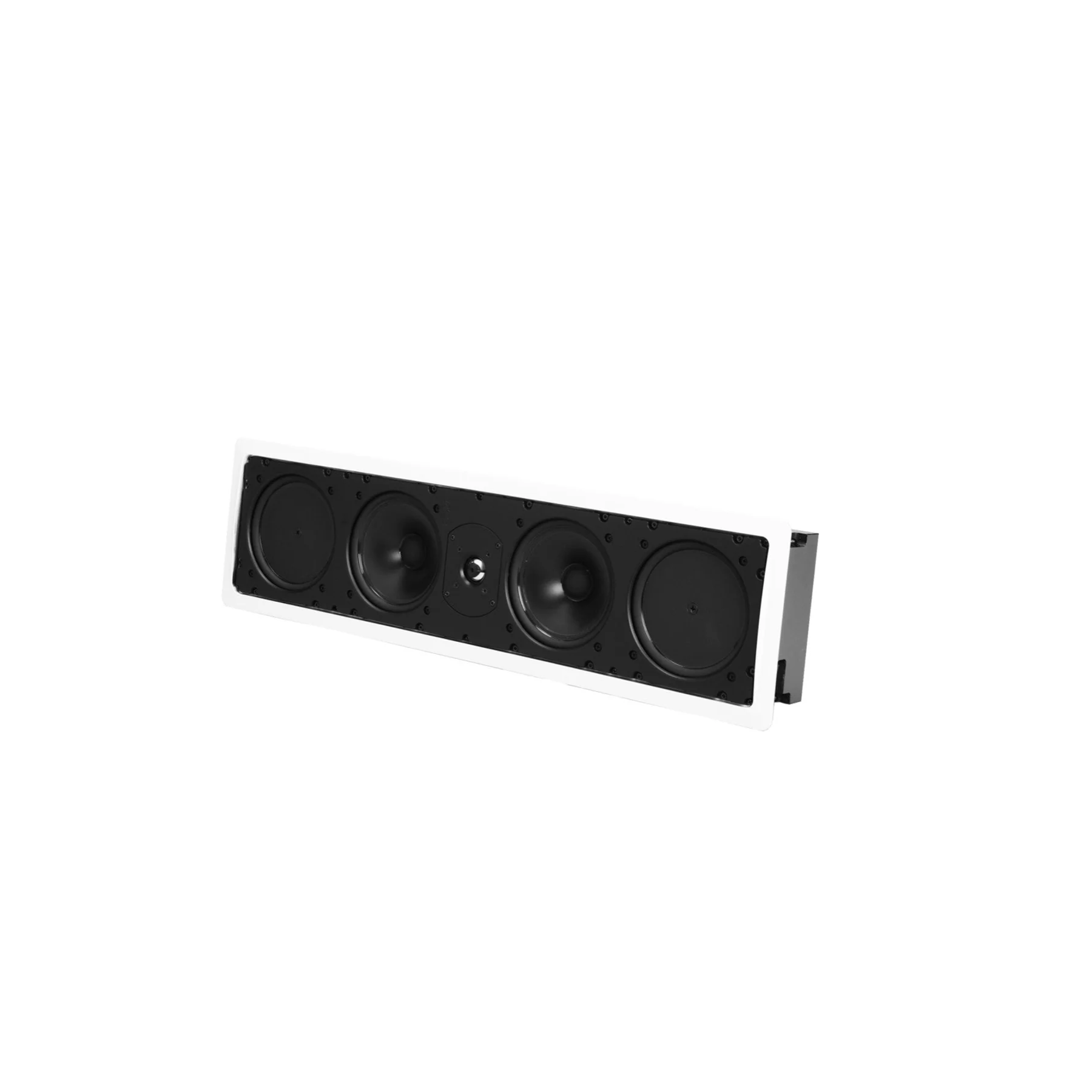

Definitive Technology UIW RLS II 6.5″ In-Wall Reference Line Source Speaker. The Reference Line Source II enclosed full-range loudspeaker packs a punch with sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets deliver tight bass and clear midrange. A pure aluminium dome tweeter, two pressure-driven Low Bass radiators and their stellar performance make the RLS II perfect for left, right, centre or surround applications in home theatres or multichannel music systems.
The Definitive Technology UIW RLS III speaker is engineered for powerful, detailed performance in custom-installed audio systems. Delivering a higher impact punch, it features dual 6.5″ cast basket drivers that produce rich, dynamic sound with exceptional clarity. For extended low-frequency performance, a pair of 6.5″ pressure-coupled Low Bass radiators deliver deeper, more resonant bass, enhancing the overall listening experience without the need for an external subwoofer. Housed in an integrated wood enclosure, the speaker ensures a clean, uncolored midrange with precise detail and tonal balance. Installation is seamless and secure thanks to rotating dogleg clamps, which provide a non-resonant, vibration-free mounting solution for both new and existing construction.
Non-Resonant Sealed Medite
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II reveals natural, uncoloured midrange and tight, detailed bass.
Pure Aluminium Tweeter For a Superb Response
Smooth high-frequency response rings true from a pure aluminium dome tweeter set among high definition bass/mid drivers.
Hassle-Free Stealth Installation
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RLS II is easily installed in both new and existing construction applications.
Packs a Punch with Stellar Sonic Performance
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush-mount speaker engineered that can be discreetly placed within your walls.
Technical Specifications
General
| Brand | Definitive-Technology |
| Model | UIW RLS II |
| Year | |
| Color |
Black |
Dimension
| Dimension | 3.81 x 7 x 25 inches |
| Weight | 14.5 Pounds |
Specification
|
Drivers
|
Two 5-1/4" bass/mid drivers
Two 5-1/4" pressure-driven bass radiators
One 1" pure aluminum dome tweeter
|
|
Recommended Amplification
|
10 325 watts per channel
|
|
Nominal Impedance
|
Compatible with 4 8 ohms
|
|
Outer Flange Size
|
Outer Flange Size: 7" W x 25" H
|
|
Cut-Out Size
|
5-7/8" W x 3-7/8" D x 23-1/4" H
|
|
Depth from Flange (including drywall thickness)
|
3-7/8"
|
|
Frequency Response
|
24 Hz 30 kHz
|
Warranty
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 2 Year |
