DEFINITIVE TECHOLOGY DI 5.5BPS DISAPPEARING SERIES 5.5"BIPOLAR IN-WALL SPEAKER

Description

DI 5.5BPS
Disappearing™ Rectangular Bipolar In-Wall / In-Ceiling Surround Speaker

• Powerful sound performance comes through with Bipolar sound dispersion and the latest-gen BDSS™ drivers
• Flangeless design, micro-perf grille and flush mounting minimize visibility
• Pure aluminum dome tweeters and adjustable high-definition crossover produce pristine highs
• Rigid PolyStone™ baskets eliminate unwanted vibrations to prevent ringing and minimize distortion

MORE RANGE THAN SPEAKERS NEARLY TWICE THEIR SIZE

With Balanced Double Surround System (BDSS™) technology, DI 5.5BPS surround speakers deliver the bass output and dynamic range of traditional 8″ speakers. Hidden within your walls or ceiling, lifelike sonic performance and broad, even dispersion become even more impressive. While other in-wall speakers fall short on sound quality and stealth, the DI 5.5 BPS sets an impossibly high standard.

Pure Aluminum

The pivoting pure aluminum dome tweeter features a uniquely constructed housing, eliminating diffraction distortions typical with traditional speakers for spectacular audio performance.

Balanced Dispersion

BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.

Adjustable Crossover

A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.

Designed for Invisibility

With a minimal visible surface area, hidden flange architecture and micro-perf grille, the DI 5.5BPS disappears into any environment, without the need for custom sheetrock or spackle work.

Accessories

Included Accessories
(1) Wall Mounting Template

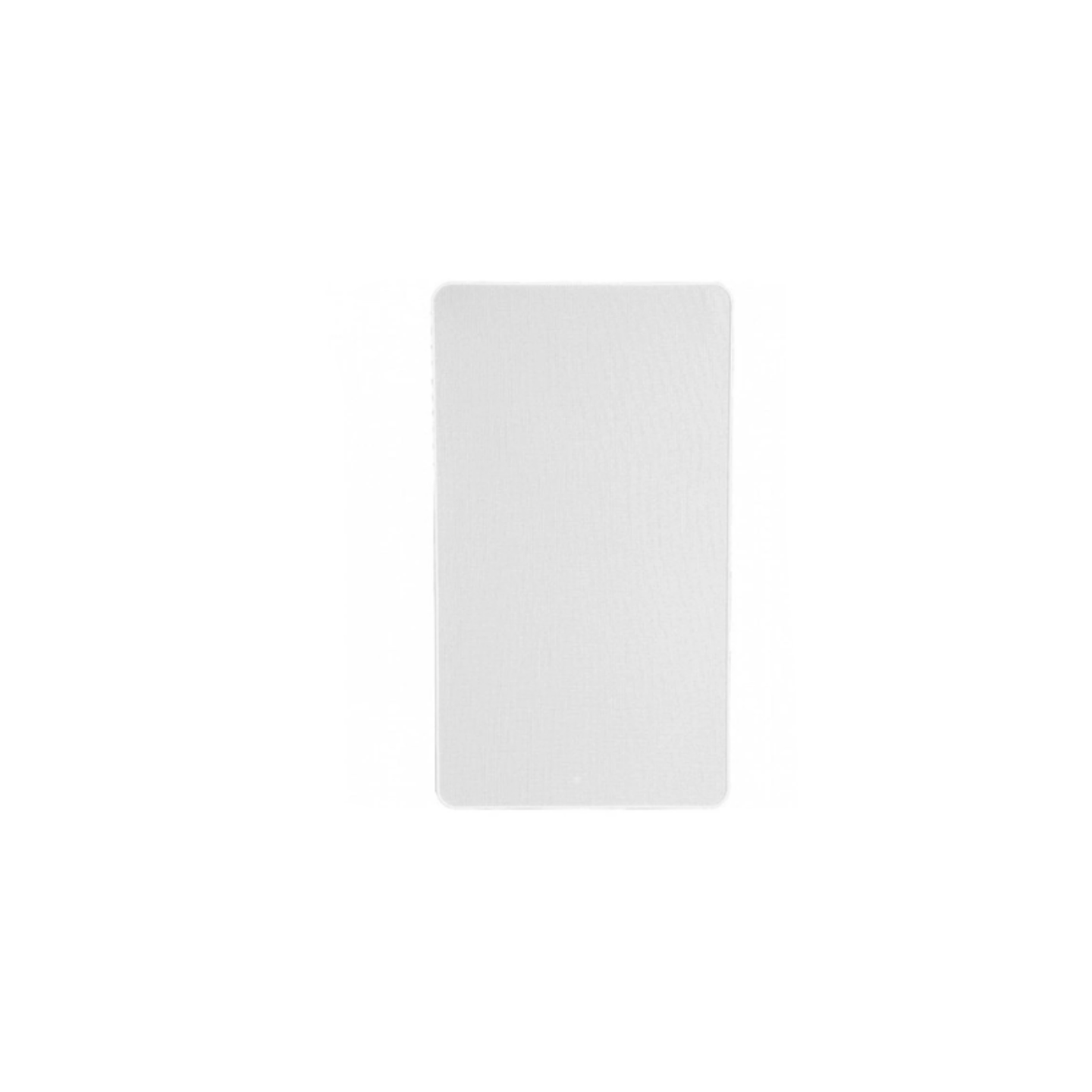

(1) Paintable Magnetic Grille

Shipping Cartons
Carton 1: 6.75″ (17.15 cm) h x 15.56″ (39.52 cm) w x 9.75″ (24.77 cm) d – 11 lbs (4.99 kg)

In-Wall Speaker

• Qty Included: 1
• Driver Complement: (2) 1″ (2.54 cm) d (Round) Pivoting Dome Tweeter – Tweeter - (2) 5.25″ (13.34 cm) d
• (Round) BDSS Bass/Mid – Mid/Woofer
• Depth: 3.88″ (9.86 cm)
• Weight: 8.4 lbs (3.81 kg)
• Grille Dimensions: 13.63″ (34.62 cm) h x 7.75″ (19.69 cm) w

In-Wall Mount

• Shape: Rectangle
• Dimensions: 12.63″ (32.08 cm) h x 6.81″ (17.3 cm) w
• Clearance Required for Mounting Dogs (add to each side of cutout): 1″ (2.54 cm)

In-Ceiling Mount
Shape: Rectangle
Dimensions: 12.63″ (32.08 cm) h x 6.81″ (17.3 cm) w

Inputs
Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded – na

Audio Quality

• Total Frequency Response: 28 Hz ? 30 Hz
• Nominal Impedance: 8 ohms
• Max Sensitivity (1 watt @ 1 meter): 89 dB
