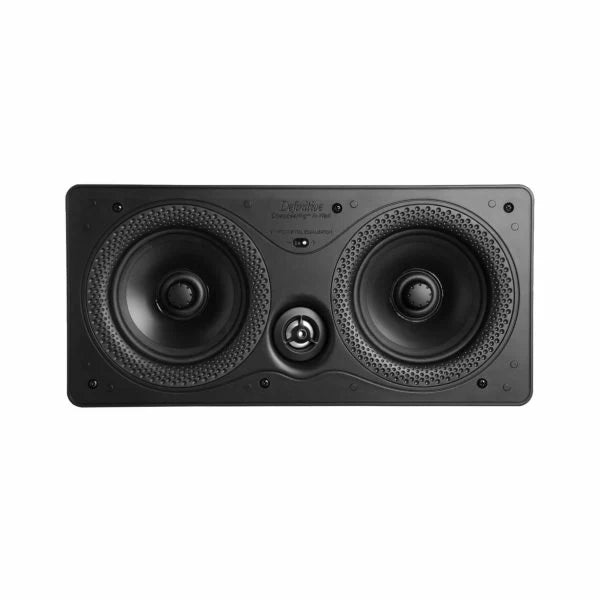

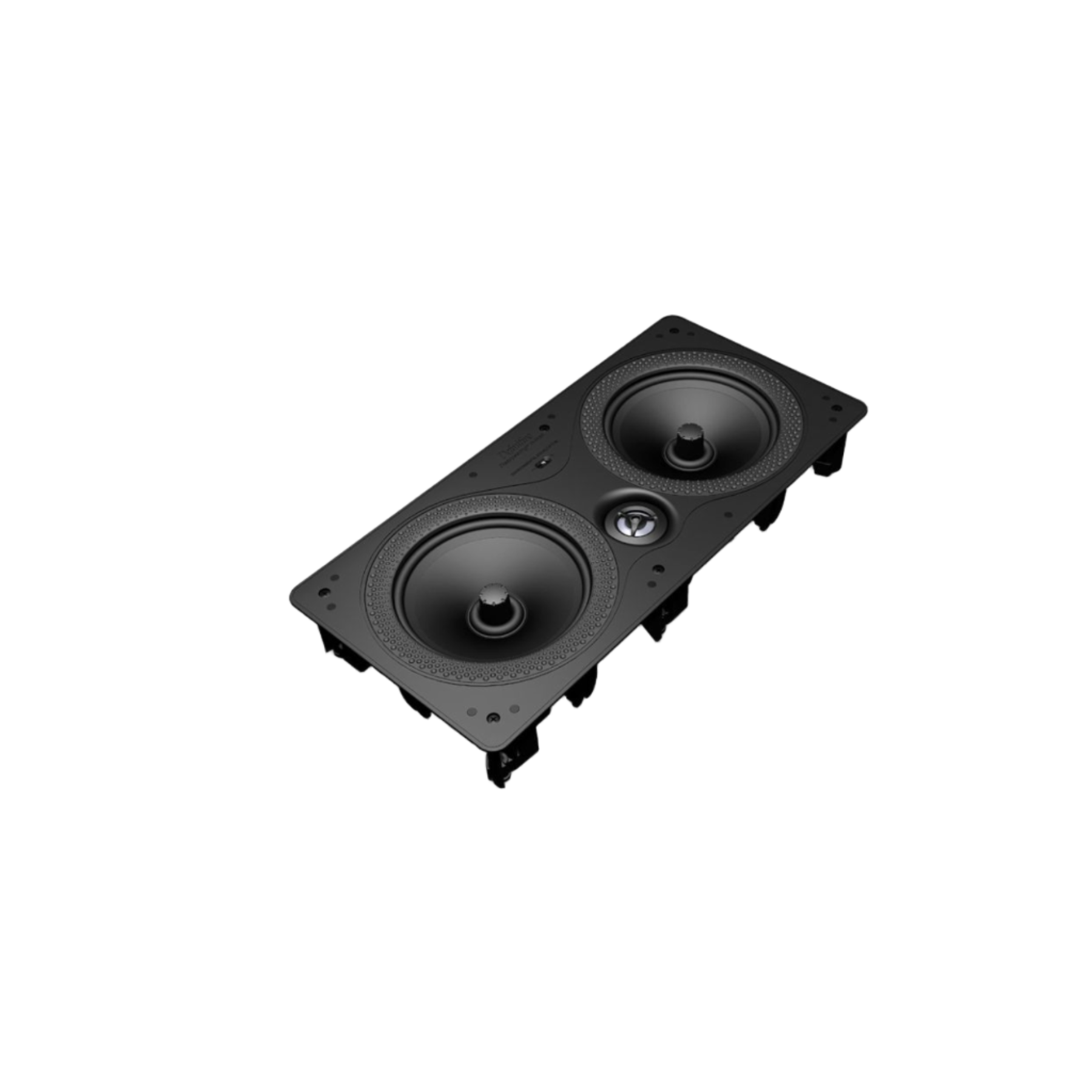

DEFINITIVE TECHNOLOGY DI 5.5LCR DISAPPEARING SERIES 5.5 IN-WALL SPEAKER

Disappearing™ In-Wall SeriesFront LCR
loudspeaker. Flangeless design & micro-perf grille.
1 x 1" pivoting Aluminum dome tweeter, 2 x 5.25"
BDSS drivers, 3 position environmenta EQ switch.
89 dB, 28Hz - 30 KHz

DI 5.5LCR
Disappearing In-Wall Loudspeaker

• Audiophile-grade quality with the latest generation BDSS™ drivers
• Flangeless design, micro-perf grille and flush mounting reduce visibility
• Pure aluminum dome tweeters and adjustable high-definition crossover produce pristine highs
• Rigid PolyStone™ baskets eliminate vibrations to prevent ringing and other distortions

FRONT STAGE SPEAKERS THAT DESERVE AN ENCORE

The world famous performance of Definitive Technology speakers goes undercover with the DI 5.5 LCR. Optimized for left/center/right front stage configurations, this speaker shares the same accurate sonic signature with all other DI Series speakers for seamless performance and worry-free mixing and matching.

Balanced Double Surround System

Proprietary BDSS™ technology delivers the wide dynamic range and deep bass output of much larger drivers in a small-sized, high-efficiency mid/woofer.

Balanced Dispersion

BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.

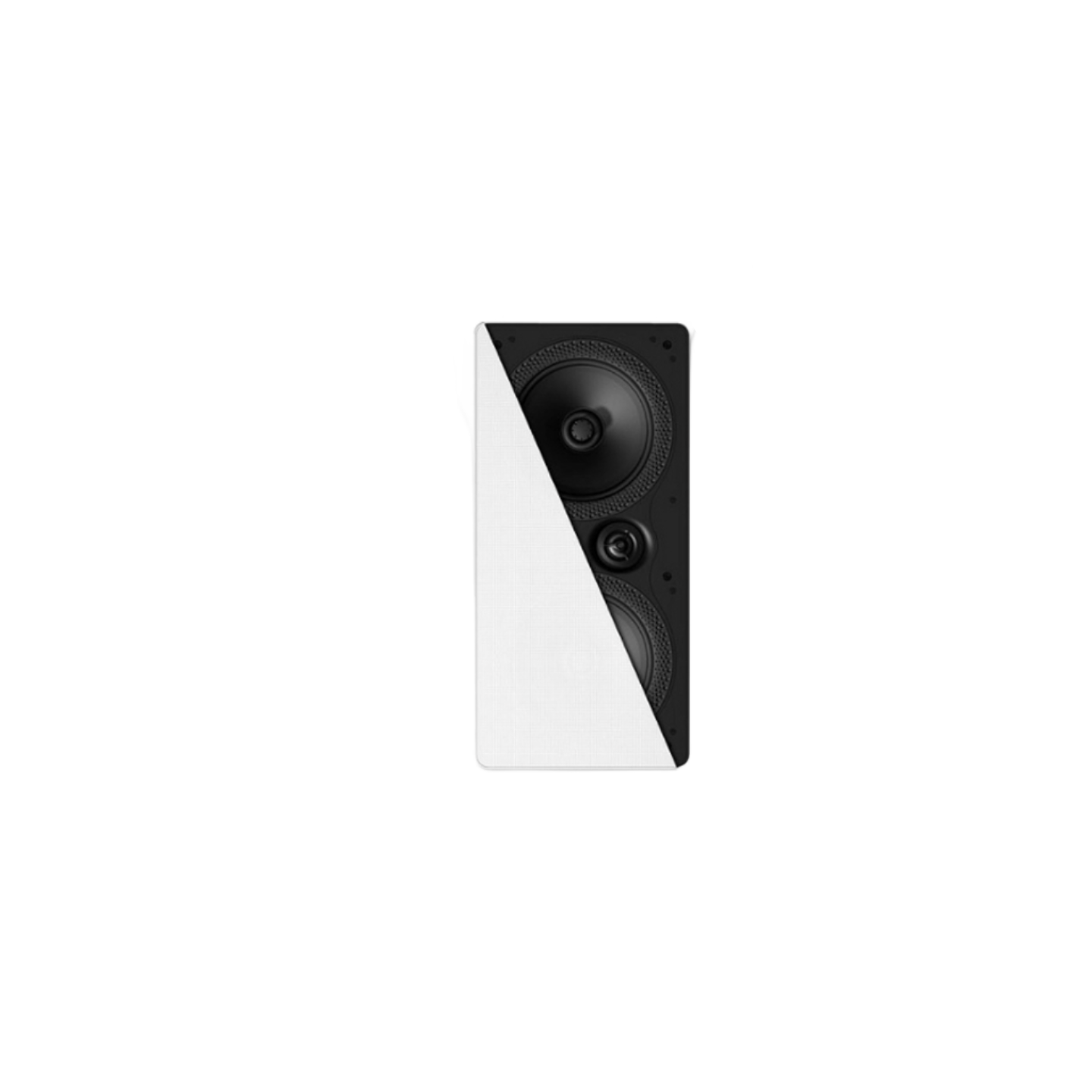

Designed for Invisibility

With a minimal visible surface area, hidden flange architecture and micro-perf grille, the DI 5.5 LCR disappears into any environment, without the need for custom sheetrock or spackle work.

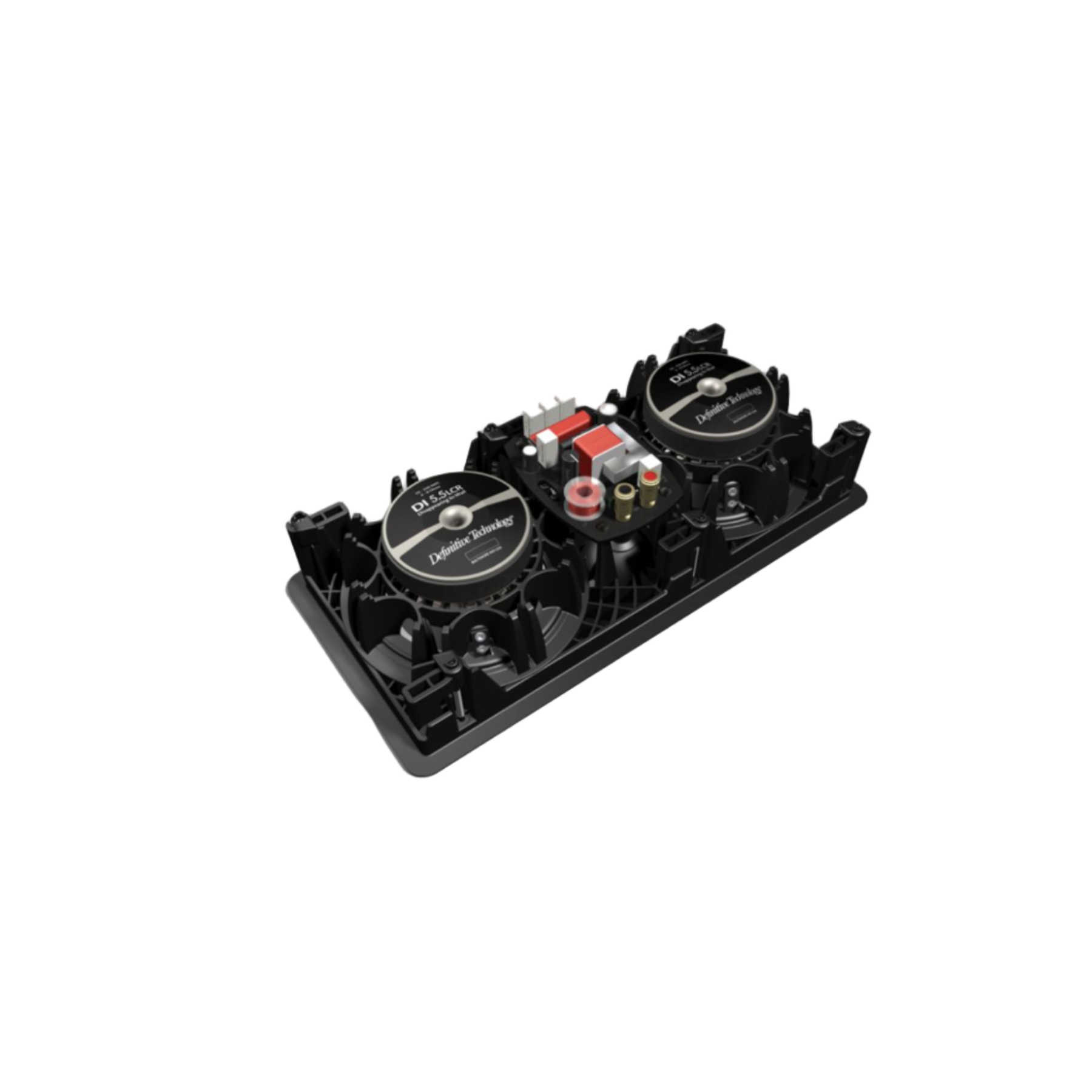

Adjustable Crossover

A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.

Accessories

Included Accessories
(1) Wall Mounting Template
(1) Paintable Magnetic Grille

Shipping Cartons
Carton 1: 6.63″ (16.84 cm) h x 17.38″ (44.15 cm) w x 9.63″ (24.46 cm) d – 10 lbs (4.54 kg)

In-Wall Speaker

• Qty Included: 1
• Driver Complement: (1) 1″ (2.54 cm) d (Round) Tweeter – Tweeter - (2) 5.25″ (13.34 cm) d (Round)
• Mid/Woofer – Tweeter
• Weight: 8 lbs (3.63 kg)
• Grille Dimensions: 15.31″ (38.89 cm) h x 7.38″ (18.75 cm) w

In-Wall Mount

• Shape: Rectangle
• Dimensions: 6.44″ (16.36 cm) h x 14.38″ (36.53 cm) w
• Clearance Required for Mounting Dogs (add to each side of cutout): 1″ (2.54 cm)

Inputs
Ethernet: Yes
Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded – na

Audio Quality

• Total Frequency Response: 28 Hz ? 30 Hz
• Nominal Impedance: 8 ohms
• Max Sensitivity (1 watt @ 1 meter): 89 dB
