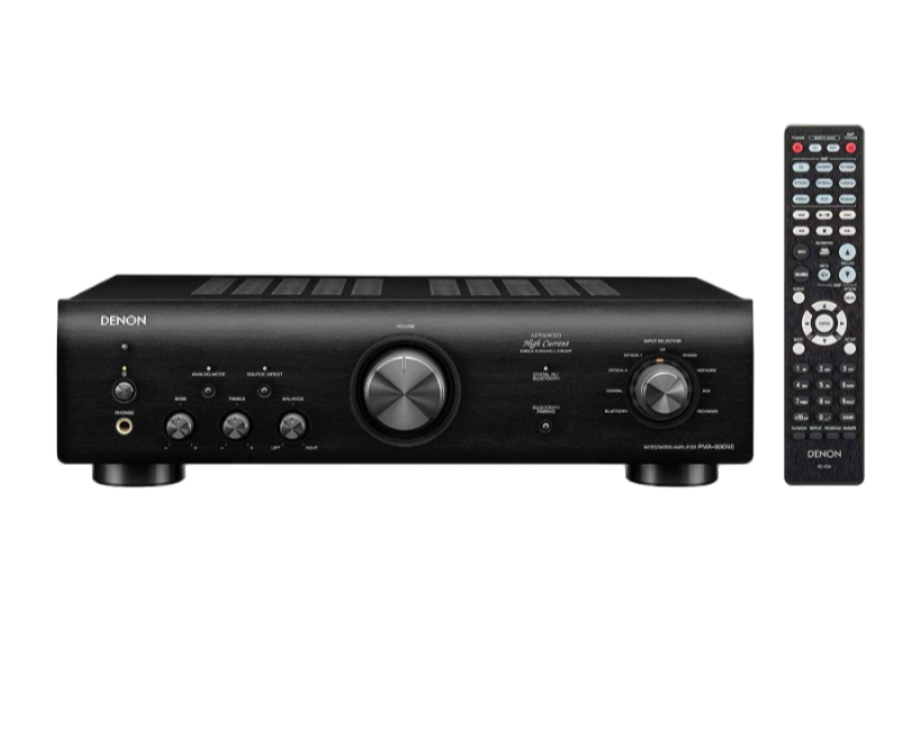

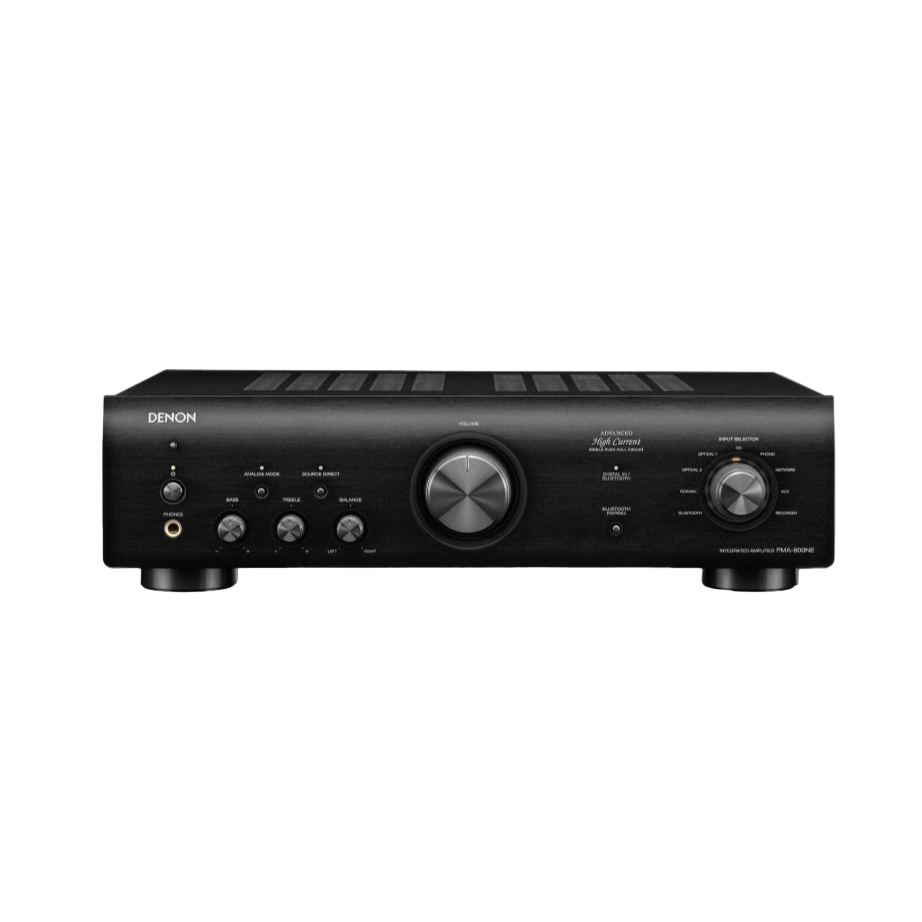

Engineered with remarkable Denon amplifier technology, the PMA-600NE delivers 70 Watts of power-per-channel. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Built in 192kHz/24bit D/A Converter
Experience high-resolution audio playback to enjoy the highest quality of your favorite songs.
MM Phono Equalizer
The PMA-600NE includes a phono equalizer that supports playing from sources with a MM cartridge. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design, significantly improves sound.
Main Transformer with Individual Wiring
To eliminate interference and maintain exceptional sound quality, the transformer has separate coiled wires for audio and control circuits.
Sonic Innovation For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Key Technologies
Hi-Res Audio
The ability to decode Hi-Res Audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz, as well as DSD 2.8MHz and 5.6MHz tracks (SACD) lets you enjoy each note exactly as the artist intended.
Bluetooth
Connect and play music directly from your smartphone, tablet or other compatible device.
Circuit Patterns
The circuit patterns have been engineered to make signal paths as short as possible, reducing interference to reproduce sound that’s clean, highly transparent, and faithful to the original recording.
MM Phono
Denon Moving Magnet (MM) phono preamps feature a high-precision equalizer circuit to restore the warmth and natural sound of vinyl, and a low-noise signal path for improved fidelity.
Pure Direct mode
Pure Direct mode turns the display and the digital outputs off to minimize interference that might color the audio signal. What you hear is clean, detailed, accurate sound.
Features
| Feature |
Specification |
| Channels |
2 |
| Digital Inputs |
USB-B: No / Optical: 2 / Coaxial: 1 / USB-A: No |
| Sample Rate (Digital In) |
192 kHz / 24-bit |
| DAC Chip |
PCM5141 |
| Bluetooth / aptX / NFC |
Yes / No / No |
| Analogue Mode |
Yes |
| Advanced HC-TR Circuit |
Yes |
| Wide Range Amplifier |
Yes |
| High Current Dynamic Power Supply |
Yes |
| Power Amp Discrete Construction |
Yes |
| Micro Processor Auto Off |
Yes |
| Balance / Bass / Treble / Loudness |
Yes / Yes / Yes / No |
Others
| Feature |
Specification |
| Channels |
2 |
| Digital Inputs |
USB-B: No / Optical: 2 / Coaxial: 1 / USB-A: No |
| Sample Rate (Digital In) |
192 kHz / 24-bit |
| DAC Chip |
PCM5141 |
| Bluetooth / aptX / NFC |
Yes / No / No |
| Analogue Mode |
Yes |
| Advanced HC-TR Circuit |
Yes |
| Wide Range Amplifier |
Yes |
| High Current Dynamic Power Supply |
Yes |
| Power Amp Discrete Construction |
Yes |
| Micro Processor Auto Off |
Yes |
| Balance / Bass / Treble / Loudness |
Yes / Yes / Yes / No |
| Shottky Diodes |
Yes |
| Solid Heat Sinks |
Yes |
| Source Direct |
Yes |

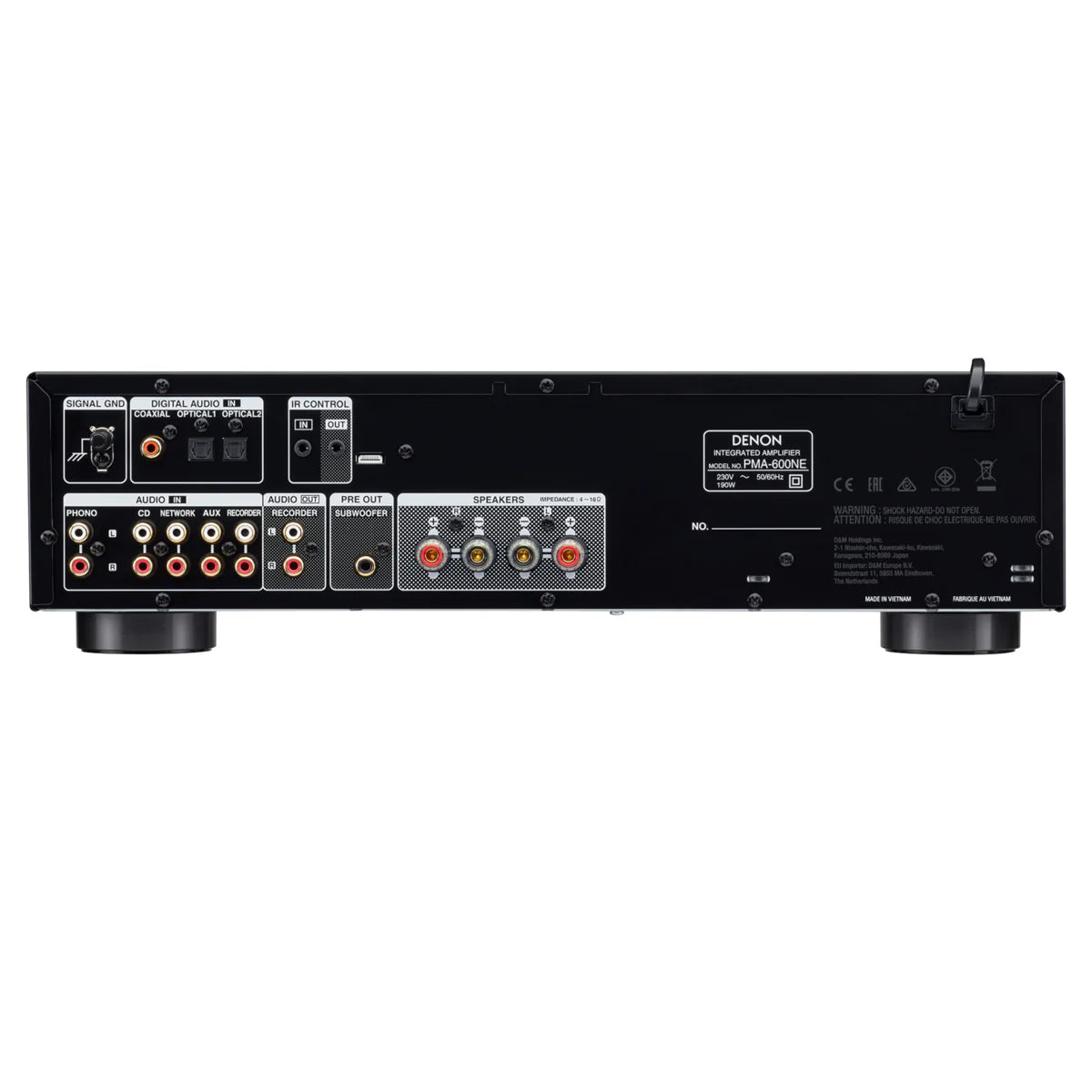

Input/Output
| Feature |
Specification |
| Audio Inputs |
5 |
| Digital Inputs (USB-B / Optical / Coaxial / USB-A) |
No / 2 / 1 / No |
| Phono Input (MM / MC) |
Yes / No |
| Audio Outputs |
1 |
| Pre-out / Main-in |
Subwoofer / No |
| Gold Plated Cinch |
Yes |
| Number of Terminals |
2 |
| Remote Control Bus in / out |
Yes |
| HEOS Link Compatibility (IR / IP) |
Yes / No |
| Headphone Out |
Yes |
Specifications
| Feature |
Specification |
| Output Power (8 Ohm, 20 Hz - 20 kHz, T.H.D. 0.07%) |
45 W |
| Output Power (4 Ohm, 1 kHz, T.H.D. 0.7%) |
70 W |
| Total Harmonic Distortion (T.H.D.) |
0.02% |
| Input Sensitivity (MM) |
2.5 mV / 47 kohm |
| Signal to Noise Ratio (MM / MC) |
84 dB / No |
| Input Sensitivity (High level) |
110 mV / 30 kohms |
| Signal to Noise Ratio (High level) |
105 dB |
| Treble Control |
± 8 dB at 10 kHz |
| Bass Control |
± 8 dB at 100 Hz |
General Specifications
| Feature |
Specification |
| Available Colors |
Black / Premium Silver |
| Metal Front Panel |
Yes |
| Power Consumption |
185 W |
| Standby Consumption |
0.3 W |
| Auto Power Off |
Yes |
| Remote Control |
RC-1234 |
| System Remote Function |
Yes |
| Maximum Dimensions (W x D x H) |
434 x 308 x 121 mm |
| Weight (kg) |
6.8 kg |
| Carton Maximum Dimensions (W x D x H) |
520 x 370 x 207 mm |
| Carton Weight (inc. product) |
8.1 kg |
