ELAC - IW-C61-W

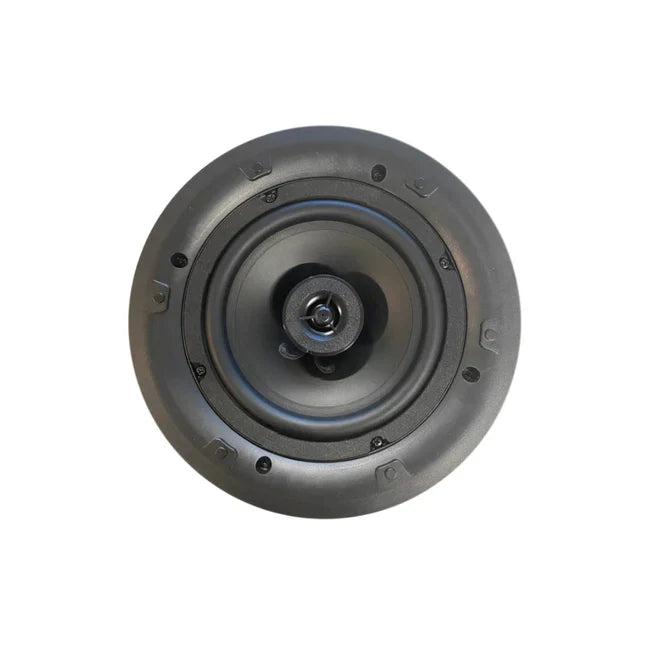

ELAC IW-C61 W IN-CEILING SPEAKERS
We understand the importance of having audio to enhance a living space, with minimal aesthetic intrusion. With a slim profile, the easily installed Vertex in-ceiling speakers expand the line of our Integrator Series of custom products. Keeping our philosophy of delivering high-end sound, the Vertex series of speakers will compliment any conventional floorstanding or bookshelf loudspeaker.

CUSTOM SILK-DOME TWEETER
Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response.

CUSTOM-DESIGNED WOOFERS WITH POLYPROPYLENE CONE
Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off

SPECIFICATIONS
Speaker type: - 2-way, rear side open

Tweeter: - 1 x 1-inch soft dome

Woofer: - 1 x 8-inch polypropylene cone

Crossover frequency: - 2,800 Hz

Frequency response: - 40 to 20,000 Hz

Sensitivity: - 90 db at 2.83 v/1m

Recommended amplifier power: - 30 to 120 wpc

Nominal/peak power handling: - 50/120 wpc

Nominal impedance: - 6 Ohm

Binding posts: - Heavy-duty metal spring terminals

Finish: - Black baffle/White grille

Grille: - Metal magnetic / Paintable

Accessories included: - Cutout template, manual

Dimensions (diameter): - 11.22 in / 285 mm

Cut-out (diameter): -10.00 in / 254 mm

Mounting depth: - 4.48 in / 114 mm
