ELAC

Elac WS -1665 On Wall LCR Speaker

Regular price
Rs. 125,900.00
Sale price
Rs. 125,900.00
Regular price
Get free shipping on your order.
  • Elac WS -1665 On Wall LCR Speaker
2 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

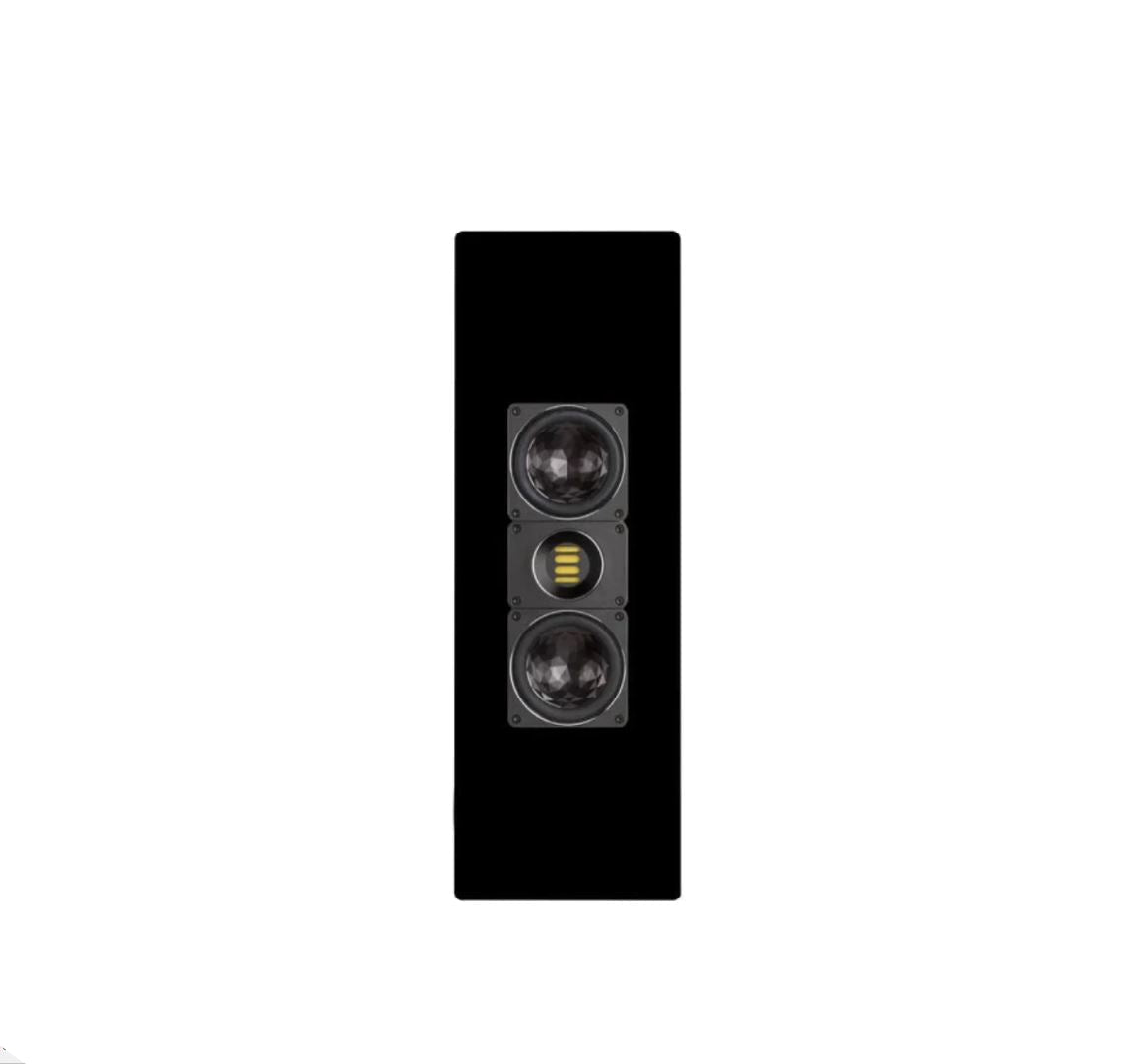

2.5-Way On-Wall Speaker with JET Tweeter

Designed like a 2.5-way bass reflex standing box for wall mounting, it provides an audiophile solution without the usual positioning problems. With two woofers and the recognized JET 5 tweeter, this is the speaker for larger listening rooms or higher listening volume. Very similar in sound to the WS 1645, but even more powerful in the bass range, the WS 1665 can also be used in combination as a classic center speaker.

Meet the WS 1665 On-Wall Speaker - Audio Reproduction Without Compromises

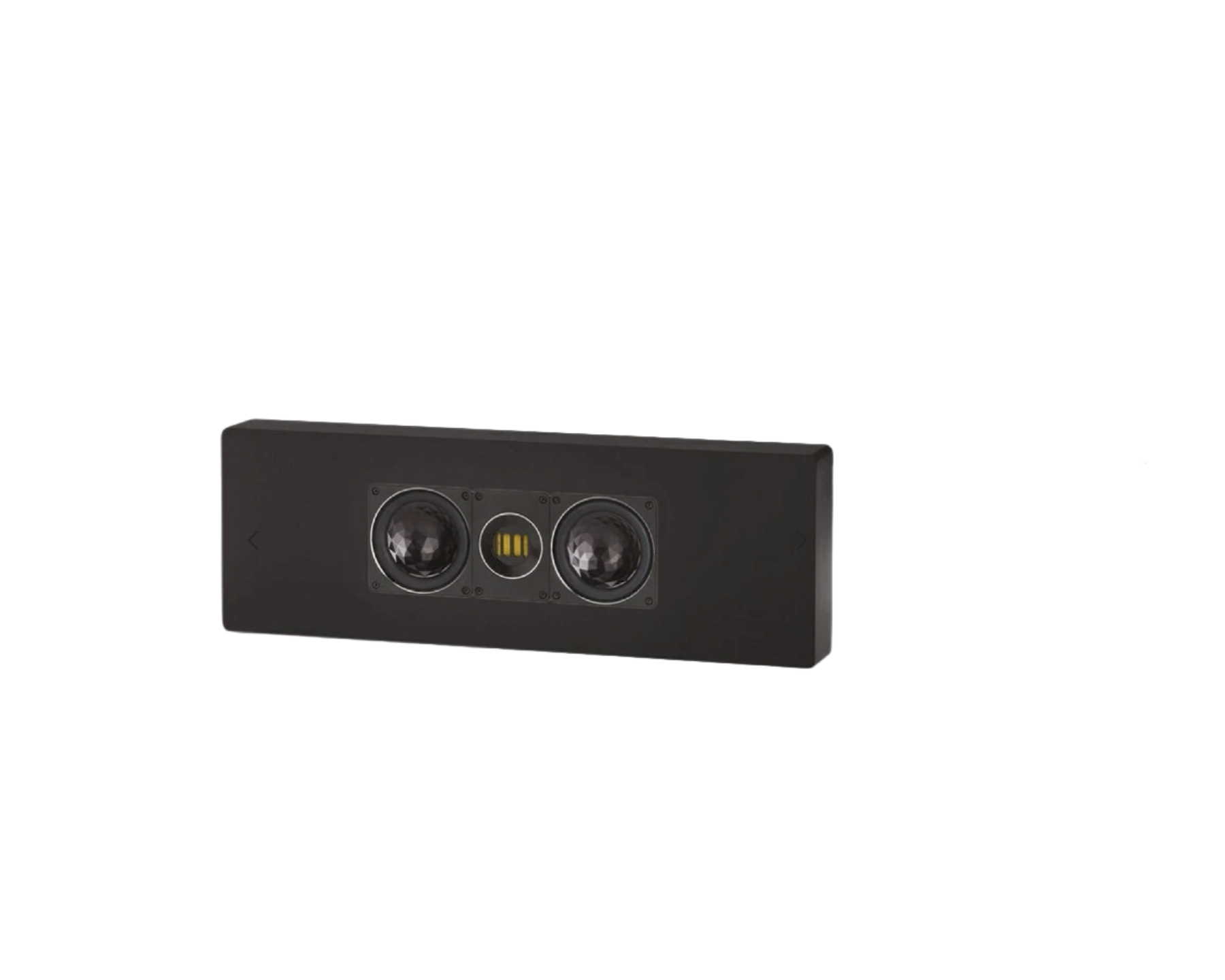

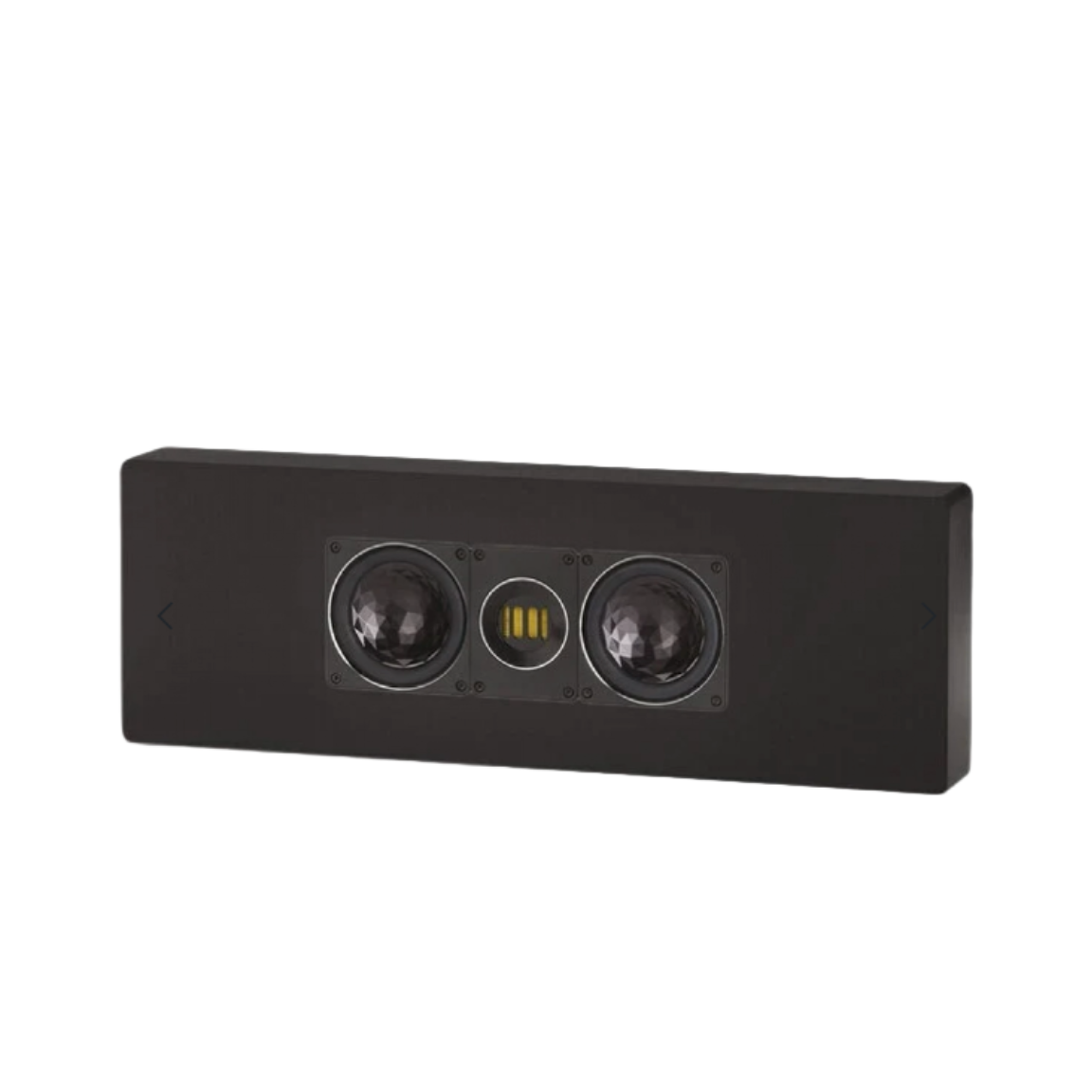

The WS 1665 delivers full-scale, high-fidelity sound from an impressively slim cabinet only 84 mm deep. Engineered for large listening spaces and high playback levels, this model features dual woofers for deeper bass and greater output. Offering the same refined tonal balance as the WS 1645 but with added low-frequency impact, the WS 1665 also serves perfectly as a traditional center speaker when paired with other WS models.

JET Tweeter – Air Motion Technology for Extended, Smooth Response

At the heart of ELAC’s sonic excellence is the renowned JET tweeter, celebrated for its lightning-fast transient response, broad dynamic range, and ultra-low distortion. Using advanced Air Motion Transformer technology, it delivers crystal-clear highs and an exceptionally wide frequency range. Handcrafted in Kiel, Germany, this tweeter ensures transparent, effortless sound reproduction that has earned international acclaim.

AS-XR Crystal Membrane Woofer – Smoother Excursion for Extended Frequency Range

The WS 1665’s woofers feature ELAC’s signature AS-XR aluminum sandwich membrane, designed for optimal stiffness and control. The distinctive crystal-shaped cone isn’t just aesthetic it enhances rigidity, extends the frequency range, and delivers smooth roll-off characteristics. This technology ensures excellent large-signal behavior and impressive bass output, even from compact enclosures.

Family Sound Signature – Freely Combine Different Models

All WS Series loudspeakers share a consistent visual and acoustic identity, making them easy to integrate into any system. Their unified “family sound signature” allows seamless mixing and matching of different WS models, ensuring cohesive sound performance and elegant visual harmony across your setup.

Technical Specifications

Spec Details
Enclosure type 2.5-way, bass reflex
Tweeter 1 × 25 mm
Woofer 2 × 115 mm AS cone
Crossover frequency 600 / 3,400 Hz
Frequency response 50 – 30,000 Hz
Sensitivity 89 dB / 2.83 V / 1 m
Recommended power input 20 – 180 W / channel
Nominal impedance 5 Ω; Minimum: 4.3 Ω @ 58 Hz
Wall mounting 5 key holes
Magnetically shielded No

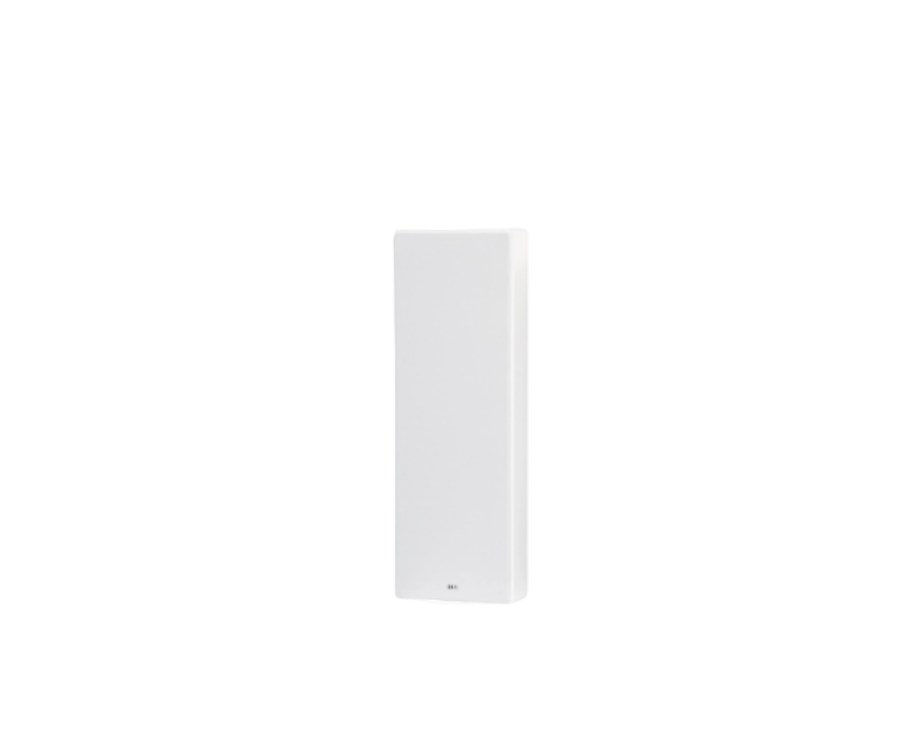

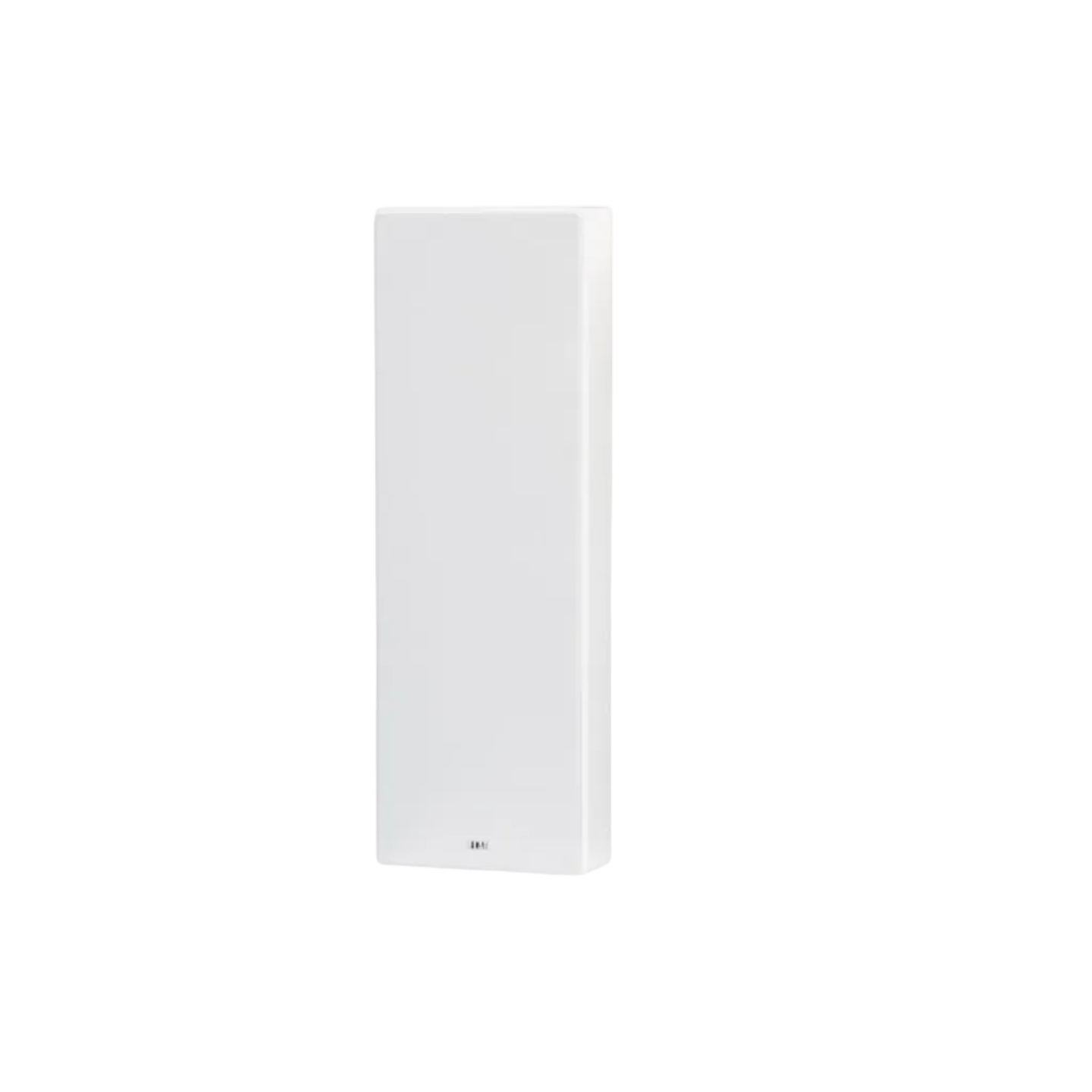

Cabinet finish White silk matte / Black silk matte
Grille Magnetic white or black fabric grille
Height 25.6 in / 650 mm
Width 8.7 in / 220 mm
Depth 3.9 in / 98 mm
Net weight 7.3 kg
