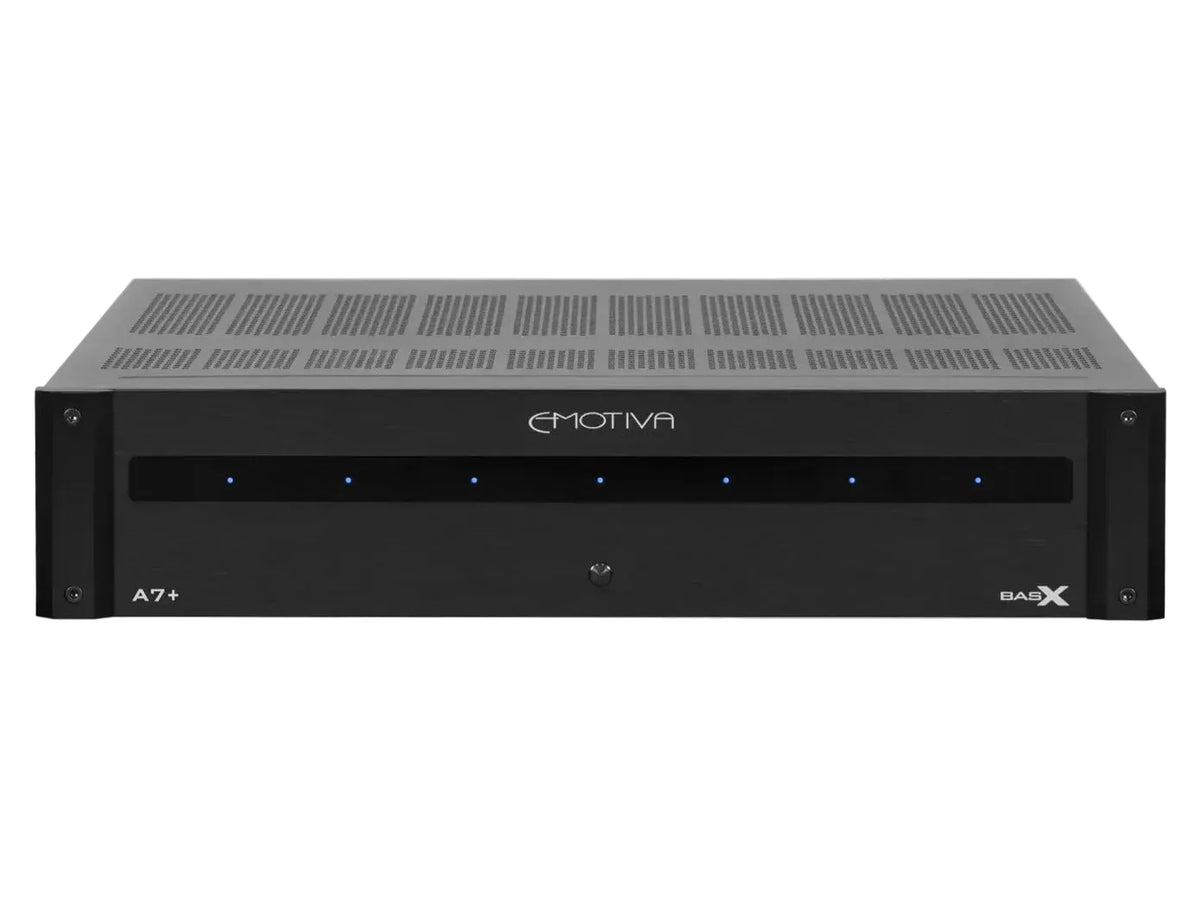

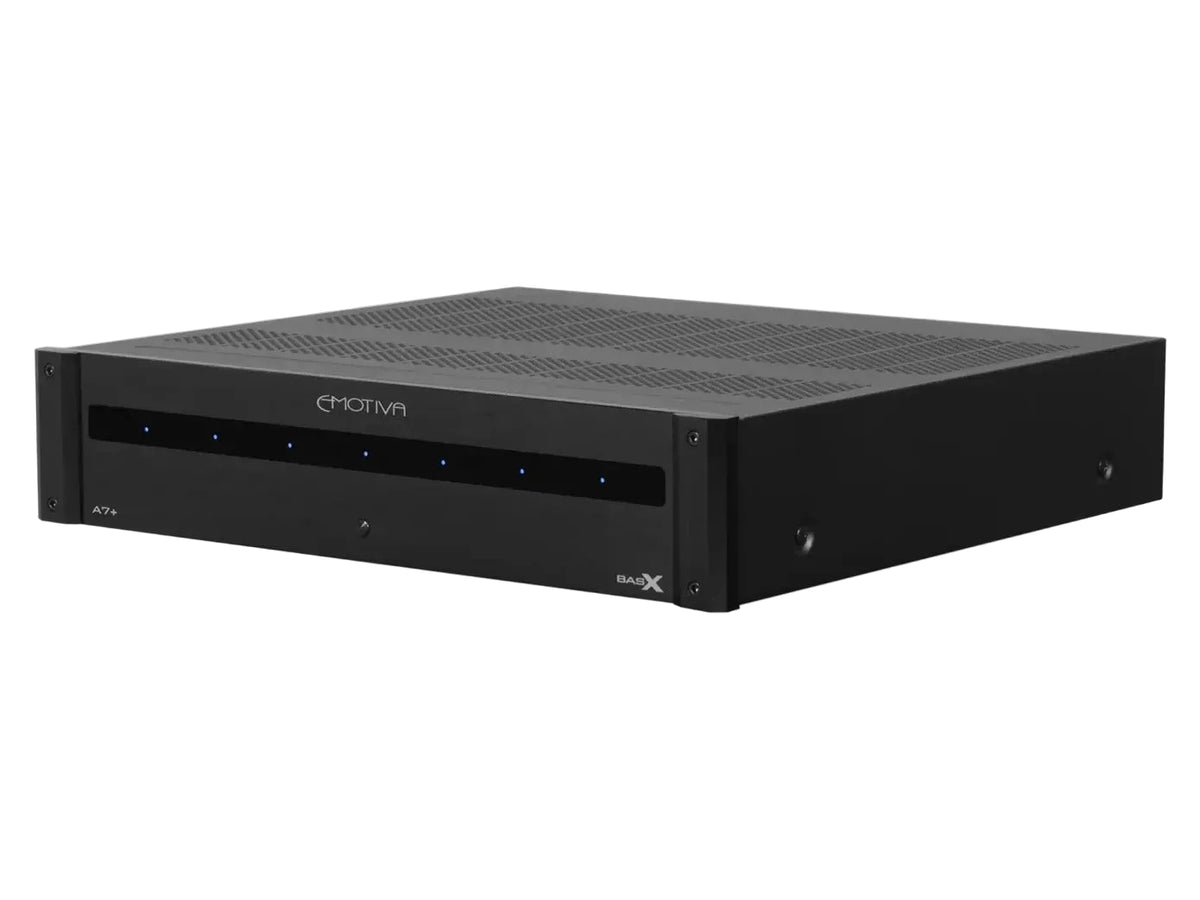

Emotiva BasX A7+ 7 Channel Stereo Power Amplifier
- Regular price
- Rs. 148,500.00
- Sale price
- Rs. 148,500.00
- Regular price
-
- Official Manufacturer Warranty Included (with GST Bill).
- 100% QC Tested by SH Audio Engineers.
-
Request Live WhatsApp Video Inspection See the physical unit working on video call before buying.→
Couldn't load pickup availability
Description
The BasX A7+ Seven-Channel Power Amplifier is a home theater amplifier built to keep your speakers clear, controlled, and confident when movies get loud and music gets dynamic. A high-current linear supply with an oversized toroidal transformer feeds a refined Class A/B output stage, while balanced XLR inputs on every channel lower noise so surround sound opens up without strain.
Product Overview
Common Uses of Emotiva BasX A7+ 7 Channel Stereo Power Amplifier
The BasX A7+ can power a complete 7.1 surround sound system with ample headroom for dynamic performance. It can also be used to upgrade an AVR by taking the load off its internal amplification, allowing the receiver to operate with greater ease. In Dolby Atmos or DTS:X setups, the A7+ is ideal for powering the bed-layer channels while the AVR or processor handles the height channels.
Product Features
Audiophile Power Without the Premium Price
The BasX A7+ is a seven-channel Class A/B power amplifier designed to deliver strong control and headroom for home theatre systems. Its heavy-duty linear power supply and oversized toroidal transformer provide consistent power across all seven channels for dynamic movie and music playback.
Solid Build, Inside and Out
A rigid steel chassis and milled aluminum faceplate provide a strong and stable foundation. Inside, carefully arranged components and quality circuit boards help reduce noise and heat, supporting clean performance and reliable long-term operation.
Connect It Your Way, XLR or RCA

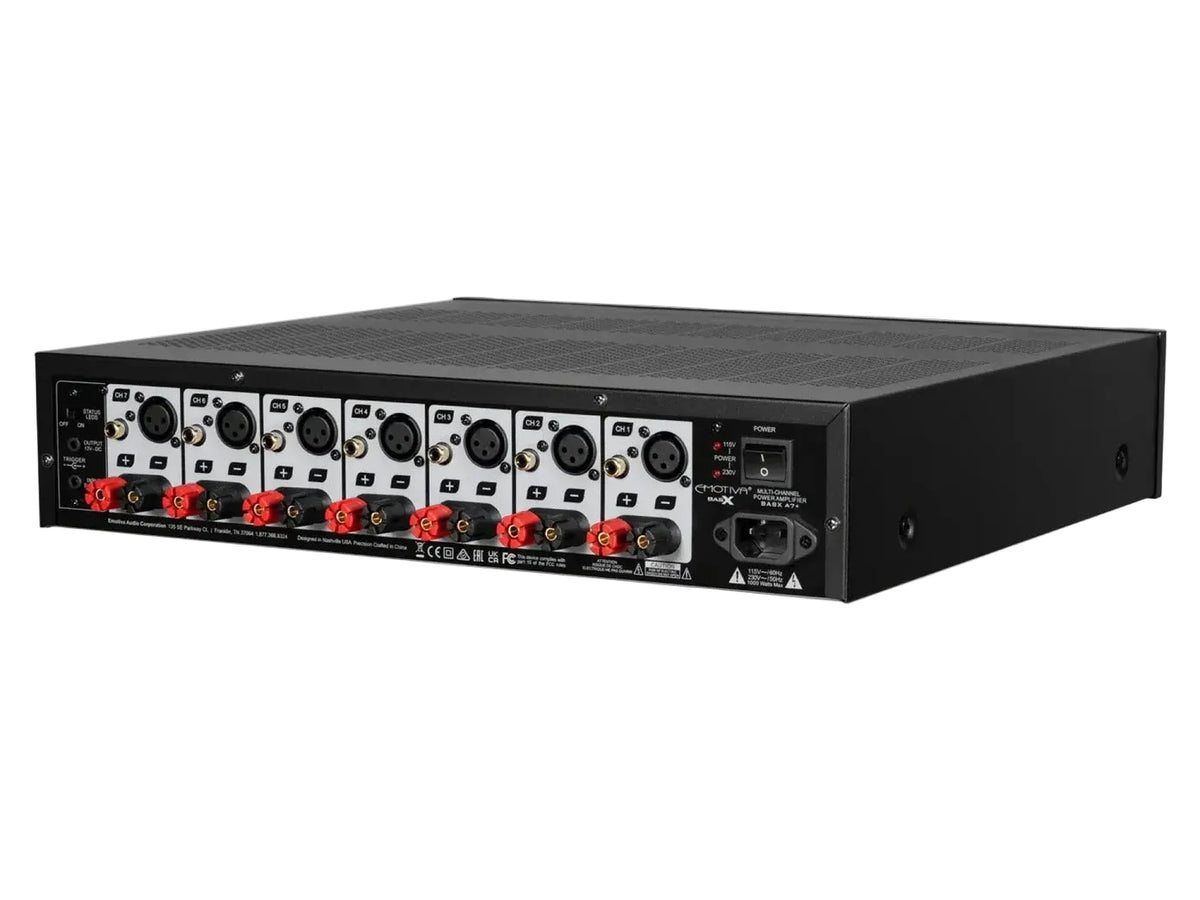

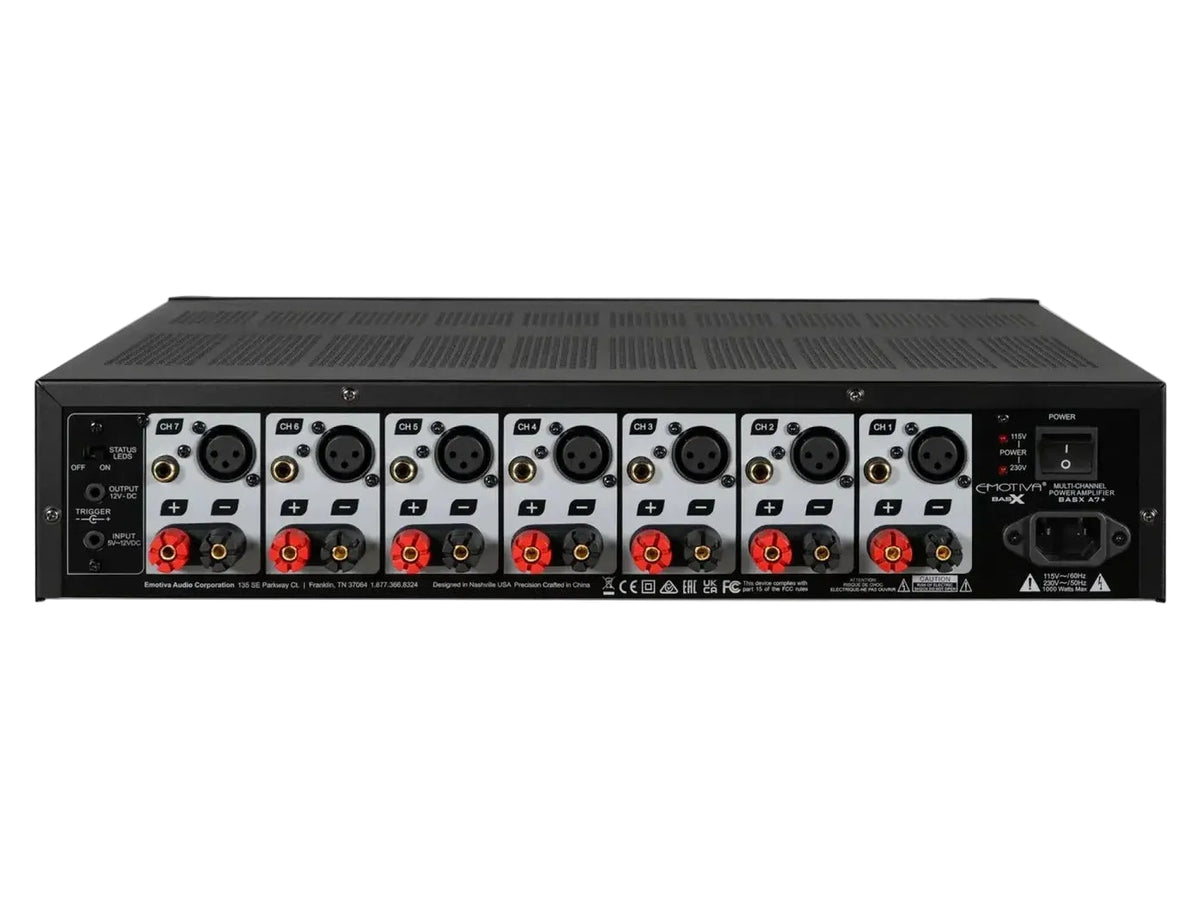

Each channel features balanced XLR and unbalanced RCA inputs, allowing easy connection to AV processors and AVRs with preamp outputs. Five-way binding posts support banana plugs, spade connectors, and bare wire, while 12V trigger input and output provide convenient automatic power control.
Ready for 115 or 230 VAC
The BasX A7+ automatically detects 115V or 230V AC power at either 50Hz or 60Hz, making setup simple and convenient across different regions and power systems.
Circuit Topology
The BasX A7+ is a seven channel power amplifier that combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly affordable price.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BasX A7+ |
| Power Output – All Channels Driven | 90 W RMS per channel; 20 Hz–20 kHz; THD < 0.02%; into 8 Ω125 W RMS per channel; 1 kHz; THD < 1%; into 4 Ω |
| Power Output – Two Channels Driven | 120 W RMS per channel; into 8 Ω175 W RMS per channel; into 4 Ω |
| Gain | 29 dB |
| Power Bandwidth | 20 Hz–20 kHz (+/− 0.07 dB), at rated power; 4–8 Ω load |
| Broadband Frequency Response | 5 Hz–80 kHz (+0/−1.8 dB) |
| THD + Noise | < 0.02% (A-weighted); referenced to rated power |
| Signal-to-Noise Ratio | > 112 dB; referenced to rated power (A-weighted)> 95 dB; referenced to 1 W (A-weighted) |
| Minimum Recommended Load Impedance | 4 Ω per channel; equals one 4 Ω speaker or two paralleled 8 Ω speakers |
| Damping Factor | > 500 (8 Ω load) |
| Input Impedance | 27 kΩ |
| Input Connections | Unbalanced (RCA); one per channelBalanced (XLR); one per channel |
| Speaker Output Connections | Audiophile-grade 5-way binding posts |
| Trigger Input | 5–12 V (AC or DC); <10 mA input current required |
| Trigger Output | 12 VDC; can drive any load up to 120 mA |
| Weight | 28 lbs (unboxed) |
| Dimensions (W × H × D) | 17 × 4-1/4 × 15-1/2 in. (unboxed; including feet) |
