Emotiva BasX MR-1L 9.2 Channel AV Receiver

Description

Emotiva BasX MR-1L – 9.2 Channel AV Receiver

The Emotiva BasX MR-1L combines the processing and control capabilities of a high-performance AV processor with nine channels of audiophile-quality Class A/B amplification in a single chassis. Designed for demanding home theatre systems, it supports 4K UHD video, HDR, Dolby Vision, ARC/eARC, Dolby Atmos, DTS:X, and a wide range of digital and analog audio sources.

Powered by a substantial 660 VA toroidal transformer, the nine-channel amplifier section provides strong current delivery and excellent control, even with demanding low-impedance speakers. The MR-1L also includes 13.2-channel preamp outputs, allowing external power amplifiers to be added when more power or additional channels are required. The internal amplifiers can also be disabled when using the MR-1L as a dedicated surround processor.

The MR-1L features six HDMI 2.0b inputs with support for 4K UHD HDR video, HDCP 2.2, HDR10, HDR10+, and Dolby Vision. Its precision video switching routes the selected video signal directly to the output while minimizing unnecessary processing. With advanced EmoQ room correction, flexible connectivity, and powerful surround processing, the BasX MR-1L is designed to deliver an engaging home theatre experience with the convenience of an integrated receiver.

Product Features

Enhanced ARC and eARC Support

The MR-1L supports both standard Audio Return Channel (ARC) and enhanced eARC for compatible TVs. HDMI Output 1 provides ARC/eARC connectivity, allowing compatible televisions to send audio back to the receiver through a single HDMI connection.

Active HDMI Output Switching

The MR-1L provides individual HDMI output control to help prevent connected displays with different capabilities from limiting the available video format. Each HDMI output can be temporarily disabled when not in use, helping maintain the highest compatible resolution and HDR performance for the active display.

Detailed Surround Sound and Video Performance

Six HDMI 2.0b inputs support 4K UHD HDR video, while the advanced Analog Devices SHARC DSP provides processing for Dolby Atmos, Dolby Surround, DTS, DTS:X, DTS Neural:X, and other popular surround formats. This combination provides flexible processing for modern immersive home theatre systems.

Advanced EmoQ Automatic Room Correction

The MR-1L includes the second-generation EmoQ Automatic Room Correction system. The graphical interface displays measured and corrected room responses, while individual channels can be tested and adjusted to help optimize system performance for the listening environment.

Audiophile-Quality Class A/B Amplification

The MR-1L features nine channels of Class A/B amplification powered by a 660 VA toroidal transformer. Its high-current design provides strong control and reliable performance with a wide range of speakers. A complete set of 13.2-channel analog preamp outputs also allows external amplifiers to be added for expanded system configurations.

Video Inputs and Outputs

The BasX MR-1L features six HDMI 2.0b video inputs, supporting 4K UHD video along with HDCP 2.2, HDR10, HDR10+, and Dolby Vision. It also provides two HDMI 2.0b video outputs, with the primary HDMI output supporting both ARC and eARC for convenient audio connectivity with compatible TVs.

Audio Inputs

The MR-1L offers a wide range of audio input options, including stereo unbalanced analog inputs, S/PDIF coaxial digital inputs, and Toslink optical digital inputs. It also includes a USB Audio DAC input and an integrated Bluetooth receiver with a rear-panel antenna for convenient wireless audio playback.

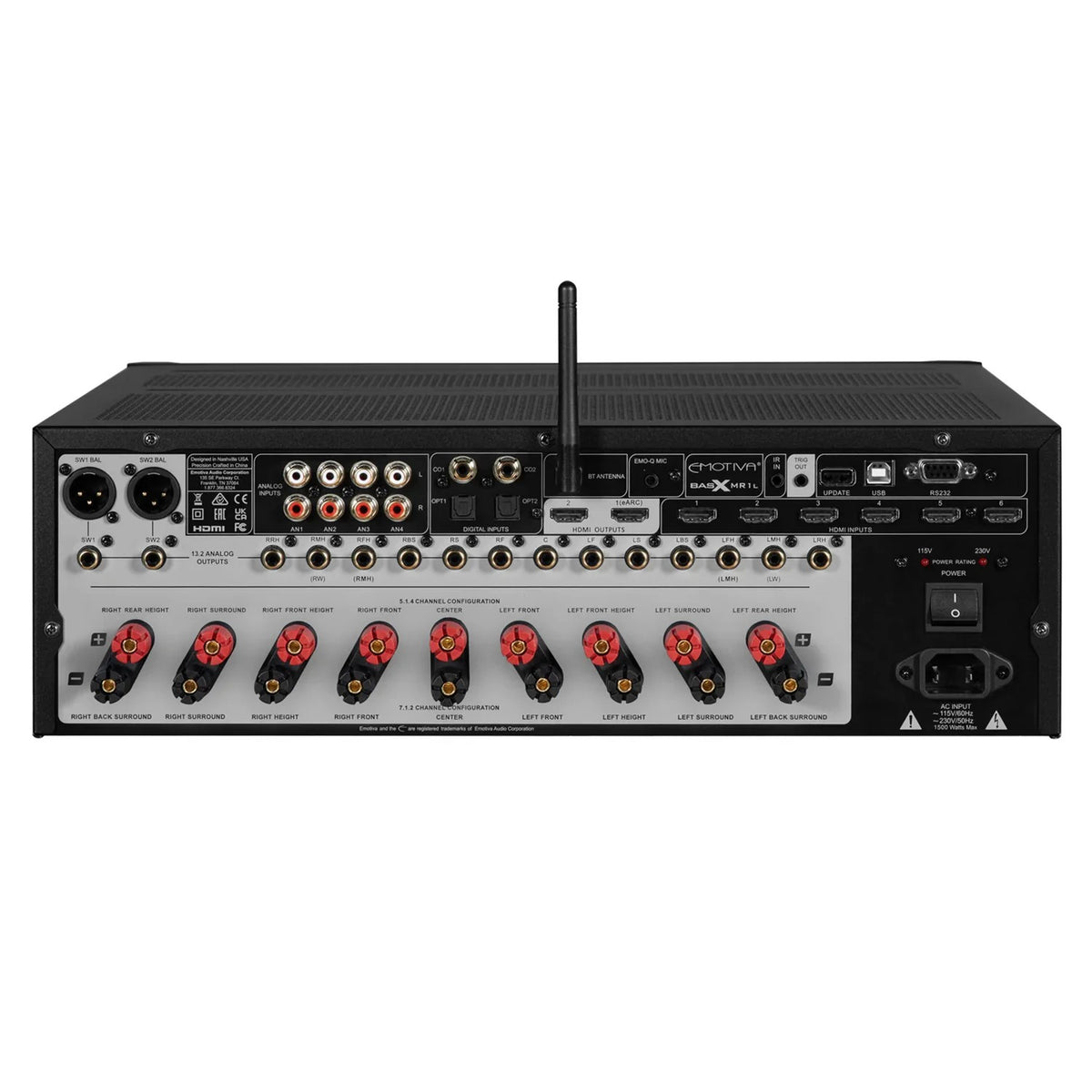

Audio Outputs

For flexible system expansion, the MR-1L provides 13.2-channel unbalanced main preamp outputs, allowing connection to external power amplifiers. It also features nine built-in speaker outputs for its internal amplification channels, along with balanced subwoofer outputs that operate in parallel with the main subwoofer outputs.

Other Inputs and Outputs

The MR-1L includes an IR remote-control input and an RS-232 serial port for integration with compatible control systems. A programmable trigger output allows connected equipment to be controlled automatically, while the USB data input is provided for firmware updates.

Surround Sound Audio Formats

The MR-1L supports a wide range of surround sound formats, including Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS:X, DTS-HD Master Audio, and DTS, providing compatibility with both traditional and immersive home theatre content.

Surround Sound Upmixers

For two-channel and other compatible content, the MR-1L includes Dolby Surround Upmixer (DSU) and DTS Neural:X. These processing modes can expand compatible audio into a more immersive multichannel listening experience.

Sound Field and Processing Options

The MR-1L offers several listening and processing modes, including Pure, Direct, Stereo, Multi-Channel, Dolby Upmix, and DTS Neural:X. These options provide flexibility to choose the desired sound presentation based on the source and listening preference.

Automatic Room Correction

The MR-1L features second-generation EmoQ Automatic Room Correction with a graphical interface designed to measure and optimize the response of the connected speakers and listening environment. It also provides three separate manual speaker presets with flexible parametric EQ options. The front left and right channels and center channel each provide 11 bands of full parametric EQ, while the surround and top channels provide 7 bands each. The subwoofer channels offer 5 bands of parametric EQ for additional low-frequency adjustment.
