Emotiva BasX MR1 11.2 Channel AV Receiver

Description

The BasX MR1 cinema receiver combines a high performance 13.2 channel immersive surround sound processor, and an audiophile quality 11 channel power amplifier, in a single chassis.

How long have you been waiting for a receiver that can actually deliver the superb uncompromising performance of separate components? The BasX MR1 cinema receiver combines a high performance 13.2 channel immersive surround sound processor, and an audiophile quality 11 channel amplifier, in a single chassis. The processor section of the MR1 supports 4k UHD video, including HDR and Dolby Vision, enhanced ARC (eARC), and the latest Dolby Atmos® and DTS:X™ immersive surround sound formats. The MR1 features six HDMI 2.0b video inputs, all of which support 4k UHD HDR video, and includes support for enhanced ARC (eARC). Included with the MR1 is a measurement microphone and the latest version of EmoQ, Emotiva’s well-regarded automatic room correction system. The MR1 also offers multiple analog and digital audio inputs, and an integrated Bluetooth receiver with aptX.

The amplifier section of the BasX MR1 combines 11 channels of audiophile-grade Class A/B amplification. Powered by a massive, class leading 1,000 VA toroidal transformer driving their exclusive Soft Switch Class H power supply for high efficiency, with cool running, reliable operation. The MR1 exhibits complete control over difficult loads and low impedance speakers, The MR1 leaves less capable receivers gasping for air!. The MR1 also includes a full set of line level 13.2 channel preamp outputs, and of course, the amplifier section can be totally disabled if you wish to use the MR1 as a dedicated surround sound processor.

The BasX MR1 is a true audiophile component, designed and built by professionals to deliver the outstanding performance that both audiophiles and casual listeners can appreciate. The MR1 also features precision high- speed video switches that route video directly from the selected input to the output without any extraneous processing, ensuring that you’ll continue to get the absolute best possible picture quality from your HD and 4k UHD video sources along with support for both ARC and Enhanced eARC.

The BasX MR1 delivers a truly stellar video and listening experience with incredible power, build quality, and ease of use.

Special Features

The Emotiva BasX MR1 offers extensive configuration options, advanced audio processing, flexible connectivity, and powerful built-in amplification. Its key features are designed to deliver an engaging home theatre experience with convenient system control and room optimization.

Enhanced ARC and eARC Support

The MR1 supports both standard Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC), allowing compatible TVs to send audio back to the receiver through a single HDMI connection. It automatically detects eARC-compatible devices and enables the appropriate mode. ARC and eARC are supported only through HDMI Output 1, which should be connected to the TV's designated ARC/eARC HDMI input. eARC may also need to be enabled in the TV's settings.

Active HDMI Output Switching

The MR1 allows each HDMI output to be disabled individually, helping prevent an inactive or lower-resolution display from limiting the video signal available to another connected display. For example, when a 1080p TV and a 4K TV are connected simultaneously, disabling the output connected to the 1080p TV when it is not in use can help the 4K display receive the appropriate resolution and HDR signal.

Detailed Surround Sound and Video Performance

The MR1 features six HDMI 2.0b inputs supporting 4K UHD video, HDCP 2.2, and HDR formats including HDR10, HDR10+, and Dolby Vision. Its Analog Devices SHARC digital signal processor supports Dolby Atmos, Dolby Surround, DTS, DTS:X, DTS Neural:X, and other popular audio processing modes for an immersive home theatre experience.

Advanced Emo-Q Automatic Room Correction

The MR1 incorporates Emotiva's Emo-Q Automatic Room Correction System to help optimize audio performance for the listening room. Its graphical interface displays measured and corrected room-response graphs, while individual channels can be tested and adjusted to achieve a more balanced sound. A calibrated measurement microphone with an internal buffer amplifier is included.

Audiophile-Quality Class A/B Amplification

The MR1 combines audiophile-quality Class A/B amplification with an advanced Class H power supply designed for efficient operation. Its analog preamp outputs allow integration with external power amplifiers, offering flexibility to build a system using both the receiver's internal amplification and additional amplification when required.

Key Features

High-Quality Video and Connectivity

The MR1 provides six HDMI 2.0b inputs with HDCP 2.2 support for 4K UHD video and HDR formats, including HDR10, HDR10+, and Dolby Vision. Fast video switching and support for ARC/eARC help simplify connections between compatible source devices, displays, and the receiver.

Wireless Audio Streaming

An integrated Bluetooth receiver with aptX support allows wireless audio streaming from compatible smartphones, tablets, and other Bluetooth-enabled devices.

Advanced Audio Processing

The MR1 combines advanced surround sound decoding with optimized analog audio circuitry to deliver detailed, immersive sound. Its Emo-Q room correction system helps tailor performance to the listening environment.

Flexible Audio Outputs and Speaker Configurations

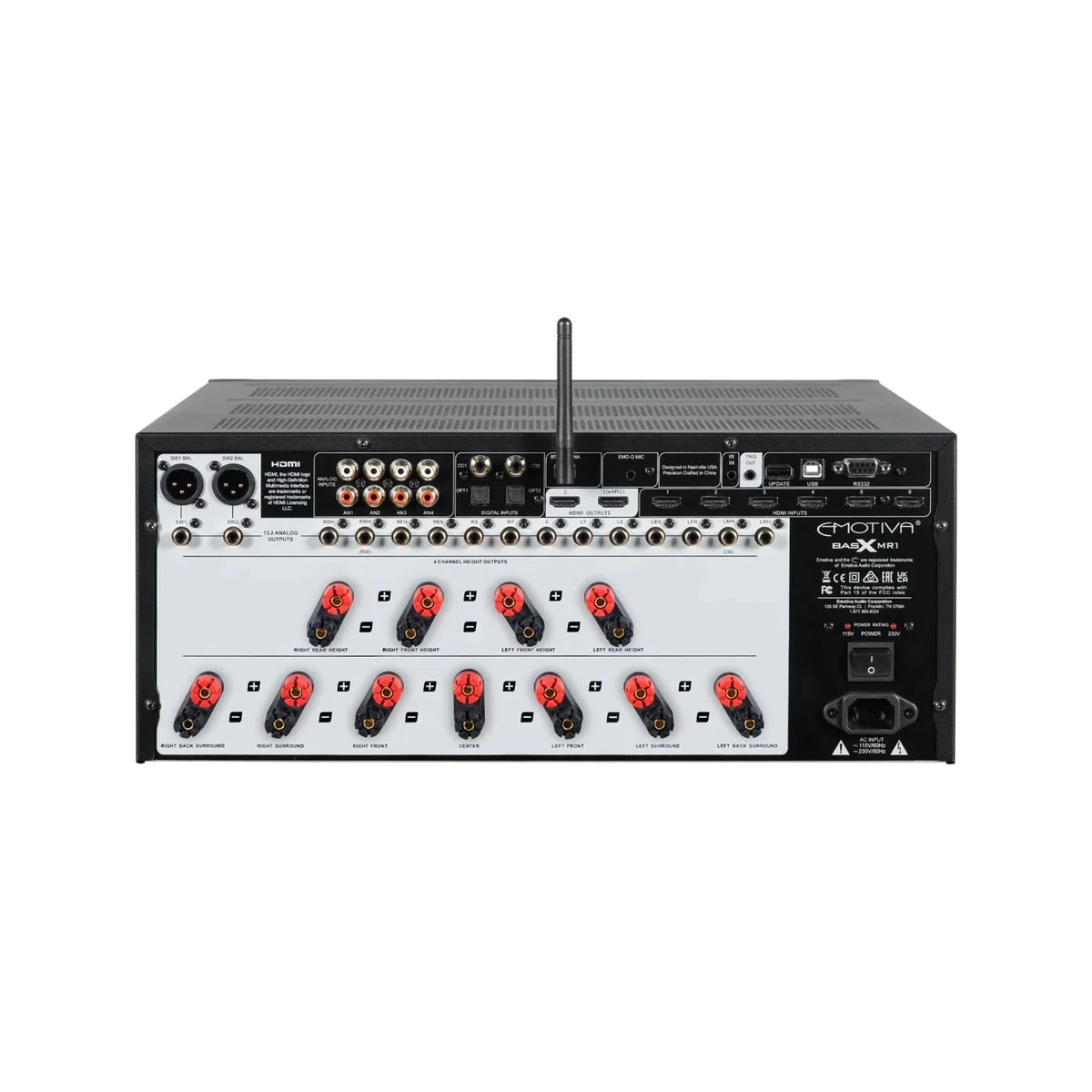

The MR1 provides line-level outputs for up to 13 main and surround channels, plus two subwoofers, enabling flexible system expansion with external amplifiers. Its built-in speaker outputs support configurations of up to 11 amplified channels, including main, surround, and height speakers.

Convenient System Control

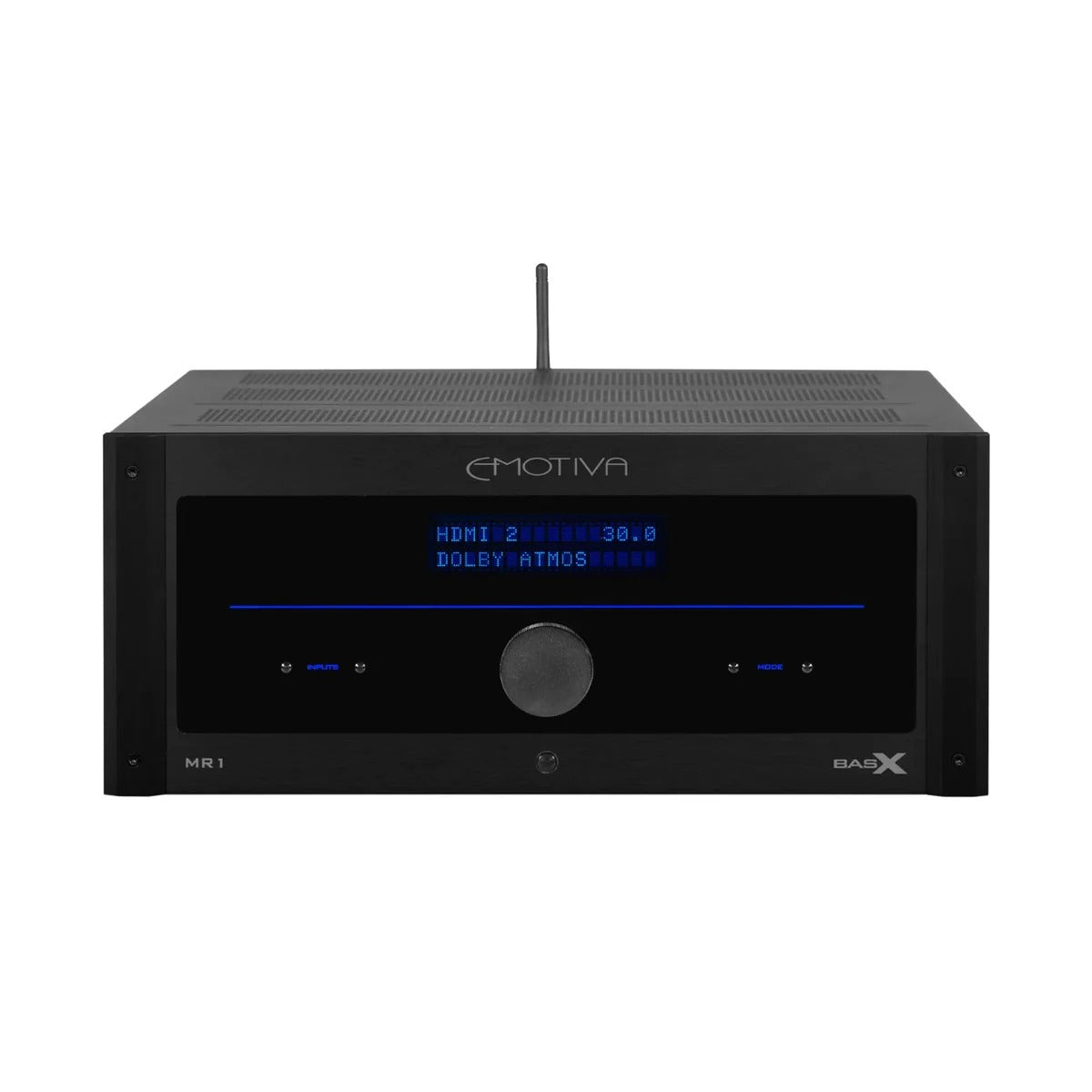

The MR1 offers multiple control options, including an illuminated infrared remote with direct source selection, front-panel menu navigation buttons, a front-panel volume control, an on-screen display, and an RS-232 connection for integration with compatible control systems. A front-panel VFD display provides real-time status information.

USB Firmware Updates

The MR1 supports firmware updates using a USB storage device, allowing updates to be installed without directly connecting the receiver to a computer.

Compact Design and Flexible Installation

Its compact form factor and modern design make the MR1 suitable for a range of home theatre rooms and audio racks. Automatic detection and switching between 115V and 230V AC power support convenient operation with compatible regional power supplies.

Robust Power Supply and Warranty

The MR1 features a heavy-duty linear Class H power supply powered by a 1,000 VA toroidal transformer, designed to provide stable power delivery for demanding audio applications. It is covered by Emotiva's three-year warranty.

Technical Specifications

Connectivity

Audio Formats and Modes Supported
