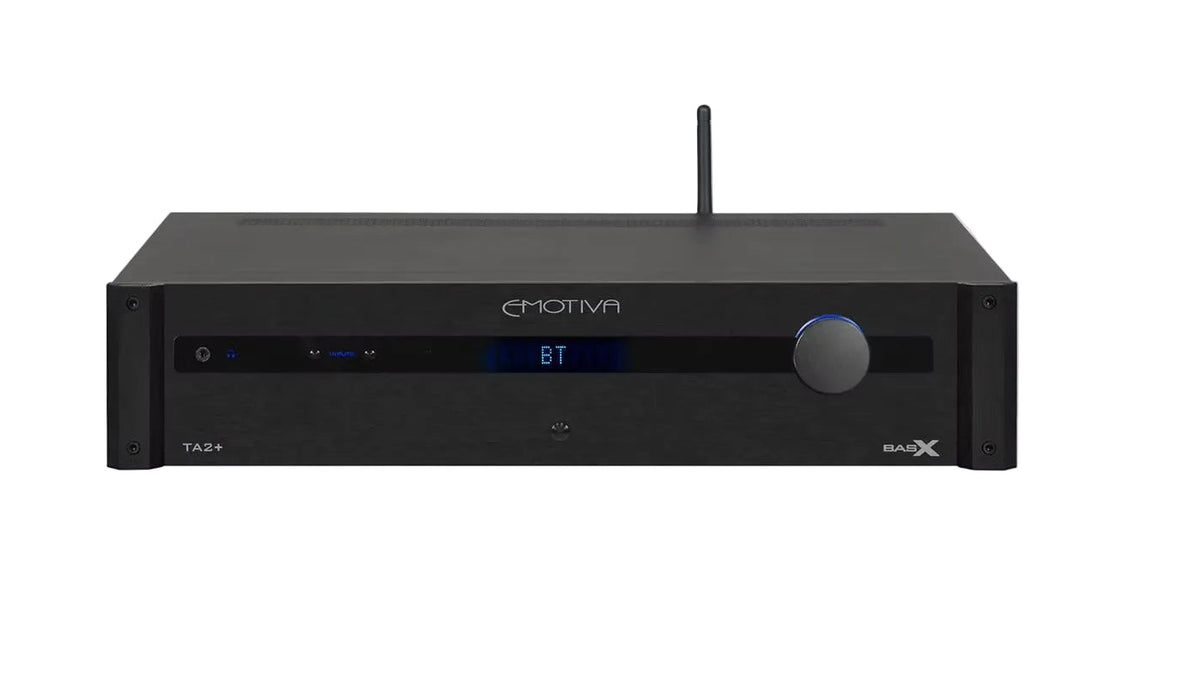

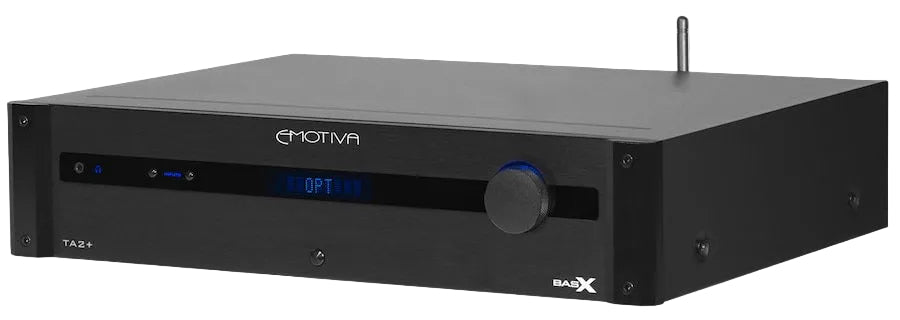

Emotiva BasX TA2+ Stereo Receiver/Preamp/DAC/Tuner
- Regular price
- Rs. 205,500.00
- Sale price
- Rs. 205,500.00
- Regular price
-
Couldn't load pickup availability
Description
The preamp is the heart of the system, this one just happens to have power built in.
The BasX TA2+ stereo integrated amplifier with DAC and tuner is the control center of a serious two-channel or 2.1 system, combining a true analog preamp stage, high-current Class A/B power, and expanded balanced connectivity in one thoughtfully engineered chassis.
This new-generation TA2+ adds balanced XLR analog inputs and outputs, a balanced subwoofer output, HDMI ARC for seamless TV integration, USB-C for modern computers, and full analog bass management for precise 2.1 setup. That means quieter connections, better long-cable performance, smarter source integration, and tighter control over how your speakers and sub work together. Add a turntable with the built-in MM/MC phono preamp, stream over Bluetooth, or expand with an external amplifier later. Backed by our 3-year warranty.
Product Features
Product Features
HDMI ARC + Your TV
Connect your TV’s HDMI ARC port to the BasX TA2+ using a single HDMI cable to enjoy clear two-channel PCM audio from your TV’s built-in apps and connected devices through your speakers.
USB-C DAC Input
Connect a laptop or desktop computer via USB-C for high-quality digital audio playback. Enjoy streaming services and local music files with greater clarity, detail, and depth.
Balanced XLR Preamp Outputs for Easy Upgrades
Connect an external power amplifier through the balanced XLR preamp outputs to expand or upgrade your audio system. These connections also help minimise noise and interference, making them particularly useful when components are positioned farther apart.
Balanced Subwoofer Output Plus Analog Bass Management
Connect a powered subwoofer using the balanced output and adjust the crossover with the built-in analog high-pass and low-pass filters. This helps deliver deeper, more controlled bass while preserving clear vocals and detailed midrange performance.
Class A/B Power with a Toroidal Linear Supply
The Class A/B amplifier and toroidal linear power supply deliver consistent power and clean current to support dynamic musical passages. This design helps maintain speaker control, provide confident volume levels, and deliver well-defined bass without compromising listening comfort.
Technical Specifications

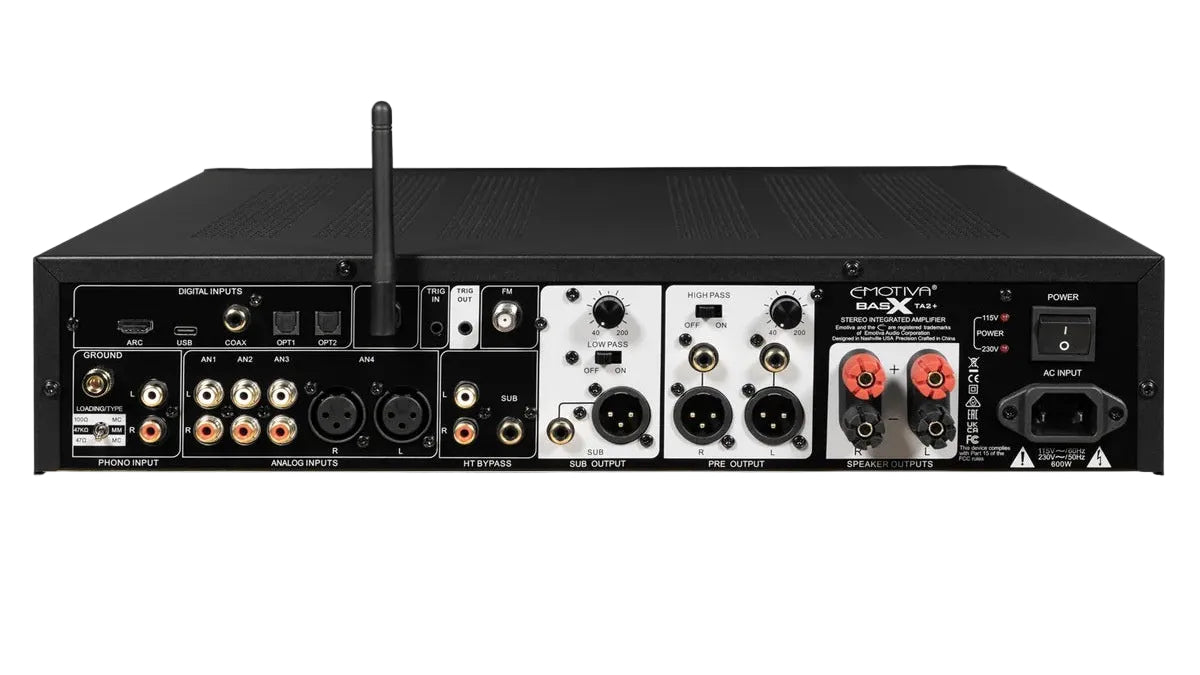

Connectivity
| Specification | Details |
|---|---|
| Analog Audio Inputs | 3 pairs of unbalanced (RCA) stereo line-level inputs; 1 pair of balanced (XLR) stereo line-level inputs |
| Phono Input | 1 pair of switchable stereo phono inputs supporting moving magnet (MM) or moving coil (MC) cartridges |
| FM Tuner | Built-in FM tuner with external antenna input and 15 station presets |
| Digital Coaxial Input | 1 × S/PDIF coaxial input; stereo, up to 24-bit/192 kHz |
| Digital Optical Inputs | 2 × Toslink optical inputs; stereo, up to 24-bit/192 kHz |
| USB Audio Input | 1 × USB DAC input; stereo, up to 24-bit/192 kHz |
| Bluetooth | Bluetooth 5 with aptX and AAC support; antenna included |
| HDMI Input | 1 × HDMI-ARC input; stereo PCM 2.0 |
| Analog Preamp Outputs | 1 pair of unbalanced (RCA) stereo line-level outputs; 1 pair of balanced (XLR) stereo line-level outputs |
| Subwoofer Outputs | 1 × unbalanced (RCA) summed subwoofer output; 1 × balanced (XLR) summed subwoofer output |
| Headphone Output | 1 × 3.5 mm front-panel stereo headphone output |
| Speaker Outputs | 1 pair of five-way binding posts compatible with banana plugs, spade lugs and bare wires |
| Trigger Input | 1 × trigger input supporting 5–12 V AC or DC |
| Trigger Output | 1 × 12 V DC trigger output, active when the unit is powered on |
Bass Management
| Specification | Details |
|---|---|
| Preamp Output High-Pass Filter | Switchable analog 12 dB/octave high-pass filter |
| Subwoofer Output Low-Pass Filter | Switchable analog 12 dB/octave low-pass filter |
| Filter Cutoff Frequency | Adjustable from 40 Hz to 200 Hz |
| Speaker Output Bass Management | Enabled by switching on the high-pass filter and selecting the cutoff frequency |
| Filter Control | High-pass filter settings affect both the preamp outputs and the internal amplifier signal |
Controls and Indicators
| Specification | Details |
|---|---|
| Power Switch | Rear-panel rocker switch |
| Standby Control | Front-panel push button |
| Input Selection | Two front-panel push buttons with menu operation |
| Digital Encoder Knob | Front-panel control for volume, tuning and menu operation |
| Display | Dimmable, high-visibility blue alphanumeric VFD display |
| LED Indicators | Amber standby LED and blue illuminated input-button legends |
Remote Control
| Specification | Details |
|---|---|
| Remote Type | Compact, full-function, all-metal infrared remote control |
| Battery | 1 × CR2025 button-cell battery |
Line-Level Analog Performance
| Specification | Details |
|---|---|
| Maximum Output Level | 4 VRMS (balanced and unbalanced outputs) |
| Frequency Response | 20 Hz–50 kHz ±0.25 dB |
| THD + Noise | 120 dB |
| Crosstalk | 78 dB (MM, referenced to 5 mV); >58 dB (MC, referenced to 0.5 mV) |
| Load Impedance | 47 kΩ (MM); 47 Ω or 100 Ω (MC) |
Digital Performance
| Specification | Details |
|---|---|
| Frequency Response (44.1 kHz Sample Rate) | 20 Hz–20 kHz ±0.1 dB |
| Frequency Response (192 kHz Sample Rate) | 20 Hz–80 kHz +0/−1 dB |
| THD + Noise | 110 dB |
Amplifier Performance
| Specification | Details |
|---|---|
| Power Output (8 Ω, Both Channels Driven) | 135 W RMS per channel, 20 Hz–20 kHz, THD |
