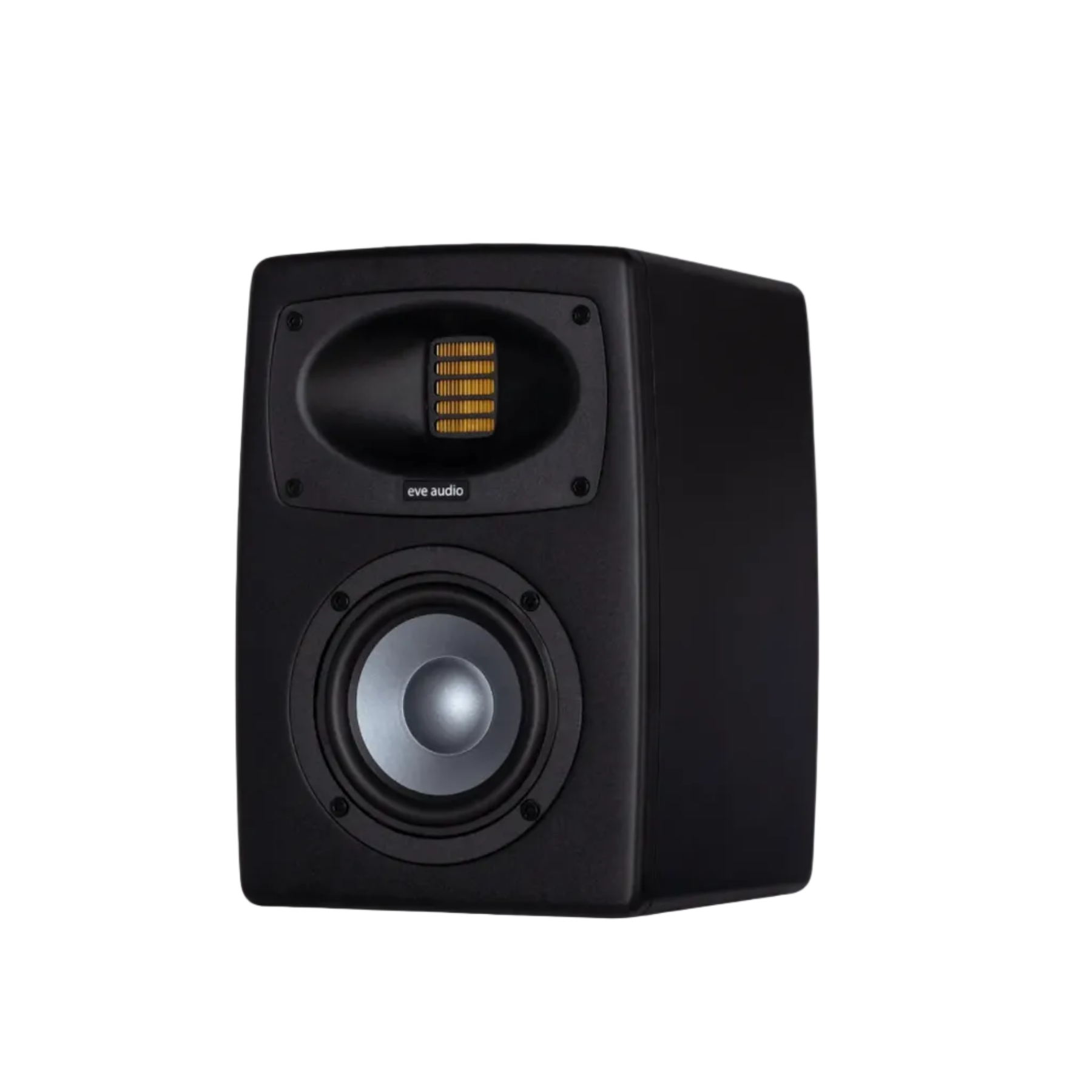

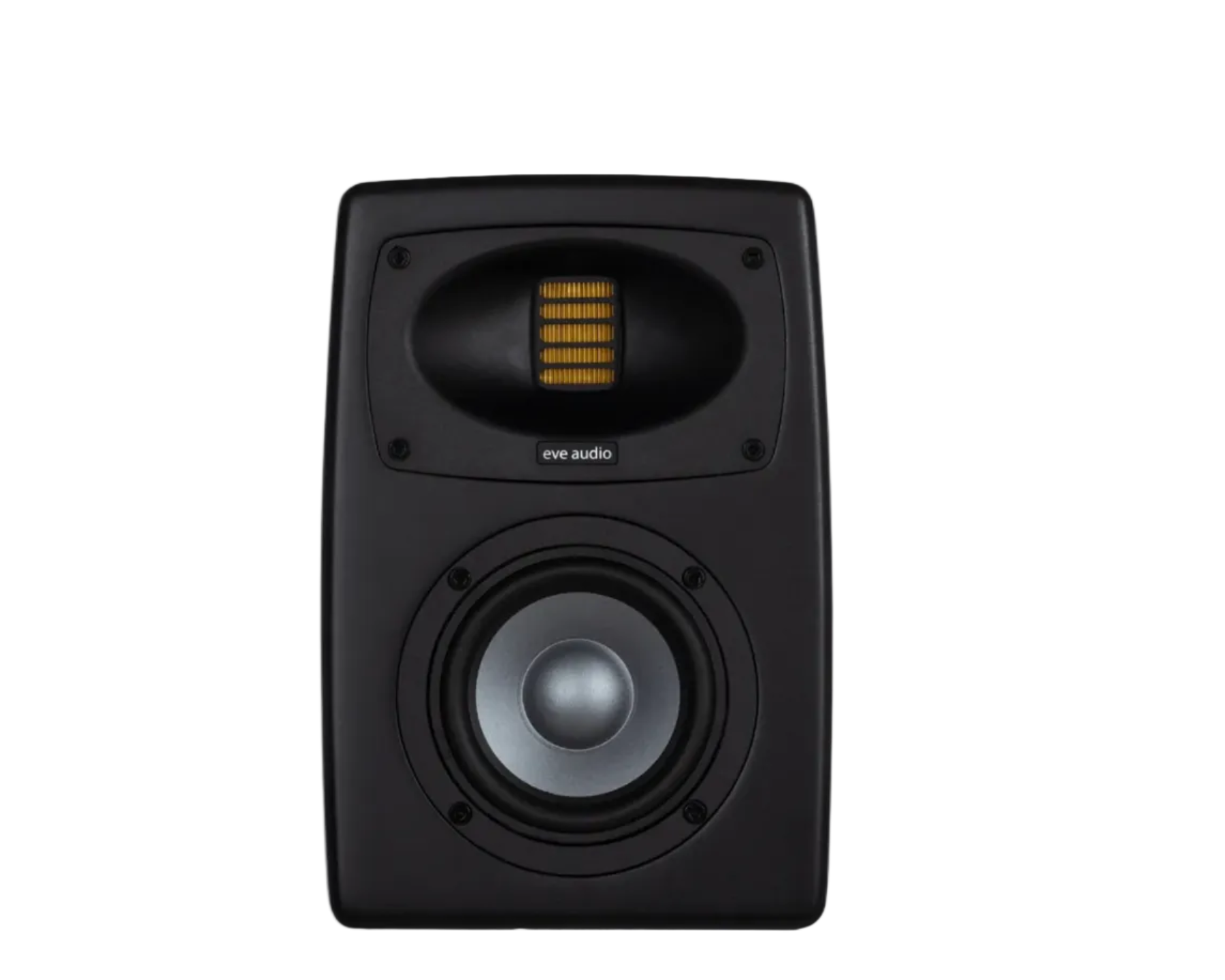

Eve Audio EXO 24 Active 2-way Studio Monitor

Description

Main Parameters

The EXO 24 features a frequency range of 54 Hz to 24 kHz, providing clear, precise reproduction across lows, mids, and highs. Its 4-inch woofer ensures detailed low-end response, while the monitor can achieve a maximum sound pressure level of 102 dB (full space), offering sufficient headroom for professional near-field monitoring applications.

Compact Monitoring Solution

The EXO 24 is an ideal choice for professional studios, ambitious producers, and discerning home users who need high-quality monitoring in limited spaces. Despite its compact design, the monitor delivers uncompromised sound quality and precision. Thanks to its controlled dispersion characteristics, the EXO 24 is also well-suited for immersive audio formats such as Dolby Atmos. For flexible installation, the enclosure features four M6 threaded mounting points on the bottom side.

Enhanced Acoustic Design

The EXO 24 builds on the EXO Series’ advanced acoustic platform. A newly developed tweeter with a Guided Directivity Control (GDC) waveguide provides an ultra-wide sweet spot, pristine high-frequency reproduction, and accurate stereo imaging. The 4-inch CAL (Coated Aluminium) woofer delivers surprisingly deep bass and transparent mids for its size. Together with an airflow-optimized LDE (Low Diffraction Enclosure), the system ensures minimal diffraction, cleaner sound, and precise low-frequency extension.

Innovative Room Adaptation

The upcoming EVE Control software allows precise adaptation of your monitors to any acoustic environment. Whether in a high-end studio or a compact home setup, EXO 24 lets you fine-tune output levels, EQ, delay, and filters for your room all from your listening position, ensuring consistent and accurate monitoring.

Smarter Monitoring System

The EXO 24 is designed for seamless workflow and professional control. A rear-mounted OLED display paired with the SMART Control Knob provides intuitive access to critical parameters such as output level, room adaptation filters, and input source selection. Combined with future software integration, the monitor allows real-time calibration and firmware updates directly on the unit, keeping your creative flow uninterrupted.

Hear Every Detail

The Precision AirMotion Tweeter (AMT), combined with the GDC waveguide, ensures consistent dispersion, an expanded sweet spot, and detailed stereo imaging. The lightweight AMT delivers fast transient response, high efficiency, and minimal distortion. The 4-inch CAL woofer features a resonance-damped dust cap and optimized magnet system for accurate, dynamic reproduction with exceptionally low distortion. Enhanced rear bass reflex ports provide deeper low-frequency extension while reducing port noise.

Intuitive Control and Real-Time Feedback

The illuminated ‘eve audio’ logo on the front panel serves as a multi-color status indicator, offering instant feedback on operating conditions such as overload protection, firmware updates, and other system states. During normal operation, the logo emits a warm white glow, indicating optimal performance. Brightness can be adjusted to match personal preferences, providing a visual cue while maintaining aesthetic appeal.

Features

Frequency Response

The EXO 24 delivers a frequency response from 54 Hz to 24 kHz, ensuring accurate and detailed reproduction across the audio spectrum. Its 4-inch woofer provides tight, transparent lows, while the Precision AirMotion Tweeter ensures crisp highs with minimal distortion.

Protection and Limiting Features

The EXO 24 is equipped with a Protection Limiter to safeguard your monitors and connected systems. Additional safety features include Wake-on-LAN, Wake-on-Signal, and an Adjustable Automatic Standby Mode to optimize energy usage without compromising performance.

Status Indicators

A multi-color status LED provides real-time feedback on system operation, indicating eight different states, including signal presence and overload protection. The LED brightness is continuously dimmable from 0% to 100%, allowing seamless integration into studio or home environments.

Mounting Options

The EXO 24 features bottom-side mounting points (M6) with a hole pattern of 50.8 x 107.9 mm, making it easy to install on racks, stands, or other professional setups.

User Interface and Controls

The EXO 24 features a rear-mounted OLED display paired with the SMART Control Knob, offering intuitive and precise access to volume, EQ, and filter settings. Users can adjust volume from -∞ to +10 dB, fine-tune the high-shelf filter (>3 kHz) from -5 dB to +3 dB, control the mid EQ at 3.5 kHz between -3 dB and +3 dB, apply a desk filter cut at 650 Hz from -5 dB to 0 dB, and adjust the low-shelf filter (<300 Hz) from -5 dB to +3 dB. The interface also allows easy input selection, supporting Balanced, Unbalanced, and S/PDIF L/R/Mono configurations for seamless integration with various audio sources.

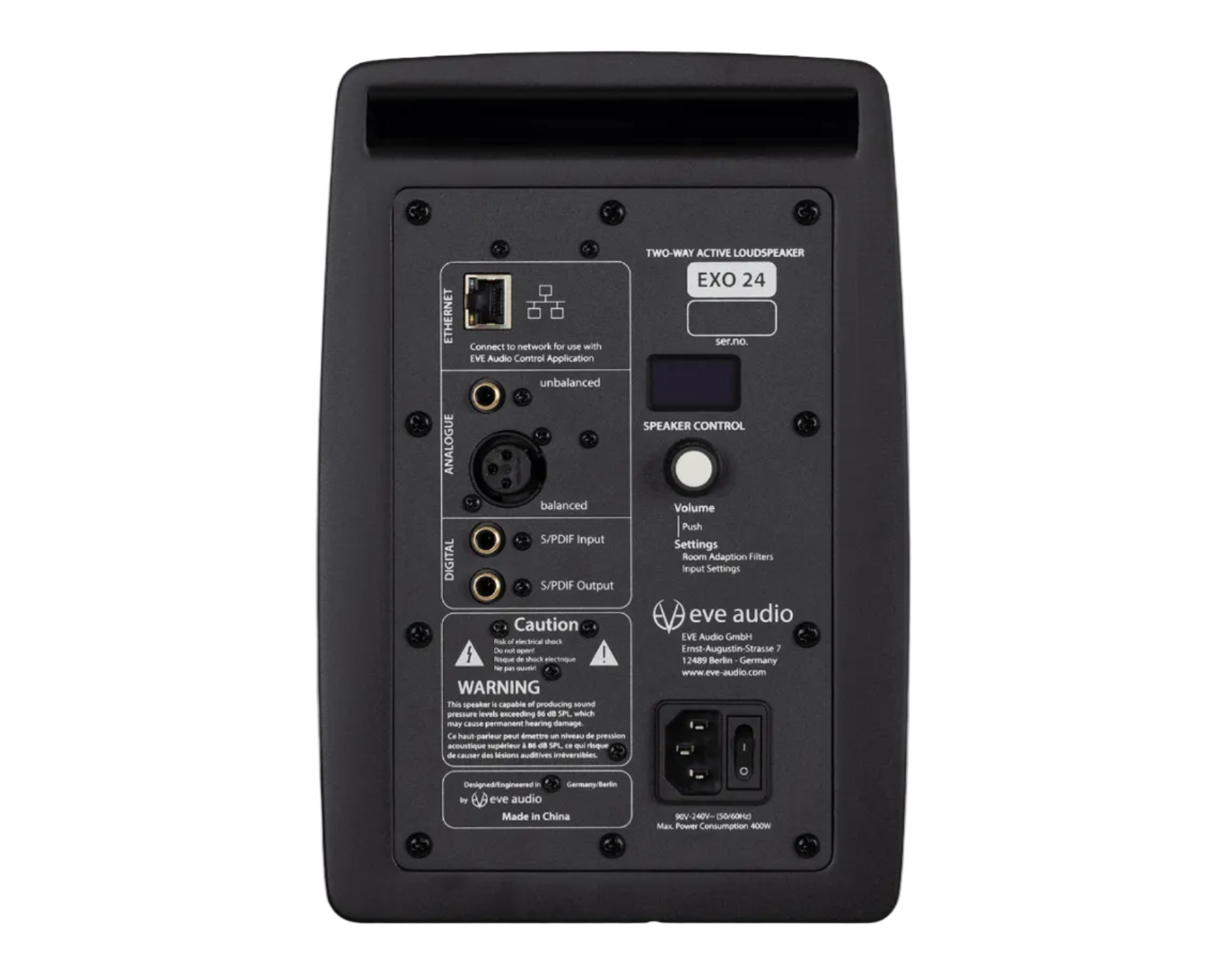

Input Levels and Connectivity

The EXO 24 supports maximum input levels of -10 dBV (up to 16.5 dBu) and +4 dBu (up to 20 dBu), ensuring compatibility with both consumer and professional equipment. Connectivity options include Balanced XLR and Unbalanced RCA analog inputs, S/PDIF digital input/output, and LAN (Ethernet) access for software control and remote monitoring. This combination of advanced user interface and versatile connectivity provides complete control over audio performance, making the EXO 24 ideal for professional studios and immersive listening environments.

Standby and Power Consumption

The monitor includes selectable standby intervals (15, 30, 60 minutes, or off). Power consumption is minimal, with <1 W in standby, 7 W idle, and peak power consumption of 400 W.

Advanced Room and Network Configuration

The EXO 24 supports both manual and automatic IP configuration (DHCP), allowing seamless integration into professional networked audio environments. All system parameters, EQ, and delay settings can be adjusted via the integrated OLED display and SMART Control Knob, or through upcoming EVE Control Software for precise room adaptation and multi-channel management.
