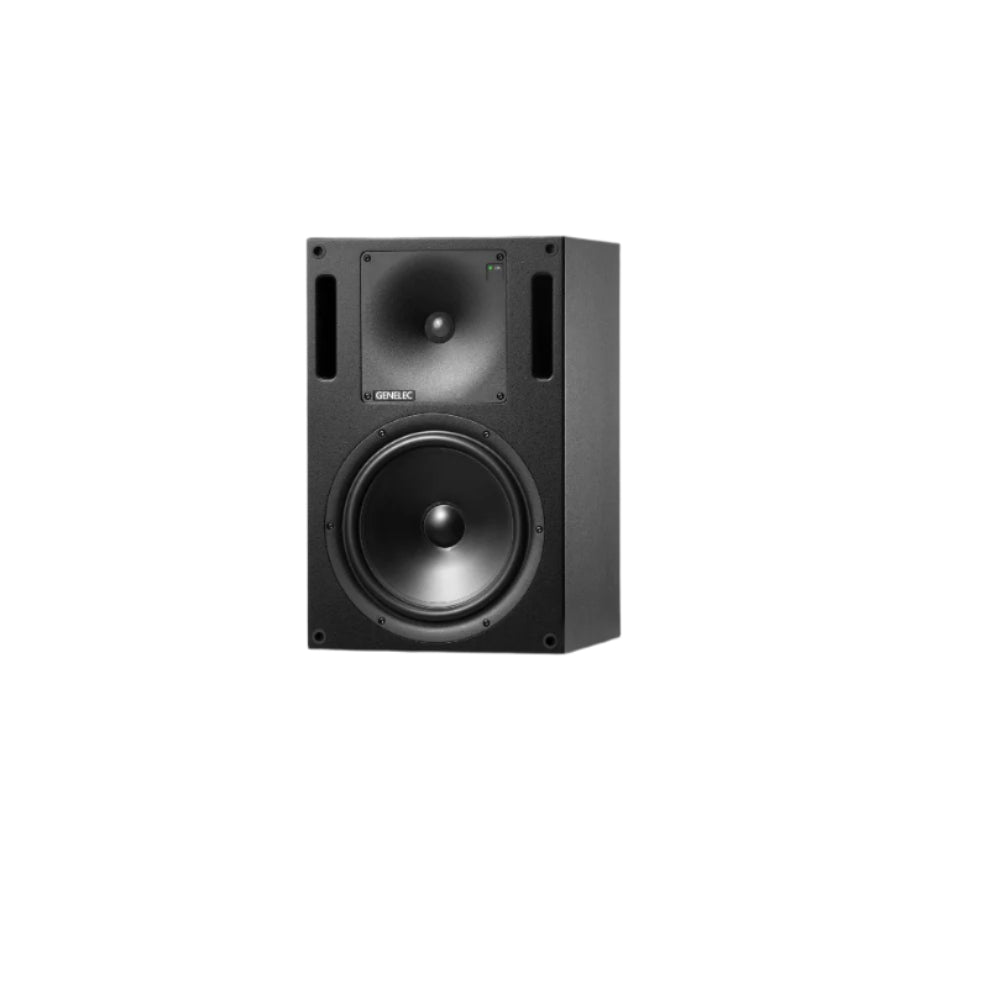

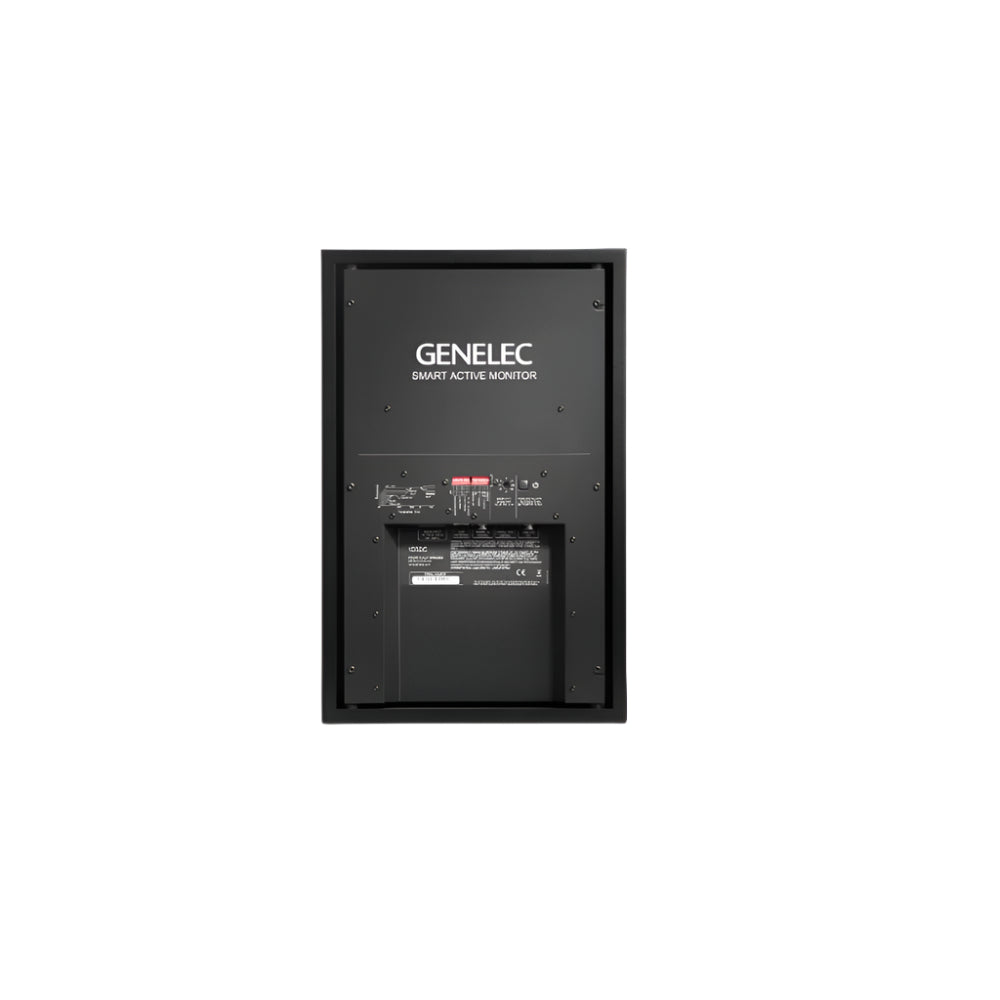

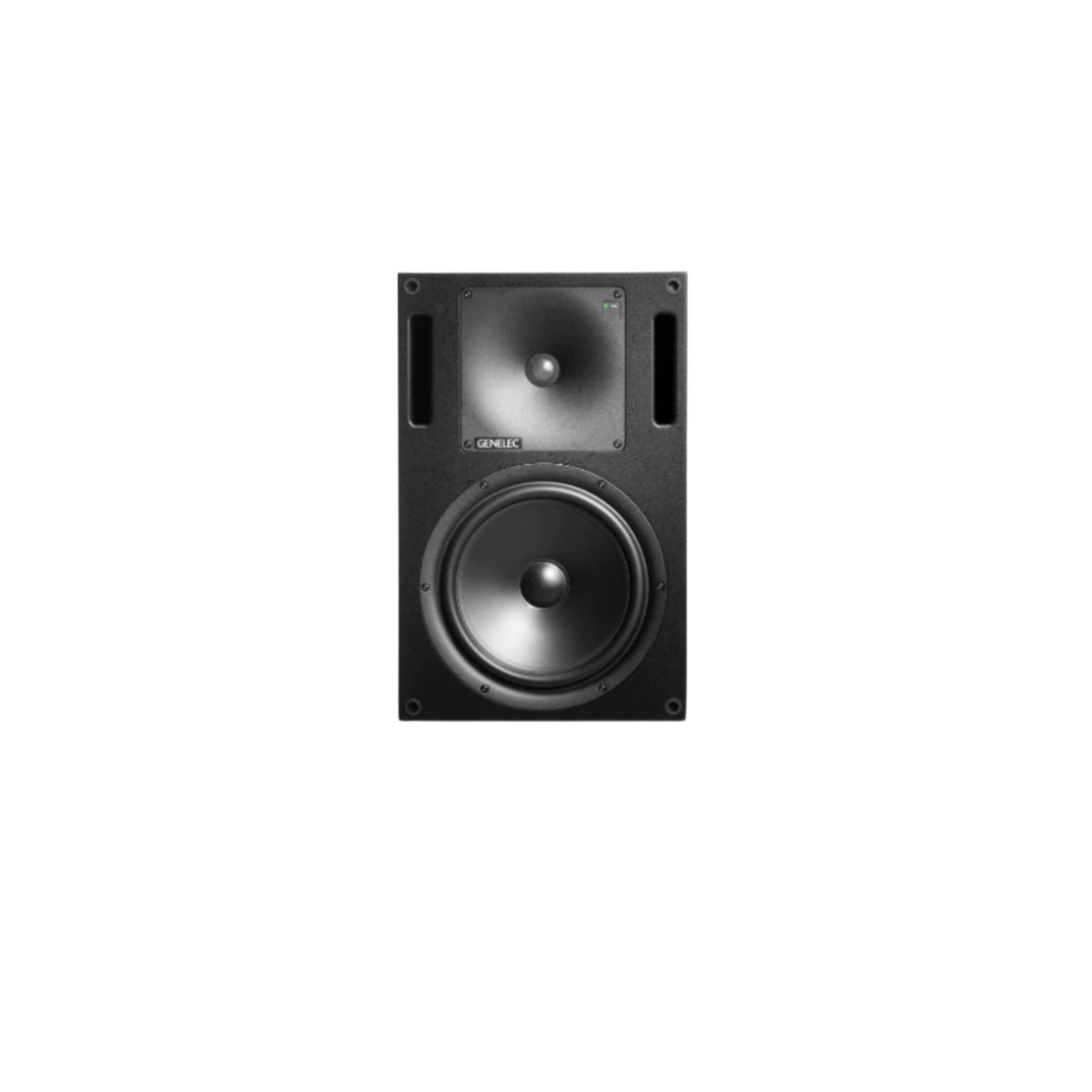

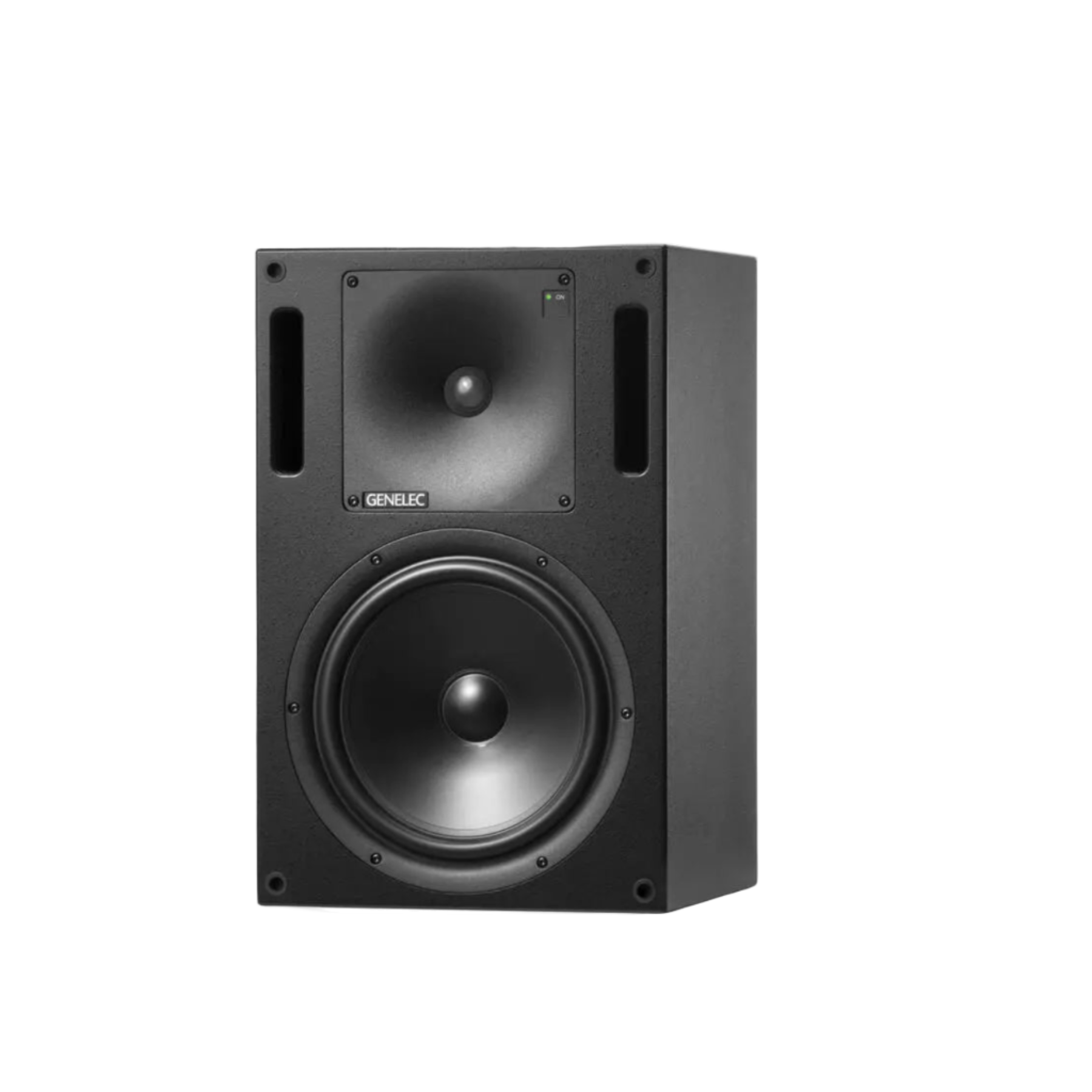

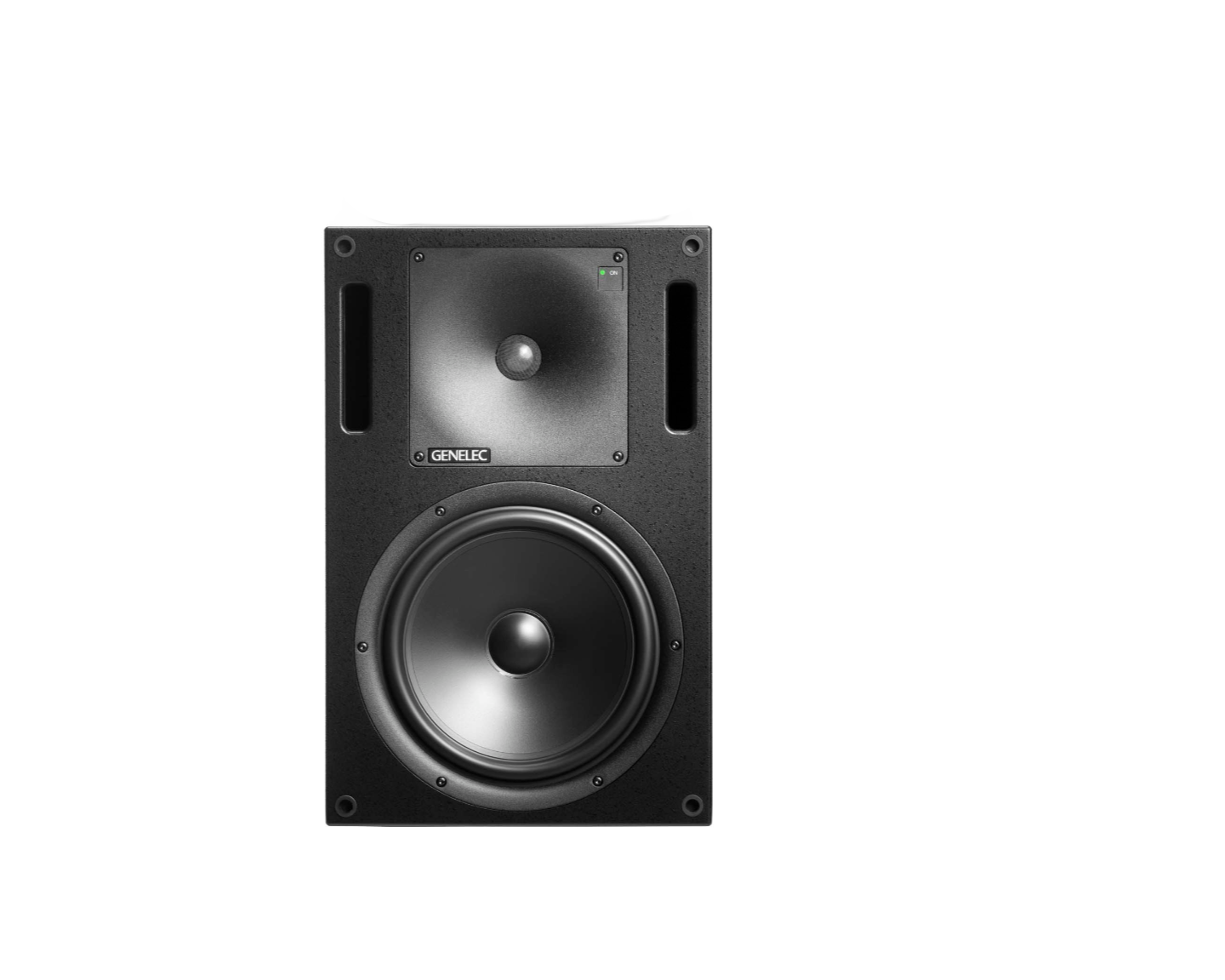

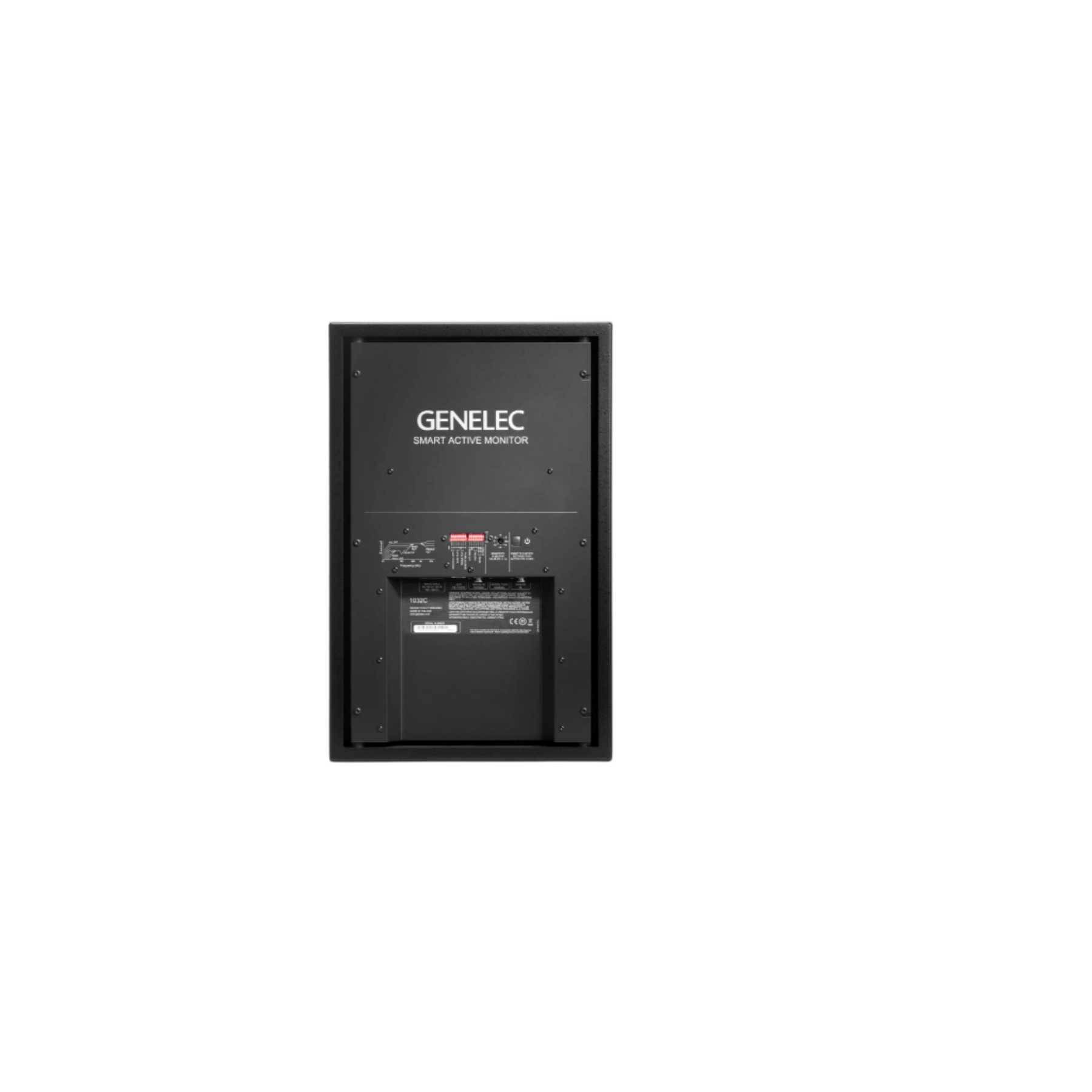

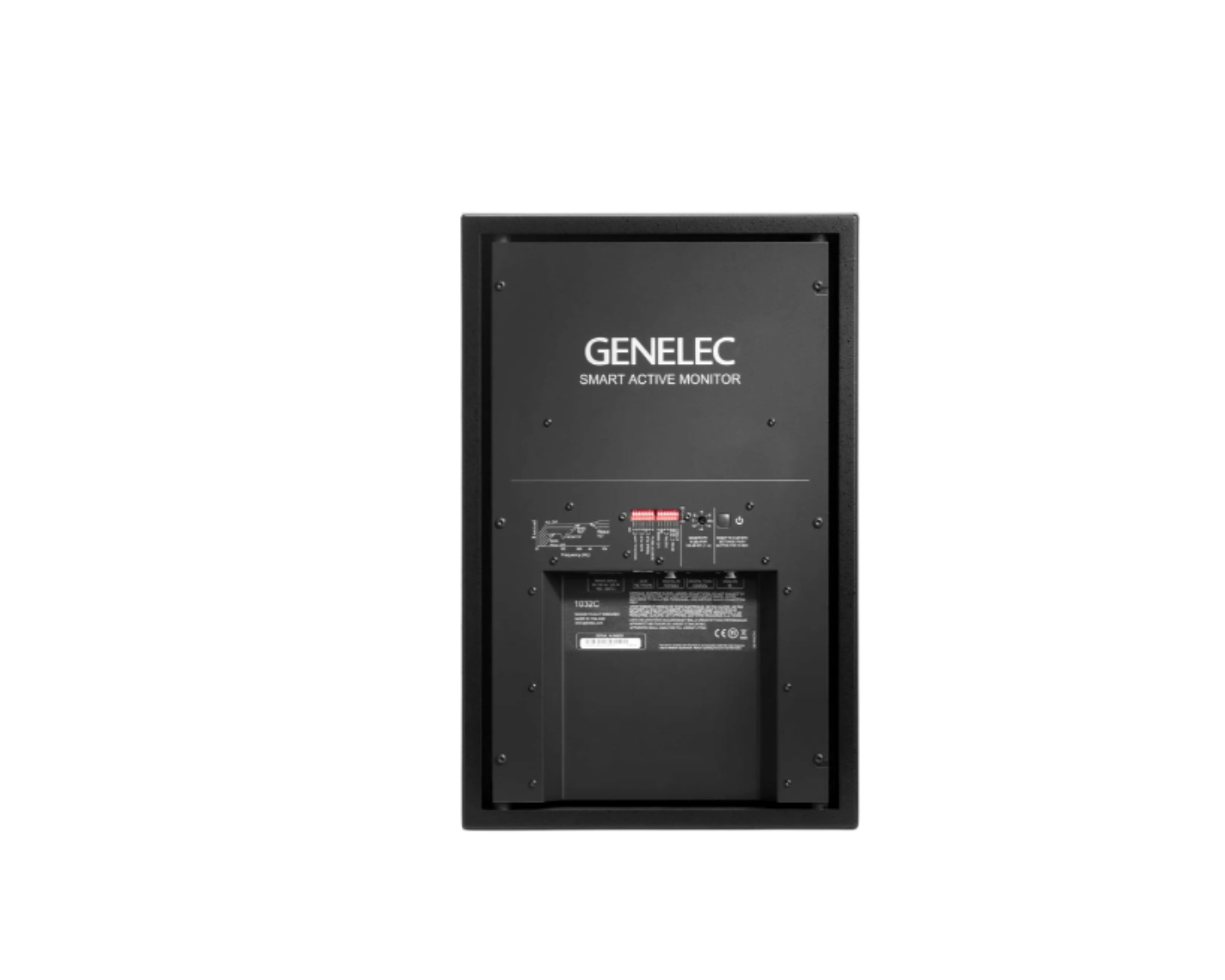

The 1032C is a high-SPL nearfield monitor that fuses the much-loved soffit-mountable styling of the iconic 1000 series with our latest Smart Active Monitoring technology.
Even higher performance
Retaining all the revered audio characteristics of the previous A and B versions, the 1032C now features digital connectivity, a universal power supply and powerful Class D amplification; enabling it to produce higher SPL and greater low frequency extension than its already powerful predecessors.
A smart classic
In addition to its trademark out-of-the-box neutrality, the 1032C now integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimized monitoring solution. This makes the 1032C is the perfect choice for professionals in high-end music production, post production and broadcast whose mixes need to translate perfectly to other rooms and systems.
Technical Specifications
Frequency Response
Spec
Details
Flat Range (±2.5 dB)
40 Hz – 20 kHz
Low Cutoff (–6 dB)
33 Hz
High Cutoff (–6 dB)
23 kHz
SPL (Sound Pressure Level)
Spec
Details
Peak SPL (per pair)
≥124 dB (1 m, in-room, with music material)
Short-Term Max SPL
≥114 dB (100 Hz – 3 kHz, sine wave, 1 m)
Long-Term Max SPL
≥104 dB (RMS, IEC weighted noise, with protection, 1 m)
Self-Generated Noise
≤5 dB SPL (A-weighted, free field, on axis)
Dimensions & Weight
Spec
Details
Height
495 mm (19 1/2 in)
Width
320 mm (12 5/8 in)
Depth
290 mm (11 3/8 in)
Weight
17 kg (37.5 lb)
Enclosure
Spec
Details
Material
MDF
Type
Reflex port
Drivers
Spec
Details
Bass Driver
250 mm (9 7/8 in) cone, magnetically shielded
Treble Driver
25 mm (1 in) metal dome, magnetically shielded
Directivity
Vertical and Horizontal (not specified)
Harmonic Distortion
50–100 Hz ≤1%, >100 Hz ≤0.5%
Group Delay
3.2 ms (Extended Phase Linearity OFF)
Amplifier Section
Spec
Details
Bass Amplifier
250 W (Class D)
Treble Amplifier
150 W (Class D)
Power Consumption
Mode
Consumption
ISS Active
≤1 W
Idle
≤11 W
Full Output
200 W
Signal Processing & I/O
Input/output
Details
Analog Input
1 × XLR female (balanced, 10 kΩ)
Digital Input
1 × XLR female (110 Ω)
Digital Output/Thru
1 × XLR male (110 Ω)
Control Ports
2 × RJ45 (CAT5) GLM network connectors
