A truly pioneering solution, the compact 3440A PoE-powered subwoofer enhances Genelec’s versatile Smart IP family of installation loudspeakers, offering the convenience of networked audio with the benefits of single-cable connectivity. And by redefining the reference for low-frequency output using PoE power, the subwoofer pushes installation audio quality to new greater heights of performance.
Uncompromised quality
With over four decades as the world's leading provider of professional studio monitoring loudspeakers, Genelec is uniquely placed to offer installed audio solutions with the highest standard of truthful, detailed and rich reproduction. Each loudspeaker is designed and manufactured to the highest sustainability standards and built to provide decades of reliable daily use. Wherever audio is intended to create an attractive experience that visitors enjoy, Genelec Smart IP loudspeakers ensure a smooth and flexible install, with a high-quality, engaging result.
Smart IP perfects Power-over-IP
Using Genelec patented power storage technology, the 3440A confidently delivers an impressive 106 dB of short-term SPL for flawless bass reproduction. All Genelec Smart IP loudspeakers offer the effortless scalability of open IP networking with the added convenience of receiving PoE+ and PoE level power plus audio streams and management using only a single standard CAT cable. Audio is flawlessly delivered uncompressed using Dante or AES67 low latency streaming technologies.
Ease of installation
Genelec Smart IP Manager software discovers Smart IP devices and allows detailed configuration, calibration and supervision of all Smart IP system loudspeakers, rooms, zones, and audio channels. Every Smart IP loudspeaker includes a public API command set for house automation systems and benefits from a series of ready-made drivers, enabling quick-and-easy integration with a wide range of applications.

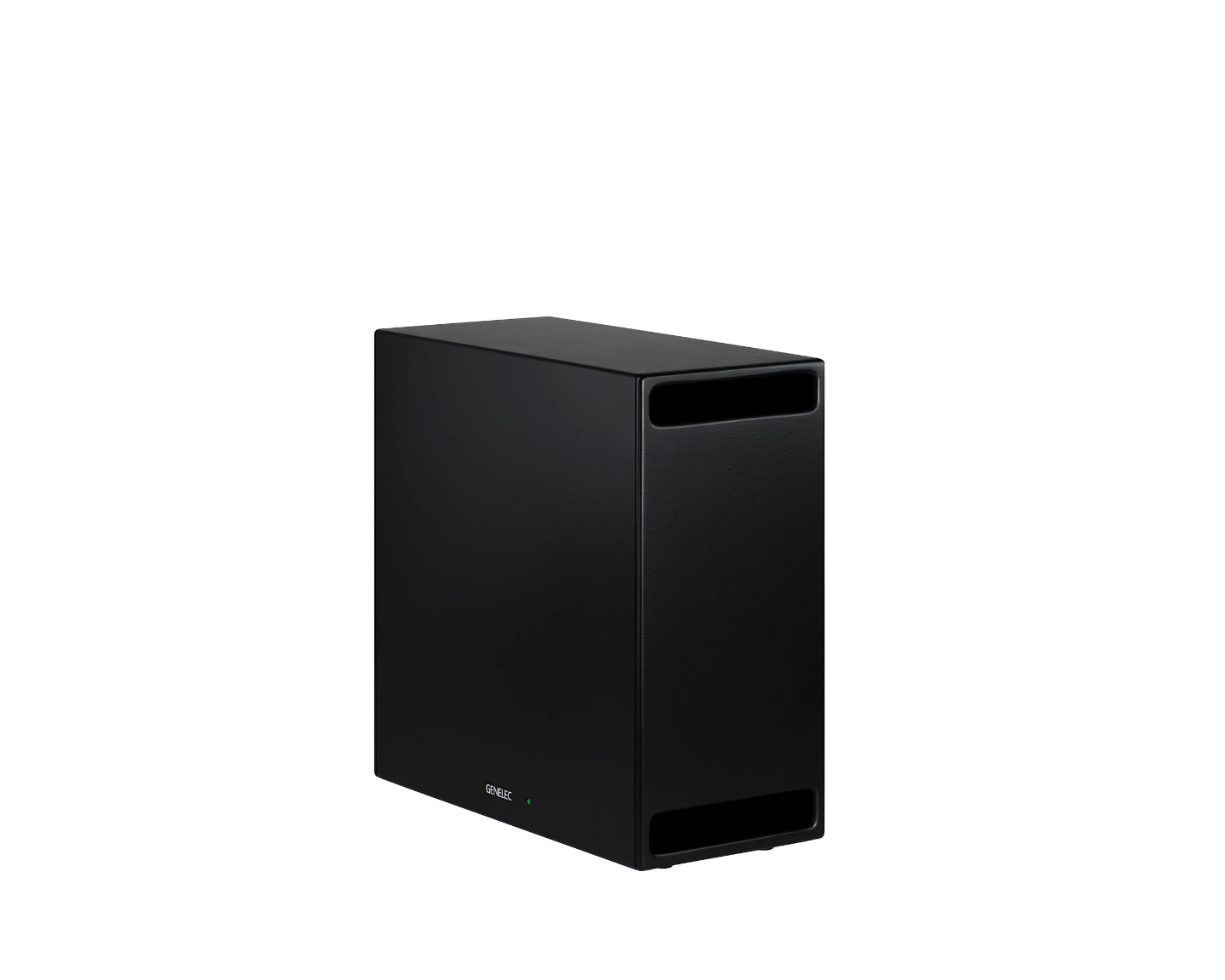

Available in black or white, the 3440A is easy to install either freestanding upright or on the side, as well as mounted on the wall or ceiling with its optional installation accessory.
Genelec’s wide range of Smart IP on-wall, ceiling and pendant loudspeaker solutions supports a wealth of installation opportunities. Using the 3440A Subwoofer, systems can be built with convenience, offering the aesthetic beauty and renowned uniform coverage, clarity and intelligibility of Smart IP, making this technology the most complete, flexible, and future-proof choice for AV integrators and installers everywhere.
Key Technologies
The speaker incorporates advanced networking, audio management, and amplification technologies to deliver reliable and flexible performance. Audio-over-IP (AoIP) enables high-quality digital audio transmission over network infrastructure, while PoE Power simplifies installation by allowing power and audio connectivity through a single network connection. Smart IP Manager provides convenient system configuration and management.
Active Crossovers ensure precise frequency separation, while the Bass Management System provides effective control and integration of low-frequency signals. Intelligent Signal Sensing (ISS™) Technology enables efficient signal detection, and Optimised Amplifiers deliver clean and reliable power. Protection Circuitry helps safeguard the speaker during demanding operation, while Versatile Mountings offer flexible installation and placement options.
Technical Specifications
| Category | Spec |
|---|---|
| Frequency Response | 35 Hz – 120 Hz (±2.5 dB) |
| Low Cutoff (-6 dB) | 35 Hz |
| High Cutoff (-6 dB) | 120 Hz |
| Peak SPL | ≥106 dB |
| Short-Term Max SPL | ≥106 dB |
| Long-Term Max SPL | ≥101 dB |
| Self-Generated Noise | ≤5 dB SPL |
| Weight | 14.5 kg (32.0 lb) |
| Height | 475 mm (18 3/4 in) |
| Width | 475 mm (18 3/4 in) |
| Depth | 220 mm (8 5/8 in) |
| Bass Driver Type | Cone |
| Bass Driver Diameter | 165 mm (6 1/2 in) |
| Bass Amplifier | 70 W Class D |
| Mains / Power | PoE+ / PoE |
| Power Consumption – ISS Active | ≤5 W |
| Power Consumption – Idle | ≤4 W |

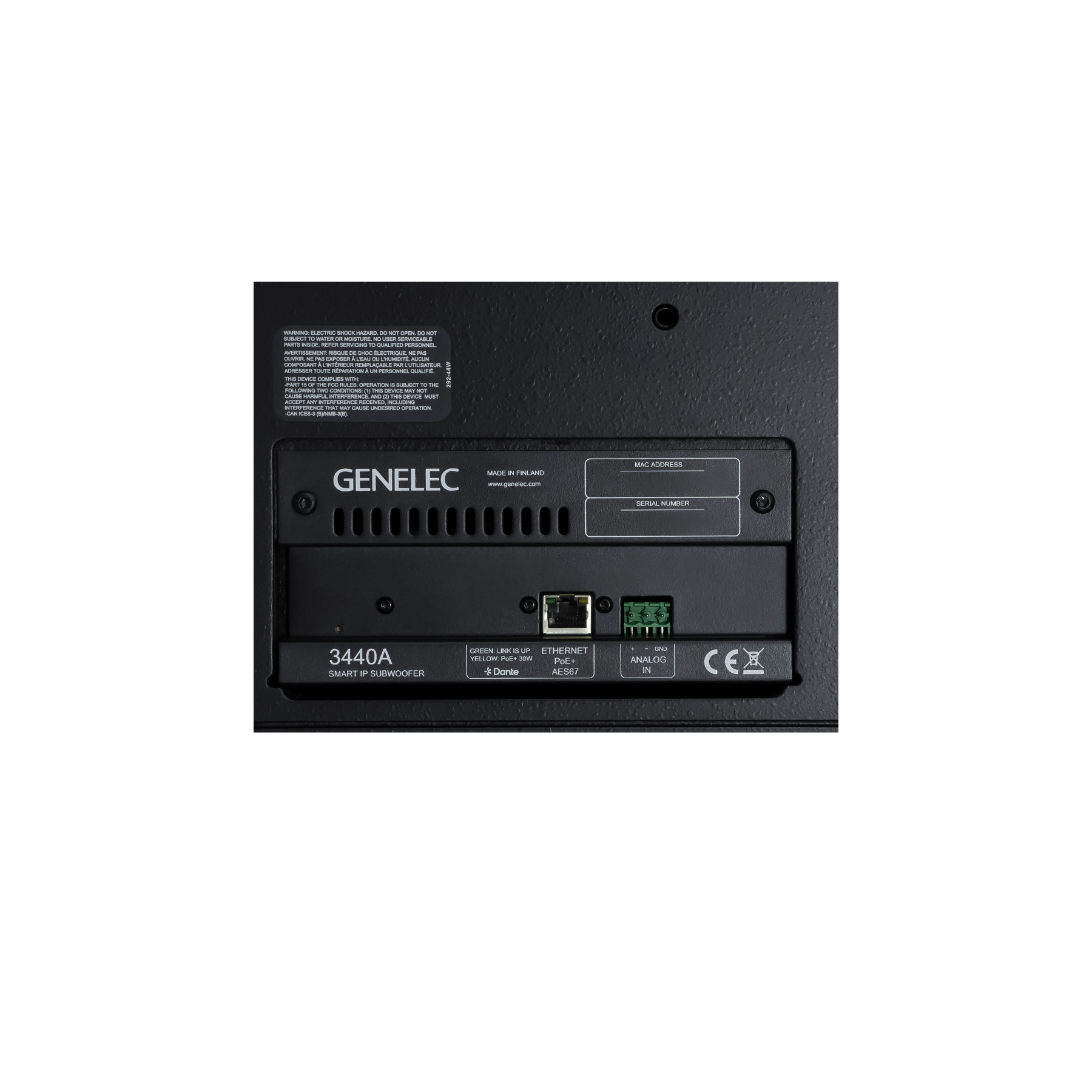

| Network Input | Ethernet (Power over Ethernet and Audio over IP) |
| Analog Input | 1 × Euroblock balanced input, 10 kOhm |
