Looking for exceptional sound over IP? The 4430A offers power, audio and loudspeaker management via a single standard CAT cable, delivering unrivalled flexibility, cost-effectiveness and simplicity of installation.
Power to the speaker
Combining class-leading sound quality with single cable convenience, the 4430A uses PoE to produce uncompromised SPL and acoustic performance, and is fully compatible with both Dante and open streaming standards such as AES67. Manufactured in Finland using certified sustainable methods, the 4430A will provide decades of reliable service.
Power to the installer
As part of the Smart IP family, the 4430A integrates tightly with our Smart IP Manager software which allows installers to configure an almost unlimited number of rooms, zones, loudspeakers and audio channels, and includes device discovery, a versatile room EQ tool set, system organisation and status monitoring. After which, a public API command set allows the 4430A to be integrated into house automation systems for day to day use. Easy.
Key Technologies
The speaker combines advanced network, power, and acoustic technologies to provide flexible installation and reliable, high-quality audio performance. Audio-over-IP (AoIP) enables digital audio transmission over network infrastructure, while PoE Power simplifies installation by delivering power and data through a compatible network connection. Smart IP Manager provides convenient system configuration and management.
Active Crossovers ensure precise frequency separation, while Directivity Control Waveguide (DCW™) Technology provides controlled and consistent sound dispersion. Intelligent Signal Sensing (ISS™) Technology enables efficient signal detection, and Minimum Diffraction Enclosure (MDE™) Technology helps reduce unwanted cabinet-related acoustic effects. Optimised Amplifiers deliver clean and efficient power, while Protection Circuitry safeguards the speaker during demanding operation. Reflex Port Design enhances low-frequency performance, and Versatile Mountings offer flexible placement and installation options.
Technical Specifications
| Category | Spec |
|---|---|
| Frequency Response | 58 Hz – 20 kHz (±1.5 dB) |
| Low Cutoff (-6 dB) | 45 Hz |
| High Cutoff (-6 dB) | 39 kHz |
| Peak SPL | ≥107 dB (per unit, listening room, music material at 1 m using PoE+) |
| Short-Term Max SPL | ≥104 dB |
| Long-Term Max SPL | ≥96 dB |
| Self-Generated Noise | ≤5 dB SPL |
| Weight | 5.1 kg (11.2 lb) |
| Height | 285 mm (11 1/4 in) |
| Width | 189 mm (7 1/2 in) |
| Depth | 178 mm (7 in) |
| Enclosure Material | Die-cast aluminium |
| Enclosure Type | Reflex port |
| Woofer Type | Cone |
| Woofer Diameter | 130 mm (5 1/8 in) |
| Tweeter Type | Metal dome |
| Tweeter Diameter | 19 mm (3/4 in) |
| Directivity | Vertical and horizontal directivity |
| Harmonic Distortion (50–200 Hz) | ≤2% |
| Harmonic Distortion (>200 Hz) | ≤0.5% |
| Latency | 2.3 ms |
| Bass Amplifier | 50 W Class D |
| Treble Amplifier | 50 W Class D |
| Total Amplification | 100 W Class D |
| Mains / Power | PoE+ / PoE |
| Power Consumption – ISS Active | ≤4 W |
| Power Consumption – Idle | ≤5 W |
| Power Consumption – Full Output | 25.5 W |

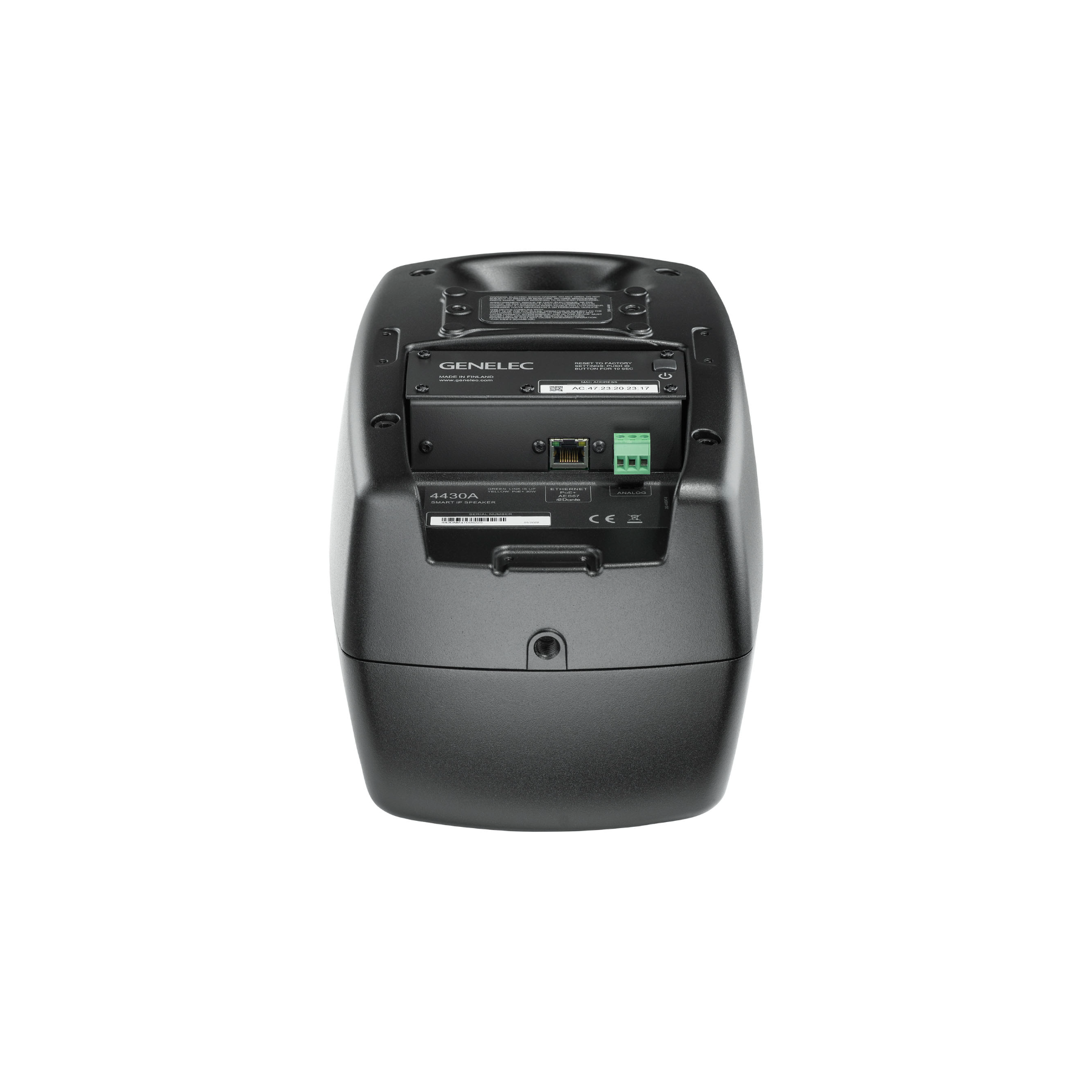

| Ethernet Input | Power over Ethernet and Audio over IP |
| Balanced Audio Input | 10 kOhm balanced connector |
| Crossover Frequency | 2,900 Hz |
