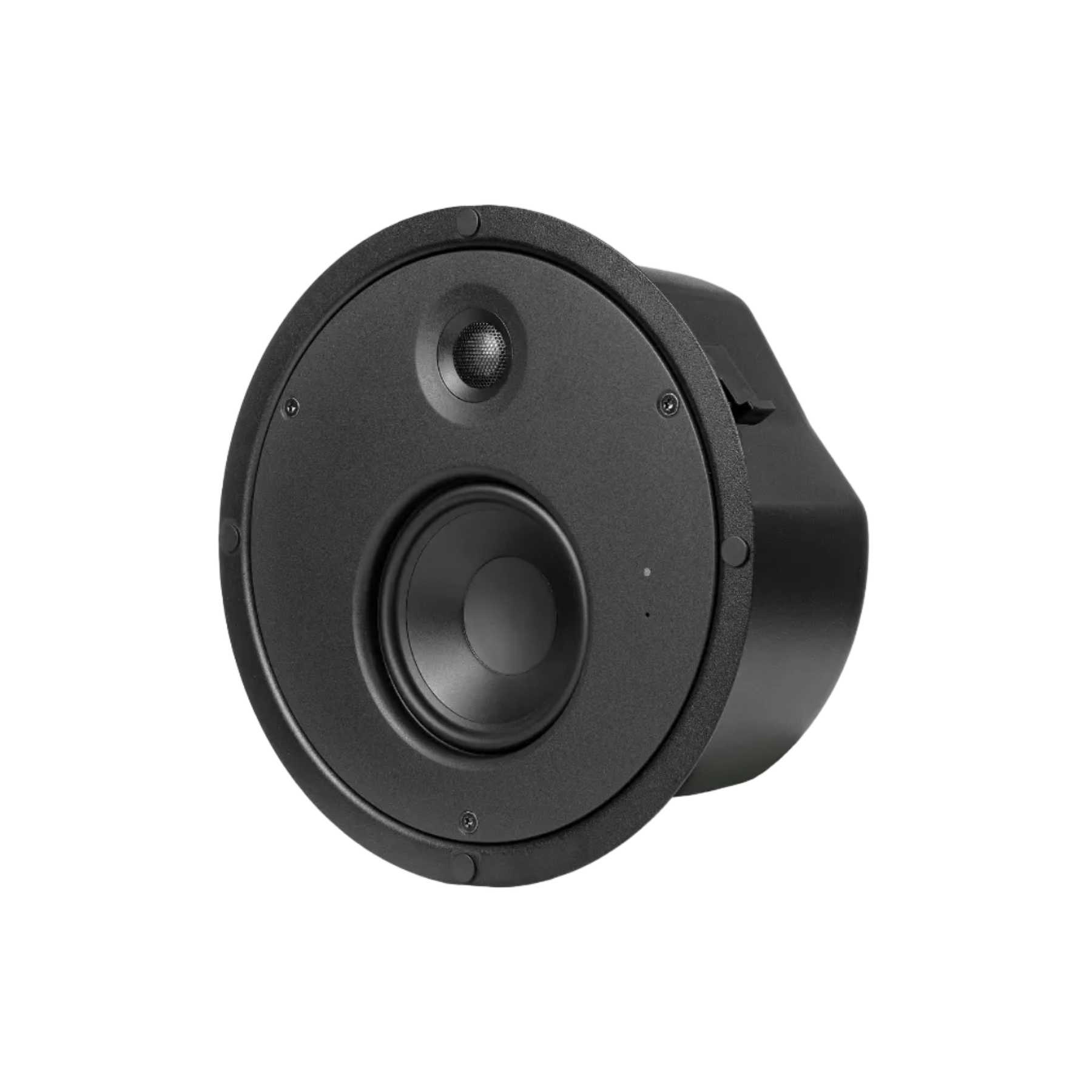

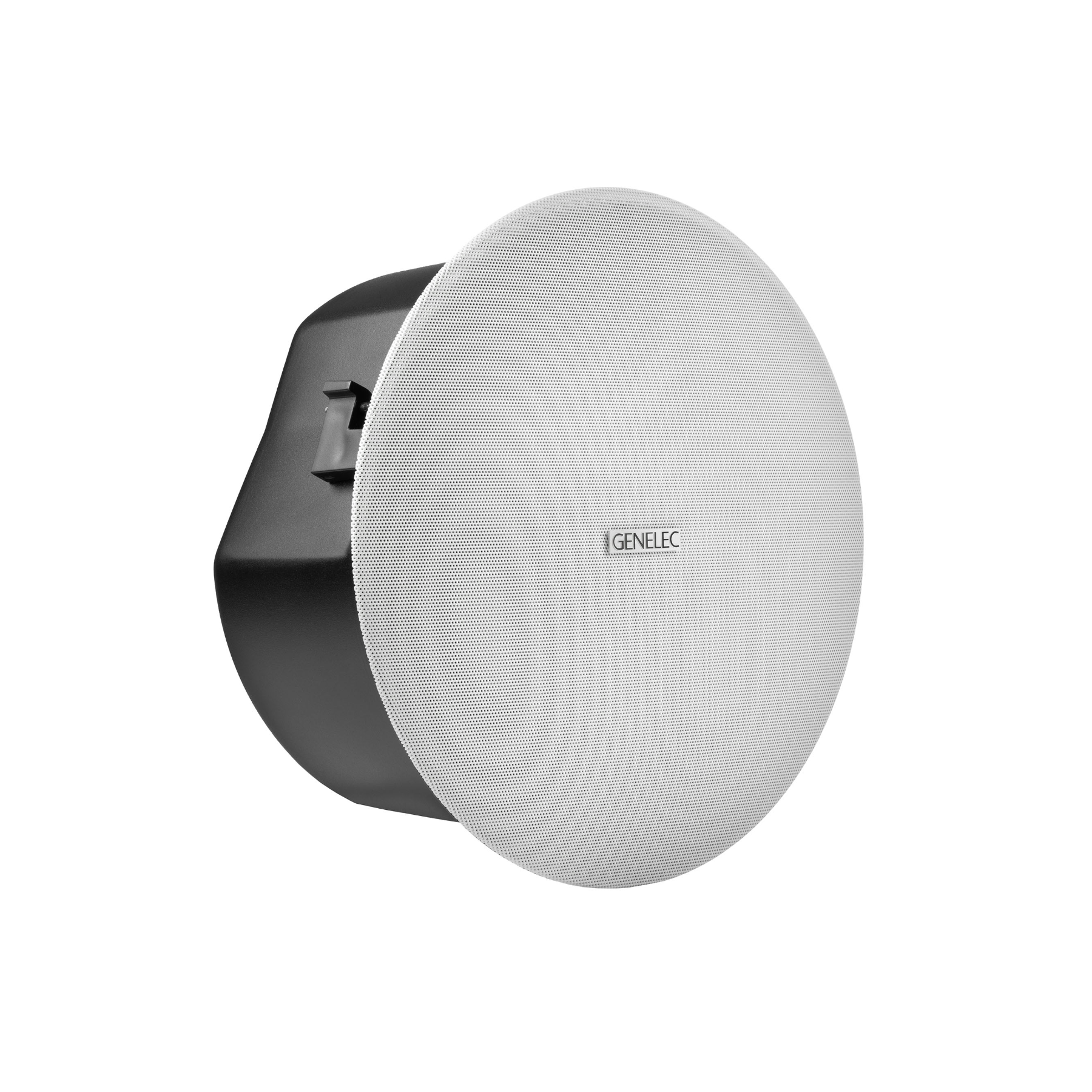

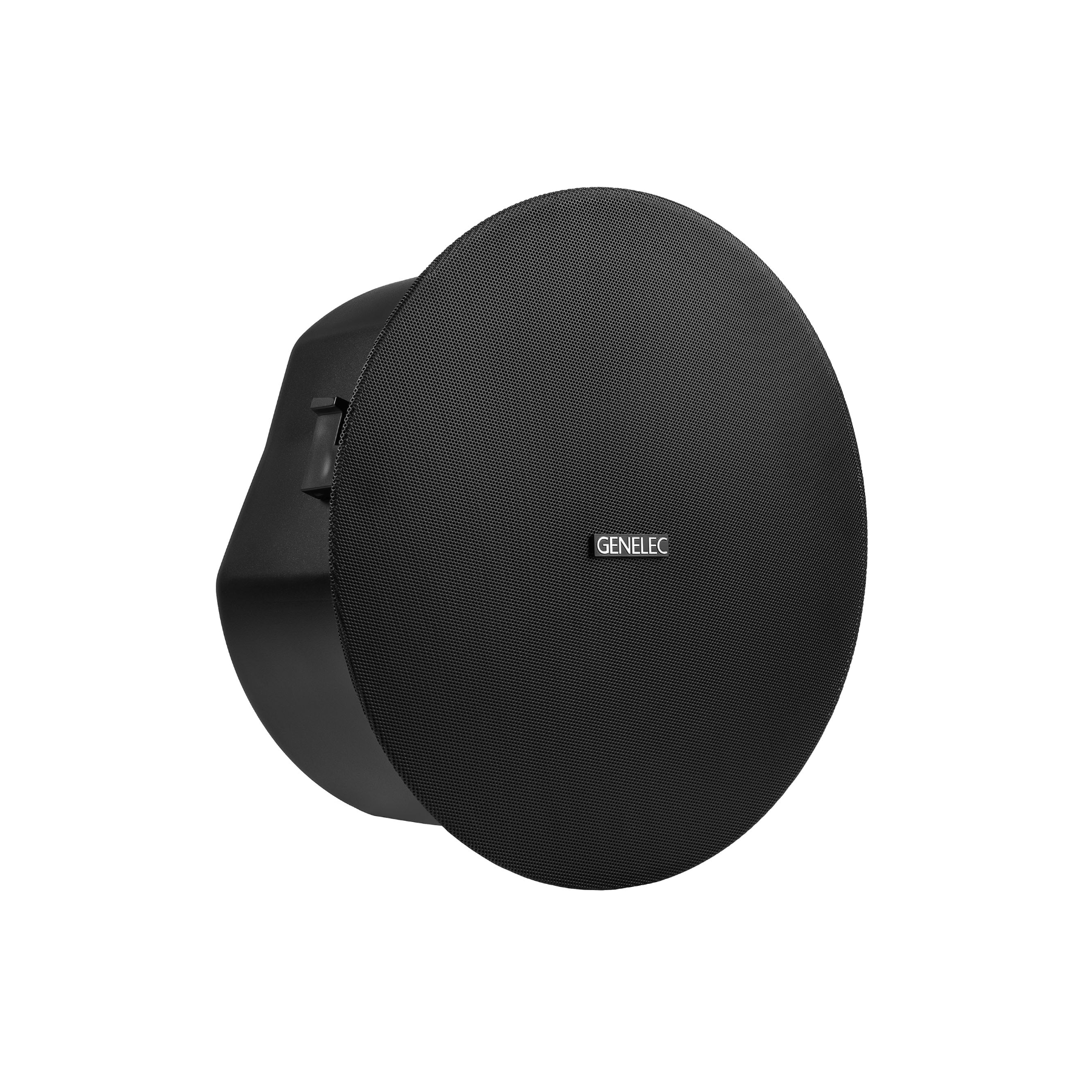

The 4435A joins our Smart IP product line to provide an in-ceiling loudspeaker solution of the highest quality, with the added ease of installation, system scalability and simple operation of Smart IP's single-cable networked technology. Designed for discreet in-ceiling installation, the durable and functional 4435A provides exceptional long-term value for premium AV installations. The two-way 4435A is delivered with a choice of easy-fit round or square grilles in either a black or white finish.
Smart IP
Smart IP is Genelec's scalable Open IP networking technology platform, deriving power (PoE or PoE+ Power-over-Ethernet), audio and management all via a single standard CAT cable. The technology offers detailed loudspeaker configuration, supervision and calibration on an individual, room, zone and system level - without performance sacrifice. Each model, including the 4435A, reproduces audio with the highest level of uniform coverage, clarity and intelligibility, and can be freely networked with other Smart IP models to flawlessly play back Dante and AES67 streams.
Uncompromised sound quality
With over four decades as the world's leading provider of professional monitoring loudspeakers, Genelec is uniquely placed to offer AV loudspeaker solutions with the highest quality of truthful, detailed and rich sound. Whenever audio is intended to create an attractive experience that visitors enjoy, Genelec's Smart IP product line ensures a robust and flexible system that's designed and manufactured to meet the highest sustainability standards, giving decades of reliable daily use.
Ease of installation

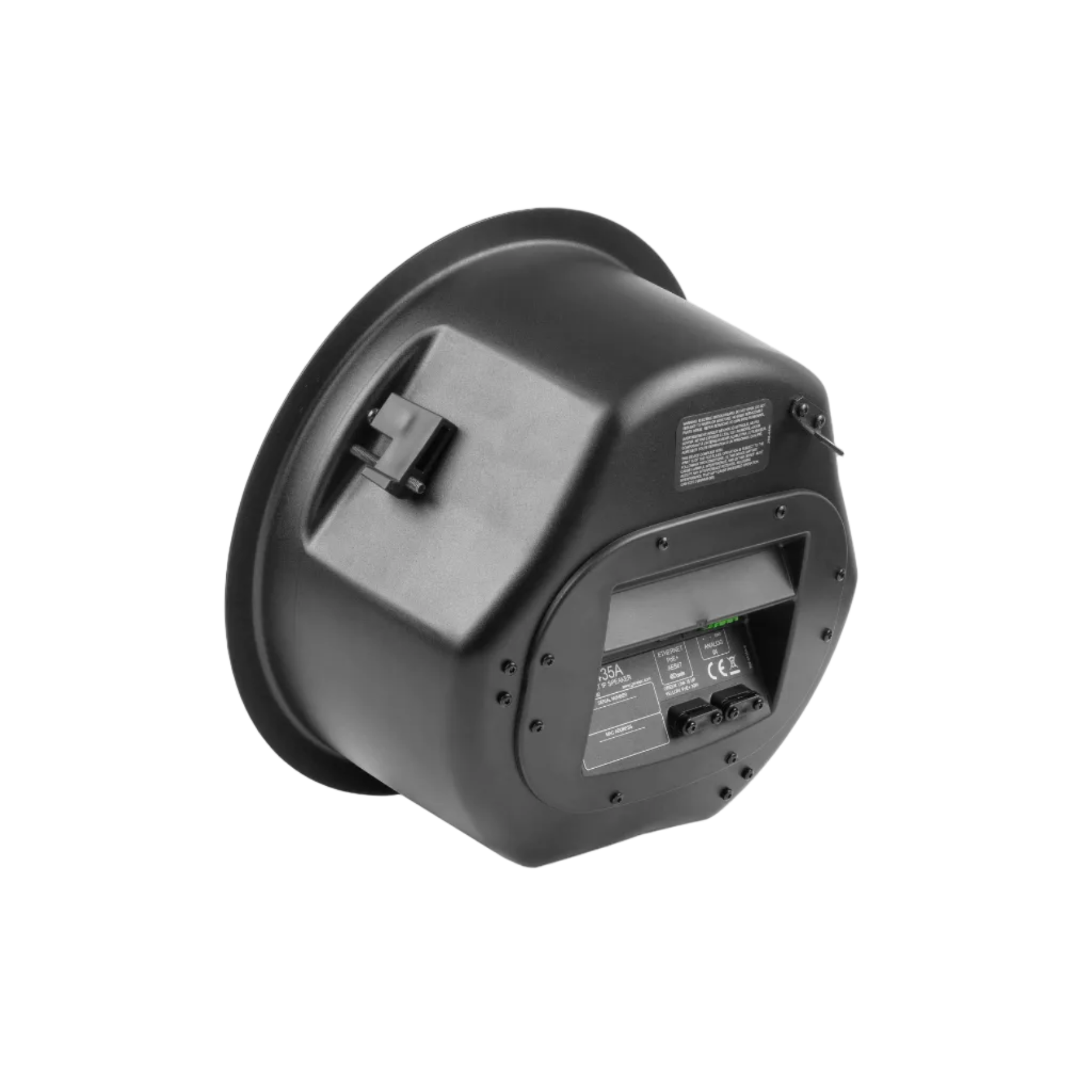

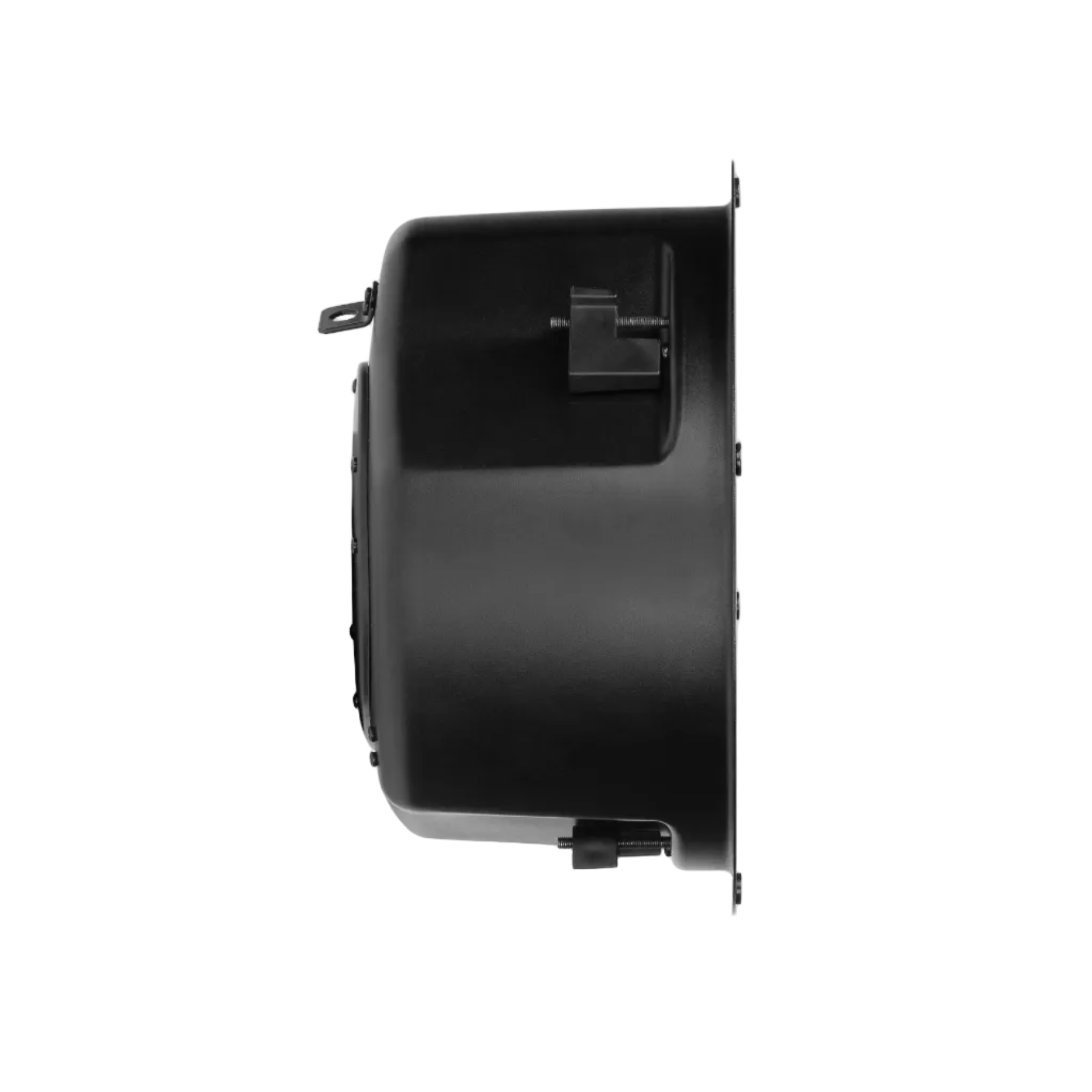

The 4435A is simple and easy to install, requiring only a single CAT cable for power, audio and management, fastening in place with a simple latch system and hiding away with its low-profile magnetically attached grilles. Genelec Smart IP Manager software takes care of device discovery and allows the detailed configuration and status monitoring of loudspeakers, rooms, zones and audio channels. Day-to-day control of basic system functions is made even simpler by our intuitive Smart IP Controller app for iOS and Android devices. Additionally, our Smart IP solutions benefit from a public API command set and a series of freely available drivers that allow easy integration with a range of common control automation systems.
Loudspeaker Qualities

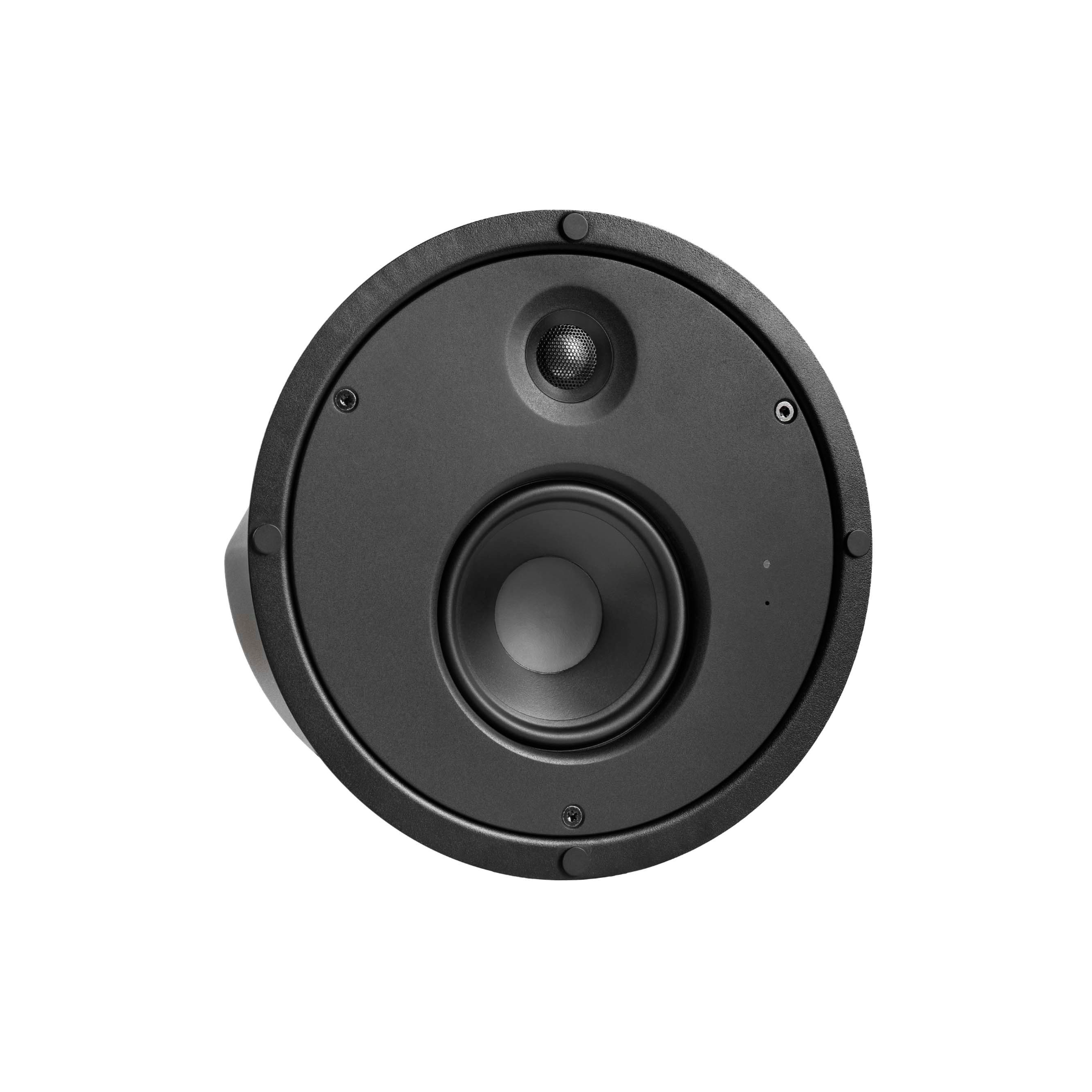

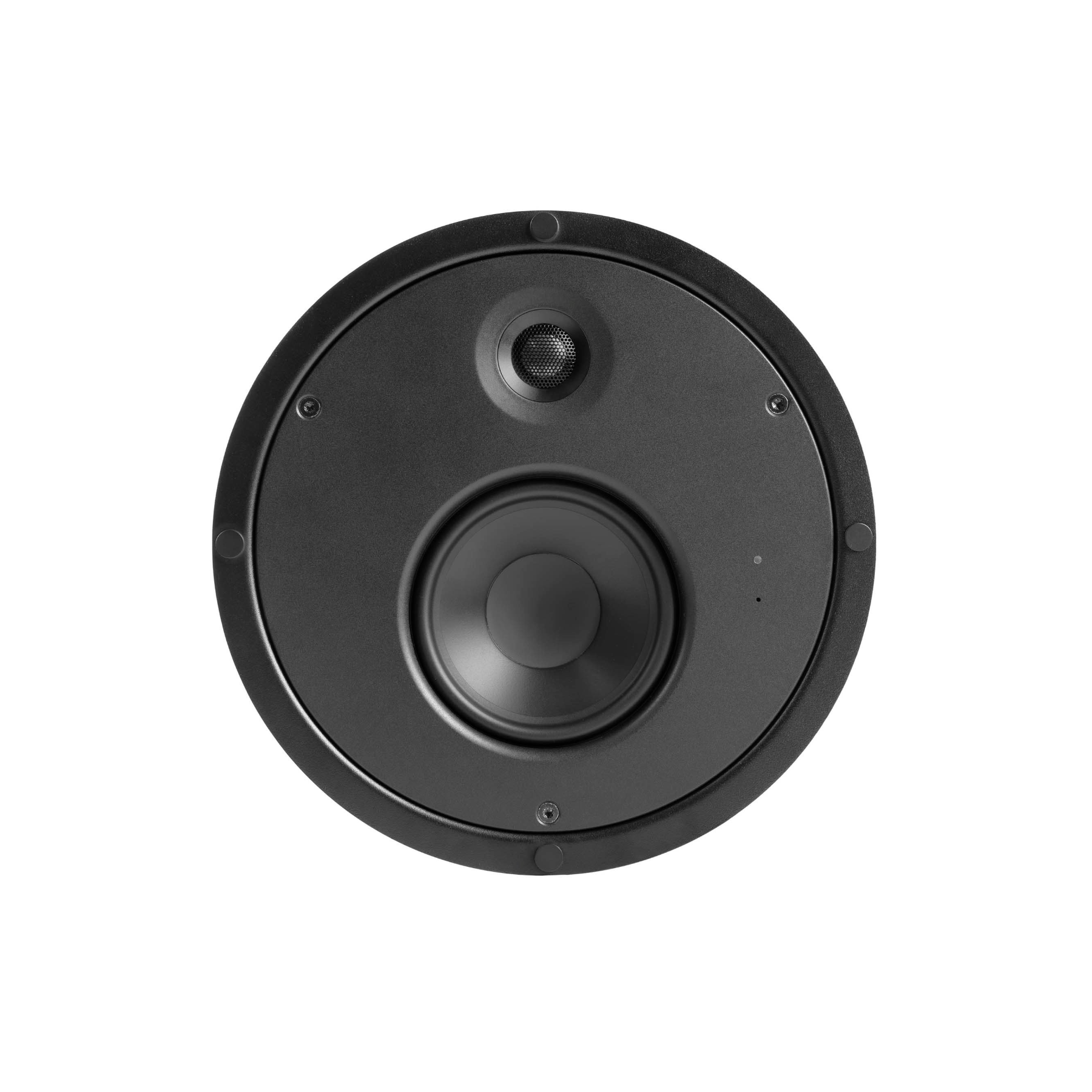

The Genelec 4435A delivers uncompressed, low-latency audio over IP with sub-microsecond loudspeaker synchronisation, ensuring precise and stable acoustic imaging. It offers a frequency response of 58 Hz – 39 kHz and is powered by two independent 50 W Class D amplification stages, driving a 130 mm (5 1/8-inch) woofer and 19 mm (3/4-inch) metal dome tweeter. Its proprietary internal power supply technology stores energy to provide an impressive 104 dB short-term SPL when required.
Design

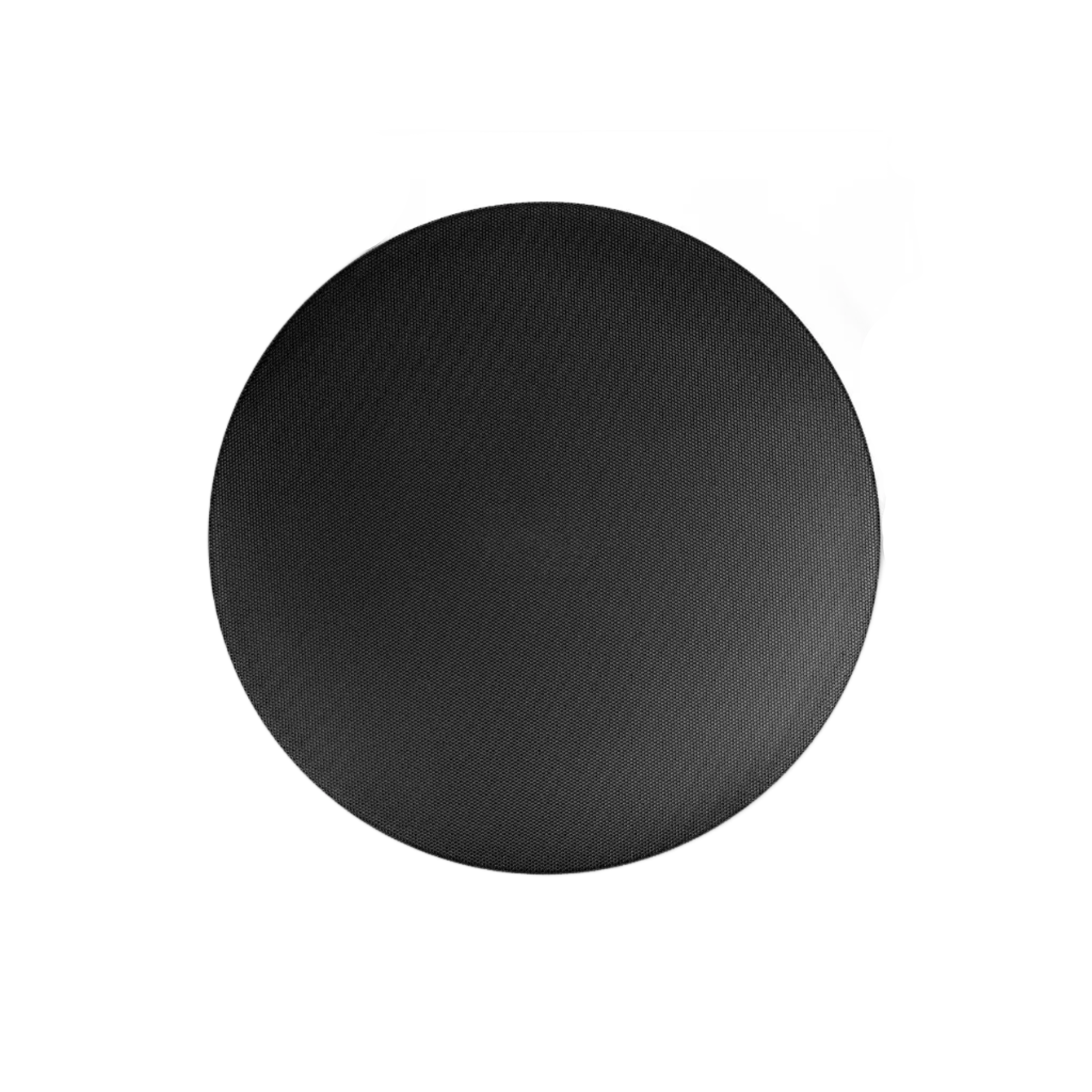

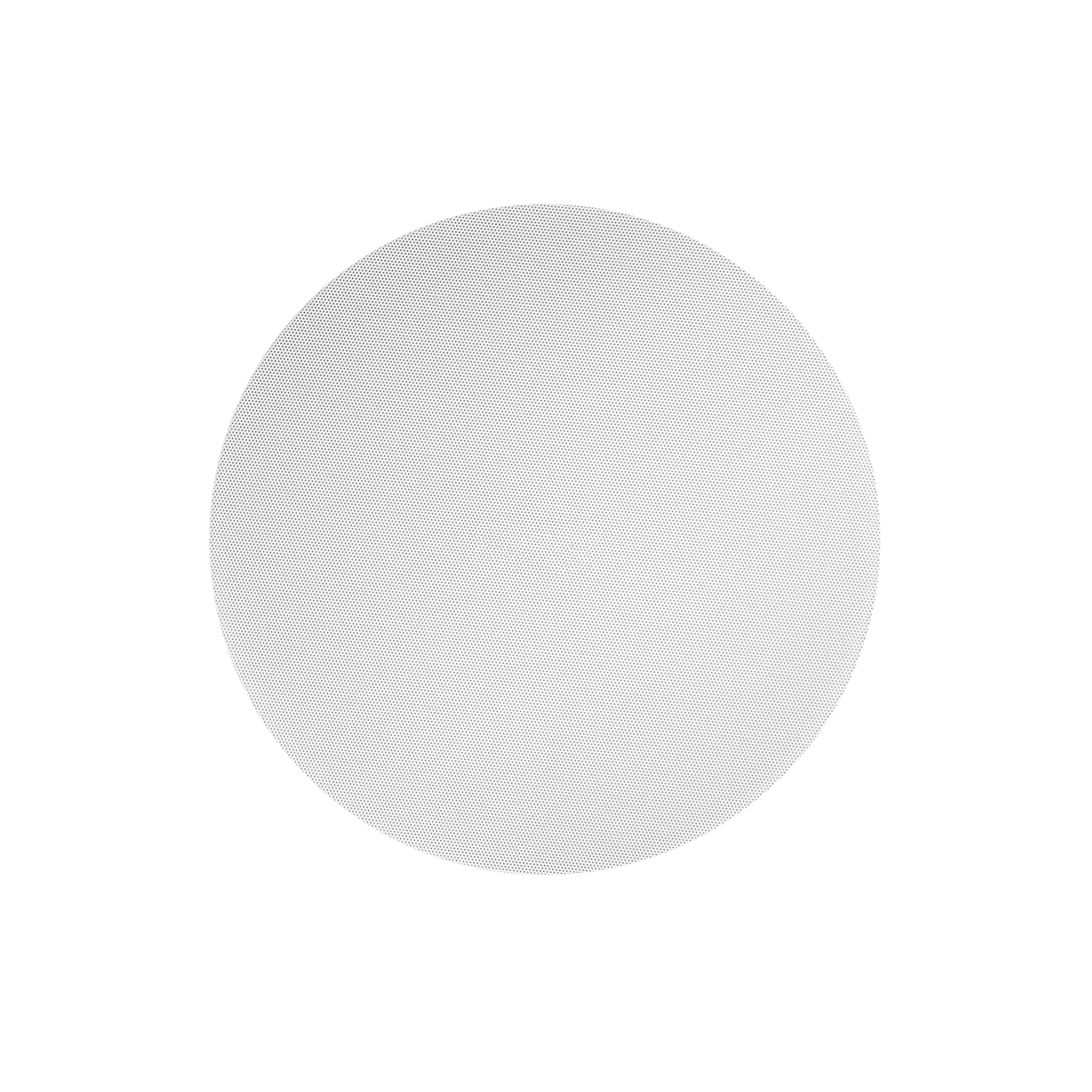

The active design of the 4435A eliminates the need for bulky external amplifier racks and associated cabling while maintaining high-quality audio performance. Designed and manufactured sustainably in Finland under strict quality systems, it is built for reliability, flexibility, and ease of installation, backed by Genelec’s technical support. The 4435A supersedes the established AIC25 analogue in-ceiling model and features a simple latch installation system with low-profile, magnetically attached grilles. The grilles are available in circular or square shapes and black or white finishes.
What Makes Smart IP Unique?
Smart IP combines advanced network connectivity with Genelec’s renowned audio performance and installation flexibility. It supports single-cable connectivity through PoE and PoE+ without compromising performance, along with open audio and IP standards and compatibility with Dante and AES67 streams. The system provides uncompressed, low-latency audio streaming directly to each loudspeaker and enables sub-microsecond loudspeaker synchronisation for accurate acoustic imaging.
Each loudspeaker also includes comprehensive room compensation and alignment tools, while a complete public API command set allows easy integration with third-party automation systems. Users can access Genelec Smart IP Manager software and the Smart IP Controller mobile app, while benefiting from Genelec’s established audio quality and build quality.
Key Technologies
The Genelec 4435A incorporates advanced networking, installation, and acoustic technologies for reliable, high-quality performance. Audio-over-IP (AoIP) enables uncompressed digital audio transmission over network infrastructure, while PoE Power allows audio and power to be delivered through a single network connection. Smart IP Manager provides convenient system configuration and management. Active Crossovers ensure precise frequency separation, while Directivity Control Waveguide (DCW™) Technology provides controlled and consistent sound dispersion.
Intelligent Signal Sensing (ISS™) Technology enables efficient signal detection, and Minimum Diffraction Enclosure (MDE™) Technology helps minimise unwanted cabinet-related acoustic effects. Optimised Amplifiers provide clean and efficient power, while Protection Circuitry safeguards the loudspeaker during demanding operation. Reflex Port Design enhances low-frequency performance, and Versatile Mountings support flexible installation options.
Technical Specifications
| Category | Spec |
|---|---|
| Frequency Response | 70 Hz – 20 kHz (±2.5 dB) |
| Low Cutoff (-6 dB) | 58 Hz |
| High Cutoff (-6 dB) | 39 kHz |
| Short-Term Max SPL | ≥104 dB |
| Weight | 3.5 kg (7.7 lb) |
| Dimensions – Round Grille | Ø288 × 165 mm (Ø11 3/8 × 6 1/2 in) |
| Dimensions – Square Grille | 288 × 288 × 159 mm (11 3/8 × 11 3/8 × 6 1/4 in) |
| Minimum Installation Depth | 162 mm (6 3/8 in), including 10 mm clearance |
| Round Grille Protrusion | 13 mm (1/2 in) |
| Square Grille Protrusion | 7 mm (1/4 in) |
| Horizontal Dispersion | 120° |
| Vertical Dispersion | 100° |
| Woofer Type | Cone |
| Woofer Diameter | 130 mm (5 1/8 in) |
| Tweeter Type | Metal dome |
| Tweeter Diameter | 19 mm (3/4 in) |
| Bass Amplifier | 50 W Class D |
| Treble Amplifier | 50 W Class D |
| Total Amplification | 100 W Class D |
| Mains / Power | PoE+ / PoE |
| Power Consumption – ISS Active | ≤4 W |
| Power Consumption – Idle | ≤5 W |

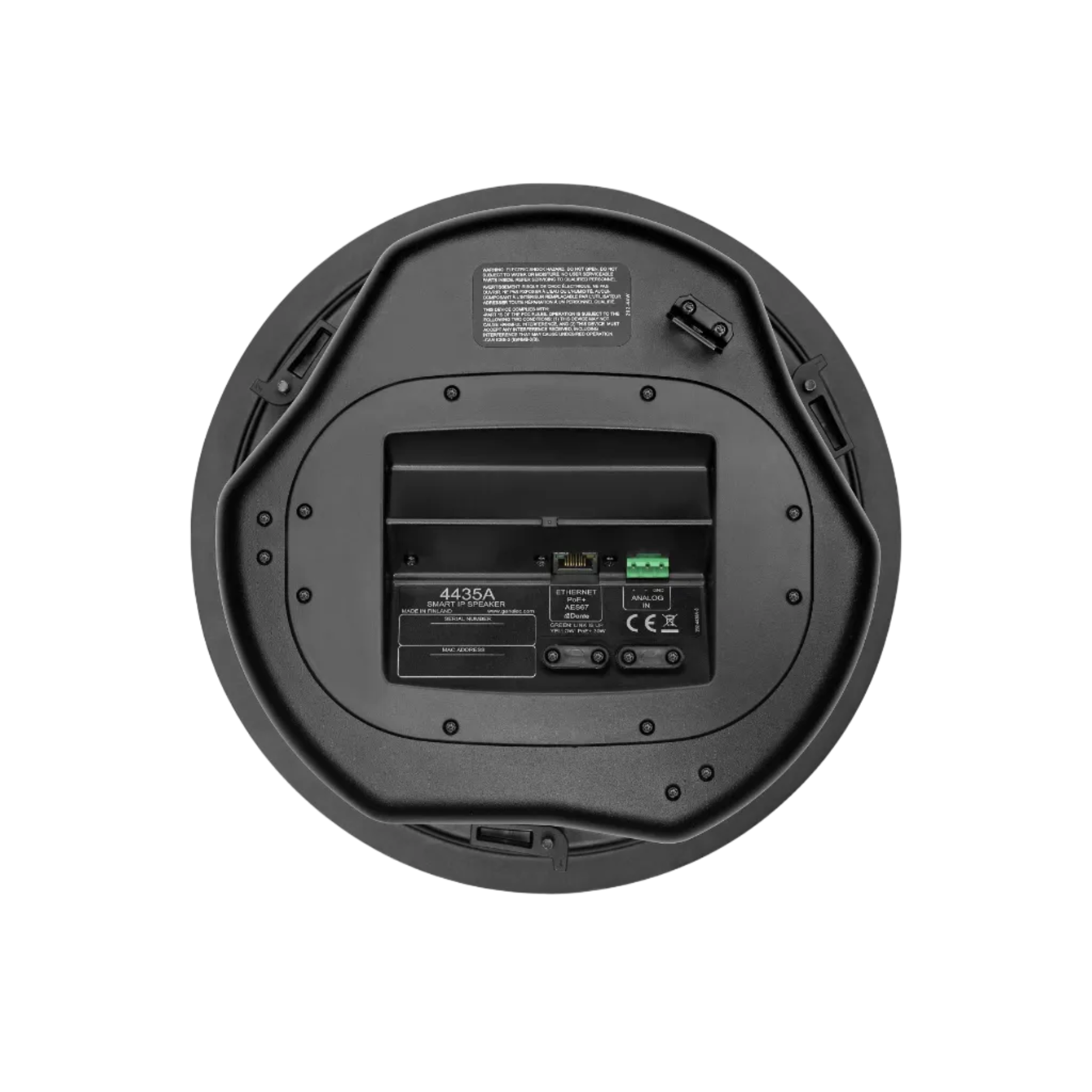

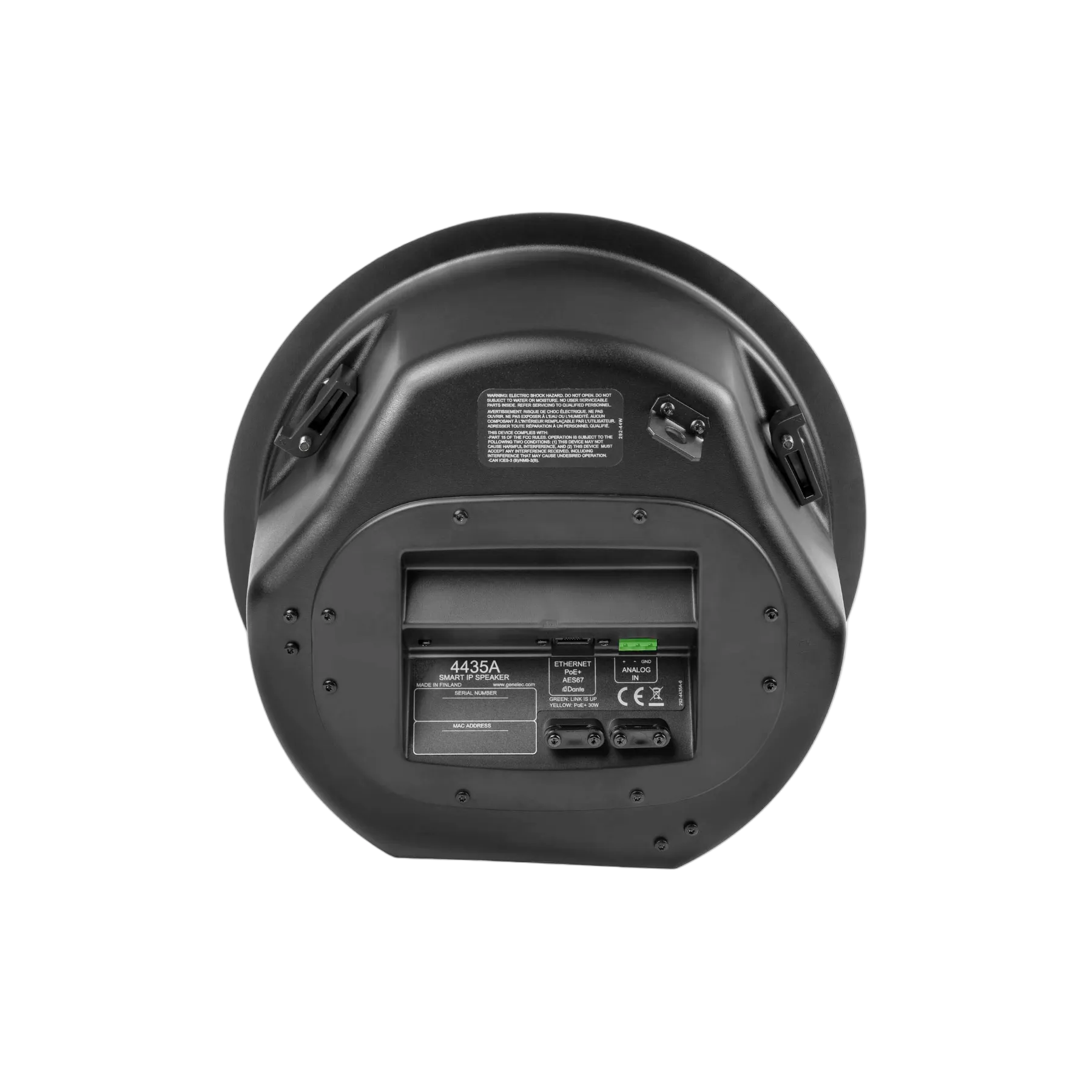

| Network Input | 1 × RJ45 IP network interface (Power over Ethernet and Audio over IP) |
| Analog Input | 1 × Euroblock balanced input, 10 kOhm |
