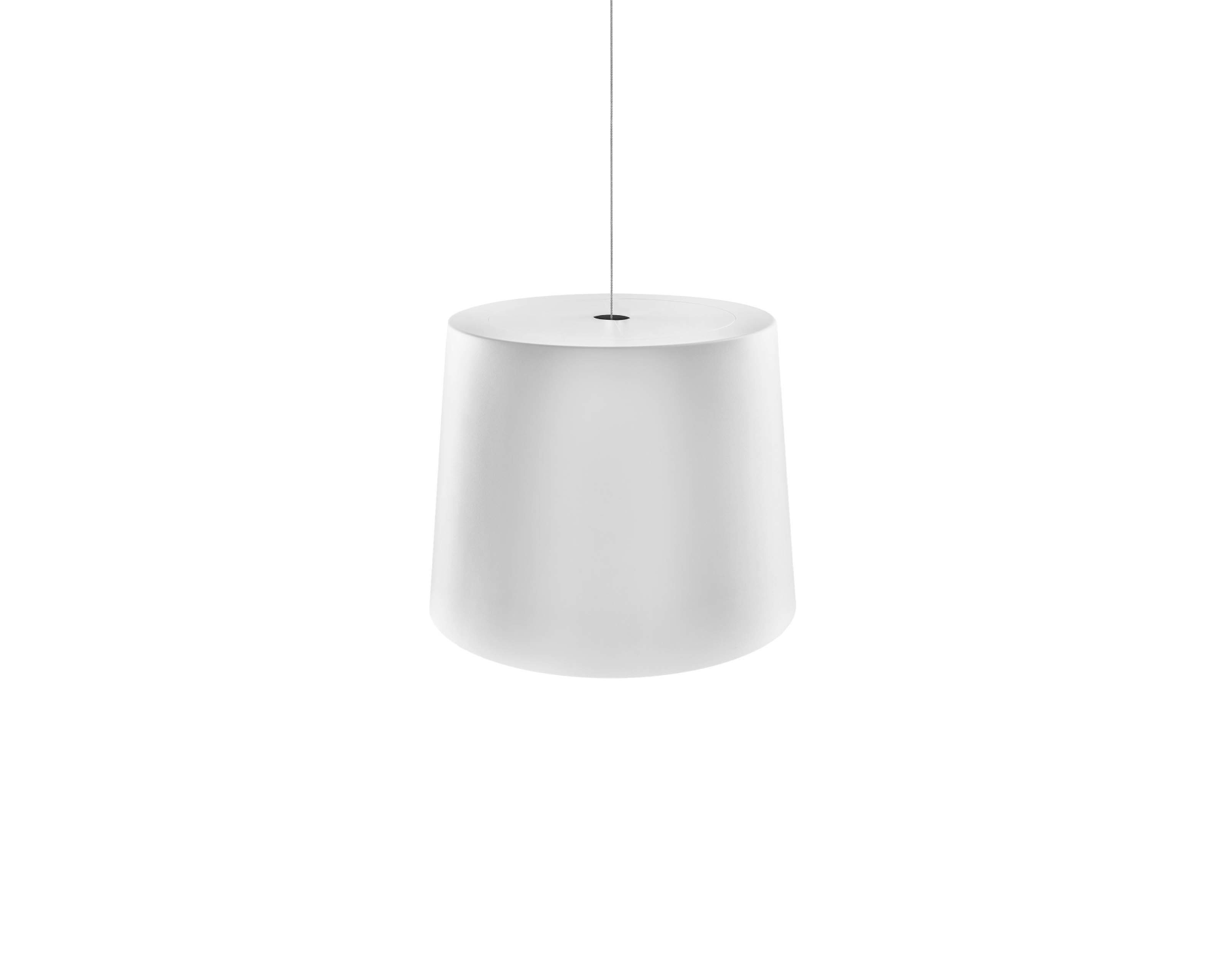

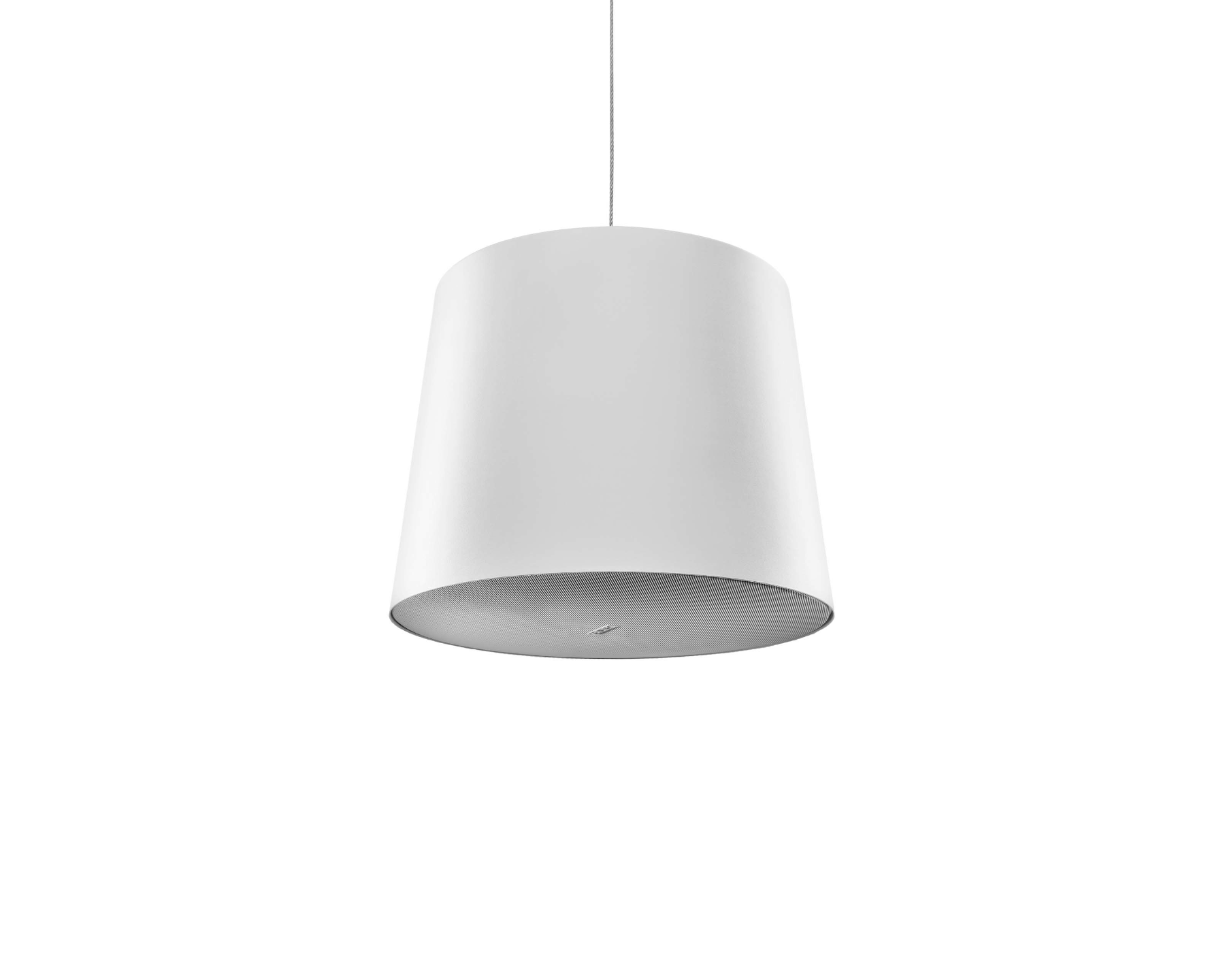

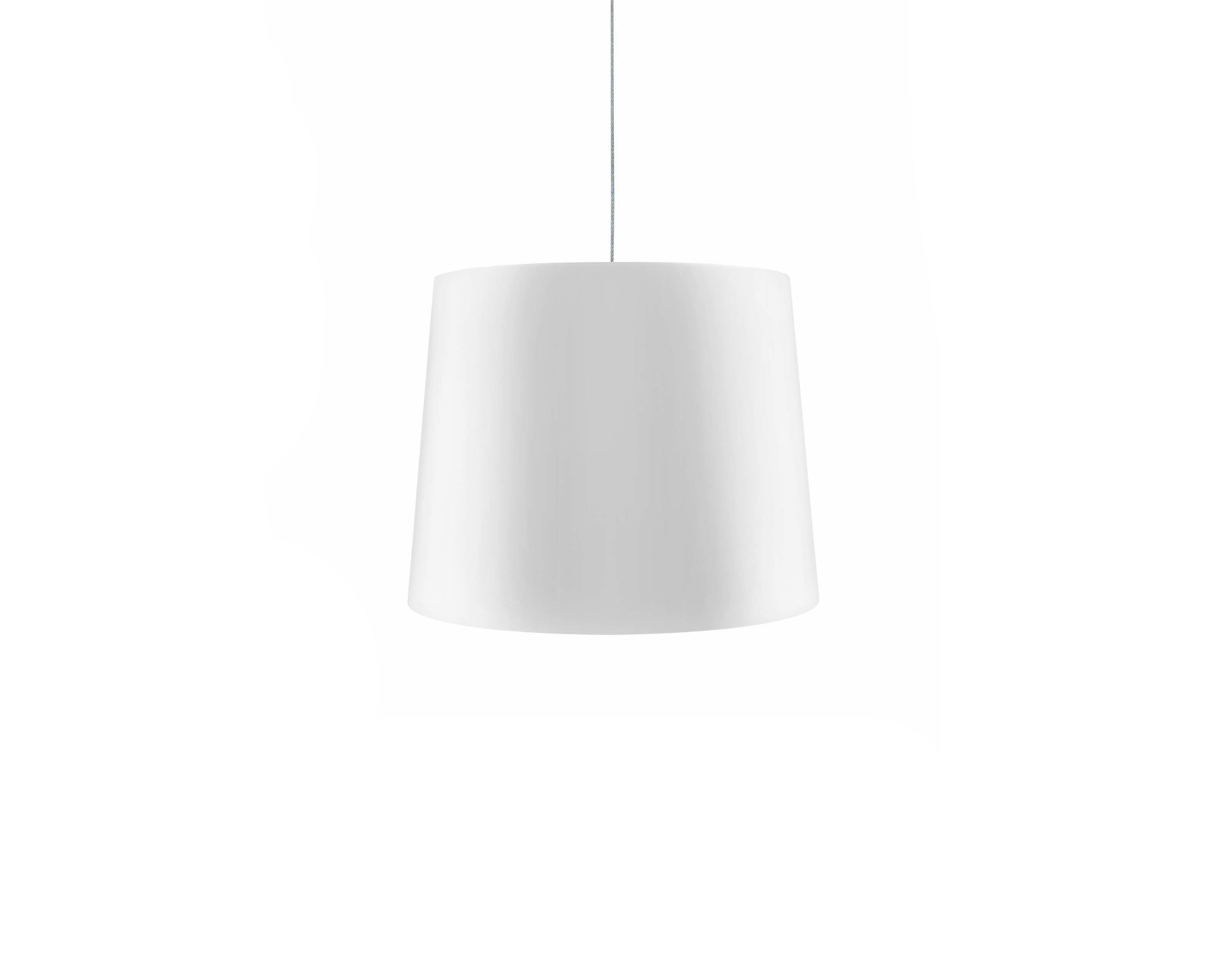

The Smart IP 4436A hanging pendant loudspeaker is specially designed for AV installations in open high-ceiling spaces, easing targeted sound distribution while combining subtle aesthetics with the highest quality sound reproduction and utilising our award-winning Smart IP single-cable networked technology for ease of installation, system scalability and simple operation. The elegant and highly durable steel pendant design of the two-way 4436A provides exceptional long-term value for premium AV installations and is available in a choice of black or white finish.
Built for style and sustainability
Designed and manufactured in Finland to be visually pleasing while meeting the highest sustainability standards, the 4436A is a hangable premium audio solution with a highly robust construction, assuring decades of reliable usage for amplifying captivating sound experiences. Genelec developed the loudspeaker's design in co-operation with celebrated industrial designer, Harri Koskinen, fusing our industry-leading acoustic expertise with Harri's minimalist Nordic flair, for a no-compromise combination of pure sound and design.
Uncompromised sound quality
With over four decades as the world's leading provider of professional monitoring loudspeakers, Genelec is uniquely placed to offer AV loudspeaker solutions with the highest quality of truthful, detailed and rich sound. Whenever audio is intended to create an attractive experience that visitors enjoy, Genelec's Smart IP product line ensures a robust and flexible system that's designed and manufactured to meet the most demanding needs in AV.
Smart IP
Smart IP is Genelec's scalable Open IP networking technology platform, deriving power (PoE or PoE+ Power-over-Ethernet), audio and management all via a single standard CAT cable. The technology offers detailed loudspeaker configuration, supervision and calibration on an individual, room, zone and system level without performance sacrifice. Each model, including the 4436A, reproduces audio with the highest level of uniform coverage, clarity and intelligibility, and can be freely networked with other Smart IP models to flawlessly play back Dante and AES67 streams.
Ease of installation
The 4436A is simple and easy to install, requiring only a single CAT cable for power, audio and management, and its included adjustable wire for hanging. Genelec Smart IP Manager software takes care of device discovery and allows the detailed configuration and status monitoring of loudspeakers, rooms, zones and audio channels. Day-to-day control of basic system functions is made even simpler by our intuitive Smart IP Controller app for iOS and Android devices. Additionally, our Smart IP solutions benefit from a public API command set and a series of freely available drivers that allow easy integration with a range of common control automation systems.
Loudspeaker Qualities

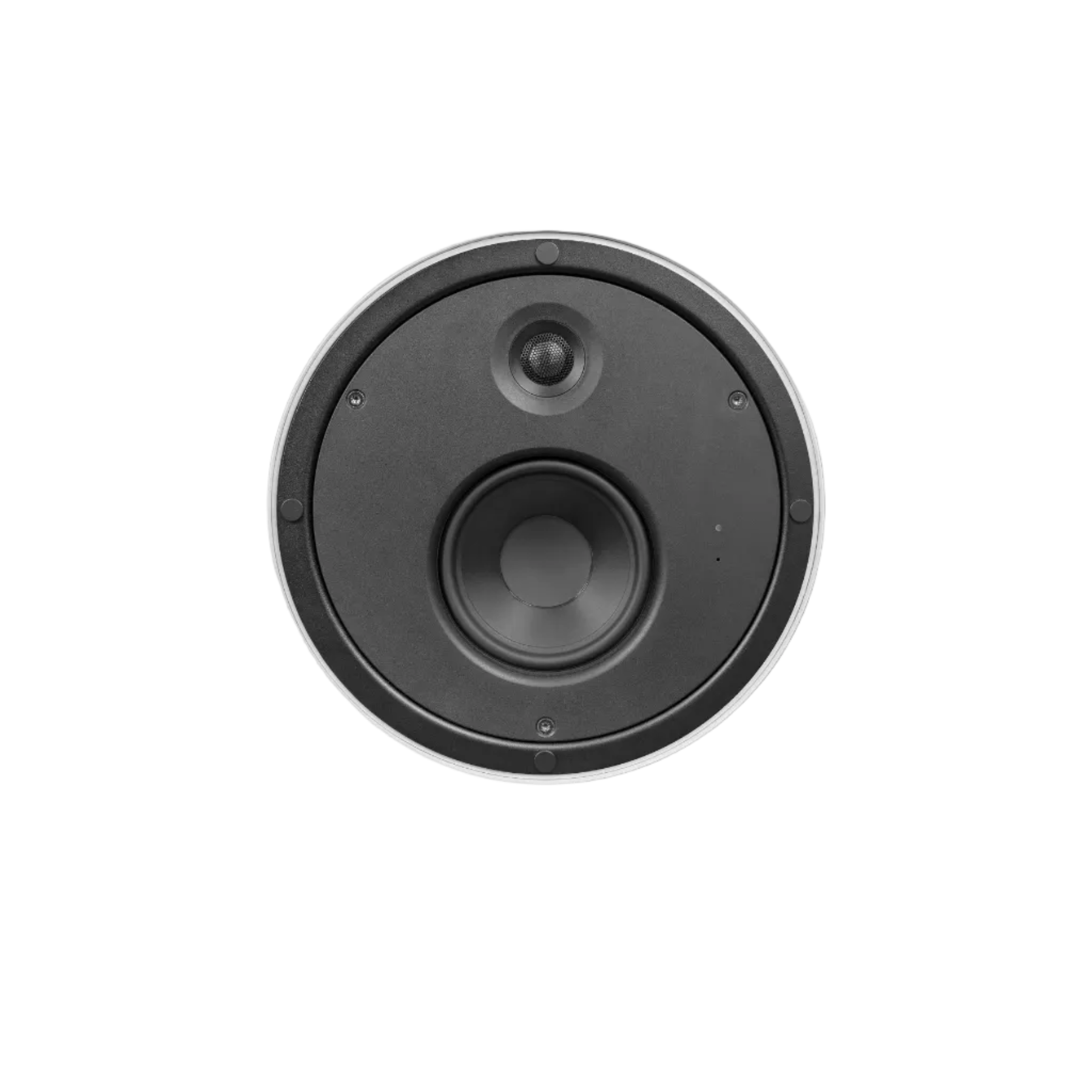

The Genelec 4436A delivers uncompressed, low-latency audio with sub-microsecond loudspeaker synchronisation, ensuring precise and stable acoustic imaging. It offers a frequency response of 58 Hz – 39 kHz through two independent 50 W Class D amplification stages, driving a 130 mm (5 1/8-inch) woofer and 19 mm (3/4-inch) metal dome tweeter. Its proprietary internal power supply technology stores energy to provide an impressive 104 dB short-term SPL when required. The active design also eliminates the need for bulky external amplifier racks and associated cabling.
Design
Created in collaboration with leading industrial designer Harri Koskinen, the 4436A is Genelec’s first pendant loudspeaker. Available in black and white finishes, it can be easily suspended using the included hanging wire. Designed and manufactured sustainably in Finland under strict quality systems, the 4436A combines reliability, flexibility, and ease of installation with Genelec’s renowned technical support and build quality.
What Makes Smart IP Unique?
Smart IP provides single-cable connectivity through PoE and PoE+ without compromising performance. It supports open audio and IP standards and is compatible with Dante and AES67 streams, enabling uncompressed, low-latency audio streaming directly to each loudspeaker. Sub-microsecond synchronisation ensures solid acoustic imaging, while built-in room compensation and alignment tools allow precise system optimisation. A complete public API enables integration with third-party automation systems, while the Smart IP Manager software and Smart IP Controller mobile app provide convenient system management. All of this is supported by Genelec’s renowned audio and build quality.
Key Technologies
The Genelec 4436A incorporates advanced networking, acoustic, amplification, and installation technologies. Audio-over-IP (AoIP) enables digital audio transmission over network infrastructure, while PoE Power simplifies installation by delivering power and audio through a single network connection.
Smart IP Manager provides system configuration and management, while Active Crossovers ensure precise frequency separation. Directivity Control Waveguide (DCW™) Technology provides controlled sound dispersion, and Intelligent Signal Sensing (ISS™) Technology enables efficient signal detection. Minimum Diffraction Enclosure (MDE™) Technology helps minimise unwanted cabinet-related acoustic effects, while Optimised Amplifiers provide clean and efficient power. Protection Circuitry safeguards the loudspeaker during operation, Reflex Port Design enhances low-frequency performance, and Versatile Mountings provide flexible installation options.
Technical Specifications
| Category | Spec |
|---|---|
| Frequency Response | 70 Hz – 20 kHz (±2.5 dB) |
| Low Cutoff (-6 dB) | 62 Hz |
| High Cutoff (-6 dB) | 39 kHz |
| Short-Term Max SPL | ≥104 dB |
| Weight | 5.3 kg (11.7 lb) |
| Height | 237 mm (9 3/8 in) |
| Width | 294 mm (11 5/8 in) |
| Depth | Not specified |
| Horizontal Dispersion | 120° |
| Vertical Dispersion | 100° |
| Woofer Type | Cone |
| Woofer Diameter | 130 mm (5 1/8 in) |
| Tweeter Type | Metal dome |
| Tweeter Diameter | 19 mm (3/4 in) |
| Bass Amplifier | 50 W Class D |
| Treble Amplifier | 50 W Class D |
| Total Amplification | 100 W Class D |
| Mains / Power | PoE+ / PoE |
| Power Consumption – ISS Active | ≤4 W |
| Power Consumption – Idle | ≤5 W |
| Analog Input | 1 × Euroblock balanced input, 10 kOhm |
| Network Input | Ethernet (Power over Ethernet and Audio over IP) |
