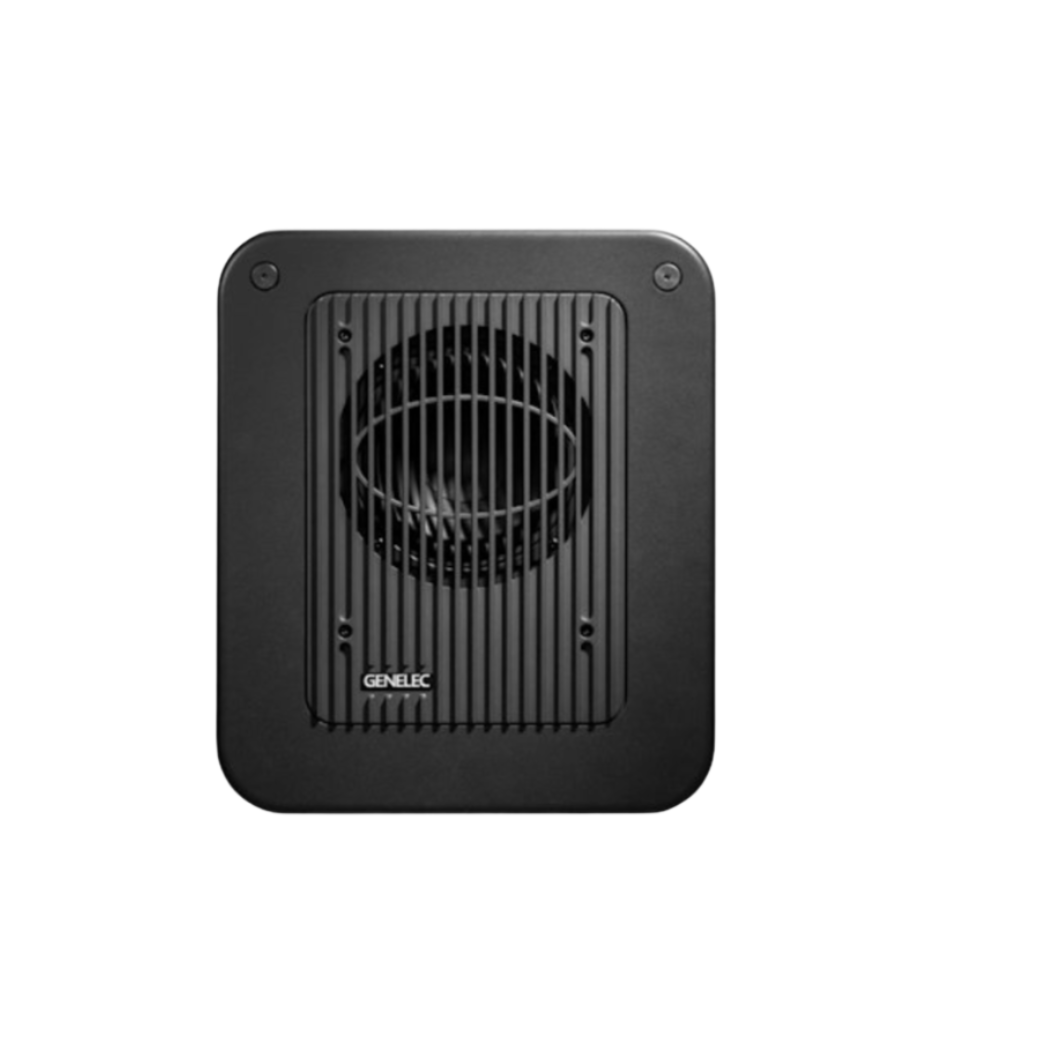

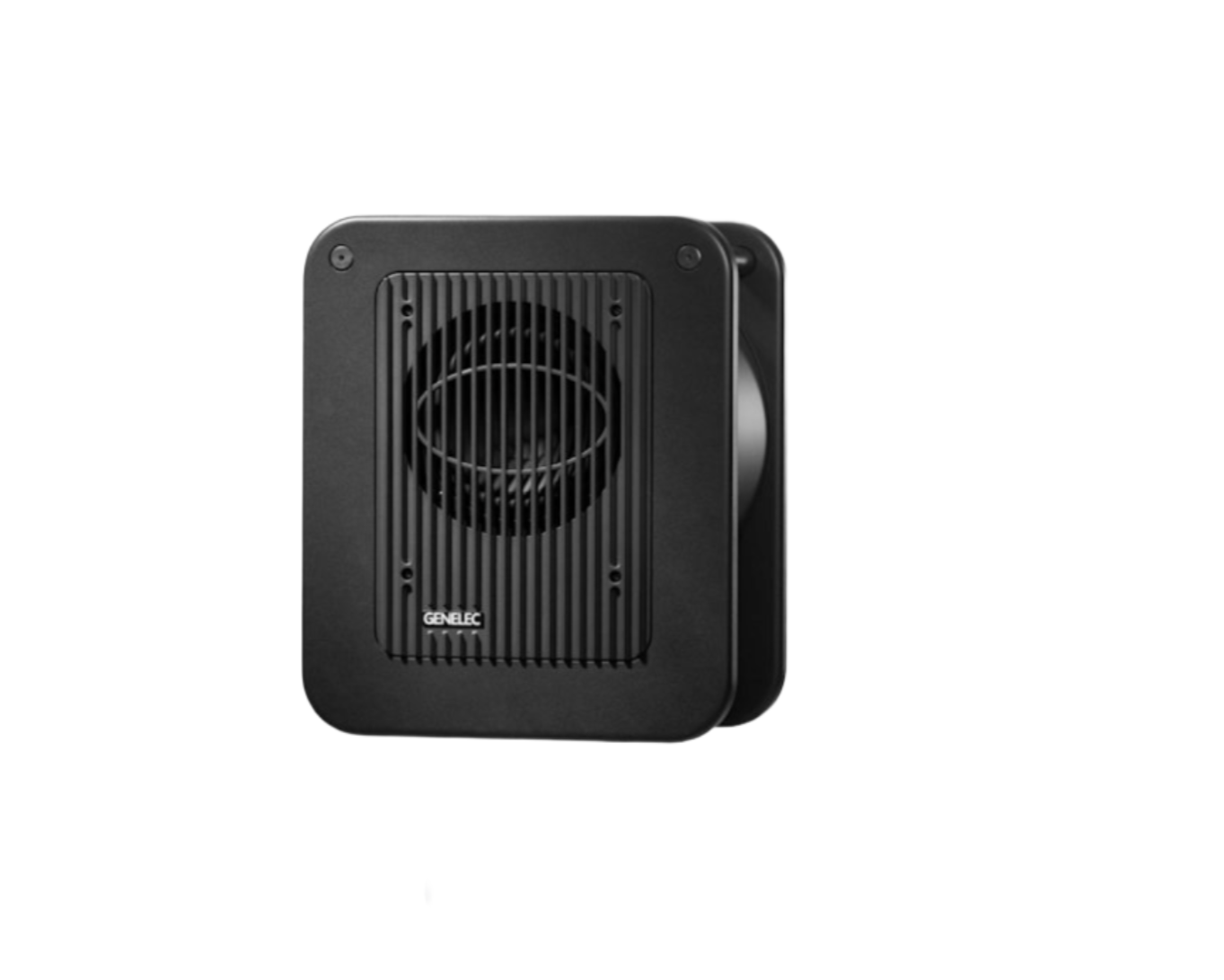

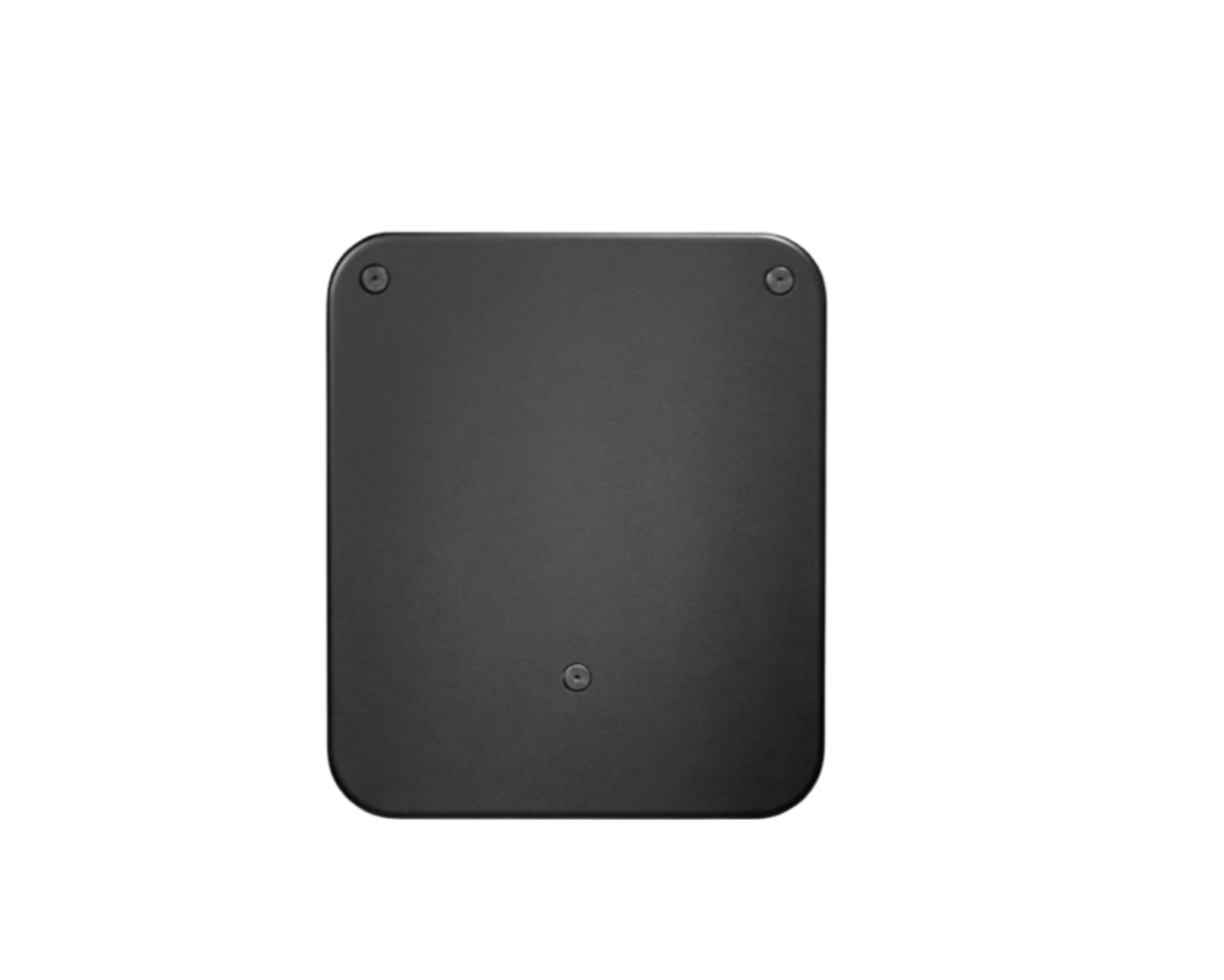

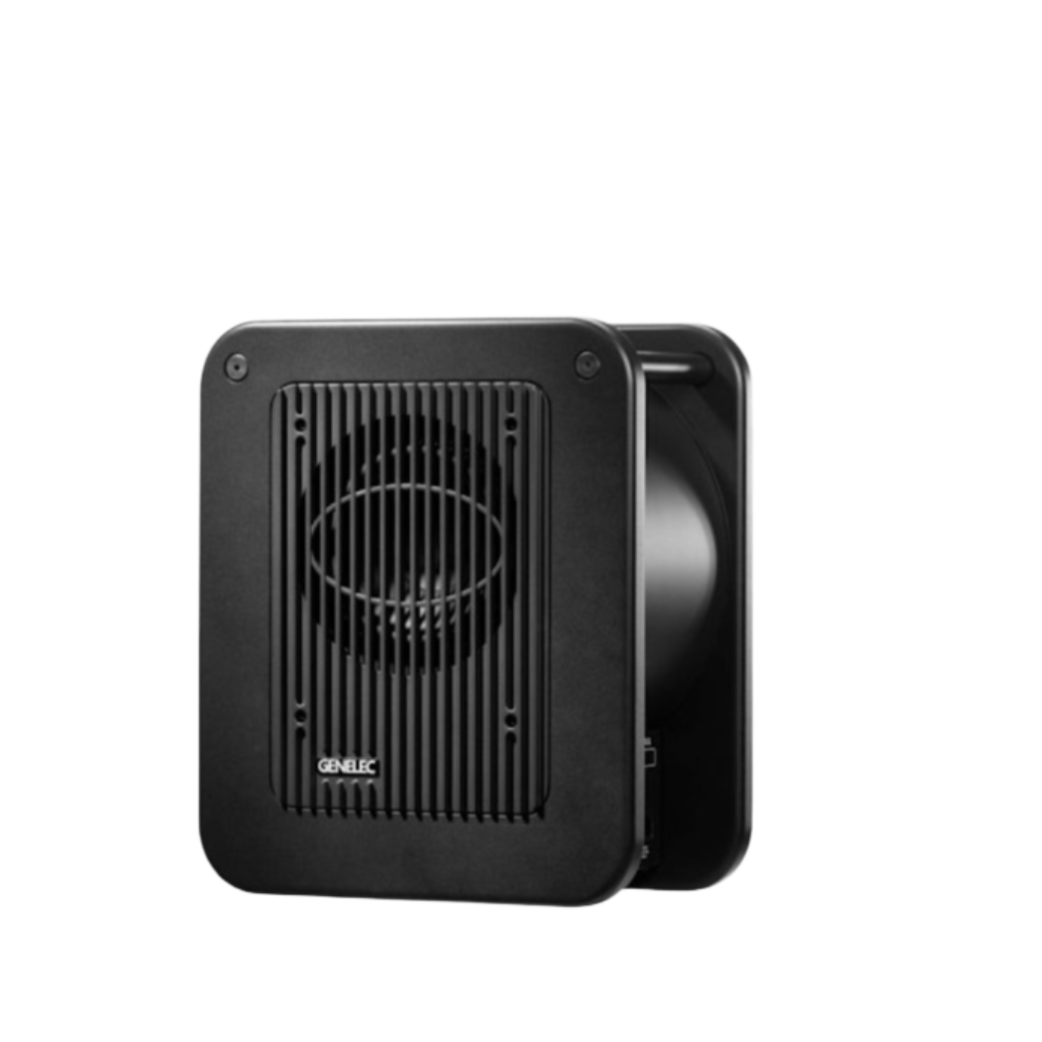

Our most compact professional subwoofer, the 7040A brings controlled low-end accuracy to the tightest of production spaces.
Not Just More Bass
A great subwoofer is about so much more than just delivering ‘more bass’. The laminar spiral design of the 7040A ensures that it can deliver high SPL performance that is precise, articulate and free from distortion, right down to 30 Hz. So when partnered with our 8010 or 8020 near-field monitors, the 7040A creates a full-range system that is completely seamless. It just sounds ‘right’.
Superior Management Skills
Onboard bass management technology enables the 7040A to filter LF information from the main channels and take responsibility for handling it – thus increasing the headroom and reducing the distortion of the main monitors, which can then focus their energies on the rest of the frequency spectrum. Additionally, room compensation controls allow you to optimise the 7040A for your room environment in exactly the same way as our monitors, so you can still be confident of producing mixes that translate perfectly.
Technical Specifications
Feature
Specification
Frequency Response
33 Hz – 85 Hz (±3 dB)
Low Cutoff (-6 dB)
30 Hz
High Cutoff (-6 dB)
90 Hz
Sound Pressure Level (SPL)
SPL Type
Specification
Short-term Max SPL
≥100 dB
(40–85 Hz sine wave, 1m, half-space)
Self-generated Noise
≤5 dB SPL (A-weighted @ 1m)
Weight & Dimensions
Feature
Specification
Weight
11.3 kg (24.9 lb)
Height
410 mm (16 1/8 in)
Width
350 mm (13 3/4 in)
Depth
205 mm (8 1/8 in)
Enclosure
Feature
Specification
Material
MDF
Type
Reflex port
Drivers
Feature
Specification
Driver Type
Cone
Diameter
165 mm (6 1/2 in)
Harmonic Distortion
≤2.5% (40–85 Hz @ 90 dB SPL)
Amplifier Section
Feature
Specification
Amplifier Model
7040A Bass Amplifier
Power Output
50 W (Class D)
Efficiency
High-efficiency, low-distortion with integrated driver protection
