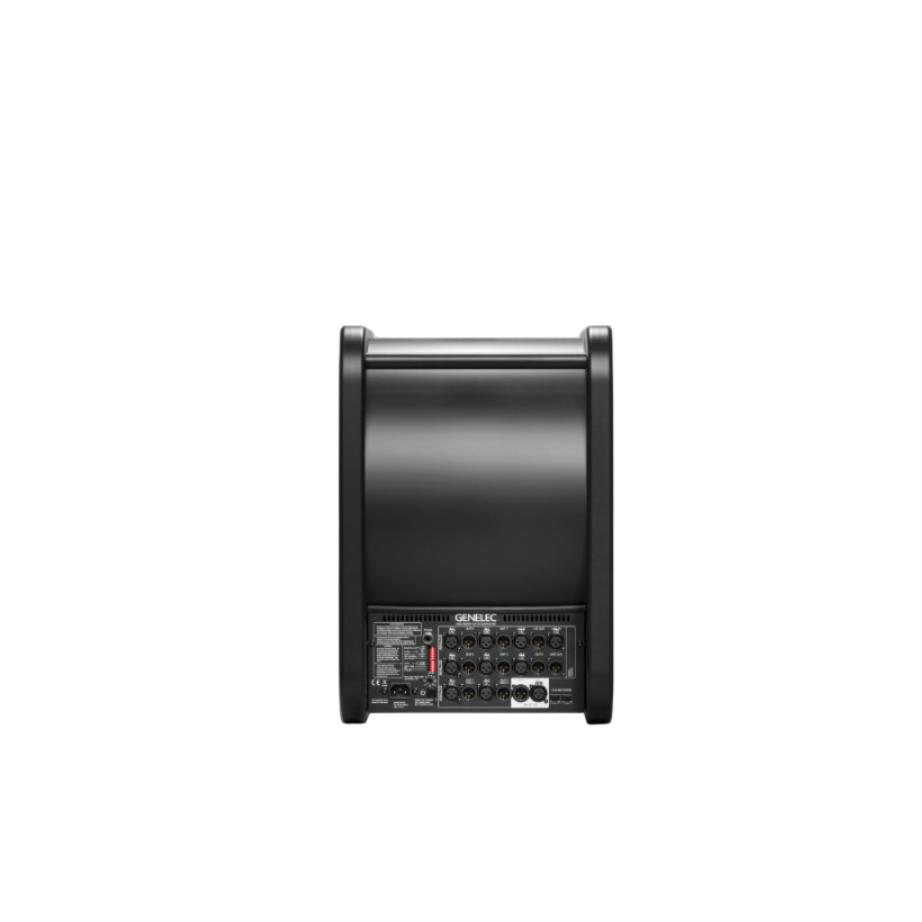

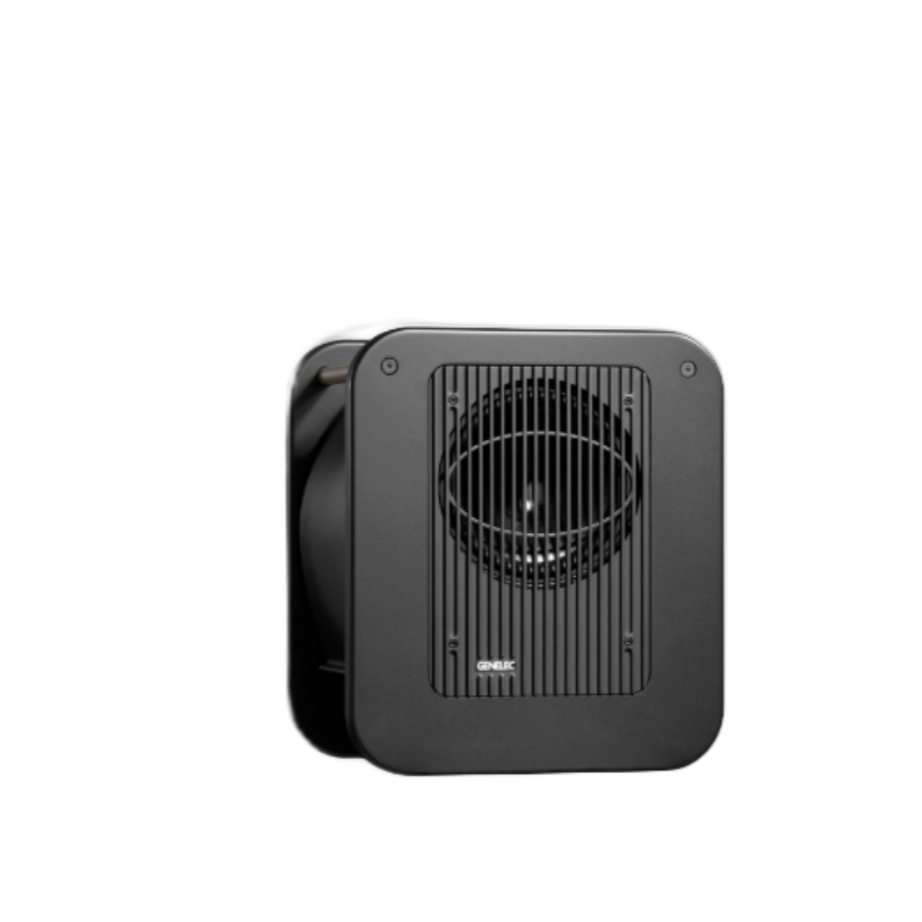

Genelec 7360A SAM™ Studio Subwoofer
- Regular price
- Rs. 377,000.00
- Sale price
- Rs. 377,000.00
- Regular price
-
Couldn't load pickup availability
Description
Equipped for both stereo and multi-channel audio, the 7360A intelligently adapts to your space to deliver absolute accuracy at low frequencies.
Definition and neutrality
Built upon our Laminar Spiral Enclosure technology, the compact 7360A delivers a staggering SPL of 109 dB with incredibly low distortion – producing LF performance that is clean, precise and articulate right down to 19 Hz. The ideal low frequency monitoring tool for small to mid-sized studios, post and broadcast facilities and OB vehicles, the 7360A subwoofer ensures definition and neutrality you can trust.
Optimised listening
The 7360A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.
Technical Specifications
| Category | Specification |
|---|---|
| Frequency Response | |
| Flat Range (±3 dB) | 19 Hz – 100 Hz |
| Low Cutoff (-6 dB) | 19 Hz |
| High Cutoff (-6 dB) | 150 Hz |
| SPL (Sound Pressure Level) | |
| Peak SPL | ≥114 dB (Random pink noise, half space, 1 m) |
| Short-Term Max SPL | ≥109 dB (30–85 Hz, sine wave, half space, 1 m) |
| Self-Generated Noise | ≤5 dB SPL (A-weighted, 1 m on axis) |
| Weight | 27 kg (59.5 lb) |
| Dimensions | |
| Height | 527 mm (20 3/4 in) |
| Width | 462 mm (18 1/4 in) |
| Depth | 363 mm (14 1/4 in) |
| Enclosure | Reflex port |
| Driver | |
| Bass Driver | 250 mm (9 7/8 in) cone, magnetically shielded |
| Harmonic Distortion | 30–85 Hz: 2nd Harmonic ≤3% |
| Amplifier Section | |
| Bass Amplifier | 300 W (Class D) |
| Power Consumption | |
| ISS Active | ≤1 W |
| Idle | ≤15 W |
| Full Output | 300 W |
| Signal Processing & Connectivity | |
| Analog Inputs | 7 x XLR female (7.1 input, balanced, 10 kΩ) |
| Analog Outputs | 7 x XLR male (7.1 output) |
| Digital Input | 1 x XLR female (110 Ω) |
| Digital Output | 1 x XLR male (110 Ω) |
| LFE Input | XLR female (analog) |
| LFE Output | XLR male (analog) |
| GLM Control Ports | 2 x RJ45 (CAT5) GLM network |
| Link Connectors | Link In & Link Out |
