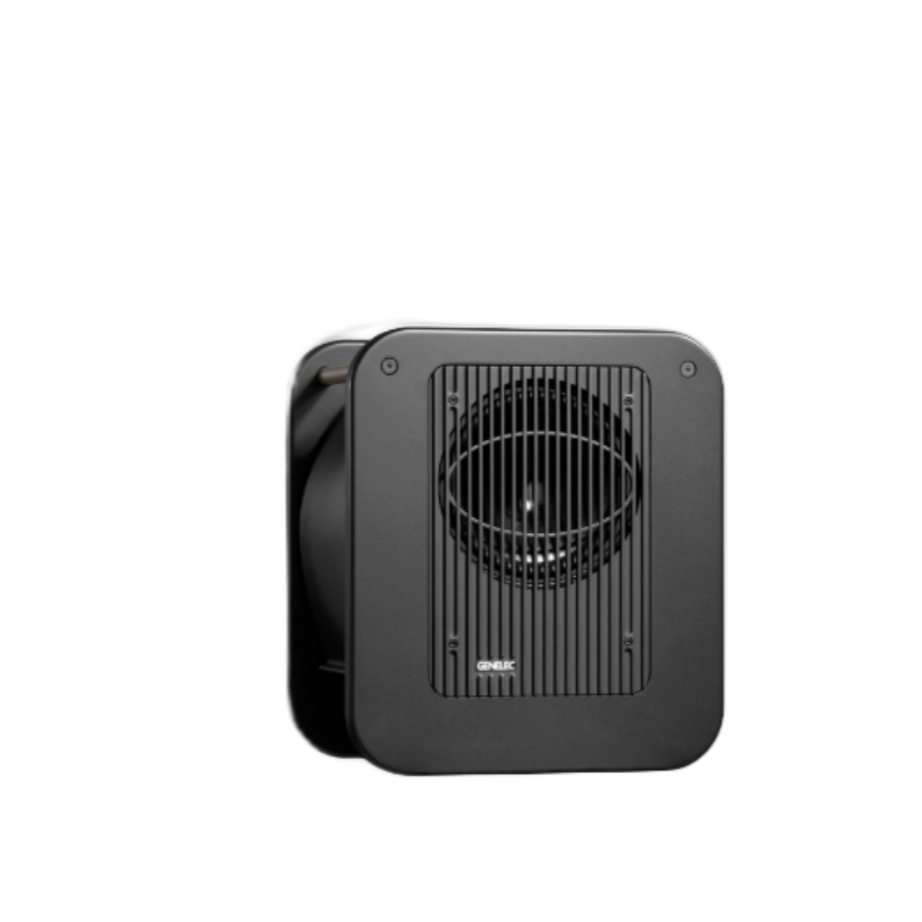

Equipped for both stereo and multi-channel audio, the 7360A intelligently adapts to your space to deliver absolute accuracy at low frequencies.
Definition and neutrality
Built upon our Laminar Spiral Enclosure technology, the compact 7360A delivers a staggering SPL of 109 dB with incredibly low distortion producing LF performance that is clean, precise and articulate right down to 19 Hz. The ideal low frequency monitoring tool for small to mid-sized studios, post and broadcast facilities and OB vehicles, the 7360A subwoofer ensures definition and neutrality you can trust.
Optimized listening
The 7360A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyze your room acoustics and intelligently adjust frequency, level, delay and crossover phase so monitors and subwoofer integrate perfectly. This process produces a totally optimized listening experience, delivering mixes that translate beautifully.
Technical Specifications
Frequency Response
Spec
Value
Flat Range (±3 dB)
19 Hz – 100 Hz
Low Cutoff (-6 dB)
19 Hz
High Cutoff (-6 dB)
150 Hz
Sound Pressure Level (SPL)
Spec
Value
Peak SPL
≥114 dB (Random pink noise, half space, 1 m)
Short-Term Max SPL
≥109 dB (30–85 Hz, sine wave, half space, 1 m)
Self-Generated Noise
≤5 dB SPL (A-weighted, 1 m on axis)
Dimensions & Weight
Spec
Value
Height
527 mm (20 3/4 in)
Width
462 mm (18 1/4 in)
Depth
363 mm (14 1/4 in)
Weight
27 kg (59.5 lb)
Enclosure
Reflex port
Driver
Spec
Value
Bass Driver
250 mm (9 7/8 in) cone, magnetically shielded
Harmonic Distortion
≤3% (30–85 Hz, 2nd harmonic)
Amplifier Section
Spe
Value
Bass Amplifier Output
300 W (Class D)
Power Consumption
Condition
Power Draw
ISS Active
≤1 W
Idle
≤15 W
Full Output
300 W

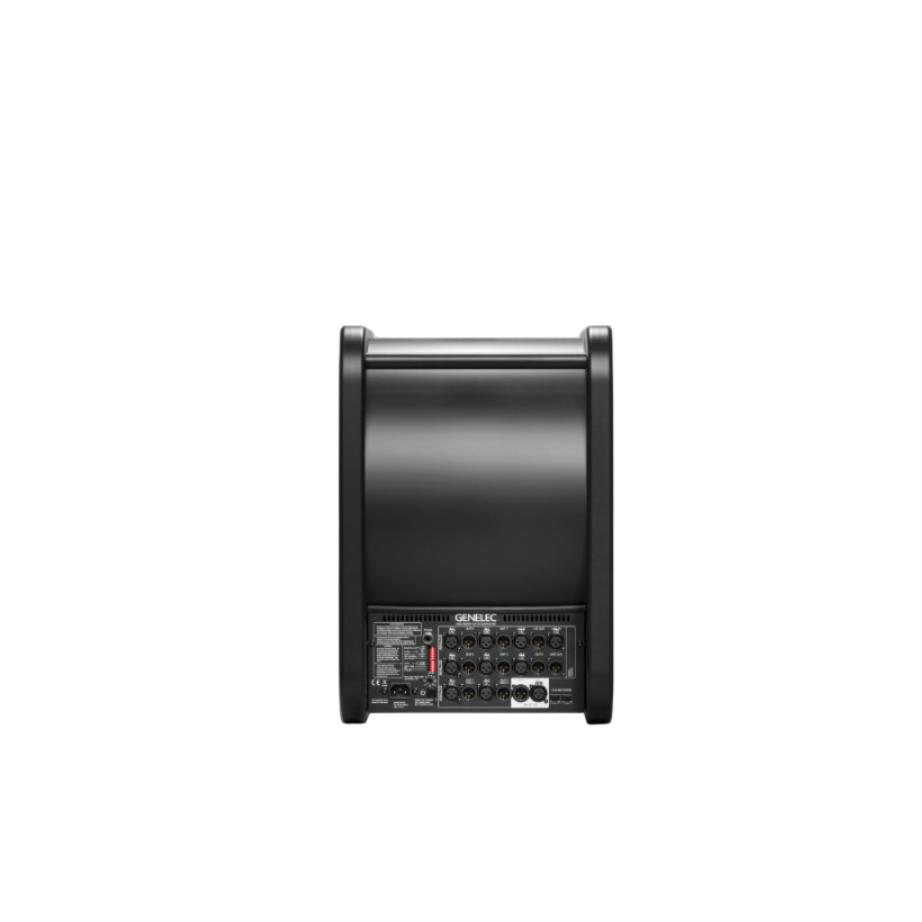

Signal Processing & Connectivity
Connection Type
Details
Analog Inputs
7 x XLR female (7.1 input, balanced, 10 kΩ)
Analog Outputs
7 x XLR male (7.1 output)
Digital Input
1 x XLR female (110 Ω)
Digital Output
1 x XLR male (110 Ω)
LFE Input (Analog)
1 x XLR female
LFE Output (Analog)
1 x XLR male
GLM Control Ports
2 x RJ45 (CAT5) – GLM network
Link Connectors
Link In & Link Out
