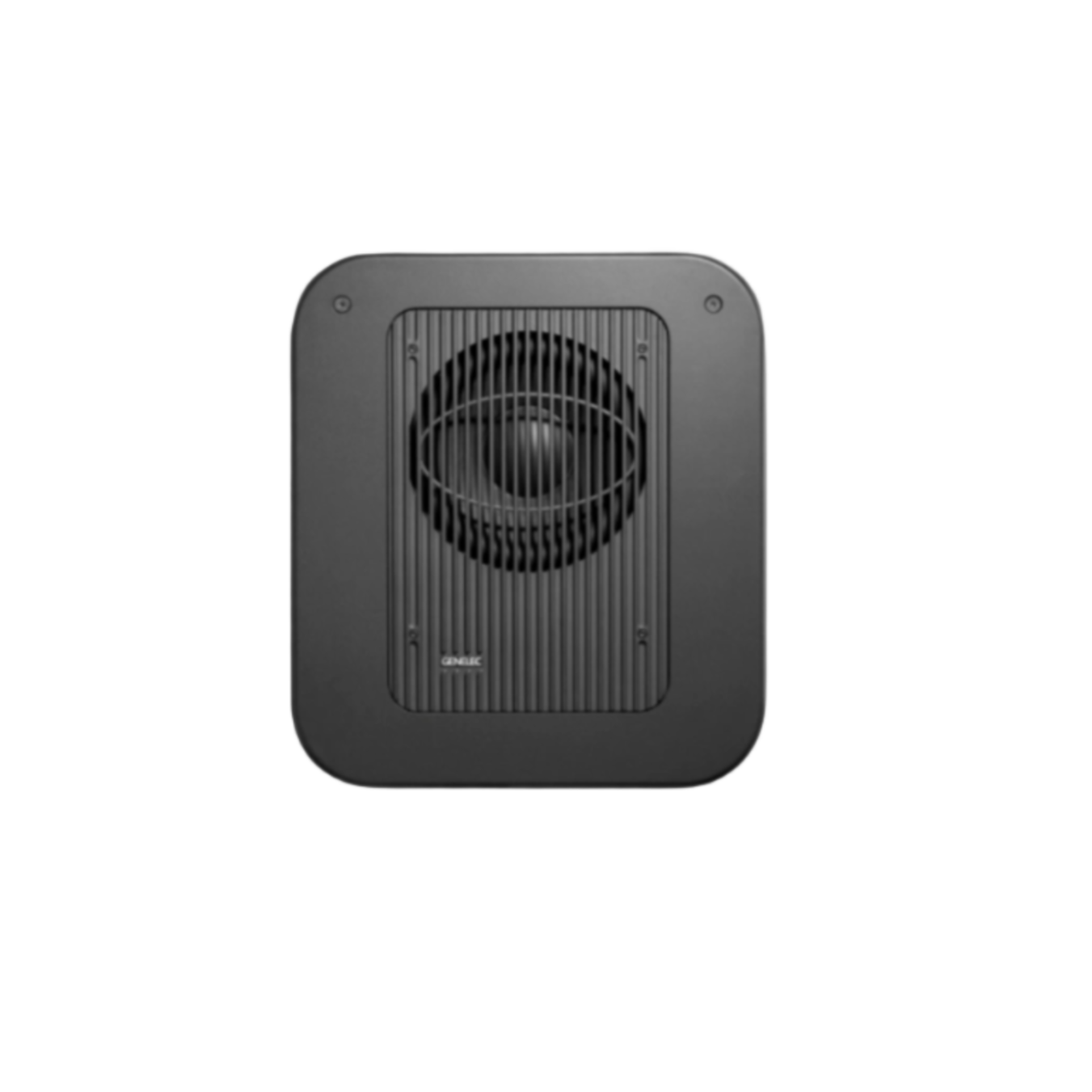

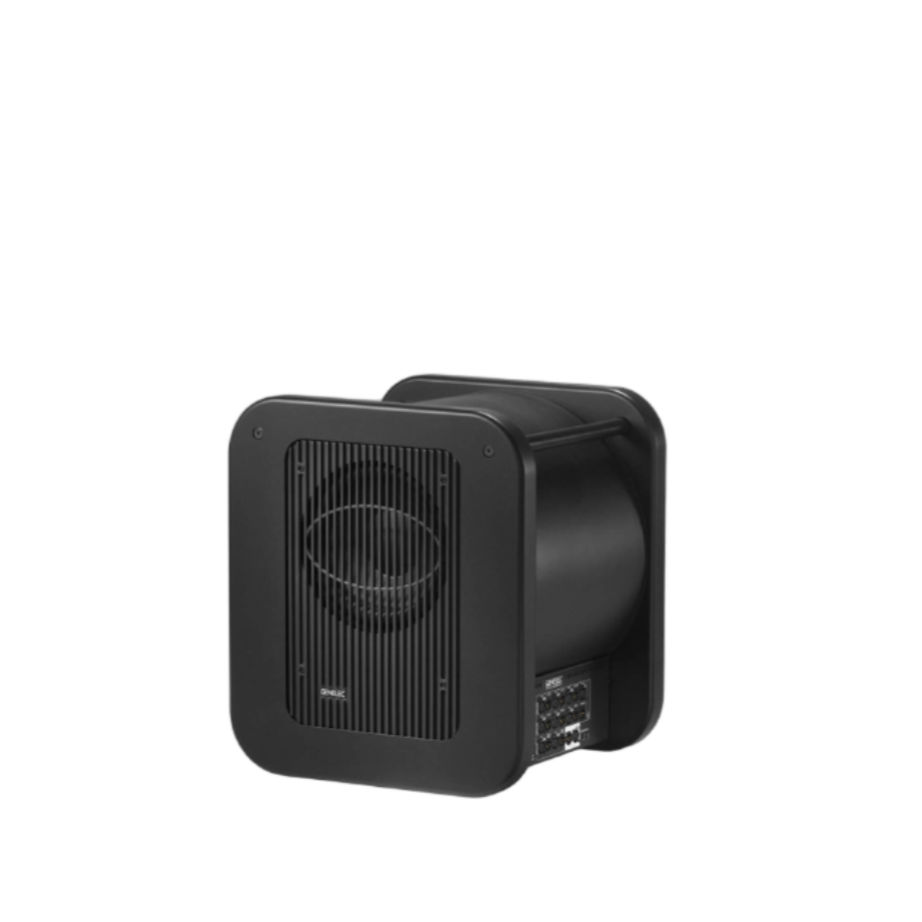

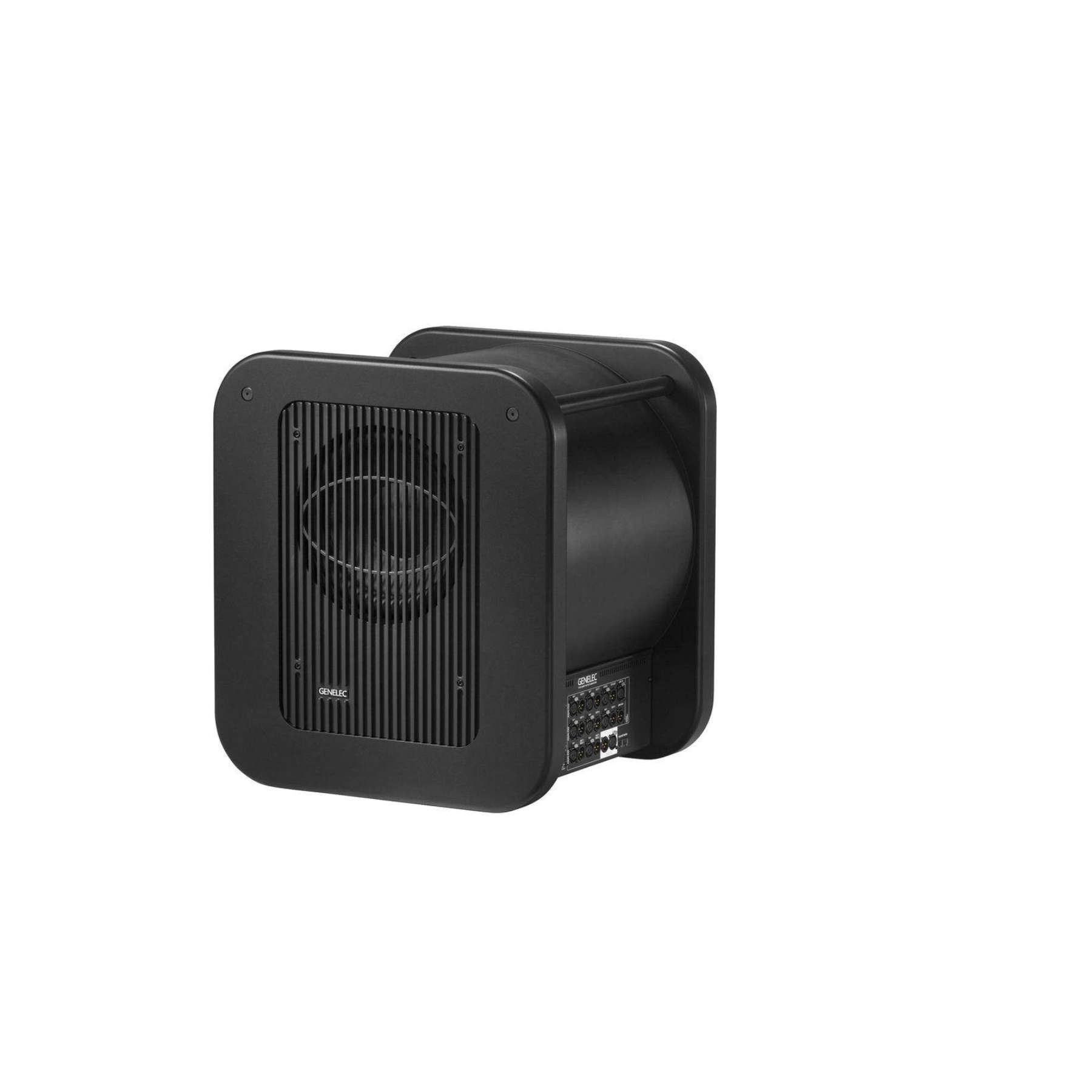

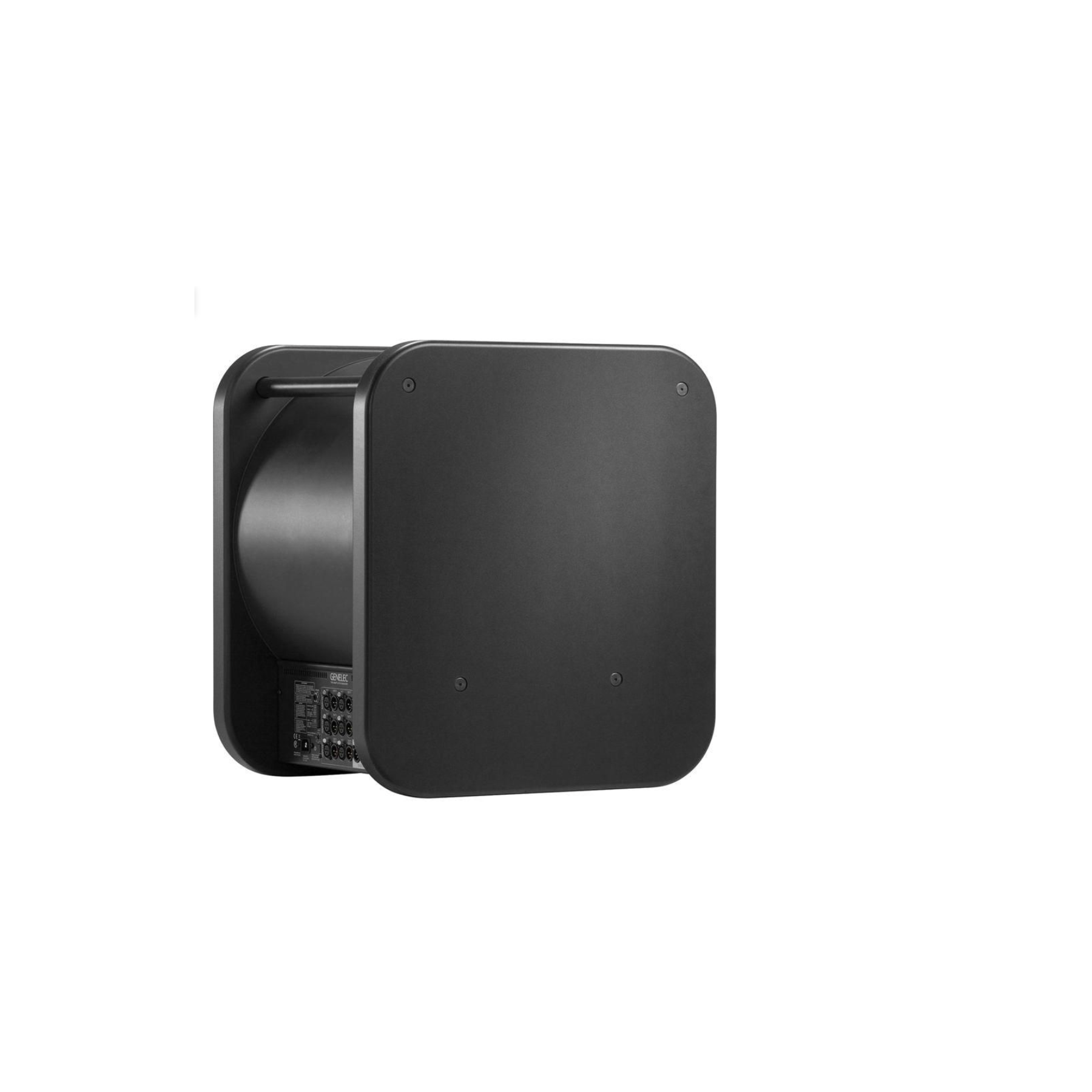

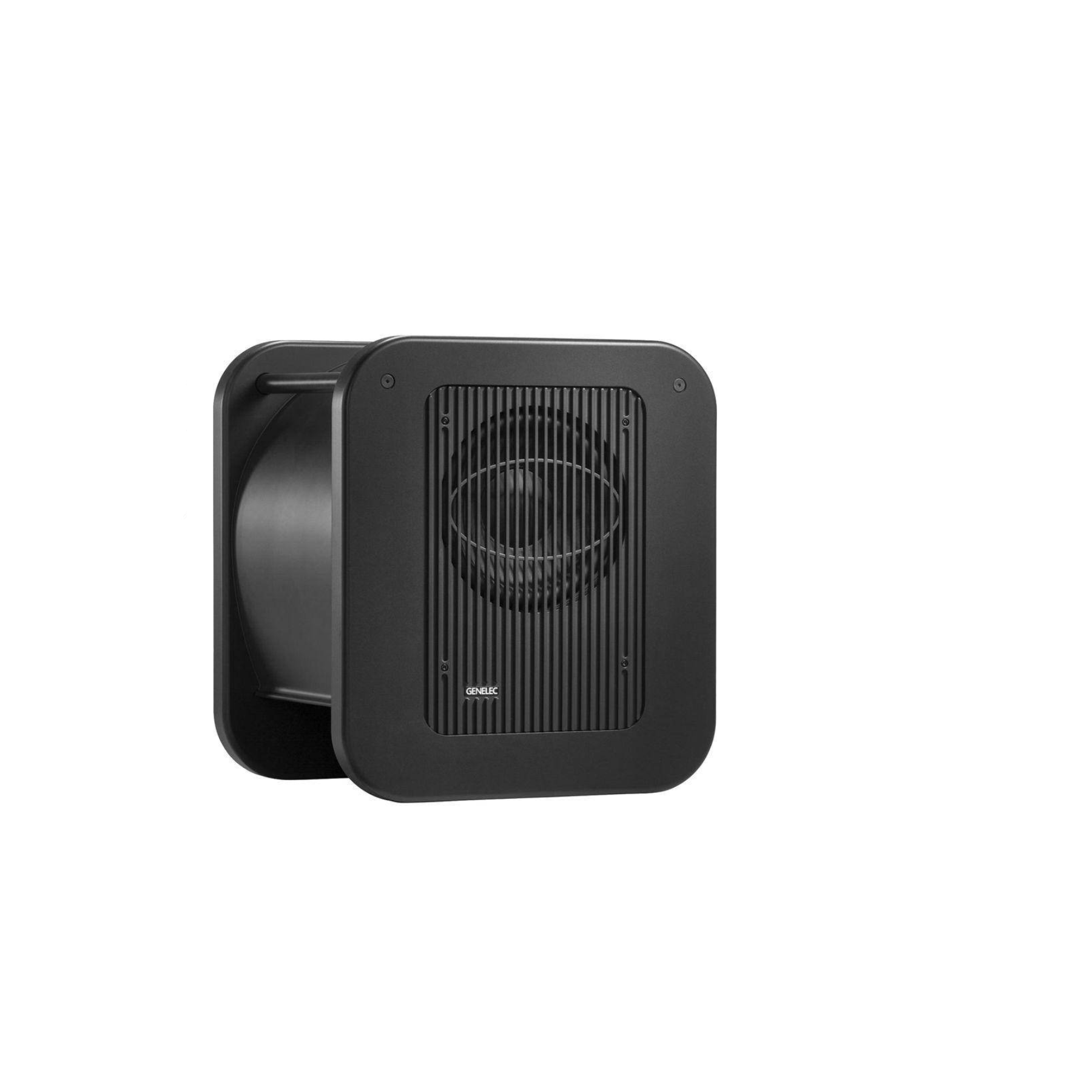

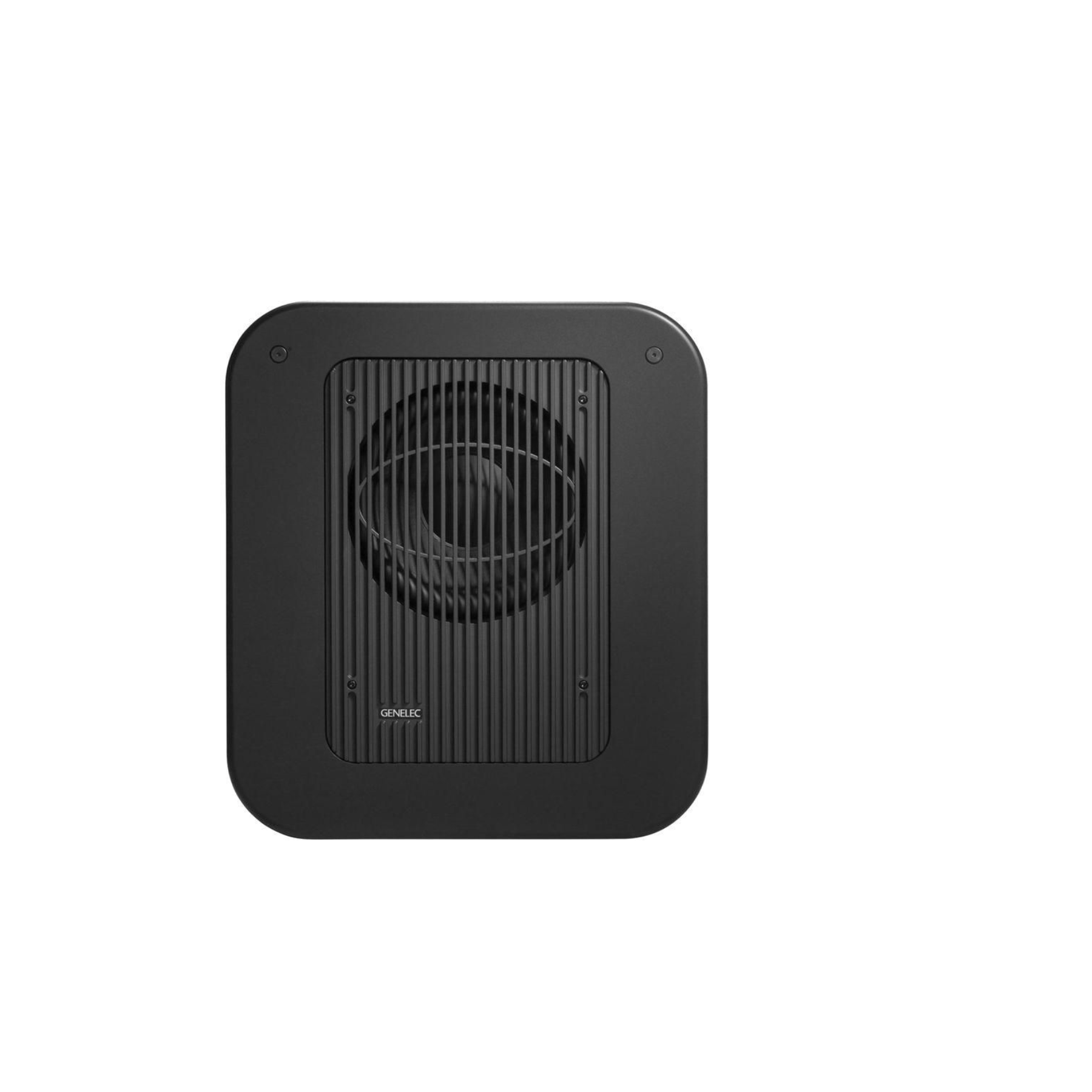

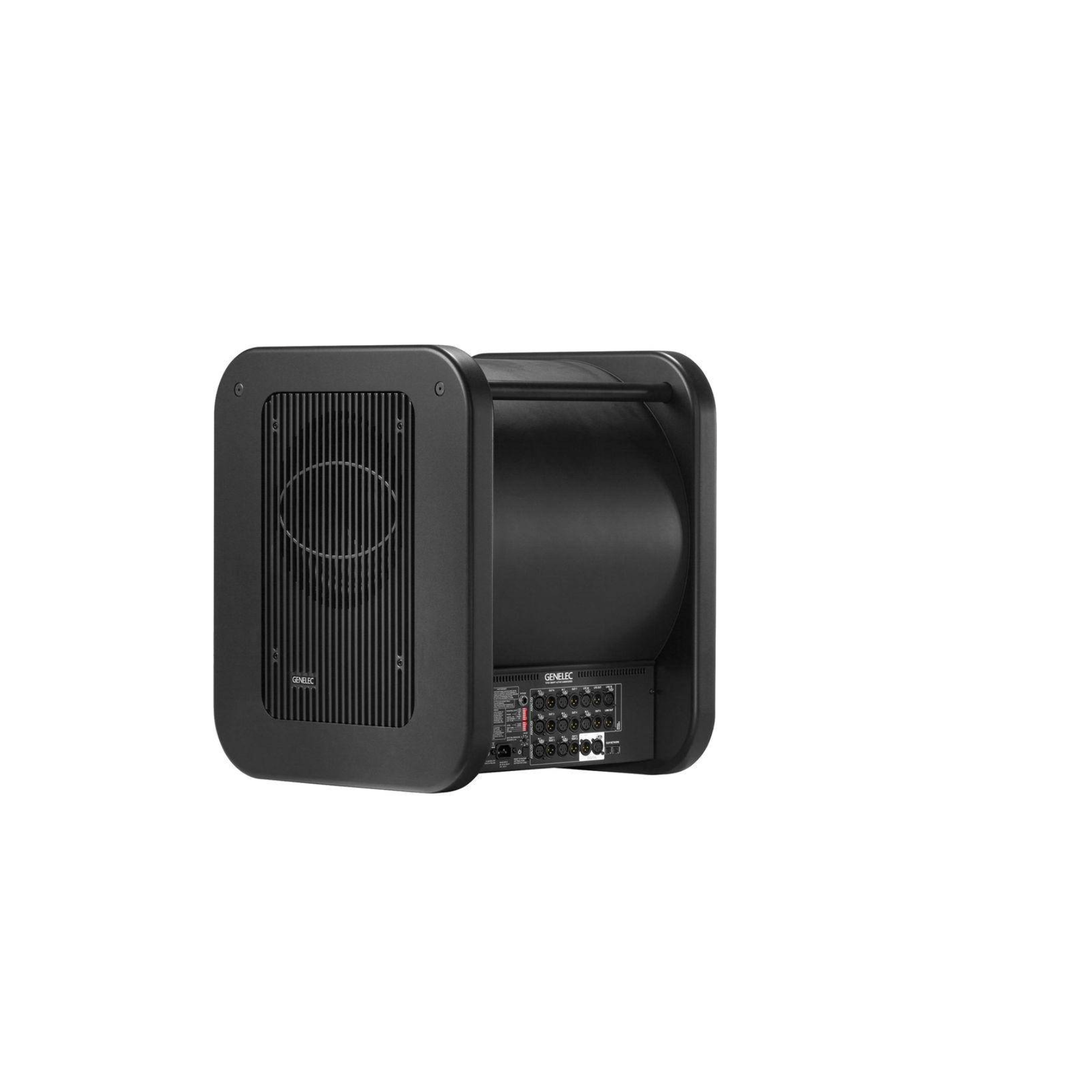

Genelec 7370A SAM™ Studio Subwoofer
- Regular price
- Rs. 599,000.00
- Sale price
- Rs. 599,000.00
- Regular price
-
Couldn't load pickup availability
Description
Clean and precise
Offering more SPL and low frequency extension than our smaller smart subwoofers, the Laminar Spiral Enclosure design of the 7370A offer clean, precise performance with extremely low distortion even at high playback levels. Created for discerning music, post and broadcast professionals, the 7370A will provide decades of reliable service in even the most demanding environments.
Low Frequency that Translates
The 7370A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.
Technical Specifications
| Category | Specifications |
|---|---|
| Frequency Response – Flat Range (±3 dB) | 19 Hz – 100 Hz |
| Frequency Response – Low Cutoff (-6 dB) | 19 Hz |
| Frequency Response – High Cutoff (-6 dB) | 150 Hz |
| SPL – Peak SPL | ≥118 dB (Random pink noise, half space, 1 m) |
| SPL – Short-Term Max SPL | ≥113 dB (30–85 Hz, sine wave, half space, 1 m) |
| SPL – Self-Generated Noise | ≤5 dB SPL (A-weighted, 1 m on axis) |
| Weight | 48 kg (105.8 lb) |
| Dimensions – Height | 625 mm (24 5/8 in) |
| Dimensions – Width | 555 mm (21 7/8 in) |
| Dimensions – Depth | 496 mm (19 1/2 in) |
| Enclosure | Reflex port |
| Driver – Bass Driver | 305 mm (12 in) cone (not magnetically shielded) |
| Driver – Harmonic Distortion | 30–85 Hz: 2nd Harmonic ≤3% |
| Amplifier Section – Bass Amplifier | 400 W (Class D) |
| Power Consumption – ISS Active | ≤1 W |
| Power Consumption – Idle | ≤20 W |
| Power Consumption – Full Output | 400 W |

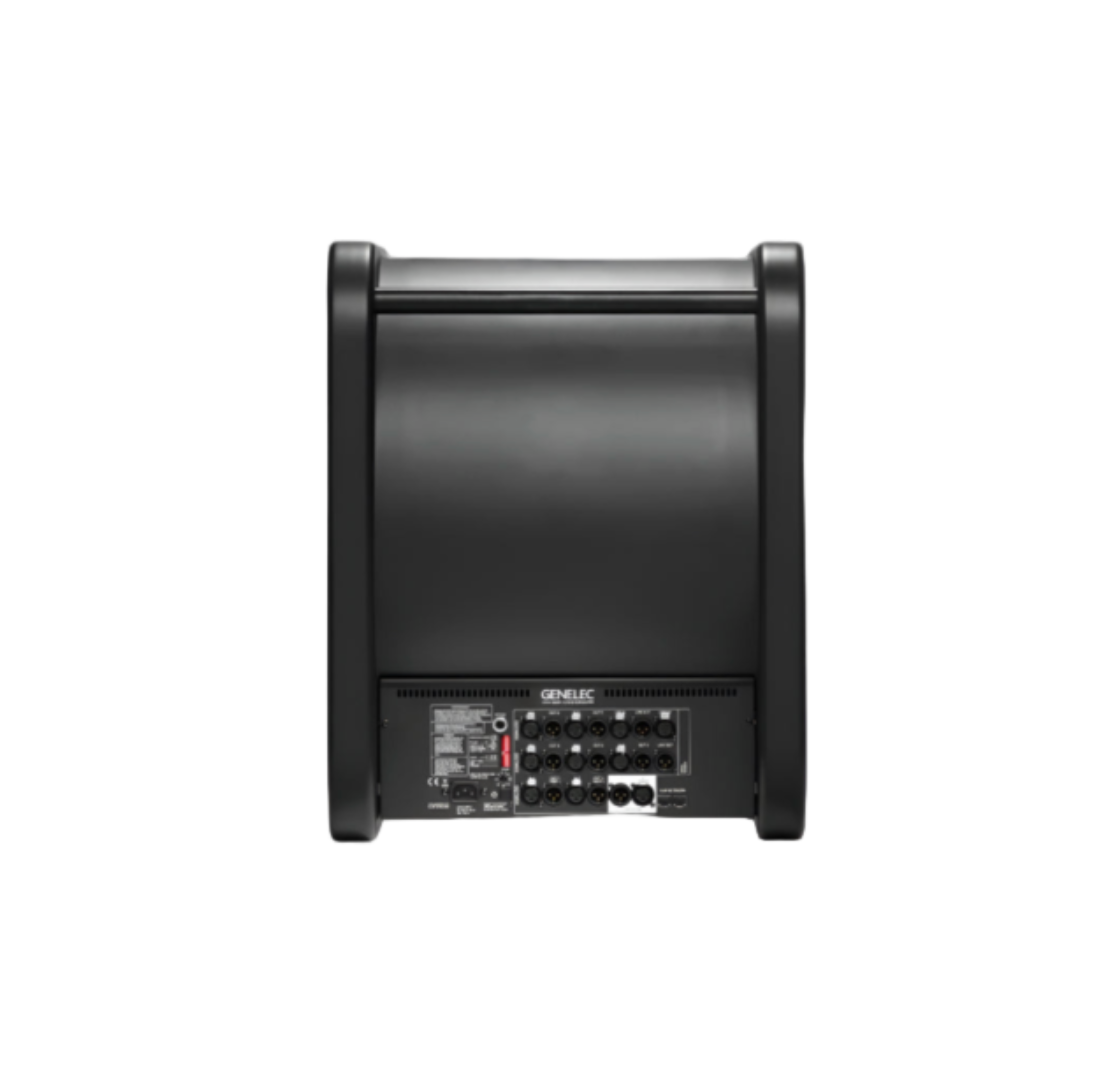

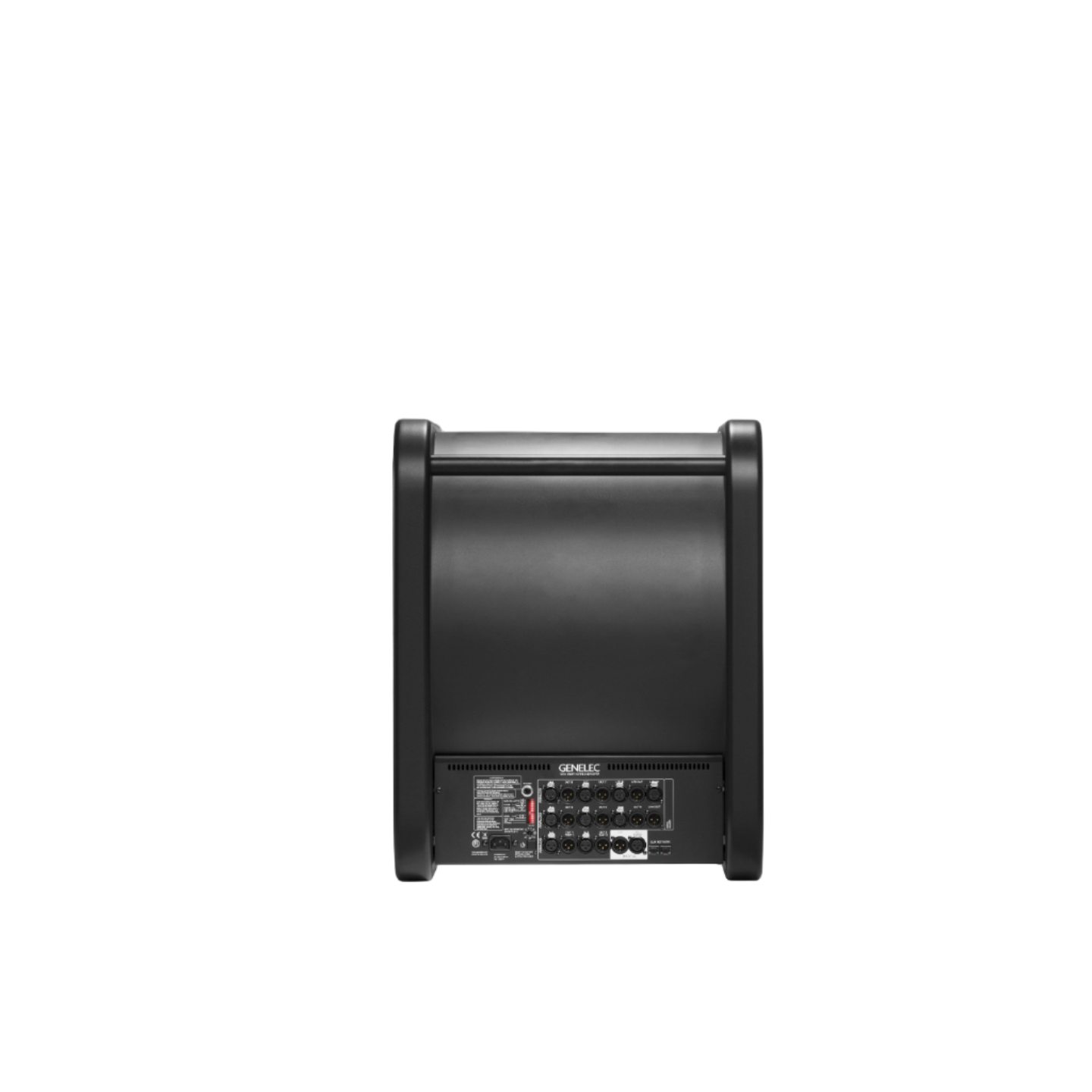

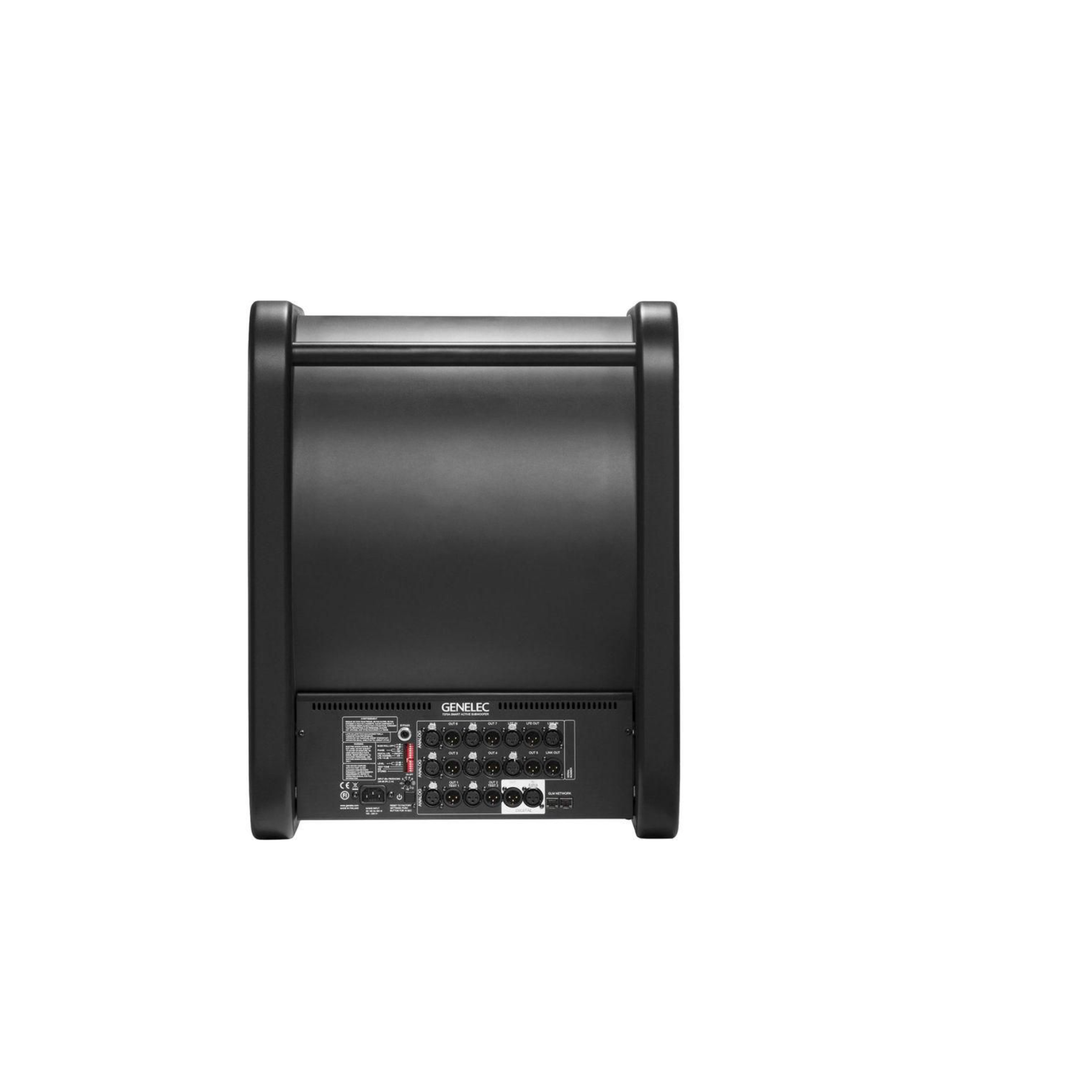

| Signal Processing – Analog Inputs | 7 × XLR female (7.1 input, balanced, 10 kΩ) |
| Signal Processing – Analog Outputs | 7 × XLR male (7.1 output) |
| Signal Processing – Digital Input | 1 × XLR female (110 Ω) |
| Signal Processing – Digital Output | 1 × XLR male (110 Ω) |
| Signal Processing – LFE Input | XLR female (analog) |
| Signal Processing – LFE Output | XLR male (analog) |
| Signal Processing – GLM Control Ports | 2 × RJ45 (CAT5) GLM network |
| Signal Processing – Link Connectors | Link In & Link Out |
