Genelec

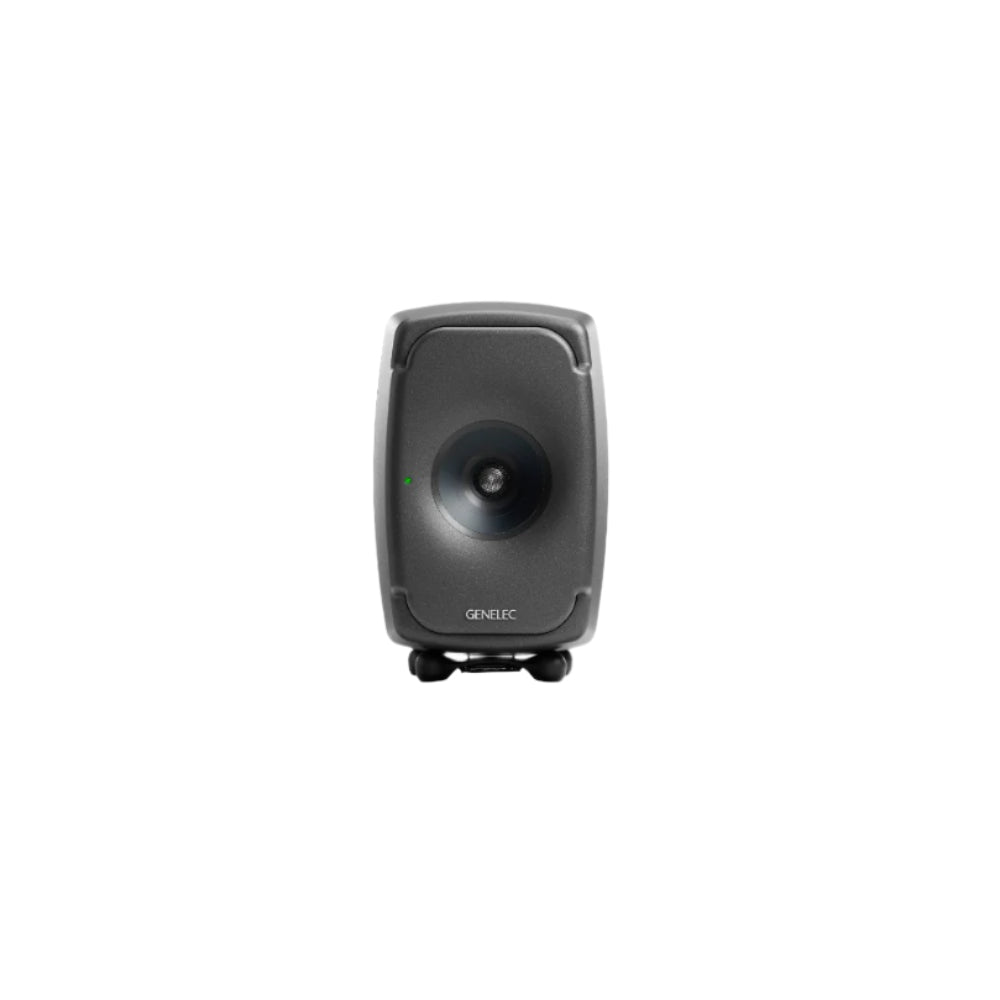

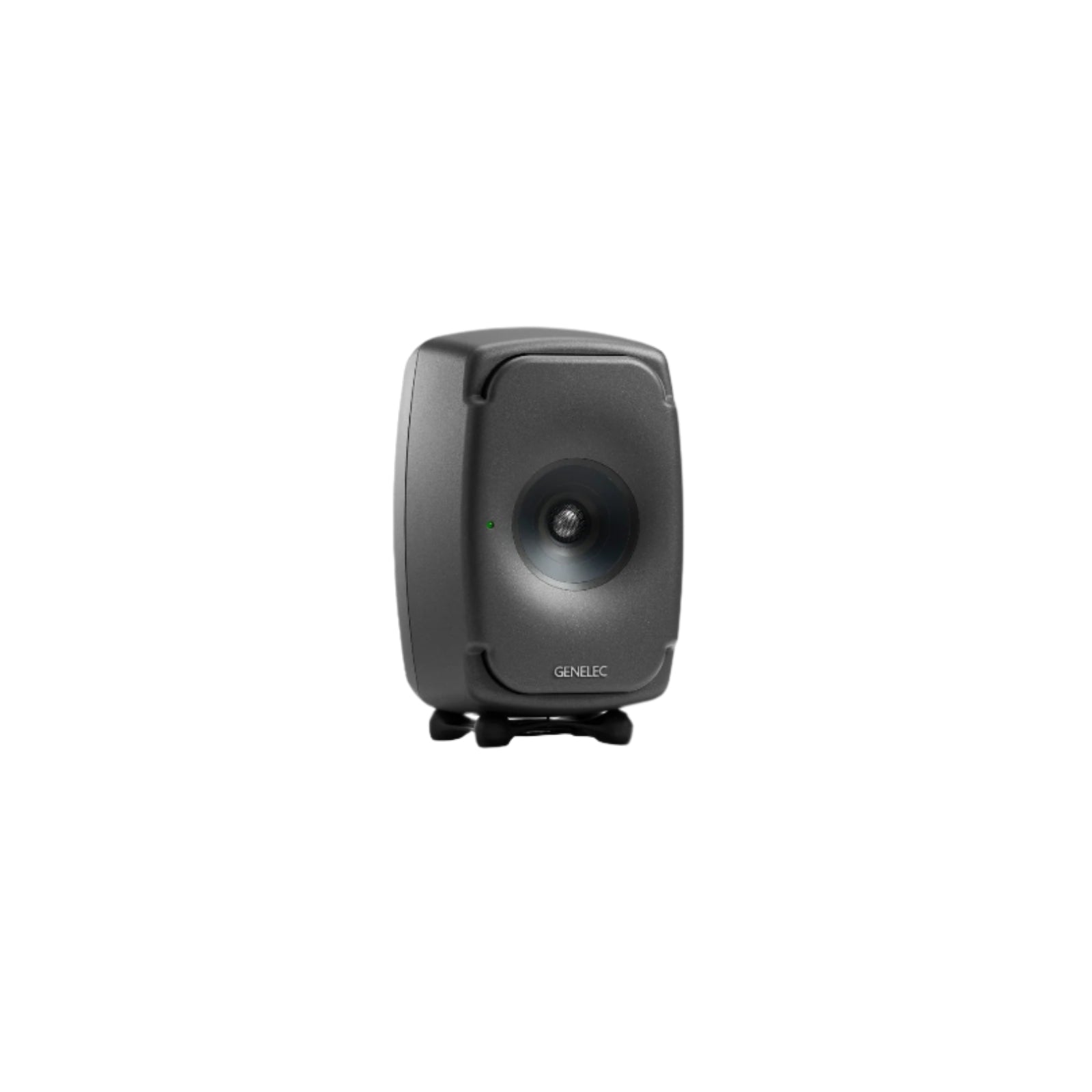

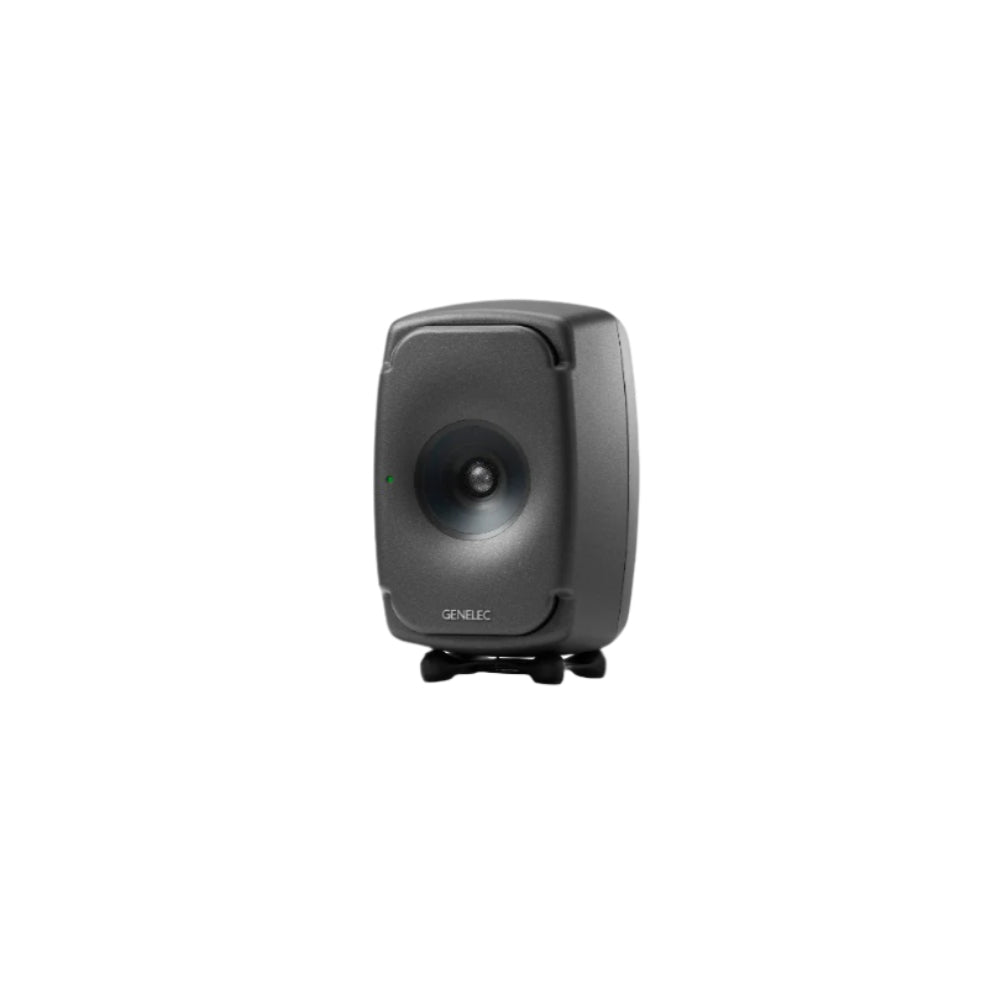

Genelec8331A SAM™ Studio Monitor

Regular price
Rs. 240,000.00
Sale price
Rs. 240,000.00
Regular price
Get free shipping on your order.
  • Genelec8331A SAM™ Studio Monitor
2 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close.

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

The smallest in The Ones series, the 8331A is perfect for small rooms or ultra-nearfield applications, and offers an outstanding solution where none existed before. And in conjunction with our GLM calibration software, the 8331A will compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Technical Specifications

Category Specification
Frequency Response 58 Hz – 20 kHz (±1.5 dB)
Low Cutoff (-6 dB) 45 Hz
High Cutoff (-6 dB) 37 kHz


SPL (Sound Pressure Level)

Parameter Value
Peak SPL ≥110 dB (per pair in a room with music at 1 m)
Short-Term Max SPL ≥104 dB (sine wave, 100 Hz–3 kHz at 1 m in half space)
Long-Term Max SPL ≥99 dB (RMS with IEC weighted noise at 1 m, driver protection limited)
Self-Generated Noise ≤0 dB SPL (A-weighted, 1 m on-axis in free space)


Physical Specifications

Item Specification
Weight 6.7 kg (14.8 lb)
Height 285 mm (11 1/4 in)
Height with Iso-Pod 305 mm (12 in)
Width 189 mm (7 1/2 in)
Depth 212 mm (8 3/8 in)
Enclosure Material Die-cast aluminium
Enclosure Type Reflex port


Drivers

Type Details
Bass 2 × Racetrack (130 mm × 65 mm) – 8331A
Midrange 90 mm (3 1/2 in) Coaxial – 8331A
Treble 19 mm (3/4 in) Coaxial metal dome – 8331A


 Acoustic Characteristics

Parameter Value
Directivity Horizontal
Harmonic Distortion 50–100 Hz: ≤2%>100 Hz: ≤0.5%
Group Delay (GLM OFF) 3.2 ms
Group Delay (GLM ON) 6.9 ms


Amplifier Section

Amplifier Power Output
Bass 72 W Class D
Midrange 36 W Class D
Treble 36 W Class D
Mains Voltage 100–240 VAC, 50/60 Hz


Power Consumption

Mode Power
ISS Active ≤0.5 W
Idle ≤4 W
Full Output 60 W

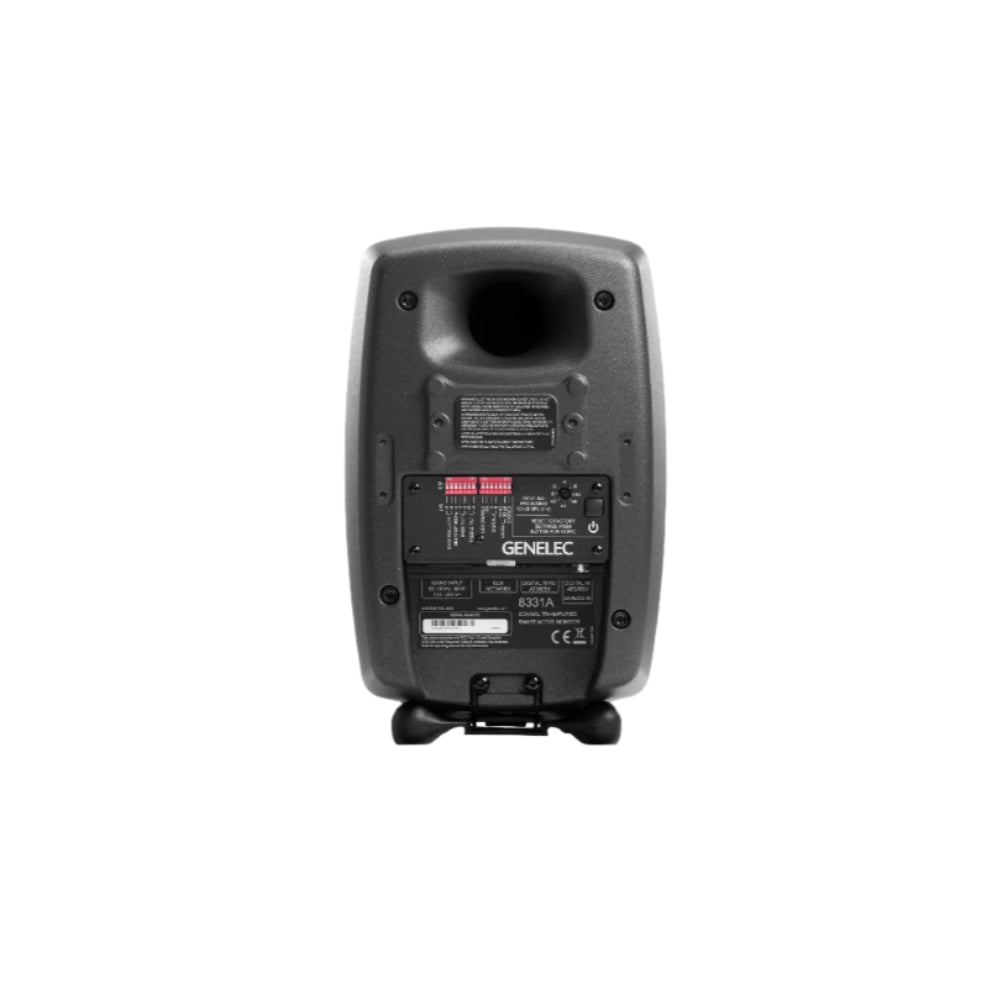

Signal Processing & Connectivity

Connection Details
Analog Input XLR female, balanced 10 kOhm
Digital Input XLR female, 110 Ohm
Digital Output/Thru XLR male, 110 Ohm
Control Ports 2 × CAT5 (RJ45) for GLM Network (GLM software)


Crossover Frequencies

Crossover Point Frequency
Bass to Mid 500 Hz
Mid to Treble 3000 Hz
