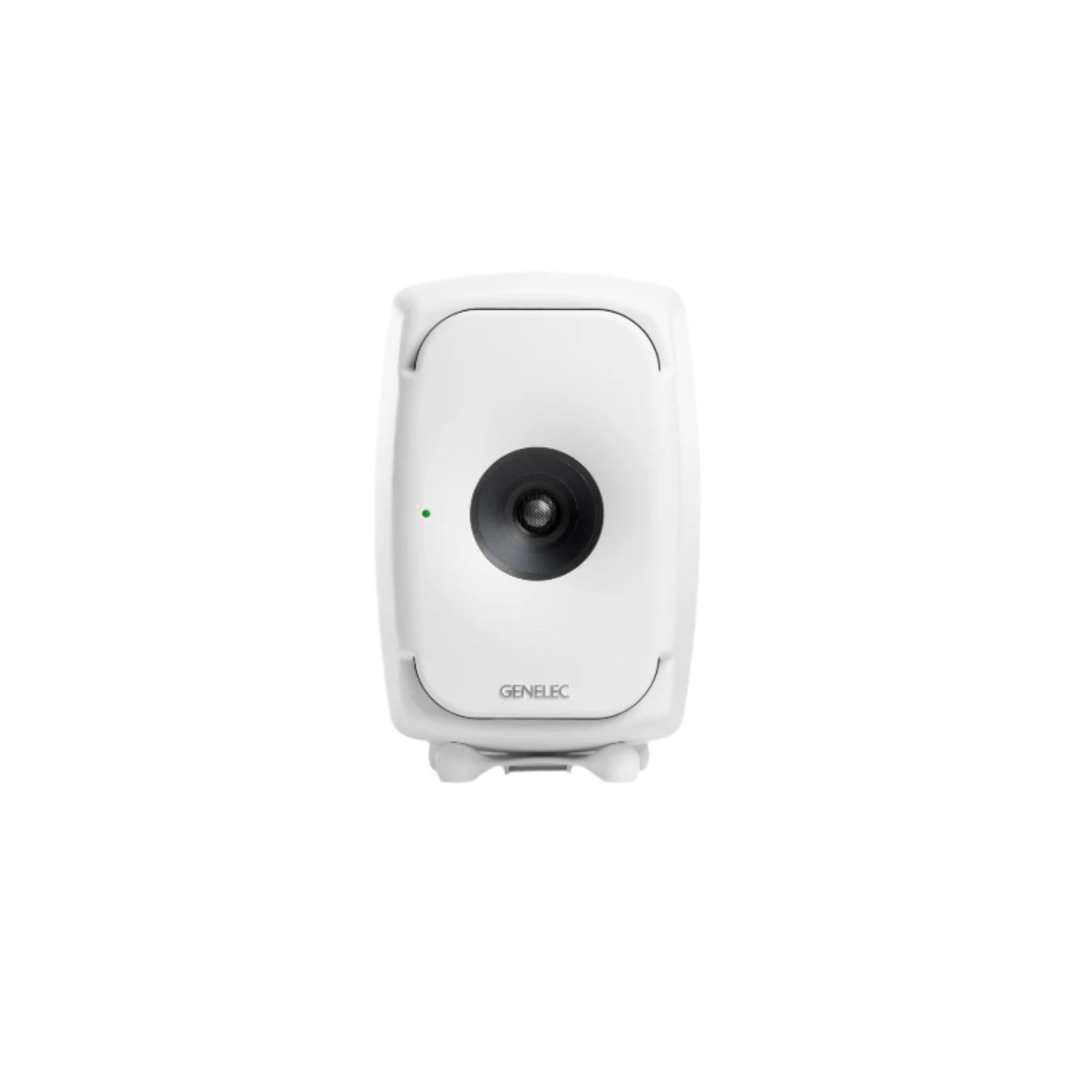

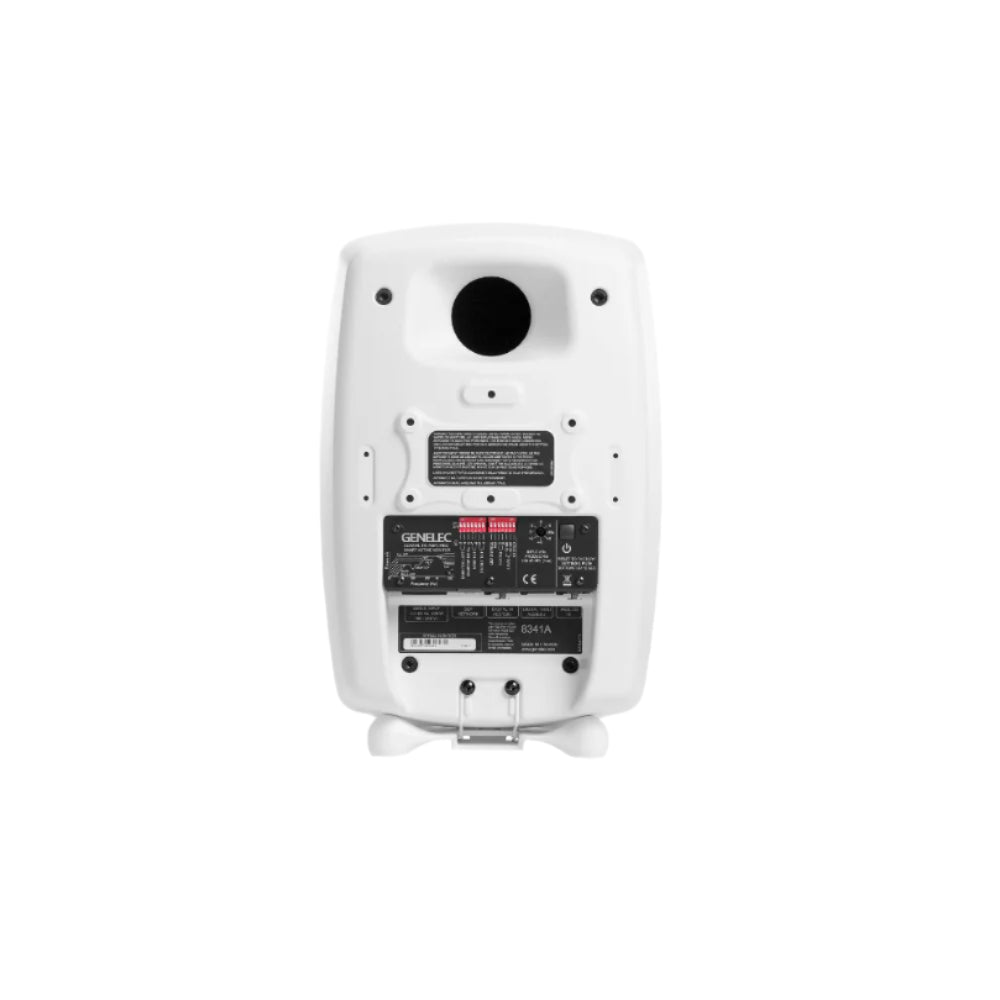

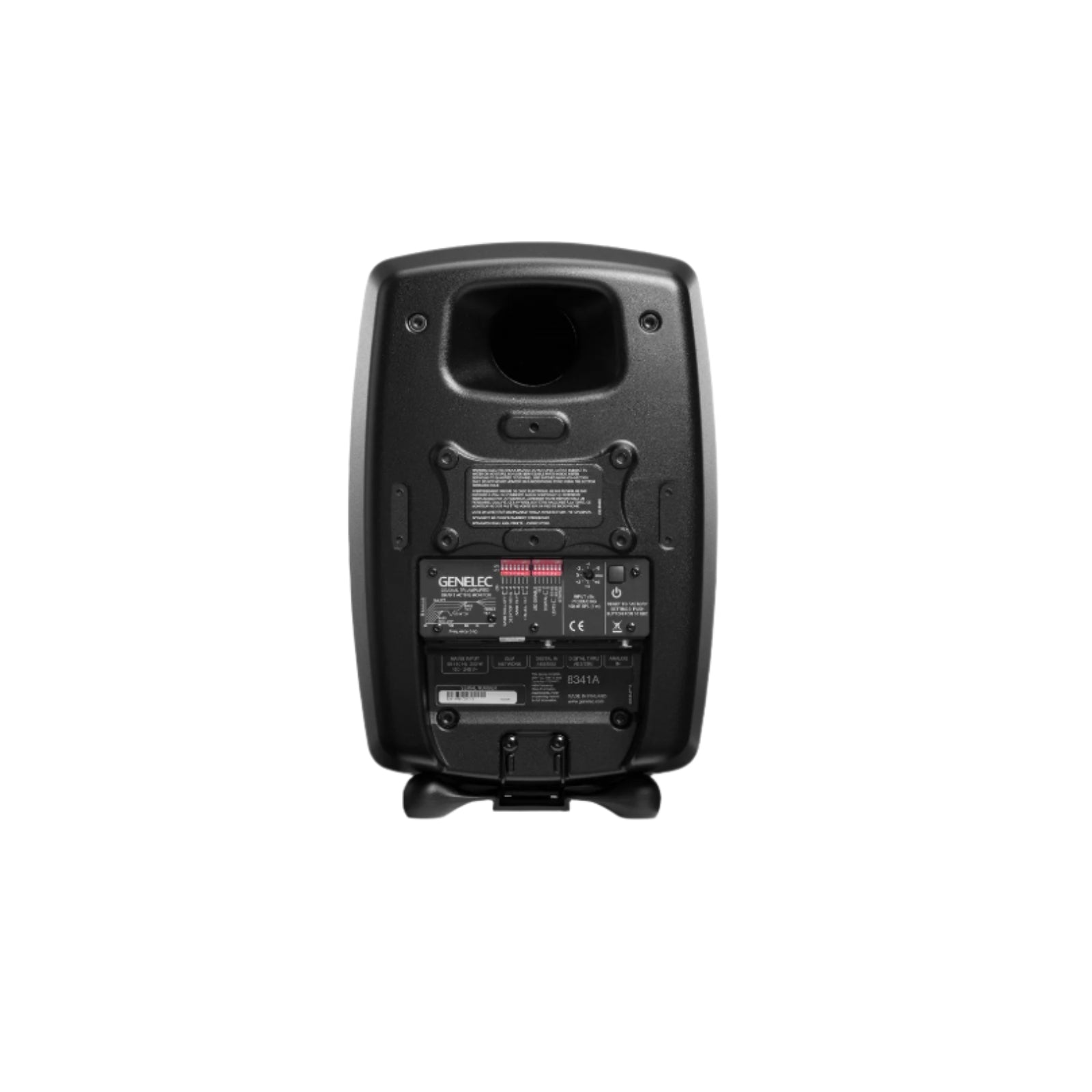

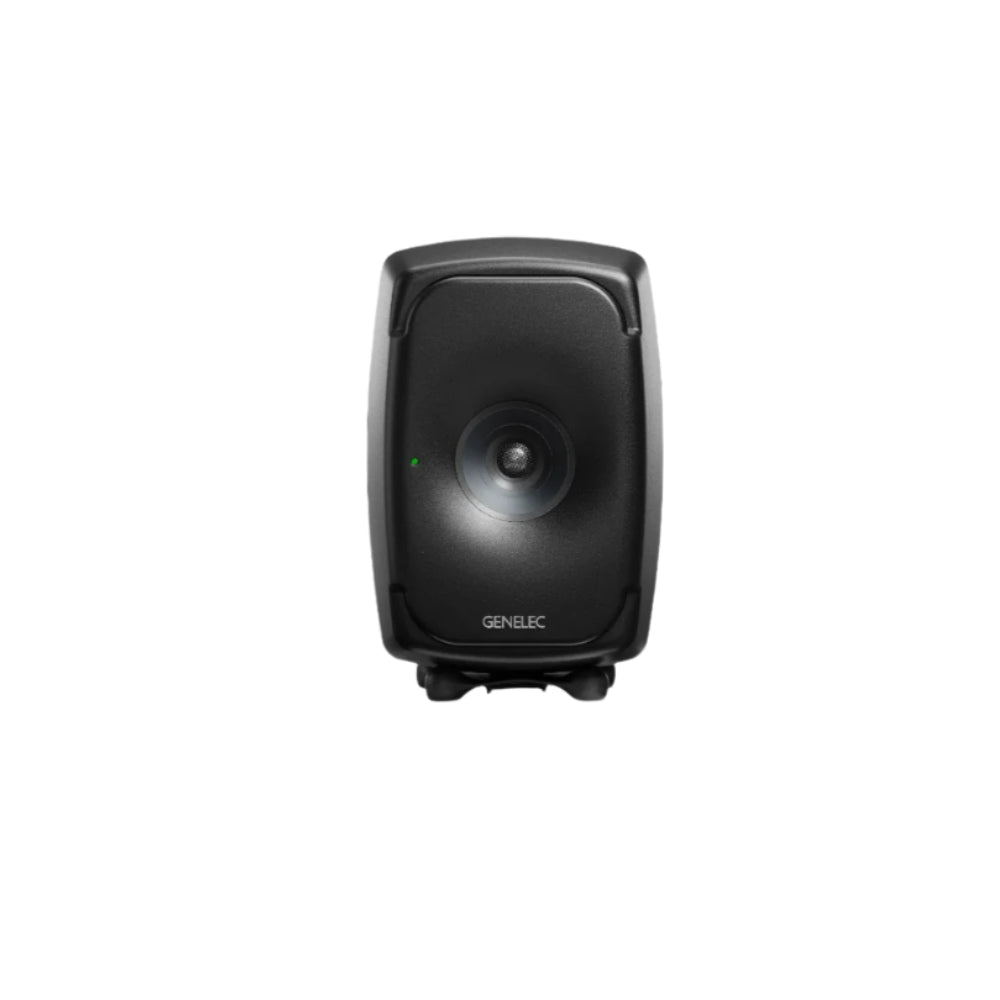

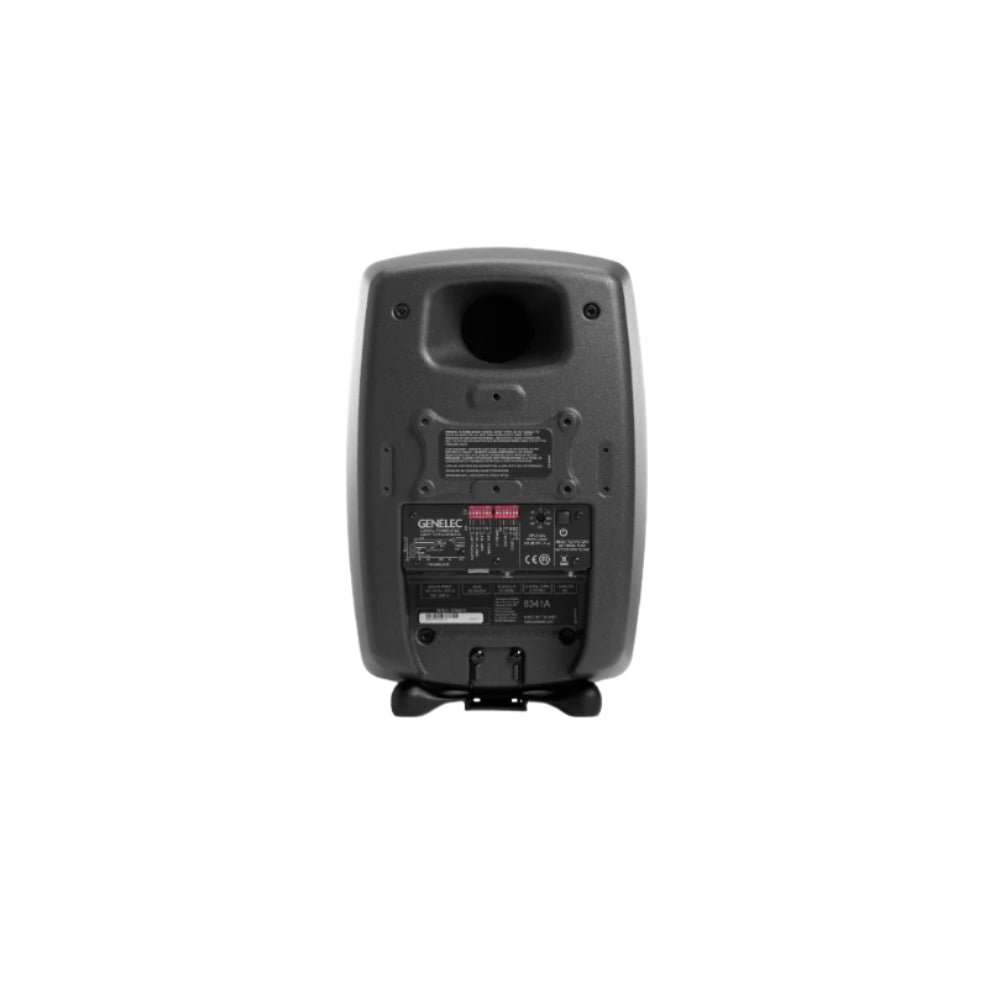

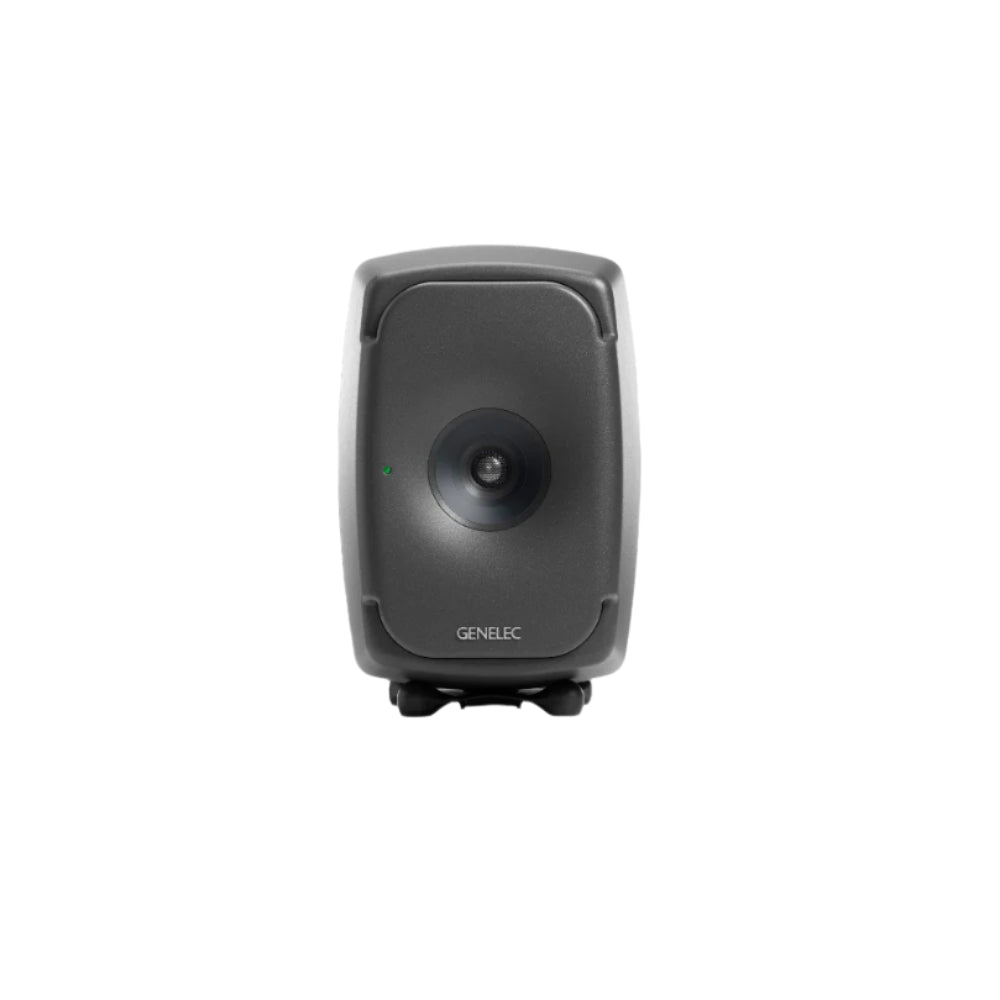

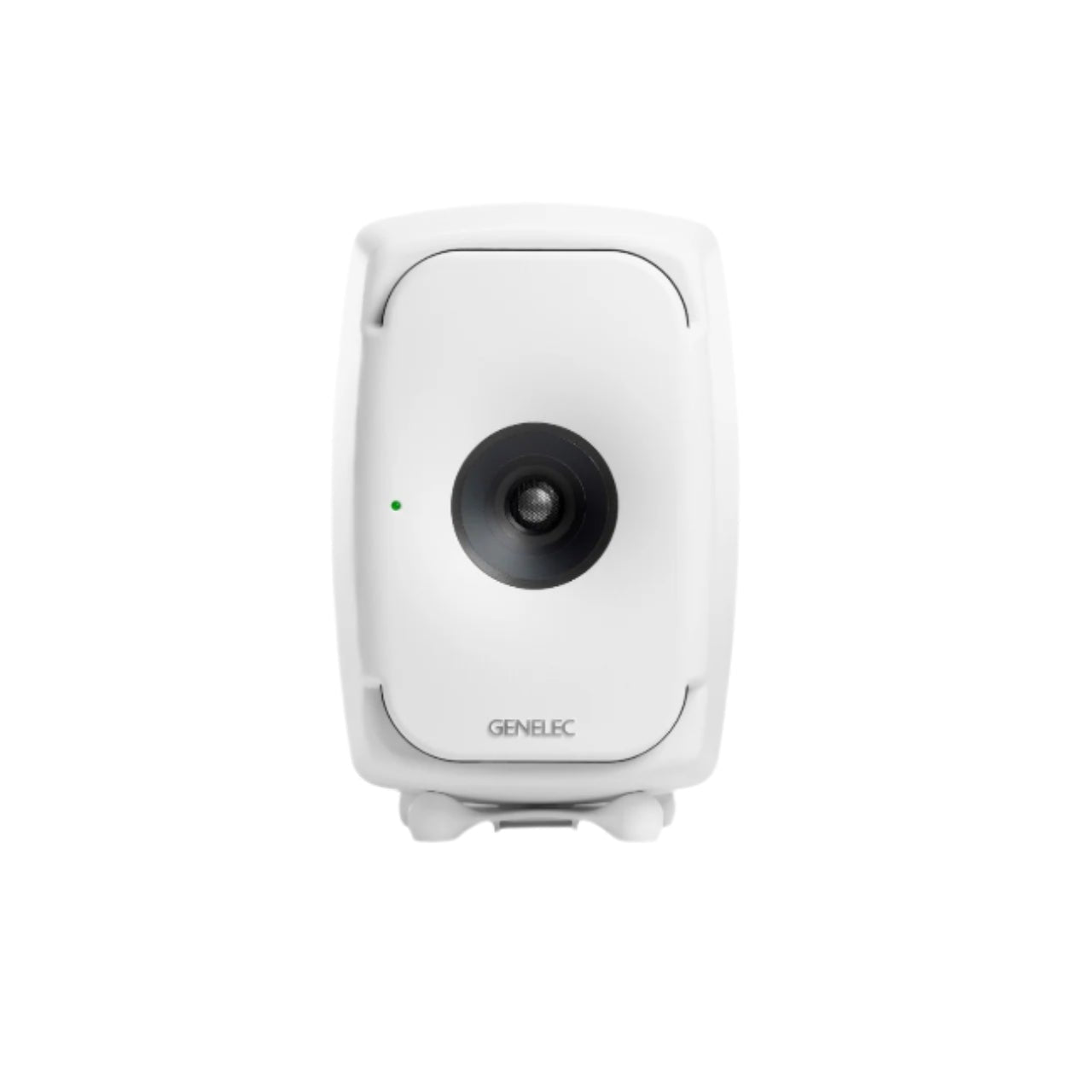

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.
Work faster, for longer
For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging a main contributor to listener fatigue is minimised.
Mixes that translate
As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully every time.
Technical Specifications
Category
Spec
Frequency Response
45 Hz – 20 kHz (±1.5 dB)
Low Cutoff (-6 dB)
38 Hz
High Cutoff (-6 dB)
37 kHz
SPL (Sound Pressure Level)
Spec Type
Value
Peak SPL
≥118 dB (per pair at 1 m, music material)
Short Term Max SPL
≥110 dB (1 m, 100 Hz–3 kHz, half-space, sine wave)
Long Term Max SPL
≥101 dB (1 m, IEC weighted noise, driver protection limited)
Self-generated Noise
≤3 dB SPL (A-weighted, at 1 m on axis)
Dimensions & Weight
Spec
Value
Height (w/o Iso-Pod)
351 mm (13 7/8 in)
Height (with Iso-Pod)
370 mm (14 5/8 in)
Width
237 mm (9 3/8 in)
Depth
243 mm (9 5/8 in)
Weight
9.8 kg (21.6 lb)
Enclosure & Build
Material
Die-cast aluminium
Type
Reflex port
Drivers
Driver Type
Details
Bass
2 × Racetrack (8341A), 170 mm × 90 mm (6 3/4 in × 3 1/2 in)
Midrange
Coaxial (8341A cone), 90 mm (3 1/2 in)
Treble
Coaxial (8341A metal dome), 19 mm (3/4 in)
Directivity & Distortion
Directivity
Vertical and horizontal (exact data not specified)
Harmonic Distortion
50–100 Hz: ≤2%, above 100 Hz: ≤0.5%
Group Delay
Mode
Delay
GLM OFF
3.3 ms
GLM ON
7.0 ms
Amplification
Band
Amplifier Power (Class D)
Bass
250 W
Midrange
150 W
Treble
150 W
Power Requirements
Mains Voltage
100–240 VAC, 50/60 Hz
Power Consumption
ISS Active: ≤0.5 W Idle: ≤16 W Full Output: 250 W
Signal Processing & Connectivity
Input (Analog)
XLR female, balanced, 10 kOhm
Input (Digital)
XLR female, 110 Ohm
Output (Digital/Thru)
XLR male, 110 Ohm
Control
2 × CAT5 (RJ45), GLM network connectors
Crossover Frequencies
Band Split
Crossover Frequency
Bass / Midrange
500 Hz
Midrange / Treble
3000 Hz
