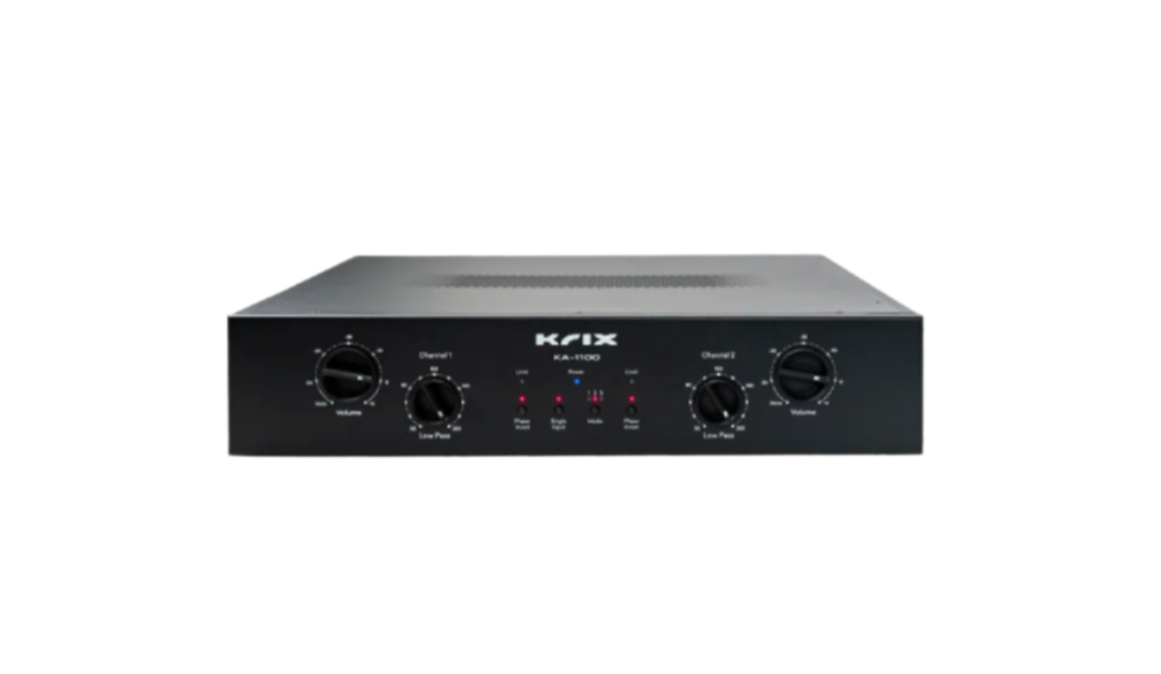

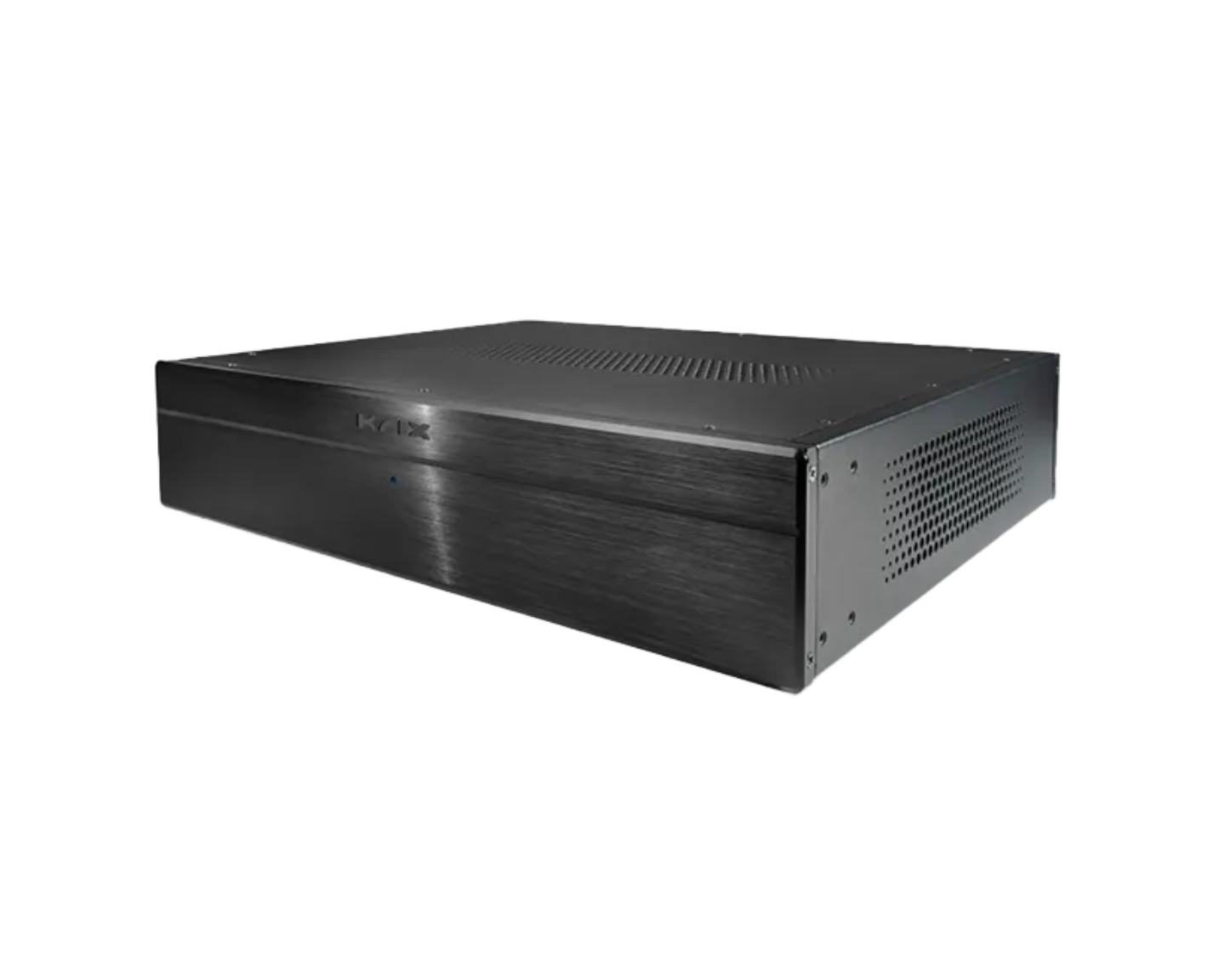

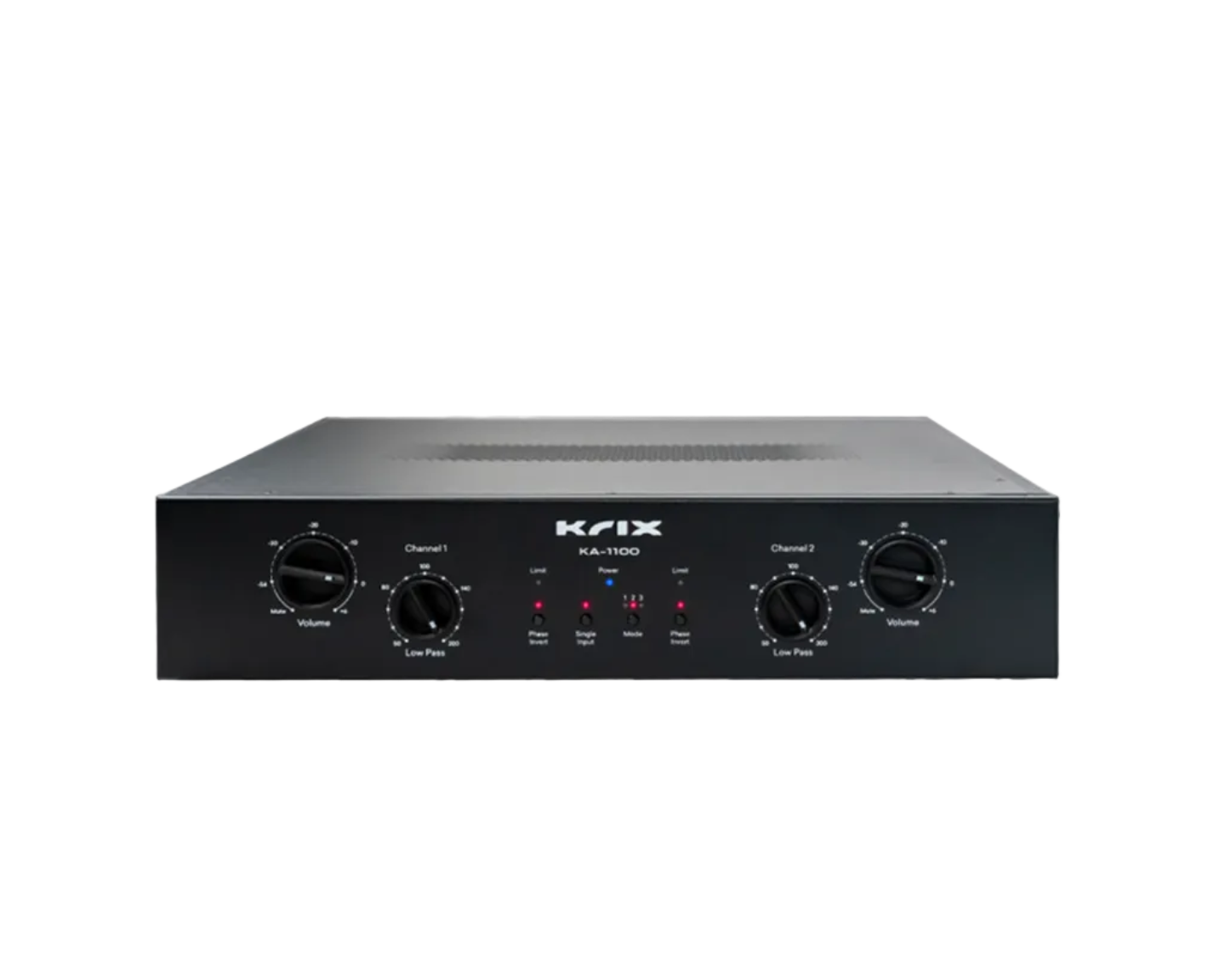

Krix KA1100 Amplifier
- Regular price
- Rs. 0.00
- Sale price
- Rs. 0.00
- Regular price
-
Couldn't load pickup availability
Description
The KA-1100 subwoofer amplifier was designed in-house from the ground up. This dual-mono subwoofer amplifier offers pre-configured DSP modes that are optimised to drive and maximise the performance of Krix passive subwoofers, ensuring movie soundtracks play with high output and incredibly low distortion. DSP modes are set for Krix MX-5, MX-10, Cyclonix 11 and Cyclonix 12 subwoofers. Each mode is specifically tailored to accurately amplify the input signal to full power without compression or loss of dynamics. A third pre-set mode is for general subwoofer use. If an input signal is applied beyond the subwoofer maximum capacity, soft limiting will minimise distortion and protect the loudspeaker driver.

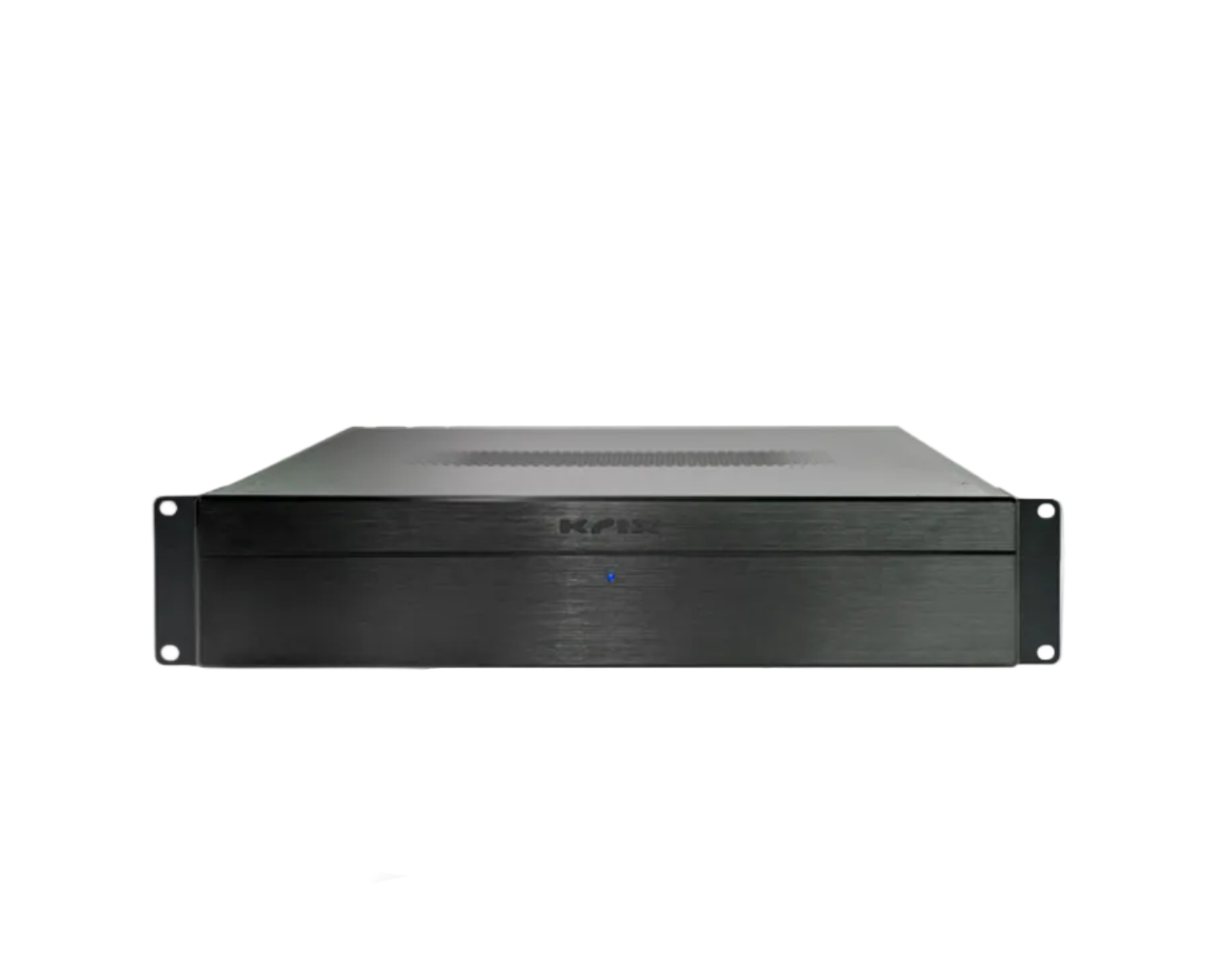

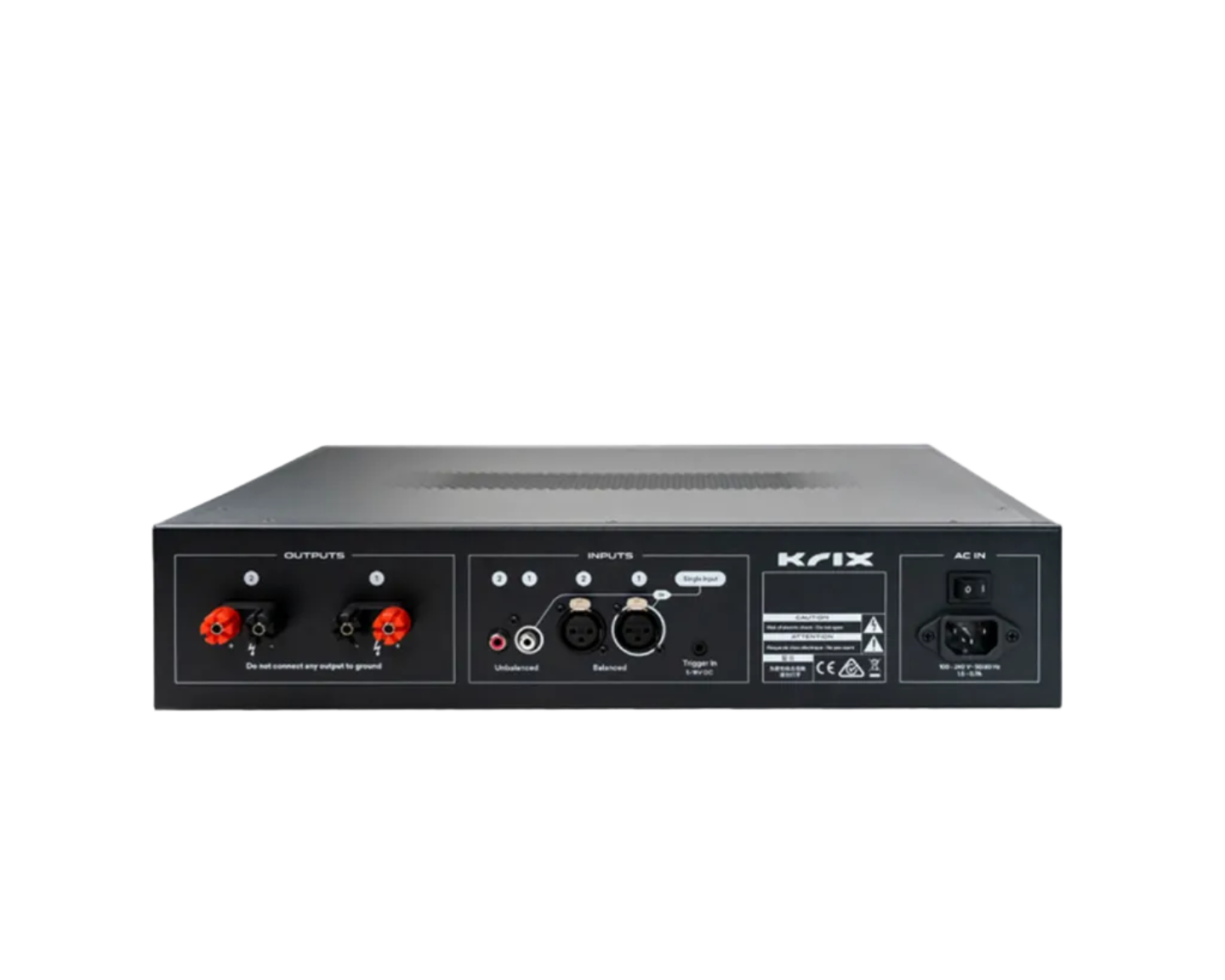

The KA-1100 is based on Class D amplification from ICEpower™ and includes a Krix custom-designed 24-bit signal processor board. Engineered with home cinema enthusiasts in mind, the amplifier features a fan-less design for ultra-quiet operation, 12V trigger for easy power-on and both balanced and unbalanced connection options.The sleek and modern design allows the unit to blend in with any furniture and cabinetry, or stylishly sit amongst other electronic equipment within a rack (rack ears are included). The brushed aluminium fascia can be easily removed for access to all controls.
Technical Specifications
| Specification | Details |
|---|---|
| Supported Products | MX-5, MX-10, Cyclonix 11, Cyclonix 12 |
| Application | General subwoofer use |
| Input Power | 100 – 240V AC~ 50/60Hz (Mains input) |
| Output Power (Max Rated) | 700W RMS per channel (1 channel driven @ 4Ω, 1% THD) |
| 550W RMS per channel (both channels driven @ 4Ω, 1% THD) | |
| Mode Filters | Mode 1 & 2: Low-pass filter 50–200Hz |
| Mode 3: Low-pass filter bypass | |
| All Modes: High-pass filter optimized for supported Krix subwoofers | |
| Distortion (THD+N) | 0.001% @ 200W into 4Ω @ 100Hz |
| Output Power Limits by Mode | Mode 1: 300W RMS per channel @ 4Ω |
| Mode 2: 500W RMS per channel @ 4Ω | |
| Mode 3: 700W RMS per channel @ 4Ω | |
| Dimensions (W x D x H) | 480mm x 360mm x 97mm (including terminals, rack ears, and feet) |
| Weight | 5.3 kg |
