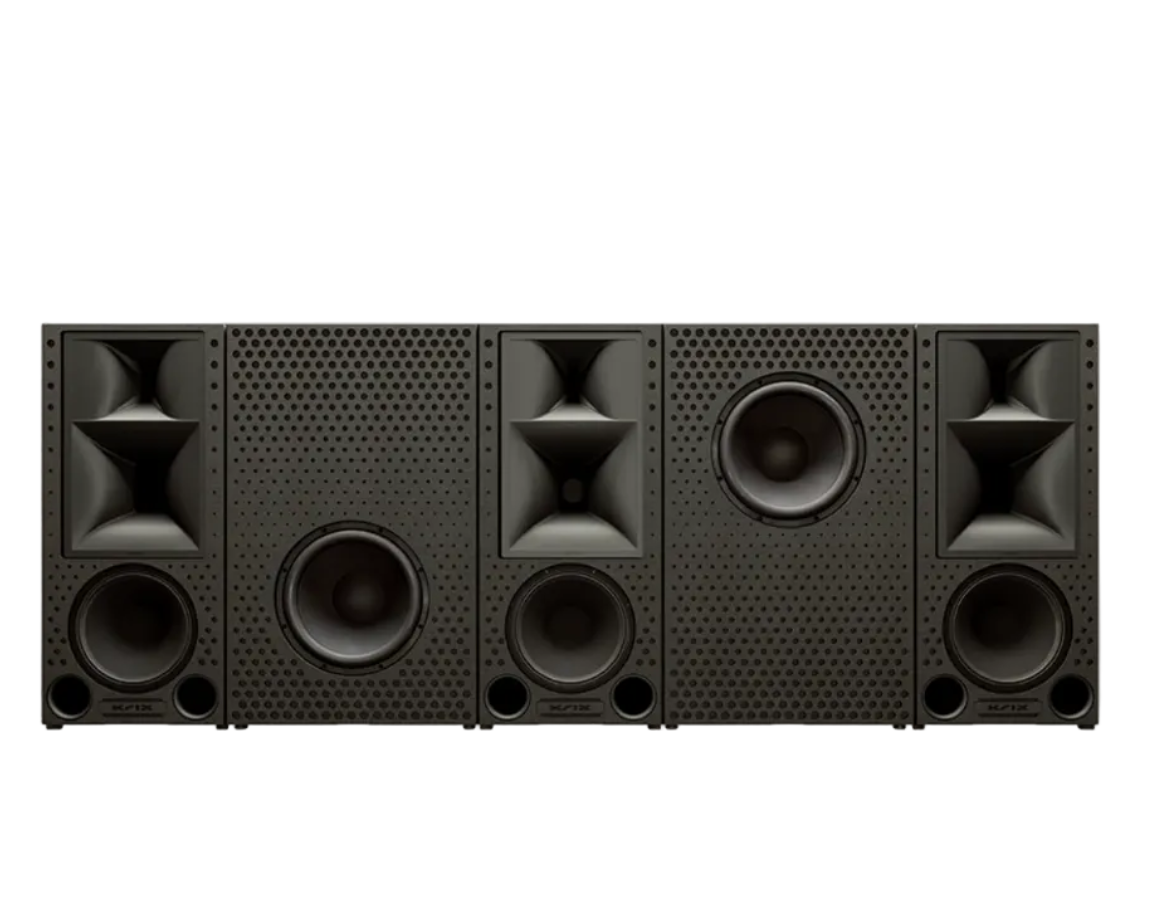

Krix MX40I Modular System (NEW)
- Regular price
- Rs. 0.00
- Sale price
- Rs. 0.00
- Regular price
-
Couldn't load pickup availability
Description
The MX-40i builds on the legacy of Krix’s award-winning MX-40, delivering even greater low-frequency power and extension. While the left, centre and right speaker modules remain unchanged, the MX-40i features new high-performance subwoofer modules, engineered for true infrasonic reproduction with exceptional control, output and realism.
The MX-40i builds on the legacy of Krix’s award-winning MX-40, delivering even greater low-frequency power and extension. While the left, centre and right speaker modules remain unchanged, the MX-40i features new high-performance subwoofer modules, engineered for true infrasonic reproduction with exceptional control, output and realism.
Designed for medium to large dedicated home cinemas with an acoustically transparent screen, the MX-40i will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat. An experience that goes beyond the audible range.
Infra-bass performance
Reproduces extremely low-frequency sounds to create a tactile audio experience that you can feel.
Patented Horn technology
High frequencies are handled by the Krix patented 90 by 40-degree short throw horn, driven by a high frequency compression driver.
Modular
The MX-40i features five modules, all of which are the same height and slim-line depth for easy installation into one cavity. For the ultimate cinema experience at home, play it through Krix.
Technical Specifications
System Recommendations
| Spec | Details |
|---|---|
| Recommended Room Depth | 5m – 14m |
| Minimum Screen Size (16:9) | 135″ (2989mm × 1681mm) |
| Minimum Screen Size (21:9) | 130″ (3035mm × 1301mm) |
LCR Speaker Modules
| Spec | Details |
|---|---|
| Frequency Range | 38Hz – 16kHz (In-Room Response) |
| Power Handling (LF) | 100 – 700 Watts RMS (Recommended Amplifier Power) |
| Power Handling (HF) | 100 – 400 Watts RMS (Recommended Amplifier Power) |
| Sensitivity (LF) | 98dB For 2.83 Volts At 1 Metre |
| Sensitivity (HF) | 101dB For 2.83 Volts At 1 Metre |
| Impedance | 8 Ohms |
| Crossover Frequency | 400Hz (Active Crossover Required) |
| Configuration | 3-Way Bi-Amp |
| Low Frequency Driver | Single 380mm (15”) High-Stiffness Paper Cone Driver With 75mm (3”) Voice Coil Of Optimal Length For Increased Linear Excursion, Wound On High-Temperature Apical Former And Powerful Vented Magnet Assembly Designed For Low Distortion |
| Mid And High Frequency Driver | Krix Proprietary 90º × 40º Short-Throw Dual Horn Driven By: • Single Midrange Driver With 152mm (6”) Paper Cone, Ferrite Magnet, 38mm (1½”) Voice Coil And Copper Shorting Ring • Single 35mm (1.4”) Compression Driver With Ferrite Magnet, Coated Titanium Diaphragm And Polyimide Surround |
| Input Terminals | Gold-Plated Spring Terminals |
| Dimensions | 1220mm (H) × 550mm (W) × 335mm (D) (3165mm Wide Including Subwoofer Modules) |
| Weight | 65kg Each |
Subwoofer Modules
| Spec | Details |
|---|---|
| Frequency Range | 10Hz – 200Hz (With DSP) 15Hz (-3dB), 13Hz (-6dB) (With DSP) |
| Power Handling | 1500 – 3000 Watts RMS (Recommended Amplifier Power) |
| Recommended Processing | Approved Amplifier With DSP Required. Consult With A Krix Certified System Designer |
| Sensitivity | 100dB For 2.83 Volts At 1 Metre |
| Impedance | 4 Ohms |
| Low Frequency Driver | Single 460mm (18”) Treated Paper Cone Driver With 100mm (4”) Voice Coil, Neodymium Magnet And Demodulating Ring For Low Distortion. 50mm Peak-To-Peak Displacement |
| Dimensions | 1220mm (H) × 750mm (W) × 335mm (D) (2865mm Wide Including LCR Modules) |
| Weight | 55kg Each |
Up to 10 Years of Hassle-Free Warranty.
Many sellers offer products without service, but we’ve got you covered. Contact us to book your warranty, drop it in-store, or ship it to us for a refund or exchange for up to 10 years.
