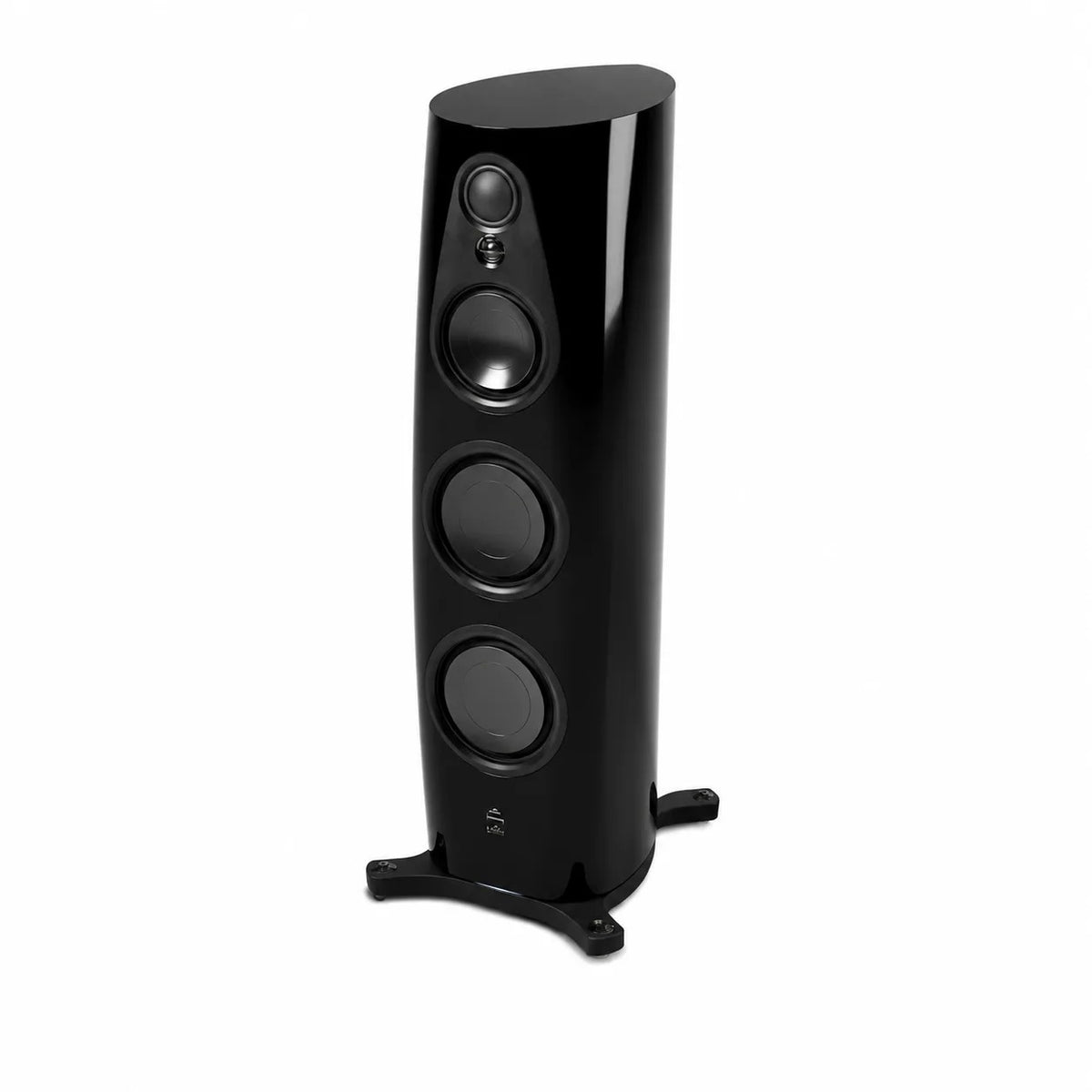

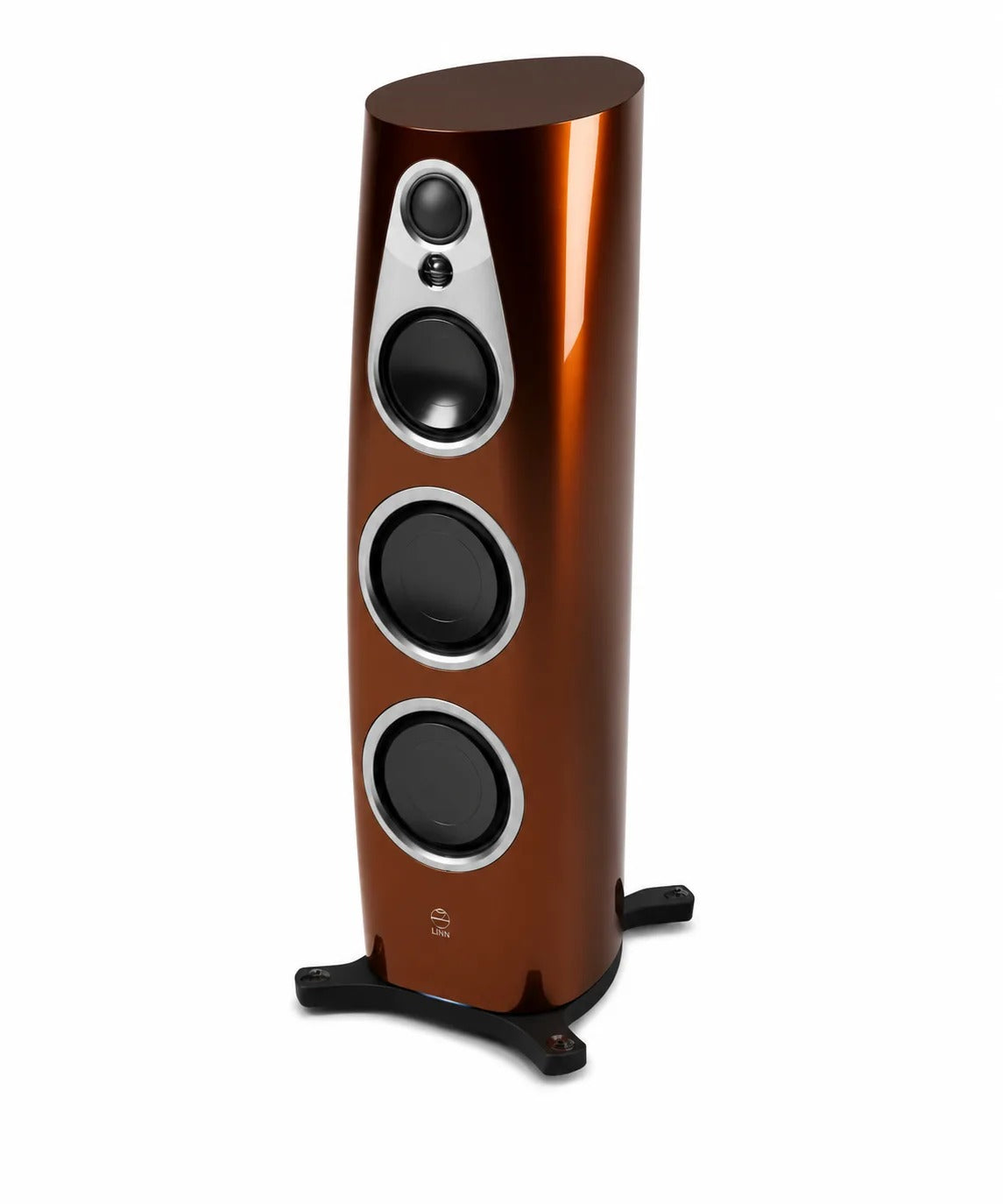

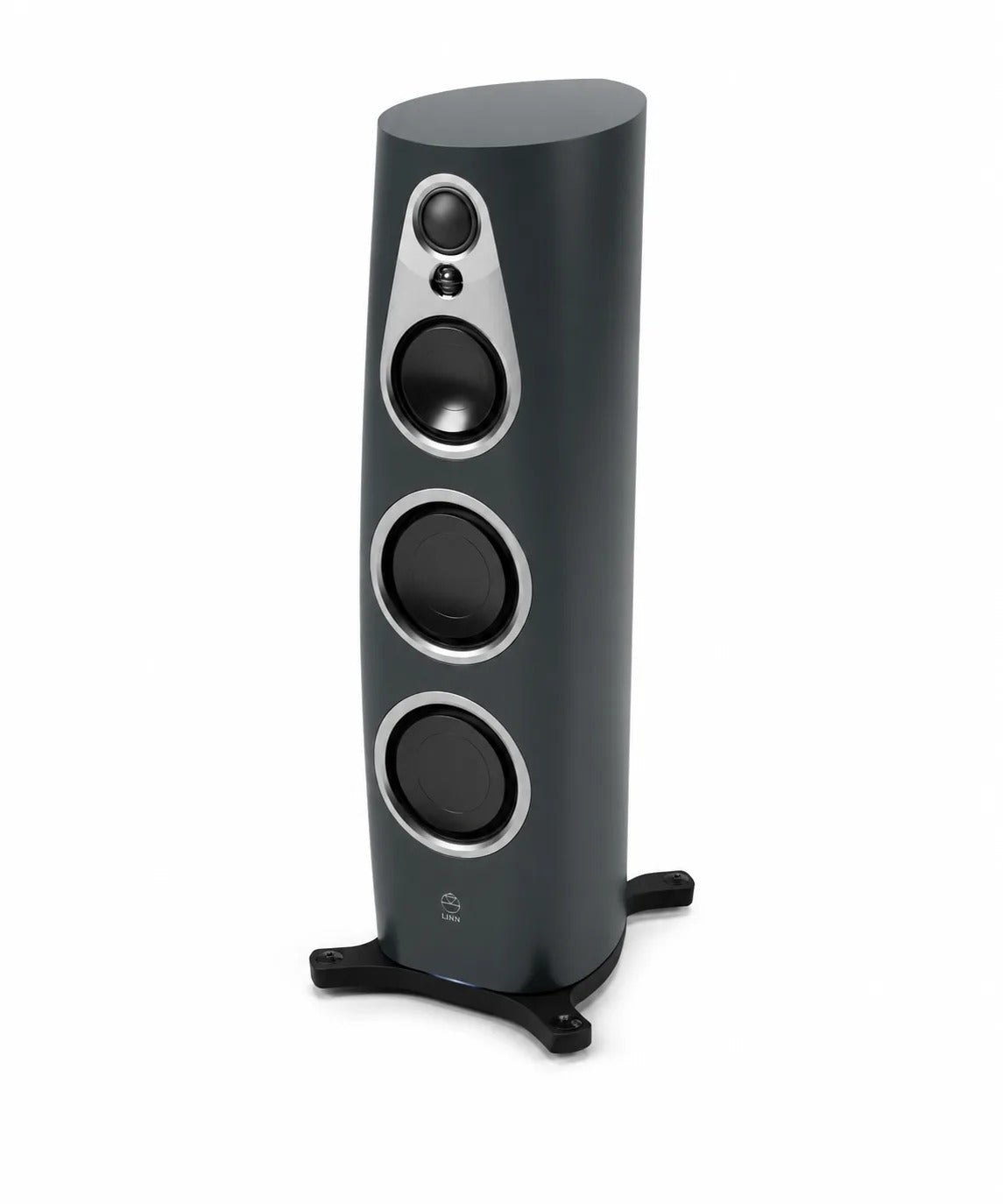

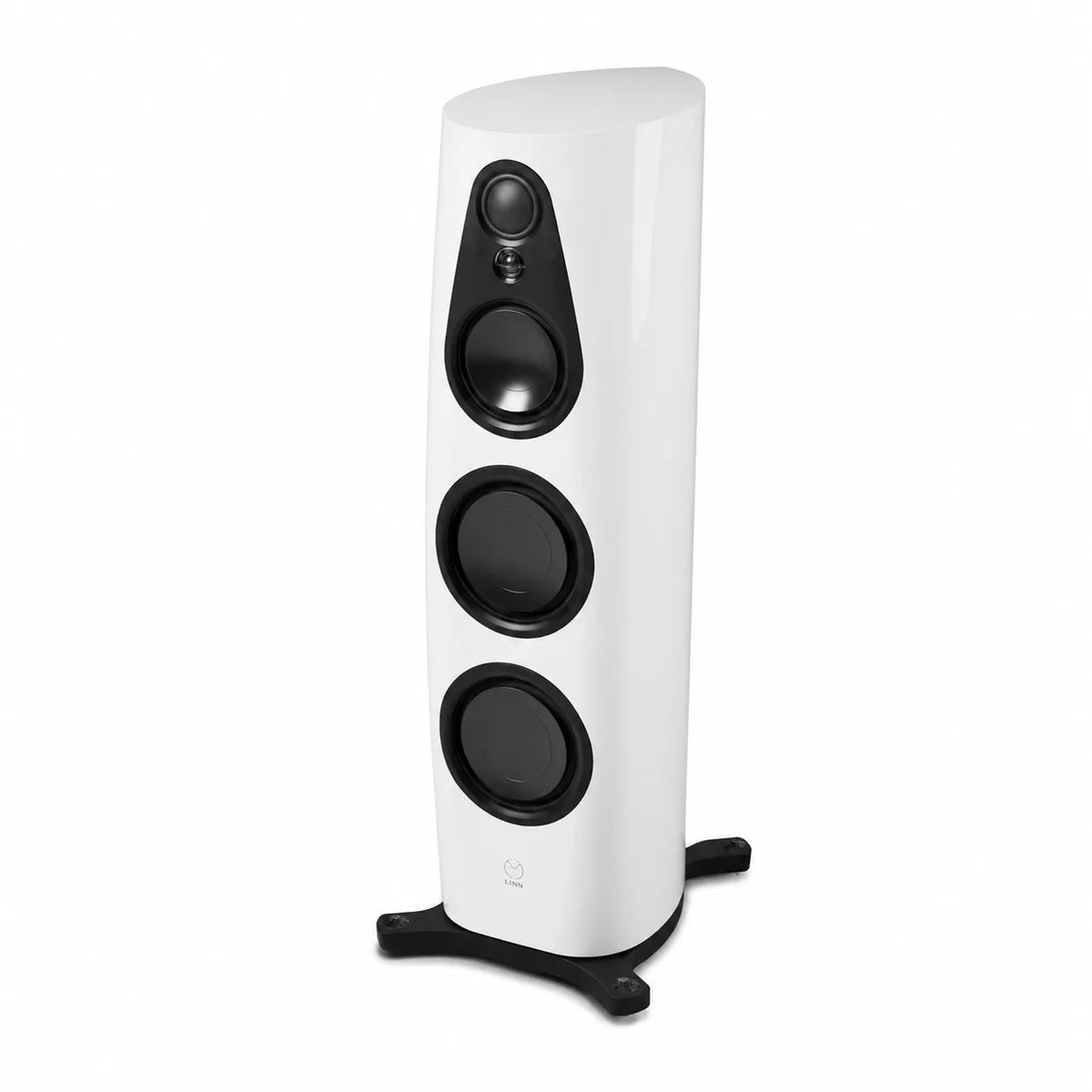

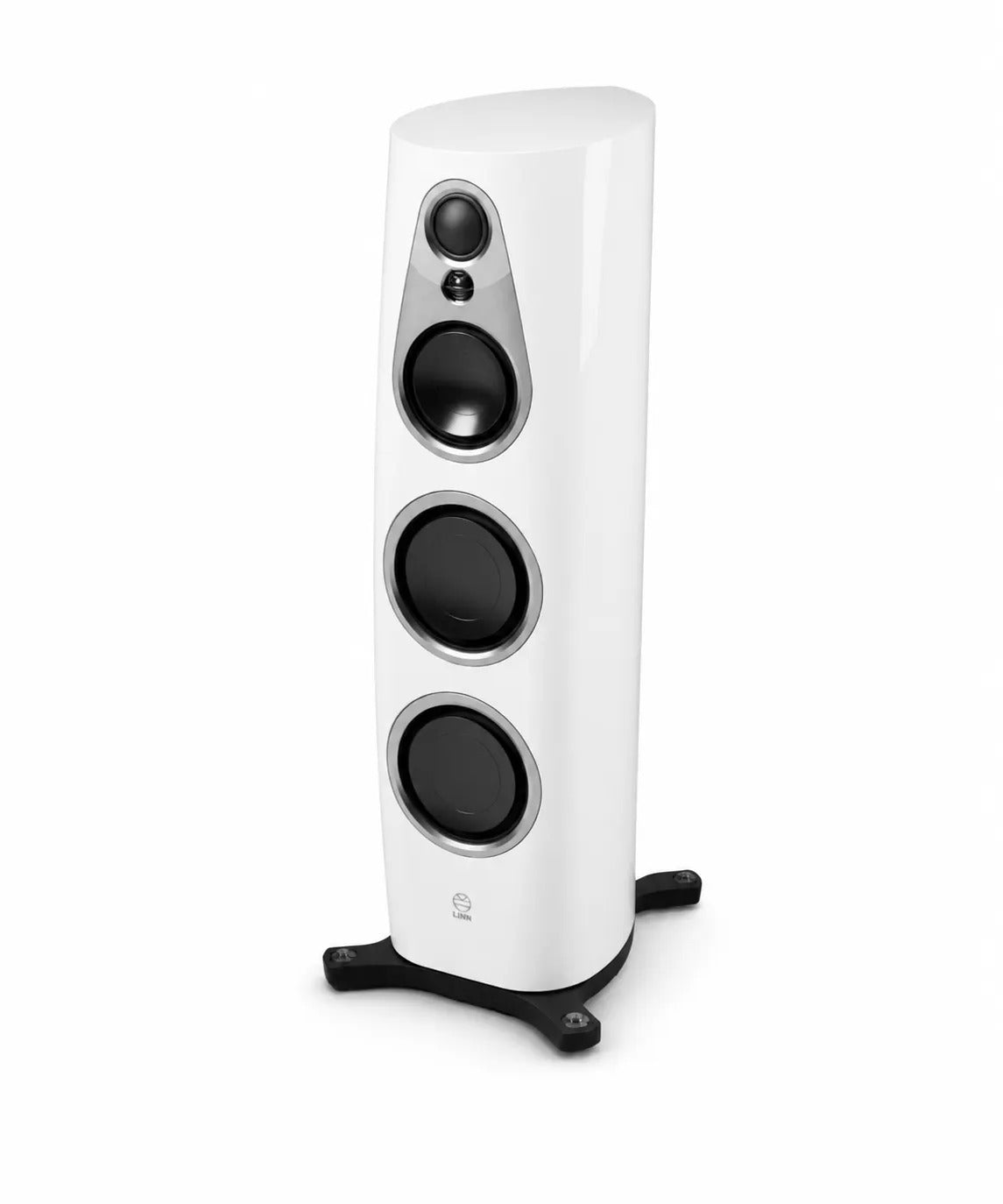

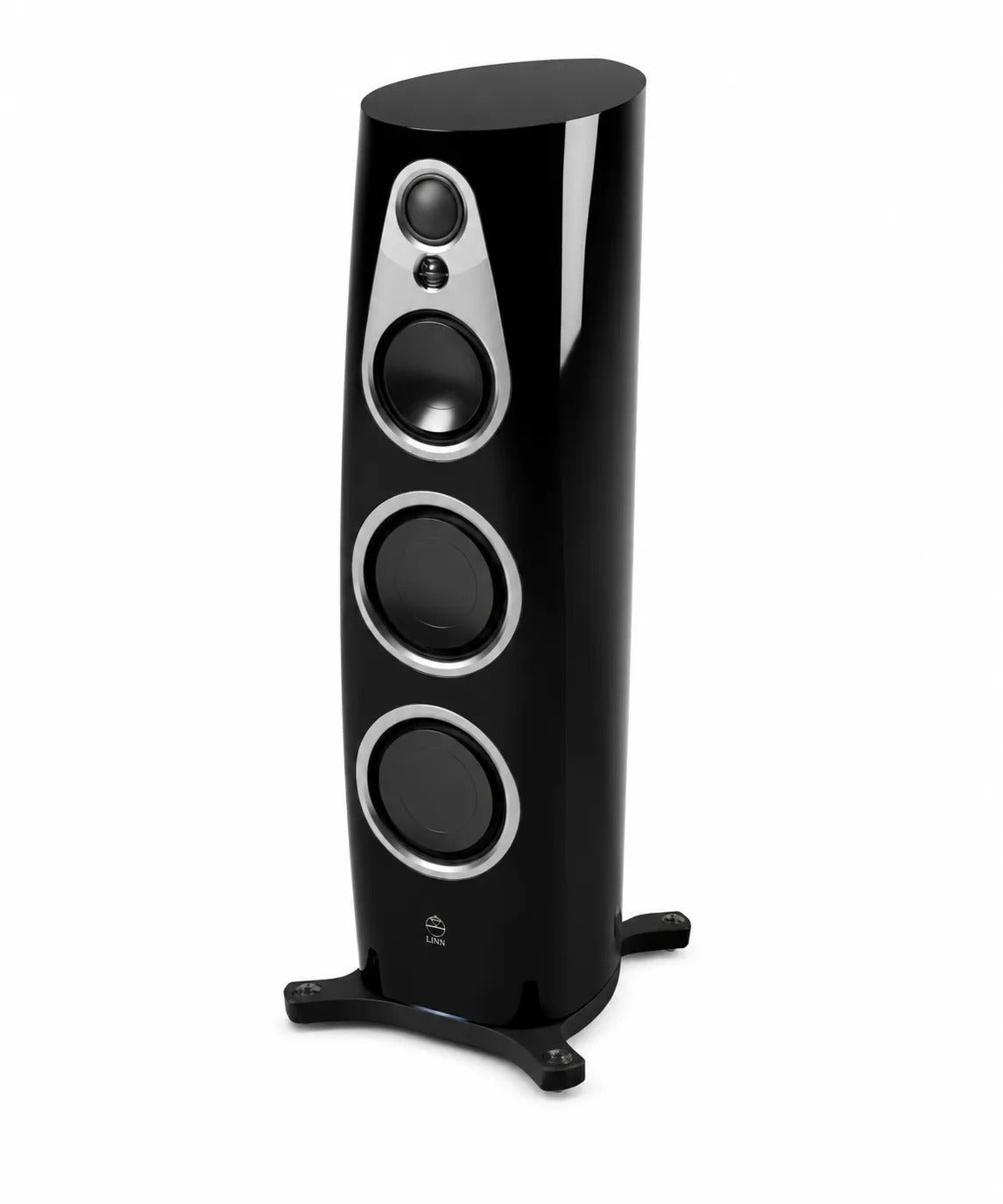

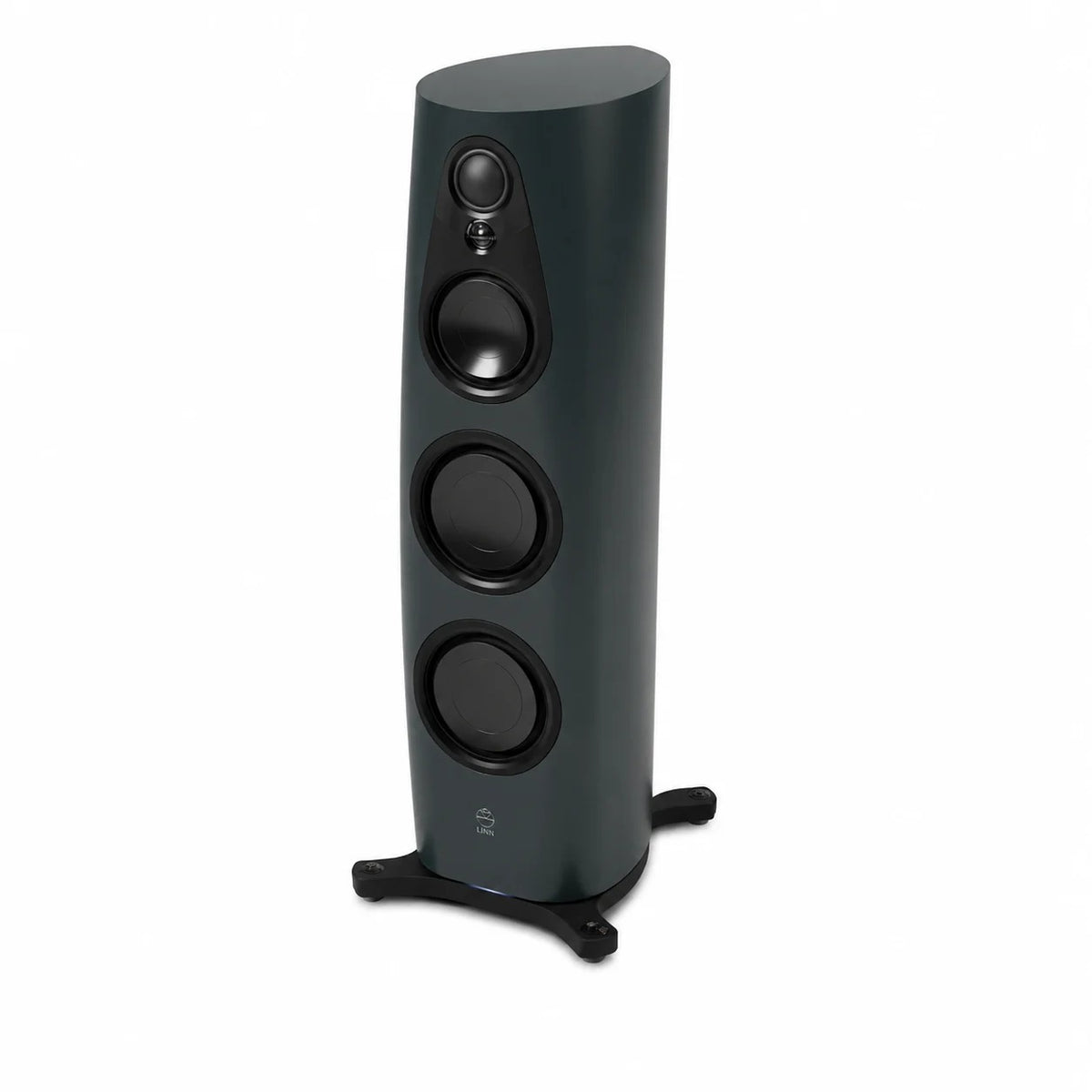

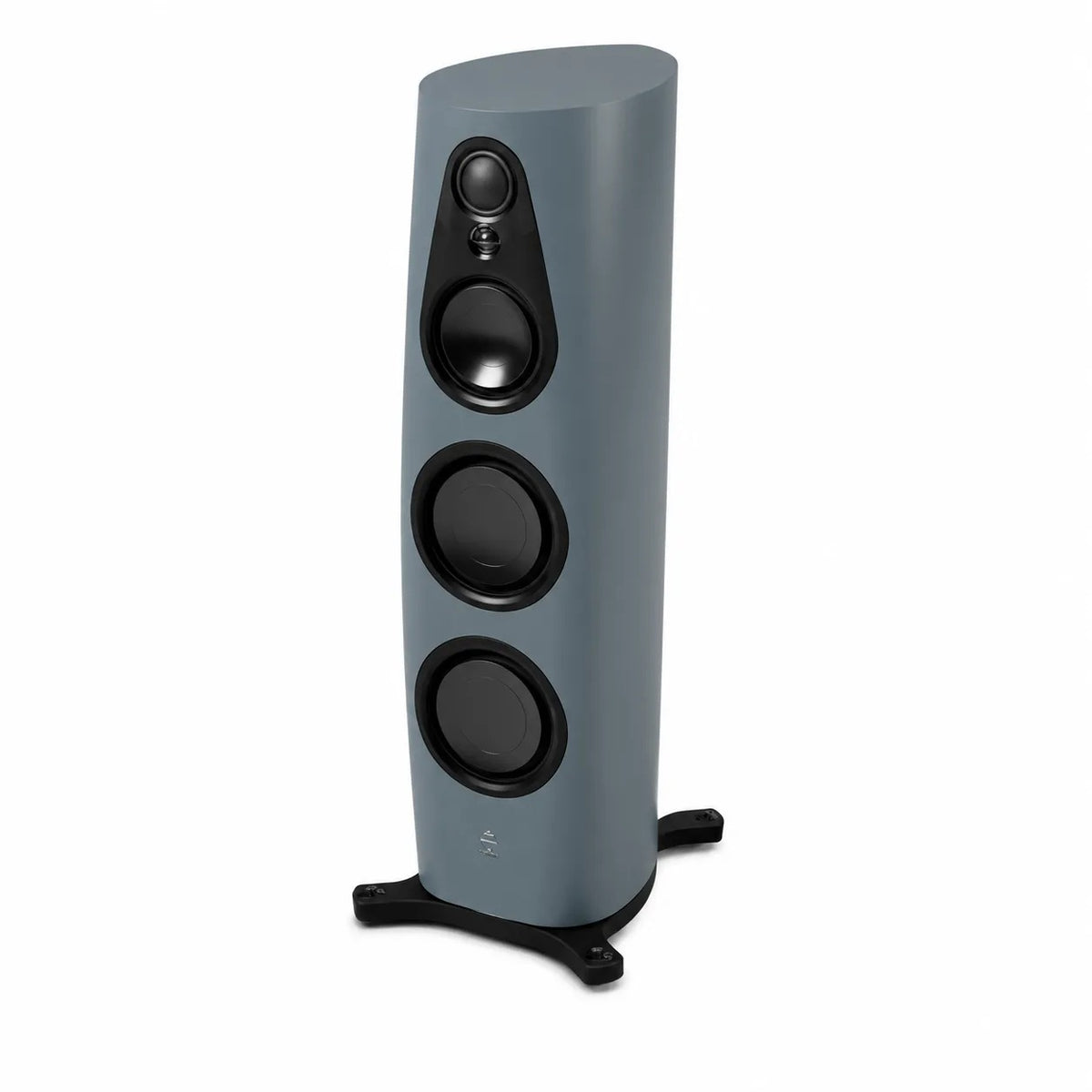

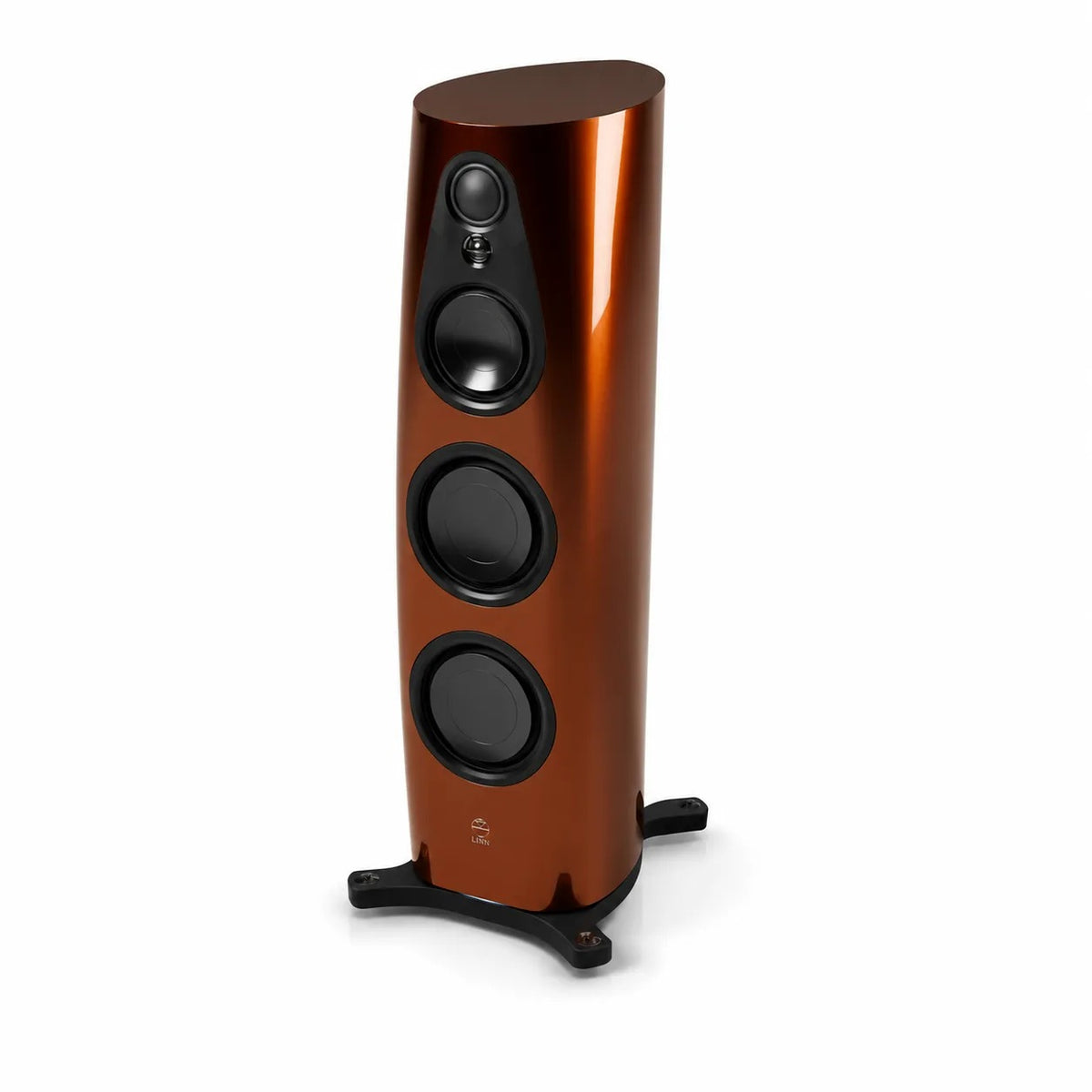

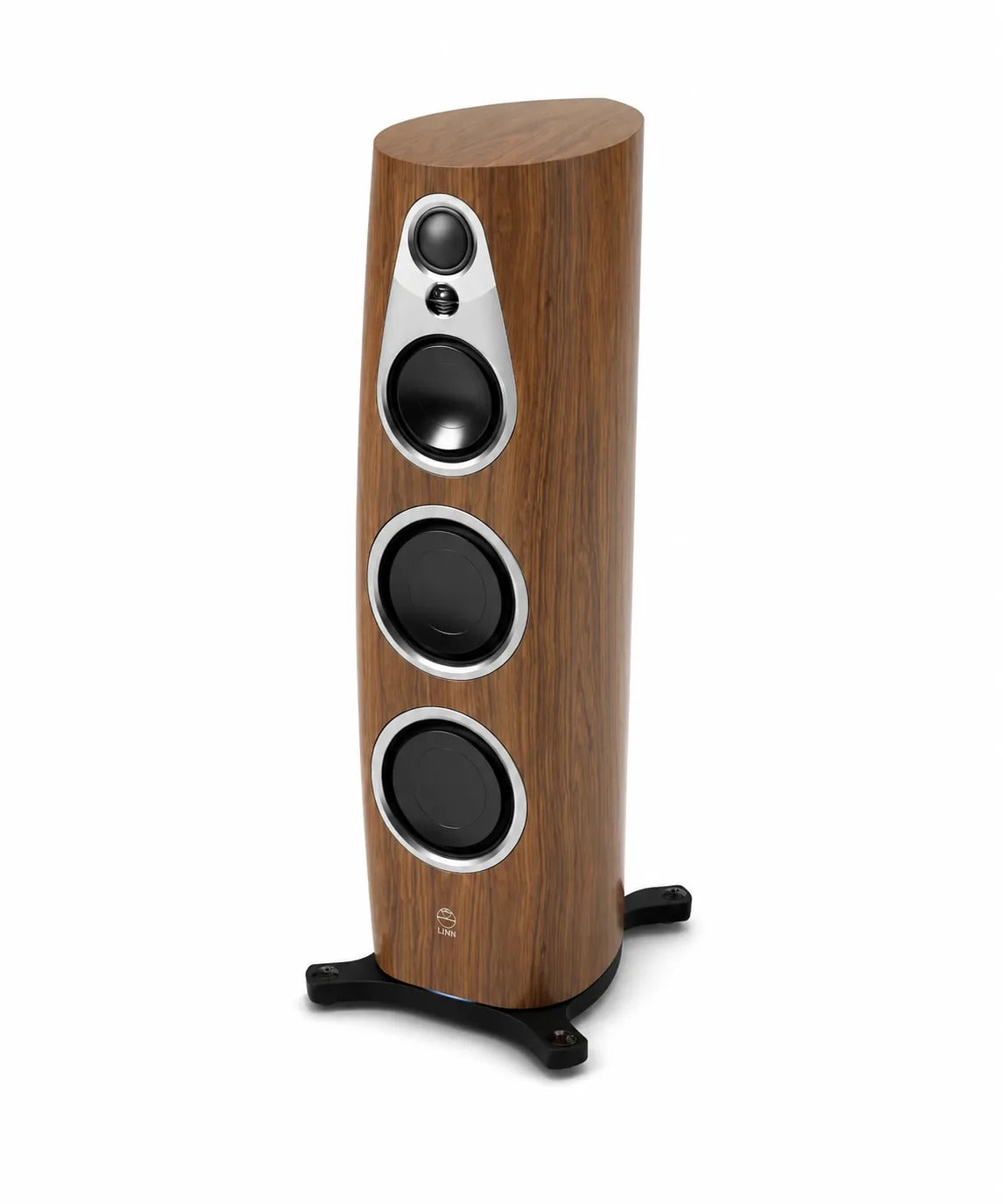

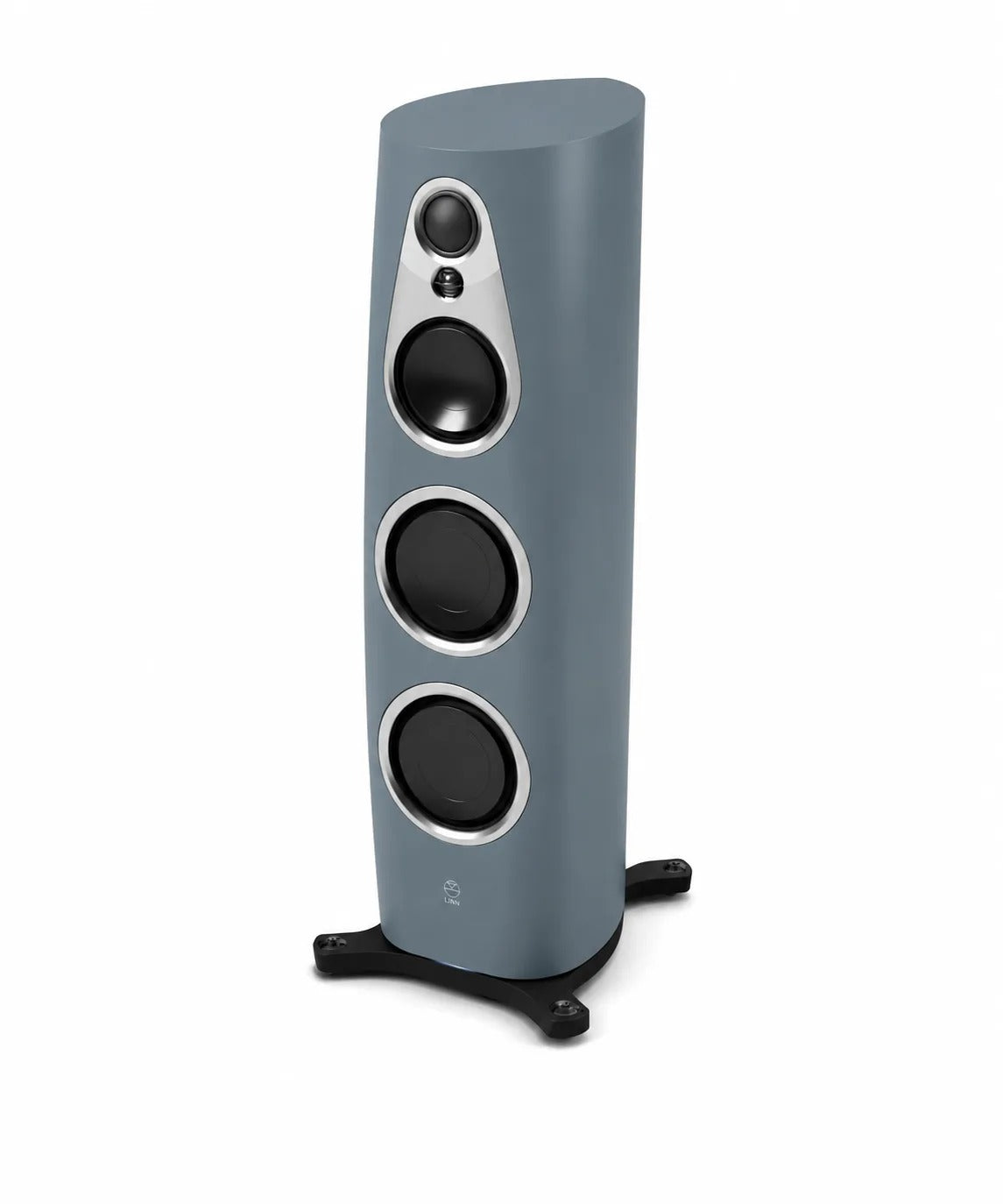

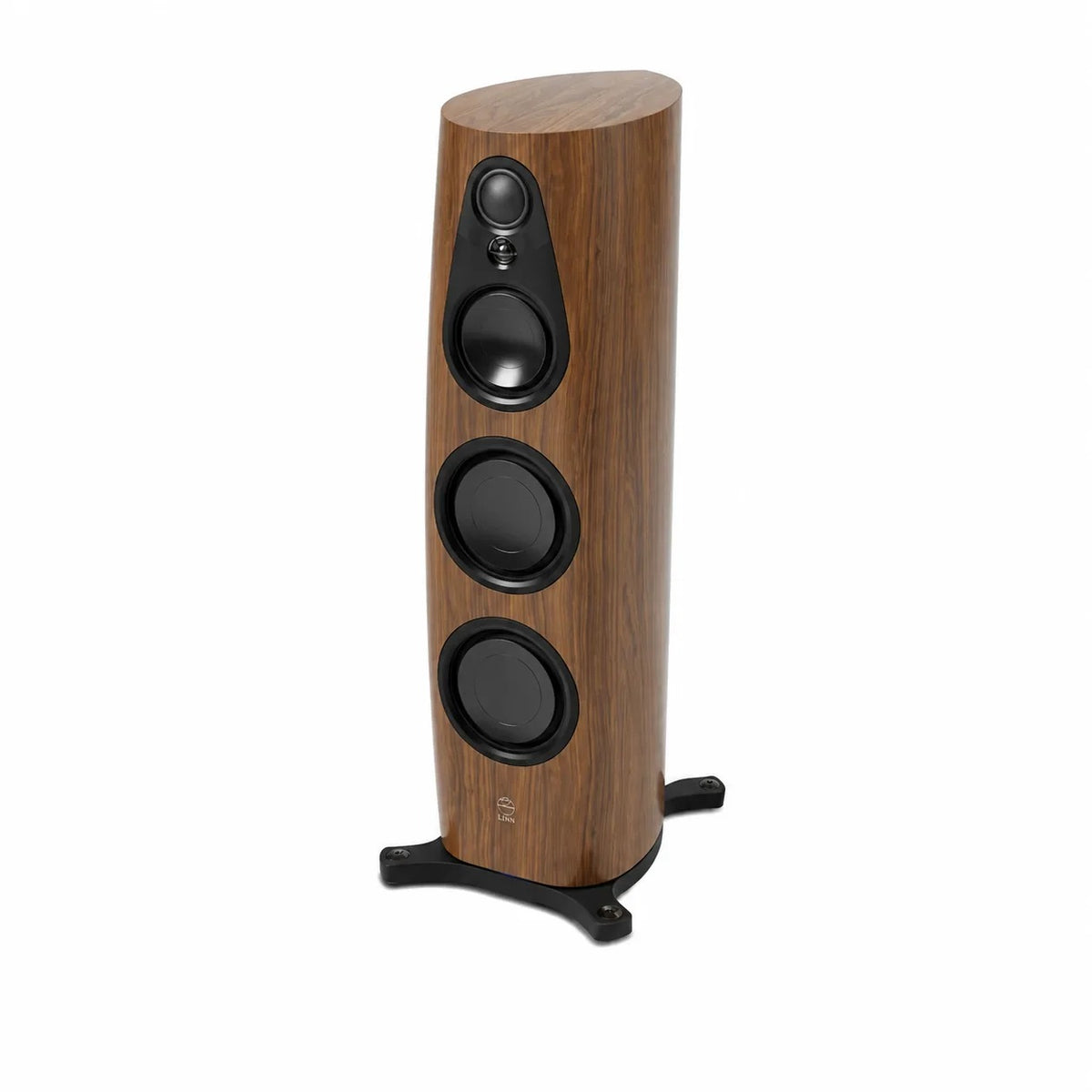

Linn 360 Integrated Exakt Loudspeakers

Exakt digital crossover

Each frequency aligned before it reaches the room

Linn Exakt processing divides the digital signal into the precise frequency ranges required by the individual drive units.

It also provides the processing needed to align the output of those units in time, helping the different elements that form each musical note reach the listener together.

This approach gives Linn greater control over phase, timing and the interaction between the drive units than would be possible through a conventional passive crossover.

Four-way performance

Specialised drive units for every part of the music

A 19 mm tweeter handles the highest frequencies, accompanied by a 64 mm thin-ply woven carbon midrange dome. A 190 mm aluminium and magnesium upper-bass driver supports the transition into the lower registers. Two 220 mm long-throw aluminium lower-bass drive units provide the scale and extension expected from Linn’s flagship loudspeaker.

Direct digital connection

Connect through Exakt Link

The Linn 360 Integrated Exakt Loudspeakers connect to a compatible Linn network music player or System Hub through Exakt Link.

The source component handles streaming, connected sources and system control before sending the digital audio signal to the loudspeakers. The system therefore requires a compatible Exakt-enabled Linn DSM or System Hub and is not intended to connect directly to a conventional analogue preamplifier.

Configured for the room

Space Optimisation+ with integrated Exakt control

Space Optimisation+ can model how the loudspeakers, their practical positions and the construction of the room interact at lower frequencies.

The configuration can take account of room dimensions, walls, doors, windows, construction materials and the principal listening position. Because the speakers are digitally controlled, the resulting optimisation can be applied within the complete Exakt signal path.
