Four-way design
Dedicated tweeter, midrange, upper-bass and twin lower-bass drive units divide the musical spectrum across specialised components.
Authorised Dealer
Linn
Linn 360 Passive with Aktiv Bass
- Regular price
- Rs. 8,209,900.00
- Sale price
- Rs. 8,209,900.00
- Regular price
-
Get free shipping on your order.
Out of stock
Couldn't load pickup availability
Description
The Linn 360 Passive with Aktiv Bass (PWAB) Floorstanding Speakers bring Linn’s flagship loudspeaker platform to ambitious systems built around carefully selected external amplification.
Available in seven cabinet finishes with Natural Silver or Anodised Black drive unit trim, each pair can be configured around your interior, room and wider music system.
Key Features
The Linn 360 Passive with Aktiv Bass (PWAB) Floorstanding Speakers combine Linn’s flagship four-way 360 Array with an internally powered lower-bass system, delivering a refined and powerful listening experience. The upper speaker array operates passively and requires external amplification, while the integrated Aktiv bass system provides dedicated power for the lower frequencies. Supplied as a carefully matched pair, these floorstanding loudspeakers are available in seven cabinet finishes, with a choice of Natural Silver or Anodised Black drive unit trim to complement your interior. The system can also be upgraded to an external Linn Exakt system, offering a flexible path to advanced digital crossover processing.
Flagship loudspeaker engineering
Linn 360 Passive with Aktiv Bass speakers built around your system
The tweeter, midrange and upper-bass sections are driven by external amplification selected for the wider system, while Linn’s internal Power DAC technology controls the two lower-bass drive units within each loudspeaker.
Sculpted around sound
A cabinet that moves beyond the conventional loudspeaker box
The Linn 360 cabinet uses a curved front profile that gradually tapers towards the top of the loudspeaker.
The shape surrounding each drive unit has been engineered to support clean dispersion, helping sound travel away from the cabinet with fewer physical obstructions.
Its fluid form gives the Linn 360 a confident architectural presence while keeping the cabinet design closely connected to its acoustic purpose.
Made visually yours
Seven cabinet finishes and two trim options

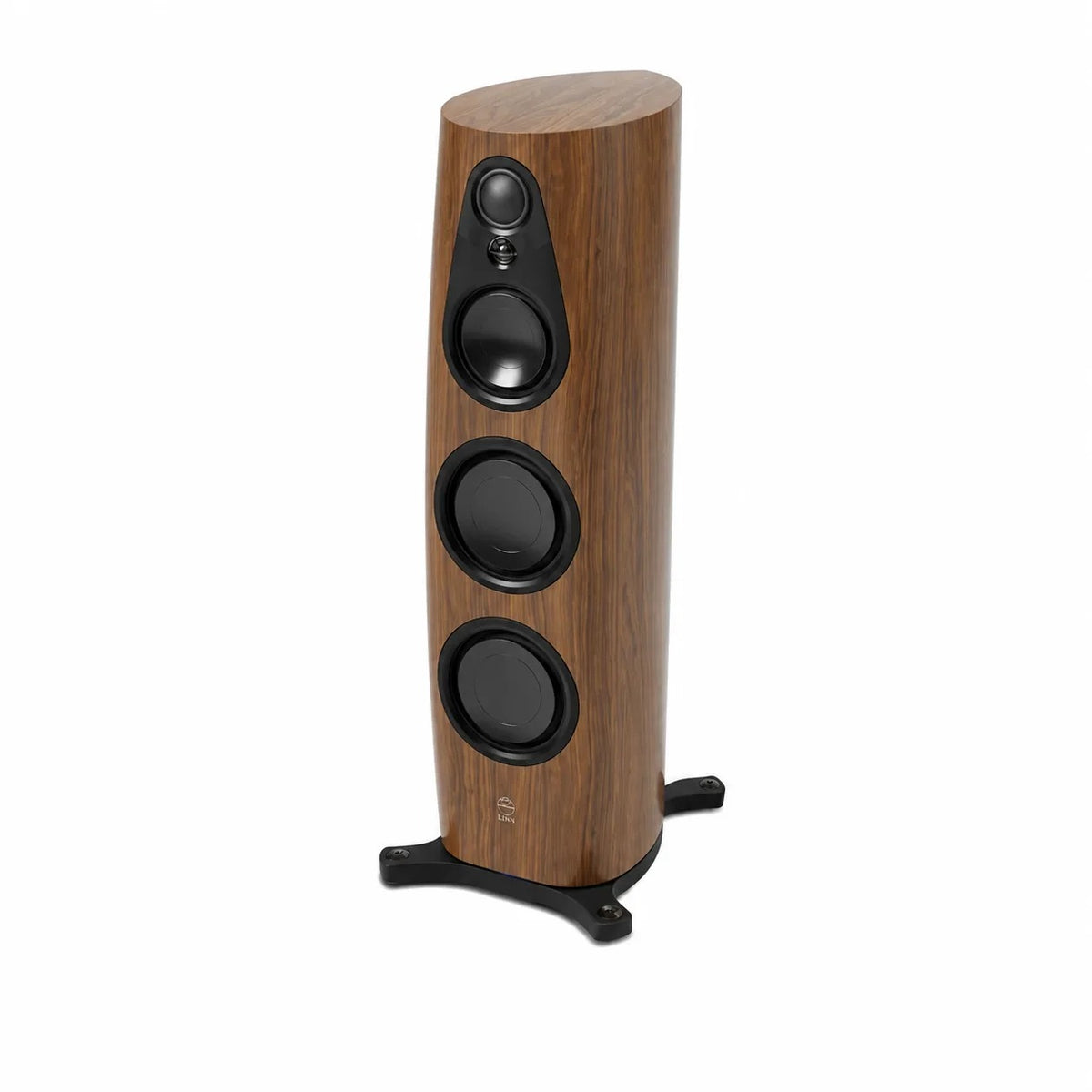

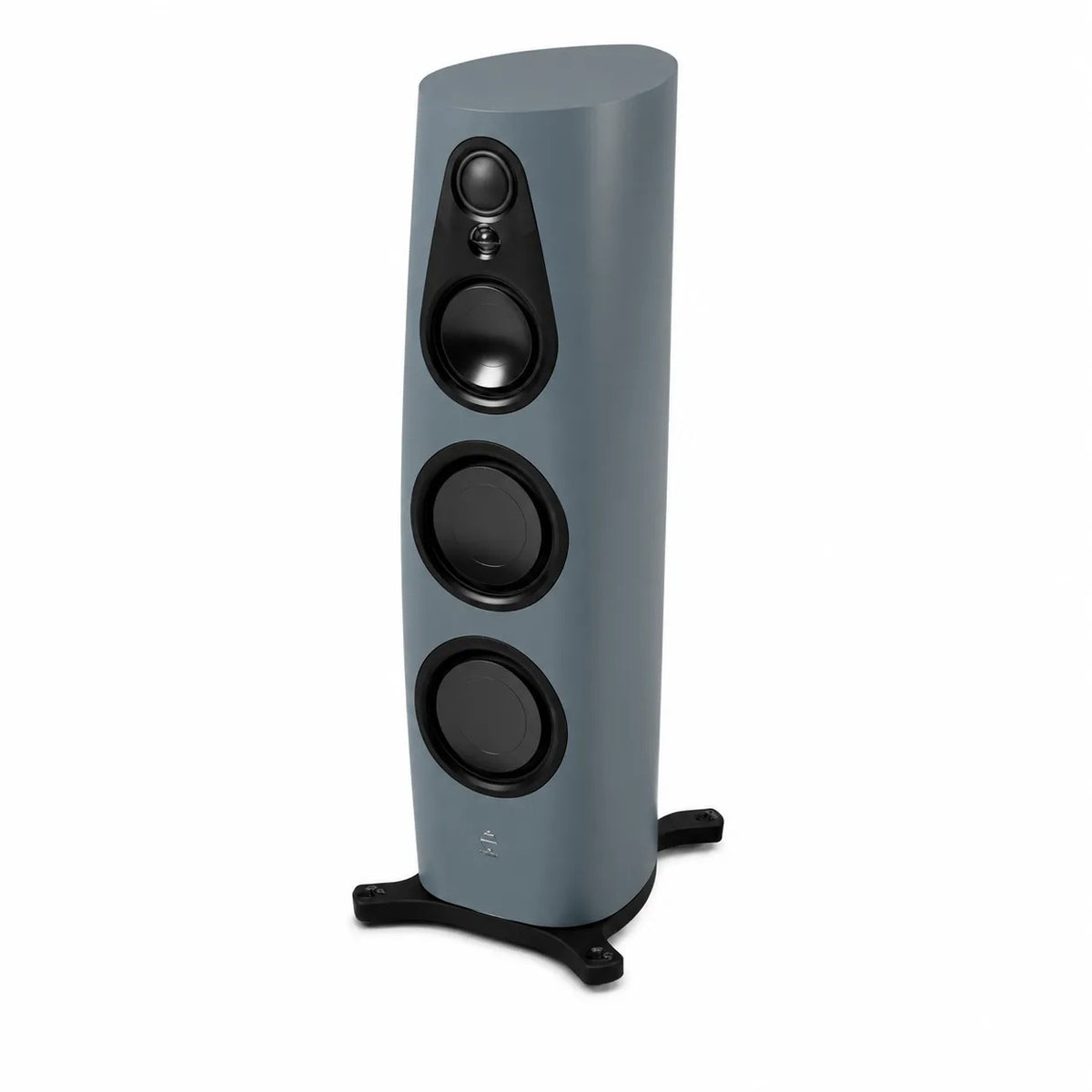

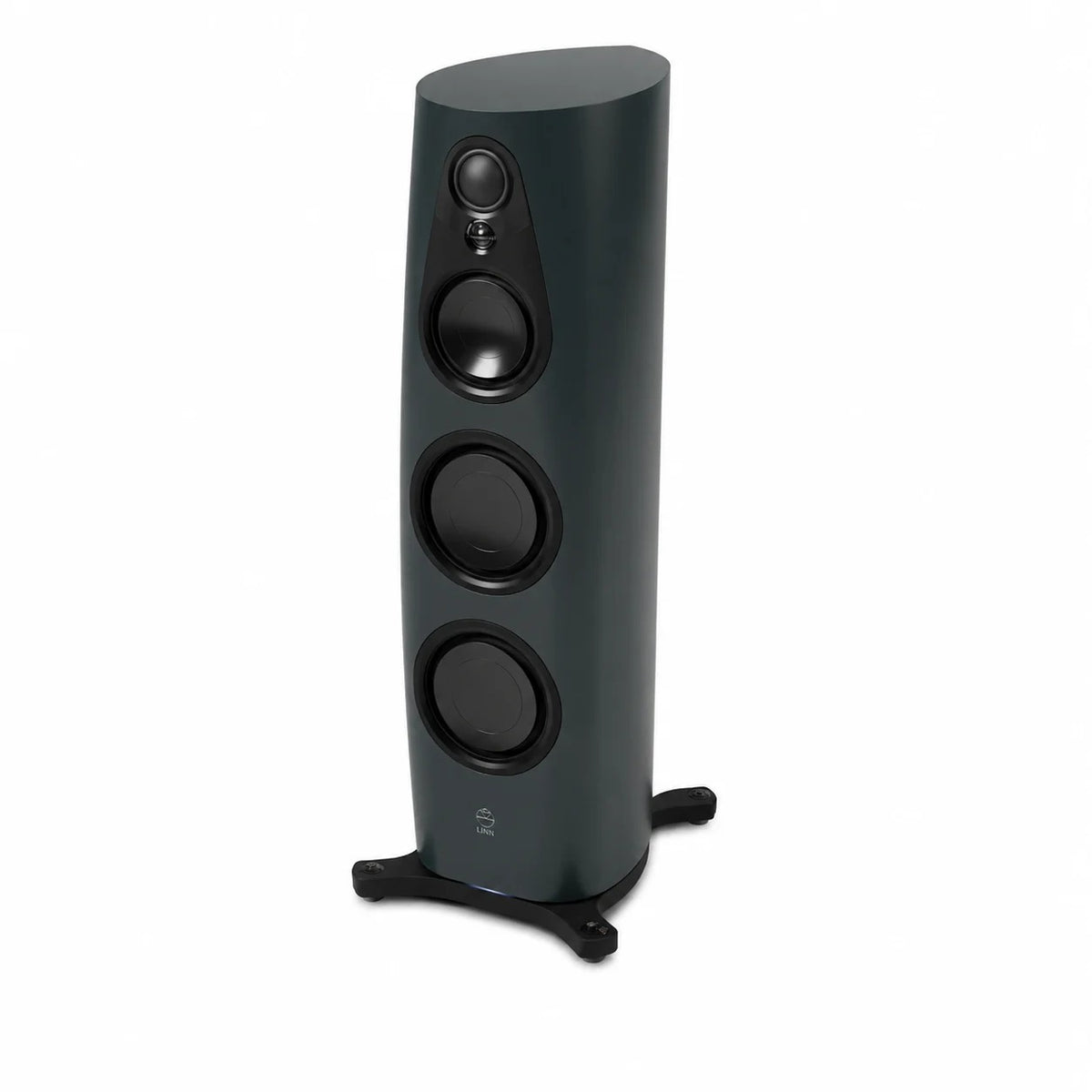

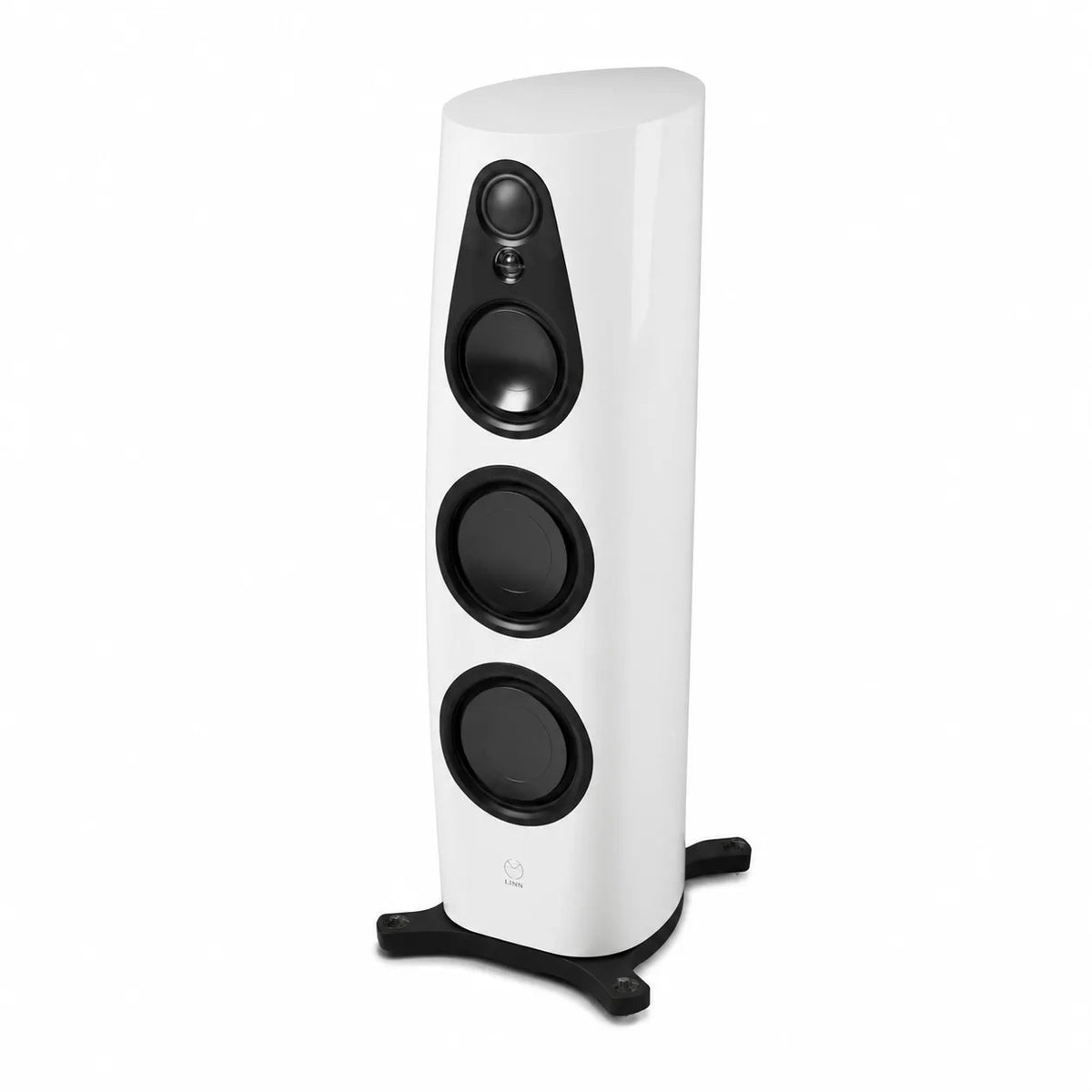

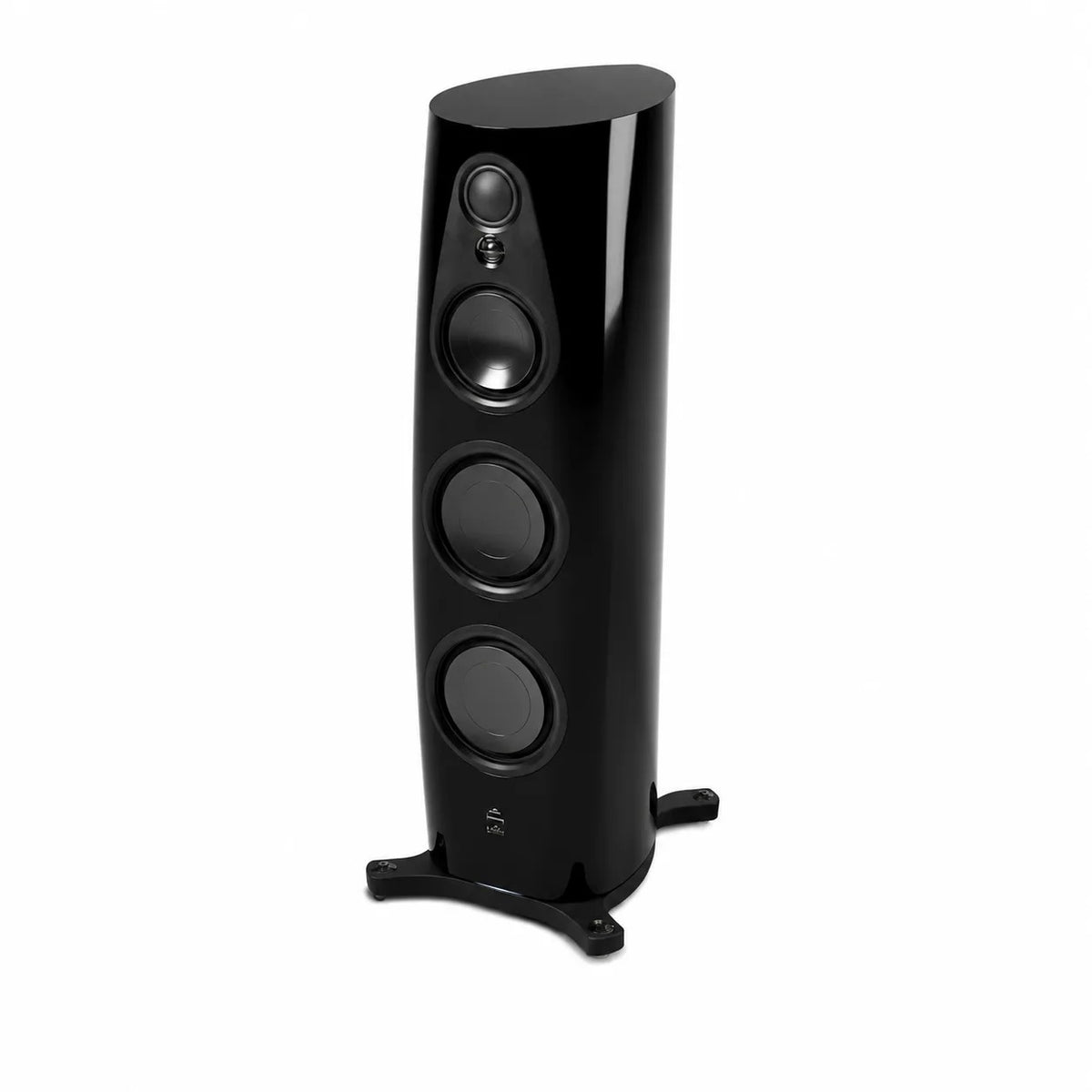

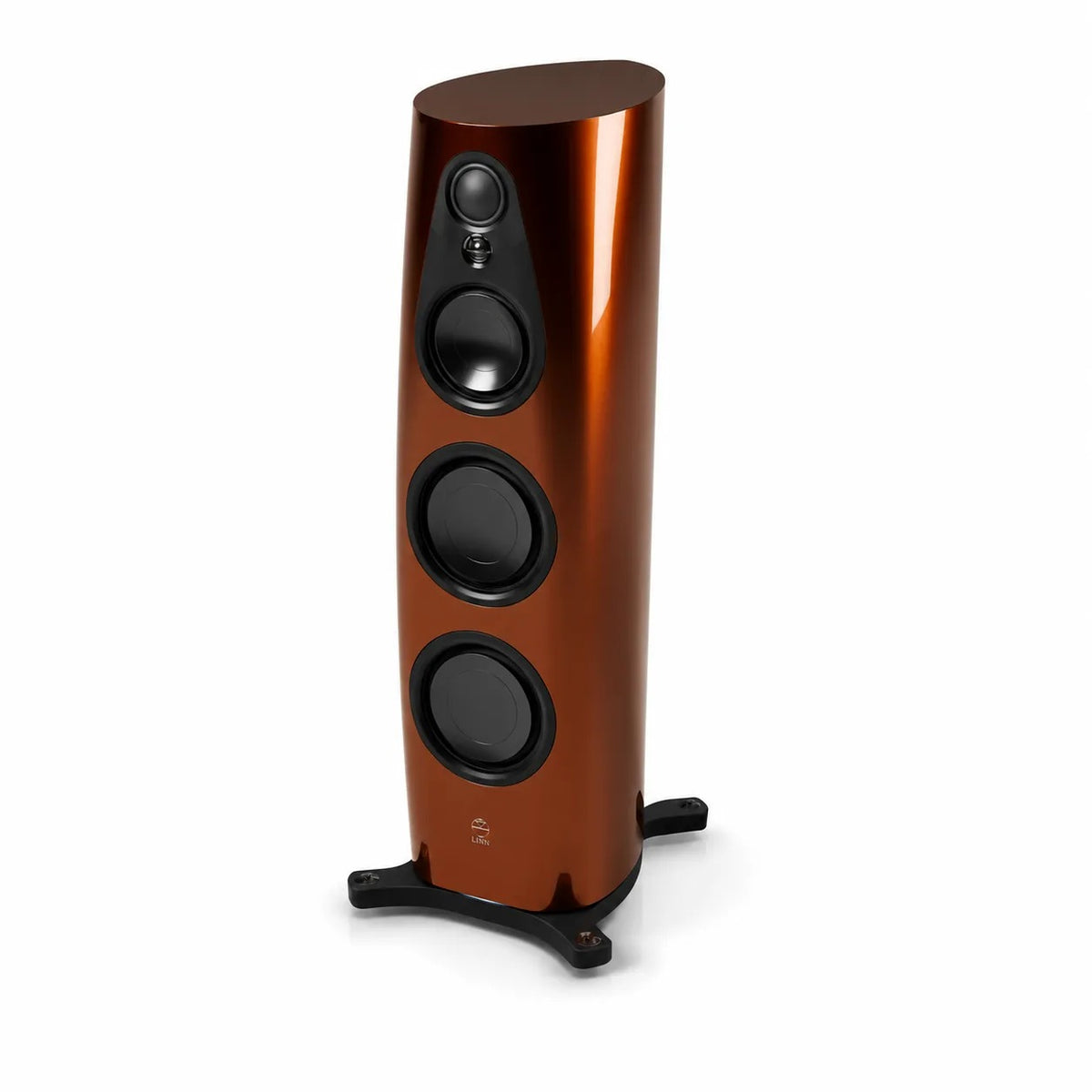

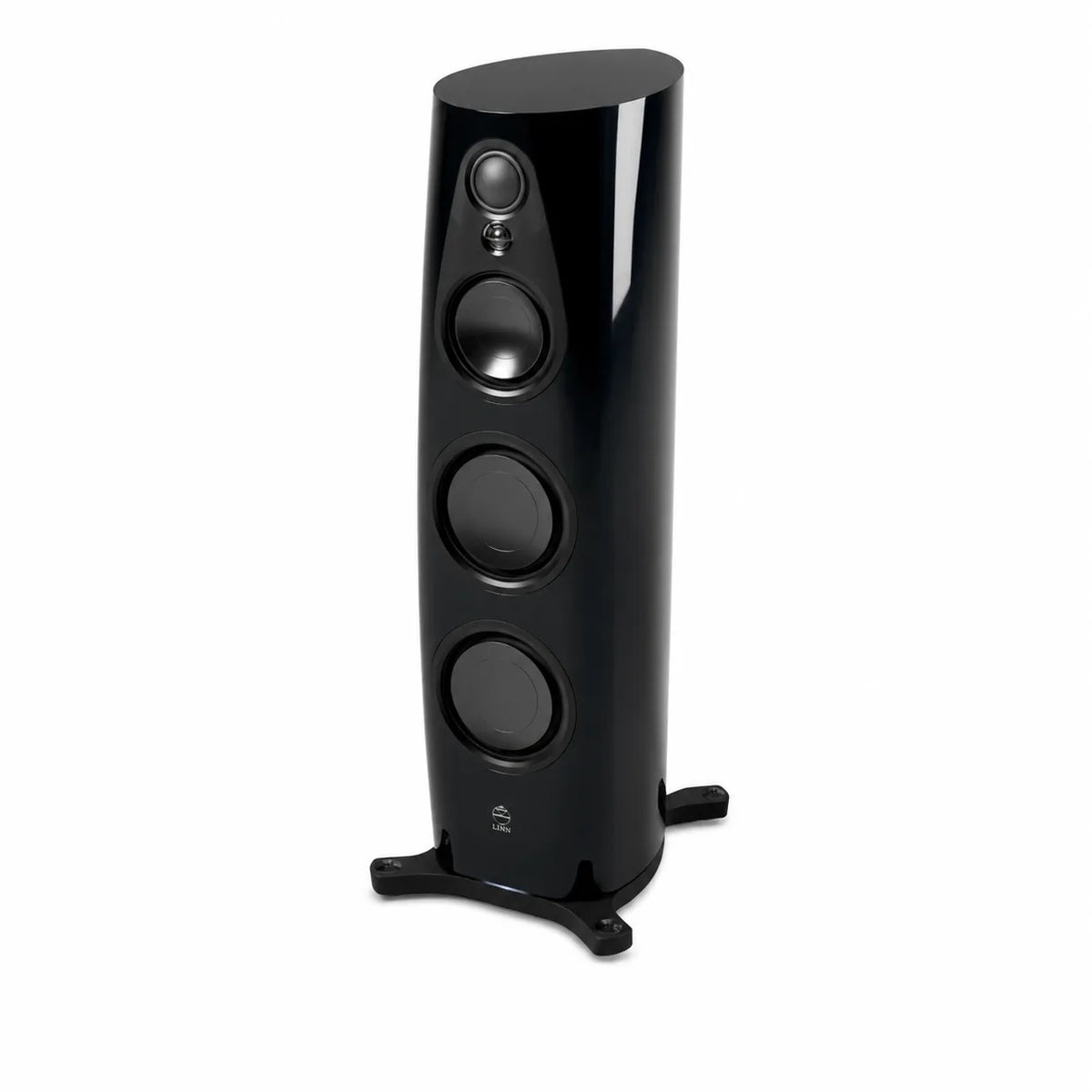

Choose from Walnut, Clyde Built, Single Malt, Linn Heritage, Alpine White, Piano Black or Triton.
Each cabinet finish can be paired with Natural Silver or Anodised Black machined-aluminium drive unit trim, creating fourteen available visual combinations.
The finish and trim can be selected to complement the room, surrounding furniture and connected Linn electronics.
Power DAC bass
The lower-bass system combines digital-to-analogue conversion and amplification within Linn’s internally powered Power DAC stage.
External amplification
The passive 360 Array is driven by separately selected amplification, allowing the wider system to be designed around the customer.
Engineered for clarity
Designed to reveal the performance rather than the speaker
The cabinet, drive units and bass electronics have been developed as a complete acoustic platform, with particular attention paid to controlling distortion and unwanted colouration.
The shaped baffle and flush-mounted drive units are designed to support consistent dispersion and a broad, stable presentation throughout the listening space.
Voices and instruments can therefore occupy clearly defined positions within the soundstage rather than appearing fixed to the cabinets.
Aktiv lower-bass control
Power DAC technology inside every Linn 360 PWAB
The lower-bass system combines digital-to-analogue conversion and amplification within a single Power DAC stage.
This internal system drives two 220 mm long-throw aluminium bass units in each loudspeaker, while the tweeter, midrange and upper-bass sections remain available for connection to the external amplification chosen for the system.
A system that can evolve
Begin with passive amplification and develop towards Exakt
The Linn 360 Passive with Aktiv Bass Floorstanding Speakers can be used with conventional external amplification for the passive 360 Array.
The loudspeakers can also be converted for use in an all-external Linn Exakt system with a compatible Klimax Exaktbox and suitable separate amplification.
The initial amplification, future upgrade path and complete connection architecture should be planned together before the system is ordered.
Technical Specifications
|
Category |
Specification |
Details |
|---|---|---|
|
General |
Model |
Linn 360 PWAB |
|
General |
Speaker Type |
Four-way floorstanding loudspeaker |
|
System Configuration |
Configuration |
Passive with Aktiv bass |
|
Amplification |
360 Array Amplification |
Separate external amplification required |
|
Digital Processing |
Exakt Compatibility |
Yes, with compatible external amplifiers and Exaktbox |
|
Crossover |
Type |
Analogue passive |
|
Bass System |
Lower-Bass System |
Internally powered using Linn Power DAC technology |
|
Room Correction |
Compatibility |
Available with a compatible Linn Network Music Player |
|
Upgrade Options |
Exakt Operation |
Available through an external Linn Exakt upgrade |
|
Connections |
Binding Posts |
Three pairs per speaker |
|
Connections |
XLR |
1 per speaker |
|
Connections |
Exakt Link |
Not used in the standard PWAB configuration |
|
Drive Units |
Tweeter |
19 mm dome |
|
Drive Units |
Midrange |
64 mm thin-ply woven carbon dome |
|
Drive Units |
Upper Bass |
190 mm aluminium and magnesium cone |
|
Drive Units |
Lower Bass |
Two 220 mm long-throw aluminium cone drive units |
|
Cabinet |
Volume |
60 litres |
|
Cabinet Finishes |
Natural Wood |
Walnut |
|
Cabinet Finishes |
Glasgow Collection |
Clyde Built, Single Malt and Linn Heritage |
|
Cabinet Finishes |
Classic Collection |
Piano Black and Alpine White |
|
Cabinet Finishes |
Signature Finish |
Triton |
|
Drive-Unit Trim |
Available Finishes |
Natural Silver or anodised black |
|
Dimensions |
Width with Stand |
411 mm |
|
Dimensions |
Height with Stand |
1,141 mm |
|
Dimensions |
Depth with Stand |
484 mm |
|
Weight |
With Stand |
70 kg per speaker |
