Linn Klimax DSM AV Network Music Player

Description

The Linn Klimax DSM AV is Linn’s flagship network music player and integrated preamplifier for systems bringing exceptional music and home entertainment together.

Organik digital-to-analogue conversion, Linn’s Utopik power supply and extensive analogue and digital connectivity are joined by HDMI 2.0 switching for compatible televisions, films, games and video sources.

The Linn Klimax DSM AV is Linn’s flagship network music player and integrated preamplifier, combining the reference-quality Organik digital-to-analogue converter (DAC) architecture with HDMI connectivity for music, television, films, and games. Powered by Linn’s Utopik power supply, it is engineered to deliver exceptional audio performance across a wide range of digital and analogue sources.

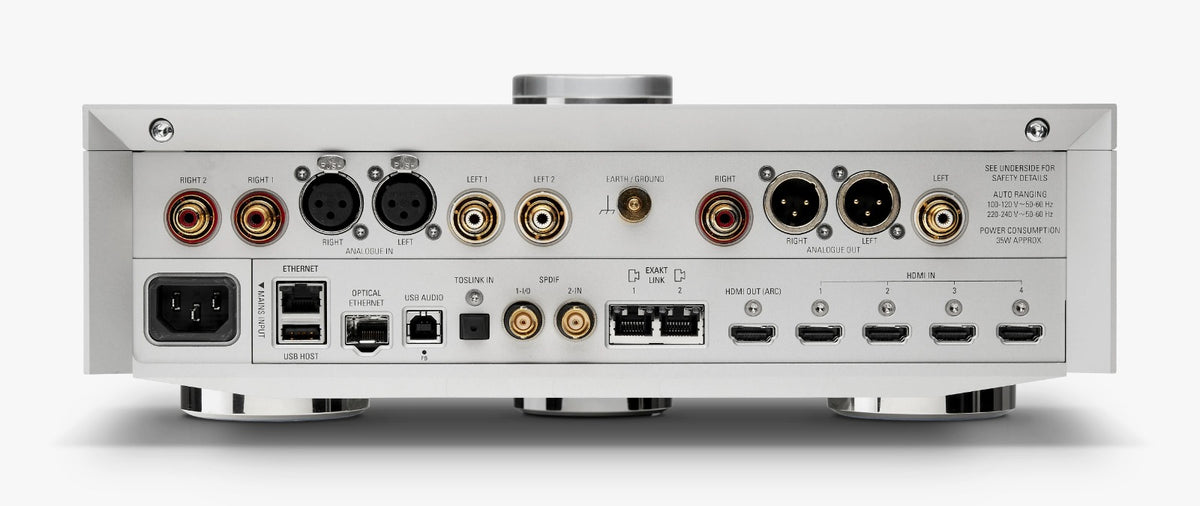

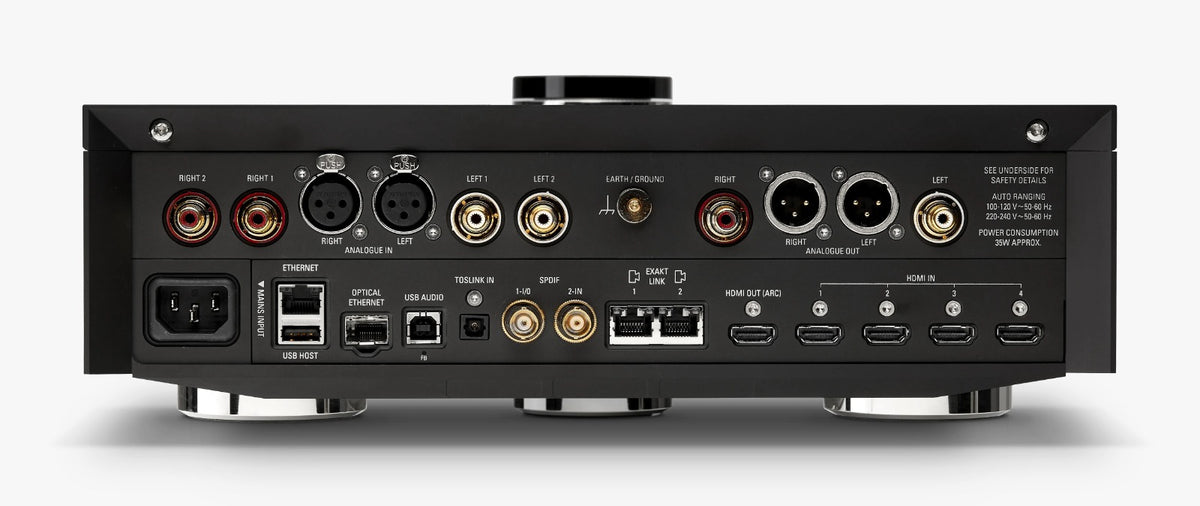

The Klimax DSM AV features four HDMI 2.0 inputs and one HDMI output with ARC and eARC, supporting compatible 4K video at up to 60 Hz. Its versatile connectivity includes analogue, optical, coaxial, and USB audio inputs, along with balanced XLR and unbalanced RCA outputs. Two Exakt Link connections allow integration with compatible Linn Exakt systems, while an optional surround-sound processing upgrade further expands its home entertainment capabilities.

Available in Silver or Black, the Klimax DSM AV combines sophisticated design with advanced audio technology and flexible system integration. Expert demonstrations, advice, and setup are available from Rococo Systems.

AV Model

This version adds HDMI connectivity for compatible televisions and entertainment sources. Choose either Silver or Black before ordering.

Designed Around Interaction

A Tactile Control Surface Machined with Extraordinary Precision

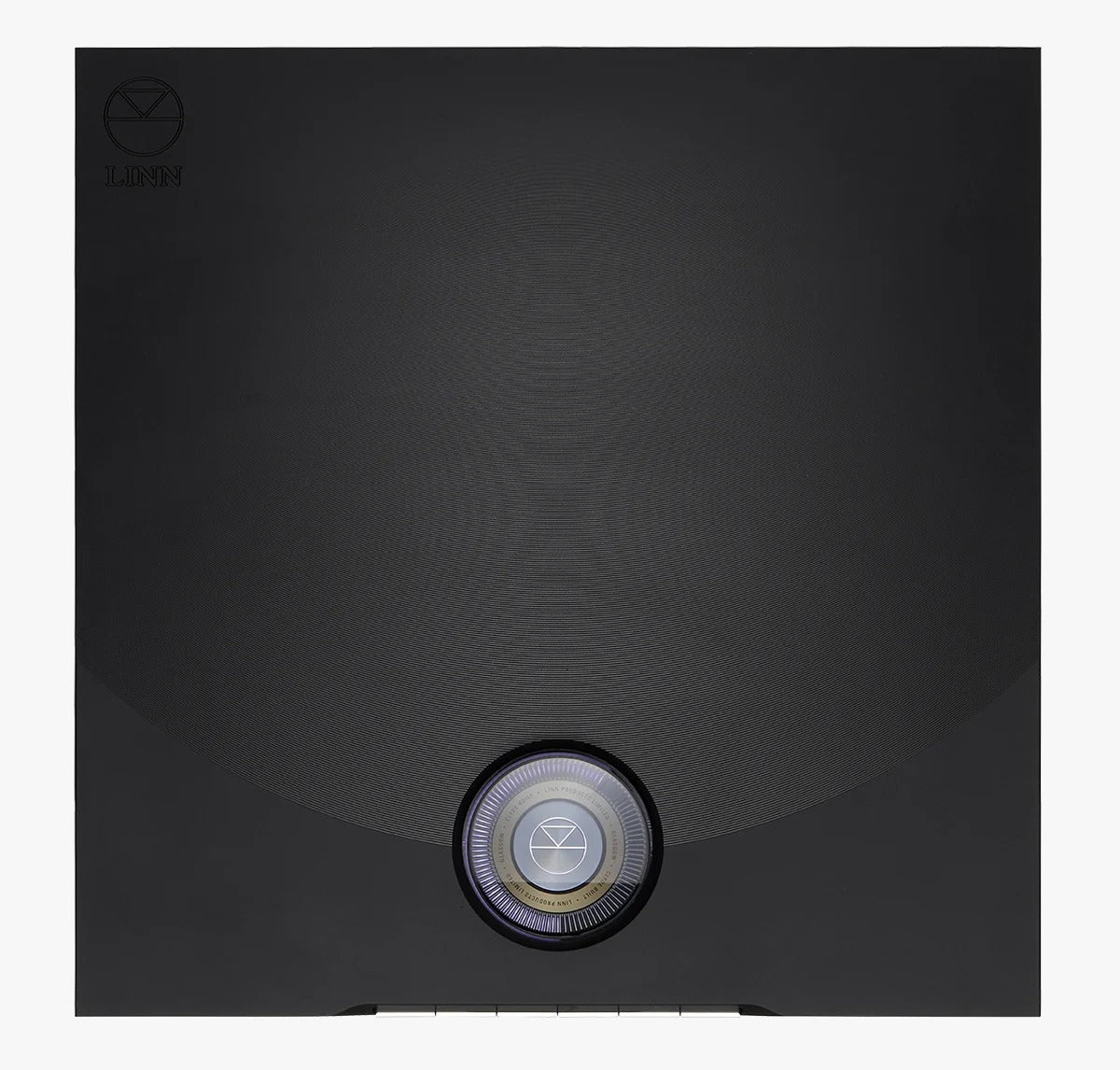

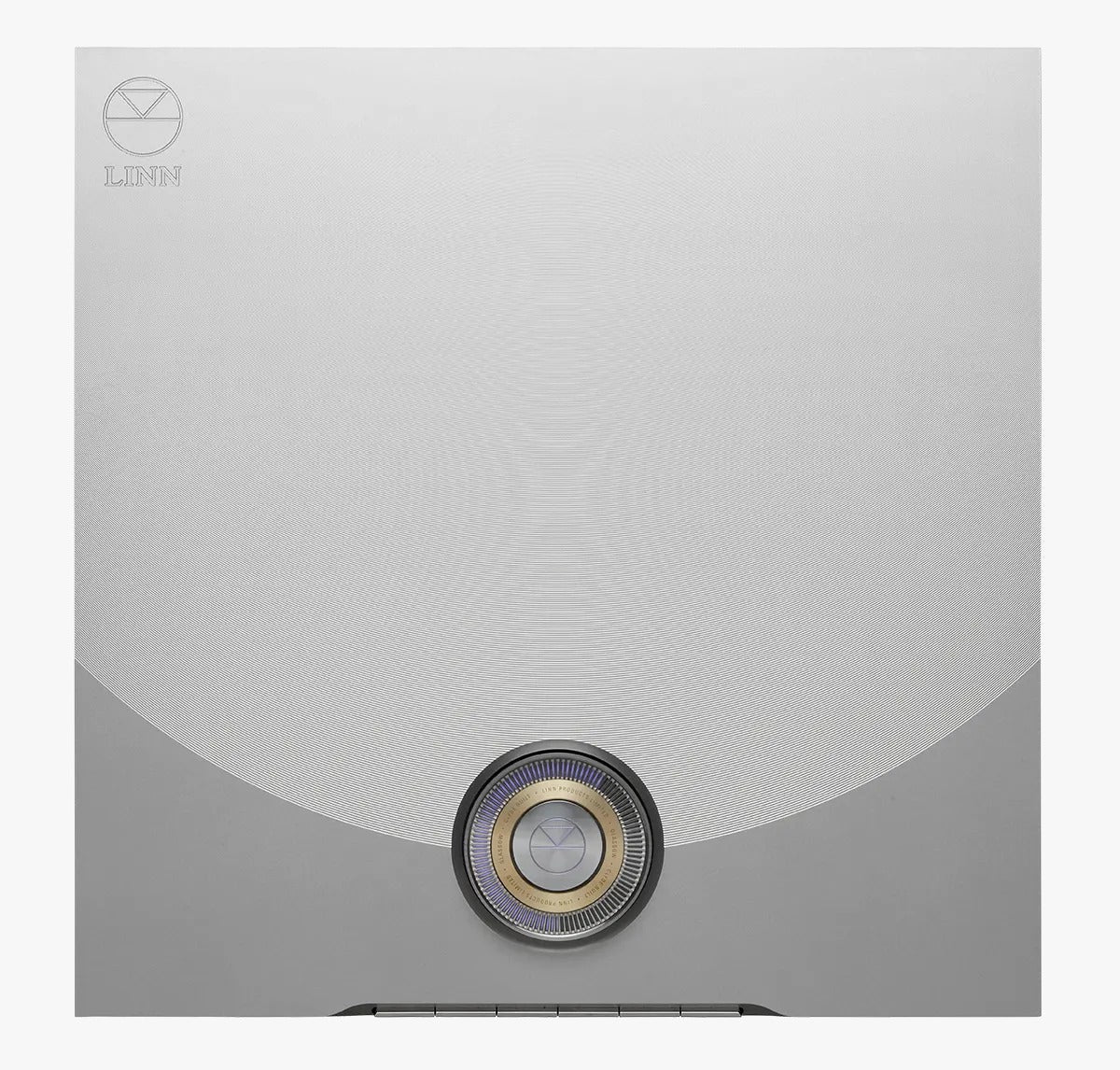

The upper control dial provides direct access to volume, playback, and favourite functions without requiring a phone or tablet. Illuminated sections respond to the selected function, while programmable smart buttons offer instant access to favourite music, playlists, radio stations, and connected sources.

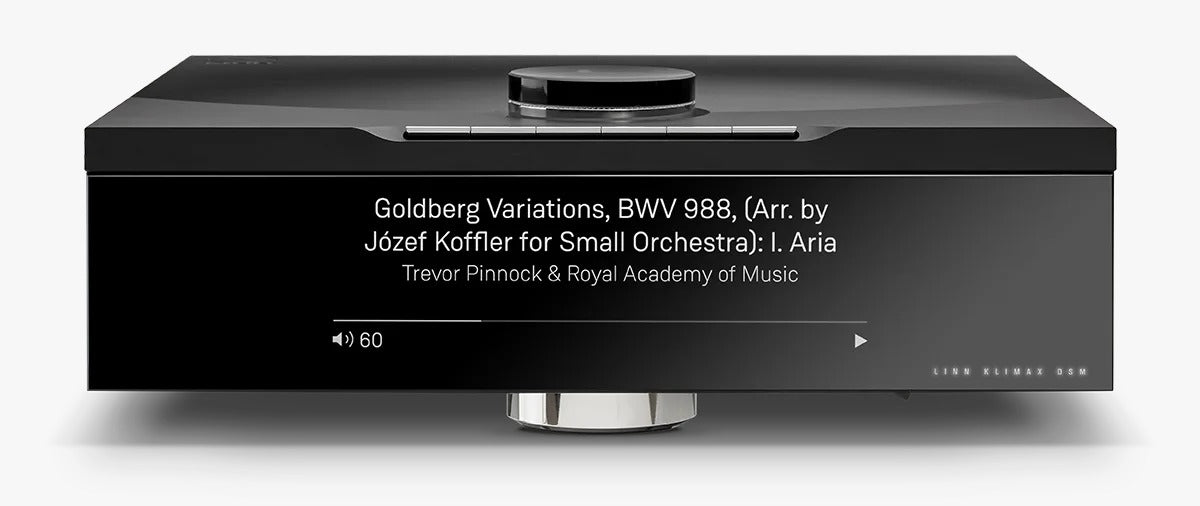

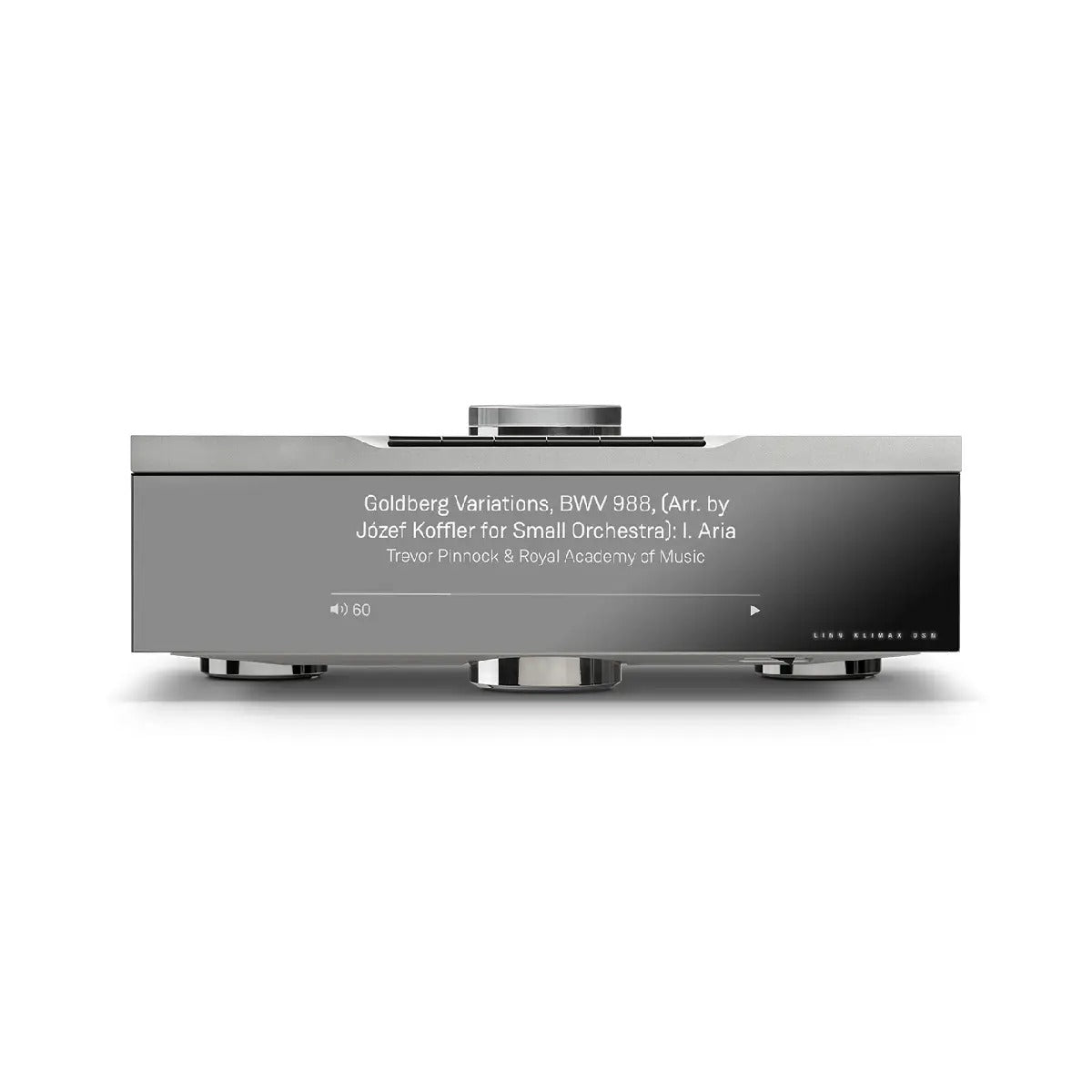

The front display presents album artwork, track information, and system details through an elegant, uncluttered interface, combining intuitive operation with the refined design of the Linn Klimax DSM.

One System for the Room

Reference Music Performance Without a Separate AV Receiver

The Linn Klimax DSM AV brings streaming, source selection, volume control, digital-to-analogue conversion, and HDMI switching together in one compact component. This integrated design simplifies system setup while delivering high-quality music playback and convenient home entertainment connectivity without requiring a separate AV receiver.

Its low-profile aluminium enclosure sits comfortably within a living space, combining refined aesthetics with the functionality of several conventional music and home-entertainment components. Available in Silver or Black anodised finishes, the Klimax DSM AV can be coordinated with Klimax amplification and the wider interior.

One System for the Room

Reference Music Performance Without a Separate AV Receiver

The Linn Klimax DSM AV brings streaming, source selection, volume control, digital-to-analogue conversion, and HDMI switching together in one compact component. This integrated design simplifies system setup while delivering high-quality music playback and convenient home entertainment connectivity without requiring a separate AV receiver.

Its low-profile aluminium enclosure sits comfortably within a living space, combining refined aesthetics with the functionality of several conventional music and home-entertainment components. Available in Silver or Black anodised finishes, the Klimax DSM AV can be coordinated with Klimax amplification and the wider interior.

Organik DAC

Linn’s reference digital-to-analogue conversion architecture is designed and manufactured in-house.

HDMI 2.0 and eARC

Four HDMI inputs and an eARC-enabled output connect compatible television and video sources.

Integrated preamplifier

Balanced and unbalanced analogue outputs allow direct connection to compatible power amplification.

Organik Conversion

Digital-to-Analogue Conversion Developed by Linn

The Linn Klimax DSM AV uses Linn’s Organik DAC architecture to convert digital music and compatible entertainment audio into an analogue signal. Designed and developed by Linn, the Organik DAC combines FPGA processing, a discrete conversion stage, and an analogue output architecture into one integrated system, rather than relying on a conventional off-the-shelf DAC solution.

This approach gives Linn precise control over the digital-to-analogue conversion process, including timing, filtering, and signal conversion, as well as the handling of the analogue signal before it leaves the player. The result is an audio architecture engineered to deliver the performance and refinement expected from Linn’s flagship network music player.

HDMI Connectivity

Connect Television, Films, Games and Video Sources

The Linn Klimax DSM AV features four HDMI 2.0 inputs, allowing compatible games consoles, streaming boxes, disc players, and other video sources to connect through a single integrated system.

One HDMI output connects to a compatible television or display and also supports eARC, allowing audio from the television to return to the Linn system through the same cable.

The HDMI implementation supports compatible 4K video at up to 60 Hz, along with HDR, HDCP 2.2, ARC, eARC, and CEC, providing convenient connectivity for modern home entertainment systems.

Optional Surround Processing

Develop the System Beyond Stereo

The Linn Klimax DSM AV can be upgraded with compatible Linn surround-sound processing, providing a pathway for customers looking to expand beyond stereo into a multichannel home entertainment system.

The ideal configuration depends on the room, intended use, and desired listening experience. Channel layout, amplification, DAC requirements, loudspeakers, and subwoofers should therefore be planned together to create a balanced, well-integrated system.

Rococo Systems can provide expert guidance on whether a high-performance stereo, 2.1-channel setup, or a larger surround-sound arrangement is best suited to the space and its intended use.

Powered by Utopik

A Cleaner Electrical Foundation for Every Source

The Linn Klimax DSM AV is powered by Linn’s Utopik power supply, designed to provide stable, efficient power to its sensitive streaming, processing, digital-to-analogue conversion, and analogue circuitry.

Power-supply design plays an important role in the overall performance of an audio component. Utopik is therefore an integral part of the Klimax DSM AV’s carefully engineered architecture, supporting its audio circuitry within a compact, precision-machined aluminium enclosure.

Music from Every Source

Streaming, Analogue, Digital and HDMI Inputs Together

The Linn Klimax DSM AV brings music from multiple sources into one integrated system. It supports playback from compatible network music libraries and streaming platforms, alongside internet radio and supported wireless sources.

Its range of analogue, optical, coaxial, USB, and HDMI inputs allows compatible turntable systems, disc players, computers, televisions, and other entertainment devices to be connected conveniently.

With integrated volume control, the Klimax DSM AV can connect directly to compatible power amplifiers, eliminating the need for a separate preamplifier and helping simplify the overall system.

High-Resolution Playback

Designed for Extensive Digital Music Libraries

The Linn Klimax DSM AV supports compatible PCM audio up to 24-bit/384 kHz and DSD playback up to DSD256, making it suitable for extensive collections of high-resolution digital music.

Supported audio formats include FLAC, Apple Lossless (ALAC), WAV, DSD, MP3, WMA, AIFF, AAC, and OGG, providing flexibility across a wide range of digital music libraries.

Playback and system control are available through the Linn App, supported streaming platforms, compatible control systems, or the player’s physical controls, allowing users to choose the method that best suits their listening experience.
