Linn Selekt DSM Edition Hub

Description

Edition Hub is a superior-quality enclosure, featuring an all-machined construction for improved rigidity, interior isolation, and elevated aesthetic appeal with sleek sight lines, concealed joins and understated luxury at the fore.

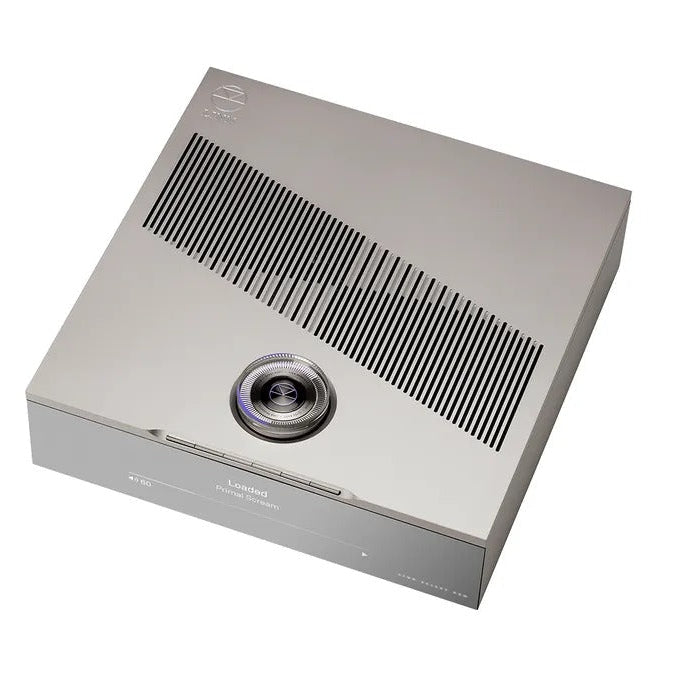

Providing both requisite heat management and high design appeal, the primary vent of Edition Hub is precision-cut into its aluminium plate lid. The vent itself is evocative of a wave, with each aperture cut at an angle, and only every second one machined all the way through. When viewed from different angles, this wave motif morphs and ripples with myriad reflections projected from its various finishes and surfaces.

Edition Hub features a much-improved, eye-catching control dial. Its precision, turned-stainless-steel bearing ensures silky, tactile rotation when adjusting volume; and the photo-etched steel halo around its edge allows cool, sharp light to emanate from the one hundred individual LEDs beneath.

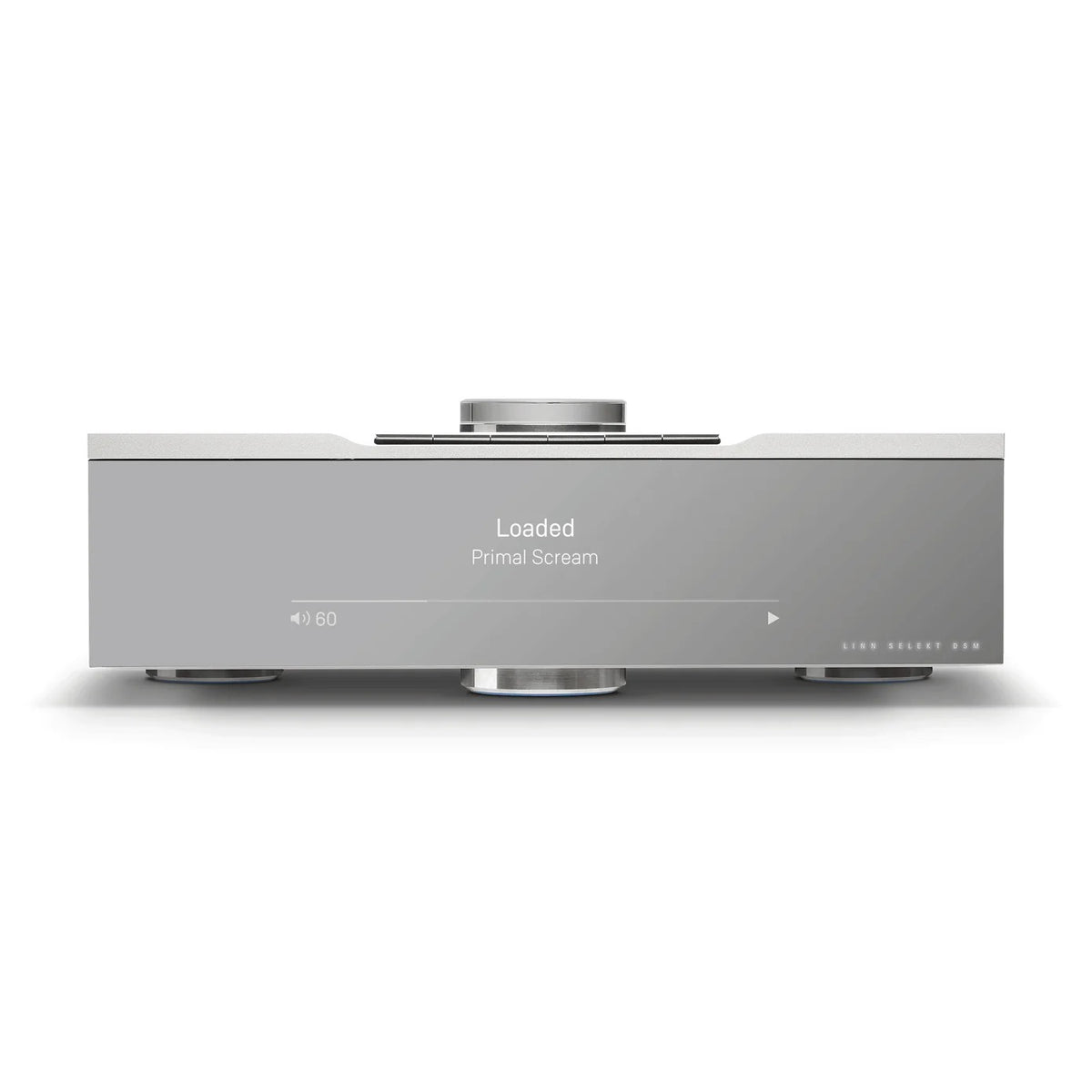

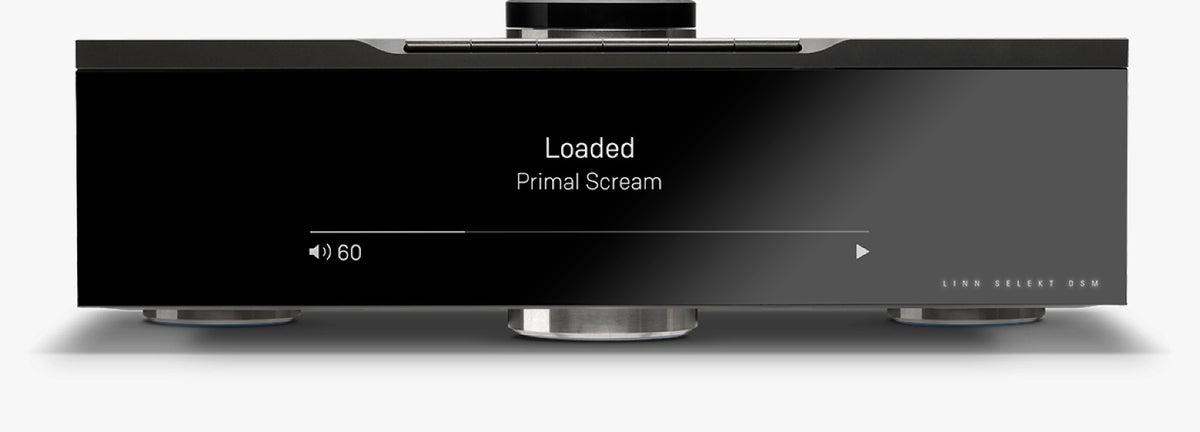

The all-glass fascia of Edition Hub is composed of mirrored spy glass; with the large-format display concealed behind it displaying crisp, clear information when necessary, and fading to total invisibility when not.

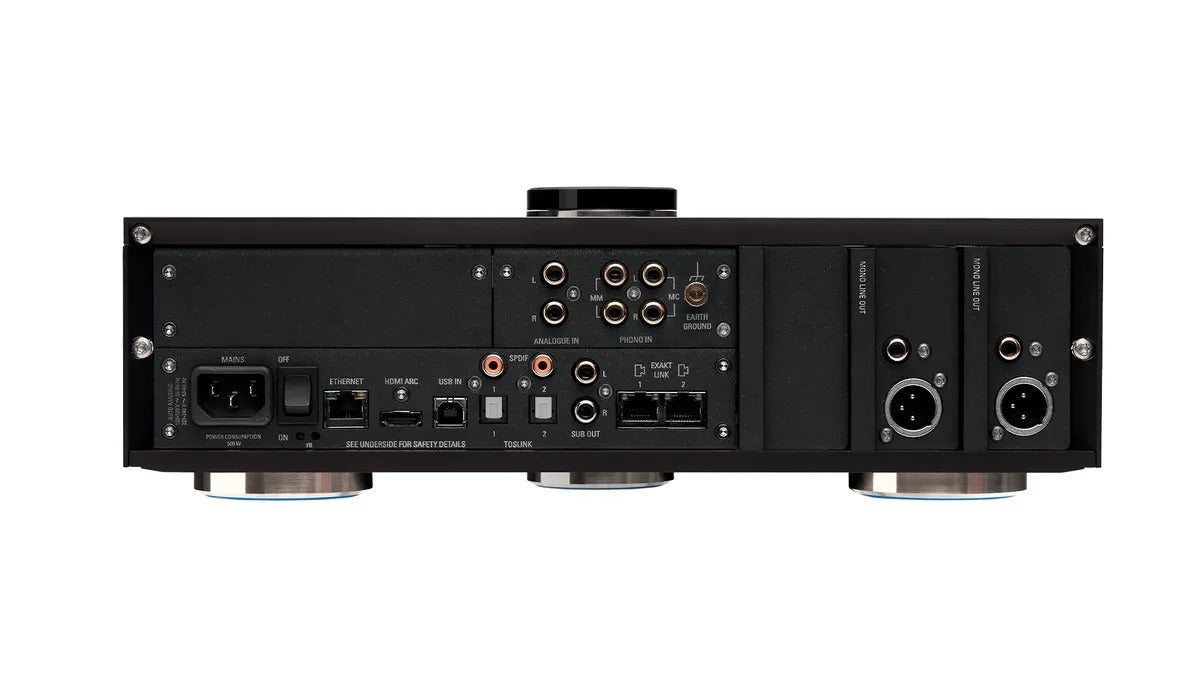

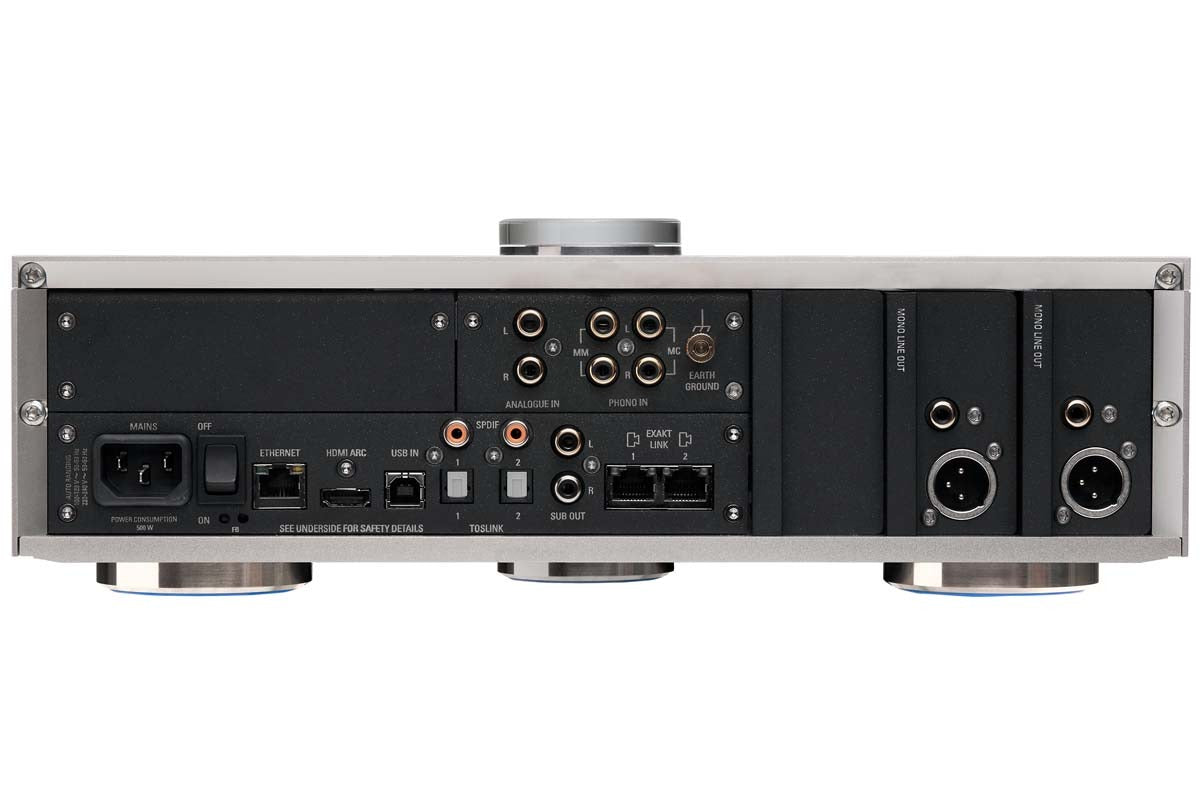

A broad range of connections on Edition Hub’s back panel ensures that it can receive, process and expertly deliver audio from any source imaginable. Edition Hub features, as standard, Linn’s all-new, exceptionally efficient, highly responsive, and precision-regulated power supply design our best yet Utopik.

Features

The Linn Selekt DSM Edition Hub combines the flexibility of Linn’s modular Selekt DSM platform with a premium precision-machined aluminium enclosure. It can be configured as a dedicated network music player, preamplifier, integrated amplifier, Exakt system hub or multichannel entertainment centre, with the final performance and functionality tailored to the system.

The Linn Selekt DSM Edition Hub is a premium, modular network music player designed to serve as the foundation of a configurable Linn music system. Combining flexible performance options with precision-machined aluminium construction, it allows users to tailor their system to their listening preferences and requirements.

Its all-machined aluminium enclosure is available in elegant Black or Silver finishes, while a choice of Standard, Katalyst or Organik DAC configurations provides different levels of digital-to-analogue conversion performance. Configurable analogue outputs and integrated amplification options offer further flexibility when building a complete audio system.

The Selekt DSM Edition Hub provides versatile connectivity, including MM and MC phono inputs, digital and USB connections, and HDMI eARC for compatible television audio. Linn’s Utopik power supply supports the system’s electrical design, while Exakt Link enables digital integration with compatible Linn Exakt components. Linn Space Optimisation helps adapt system performance to the listening room and loudspeaker placement, bringing together modular design, advanced connectivity and room-aware audio configuration in one sophisticated hub.

Linn Selekt DSM Edition Hub

The Linn Selekt DSM Edition Hub is the premium enclosure within Linn’s configurable Selekt DSM range. It uses Linn’s modular cartridge architecture, allowing the required digital-to-analogue conversion, analogue outputs, integrated amplification and entertainment modules to be selected around the wider system.

Premium machined-aluminium construction

The Edition Hub is built from precision-machined aluminium sections designed to provide greater structural rigidity and improved isolation for the internal electronics.

Its concealed joins, mirrored-glass front fascia and sculpted ventilation pattern create a more refined finish than the folded-aluminium Classic Hub.

Configure the system you need

Selekt DSM Edition Hub can be configured as a source-only network music player, an analogue preamplifier, an integrated amplifier or part of a compatible surround-sound system. The final configuration depends on the loudspeakers, power amplifiers, connected sources, required DAC performance and future upgrade plans.

Choice of DAC performance

Compatible Selekt DSM output cartridges can be partnered with Standard, Katalyst or Organik DAC modules.

Standard DAC provides the entry point to the platform, Katalyst offers Linn’s established higher-performance conversion architecture, and Organik represents Linn’s current reference DAC technology. The selected DAC module is added separately and is not included within the starting Edition Hub price.

Analogue outputs and integrated amplification

Stereo line-output cartridges allow Selekt DSM to connect to compatible external power amplifiers. Stereo power-output cartridges add onboard amplification, allowing suitable passive loudspeakers to connect directly to the hub.

Hybrid and mono cartridge options support more specialised systems, including multi-amplified and dual-mono configurations.

Streaming and high-resolution playback

Selekt DSM Edition Hub can play compatible music stored on a network and access supported streaming platforms and internet radio services. It supports compatible audio up to 24-bit/384 kHz, alongside formats including FLAC, Apple Lossless, WAV, DSD, MP3, WMA, AIFF, AAC and OGG.

Supported services may include TIDAL, Qobuz, Spotify Connect, Deezer, AirPlay 2, Roon and internet radio. Availability and subscriptions may vary over time.

Analogue and digital source connectivity

The Edition Hub includes moving-magnet, moving-coil and line-level analogue inputs for compatible turntables and other analogue sources. Optical, SPDIF and USB audio connections allow computers, disc players, televisions and other suitable digital components to become part of the same system.

Television and HDMI integration

An HDMI eARC connection allows audio from a compatible television to play through the Linn system.

The optional HDMI switching module adds four HDMI inputs and one HDMI output for compatible streaming devices, games consoles and disc players. The required HDMI and surround modules are configured separately according to the installation.

Optional surround sound

With the appropriate DSP, HDMI, DAC and output modules, Selekt DSM Edition Hub can become the control centre for a compatible multichannel system. The final channel arrangement depends on the cartridges, amplification, loudspeakers and subwoofers selected.

Exakt connectivity

Two Exakt Link connections allow the Edition Hub to connect digitally to compatible Linn Exakt loudspeakers and Exaktbox products. This enables the hub to remain at the centre of the system as it develops from conventional passive loudspeakers to an Exakt configuration.

Linn Space Optimisation

Linn Space Optimisation can model how the room and practical loudspeaker positions affect low-frequency performance. The configuration can account for room dimensions, construction materials, loudspeaker placement and the principal listening position.

Professional setup helps tailor the system to the actual room rather than relying on broad, one-size-fits-all correction.

Utopik power supply

The Linn Selekt DSM Edition Hub uses Linn’s Utopik power-supply architecture. It is designed to provide clean, stable and responsive power to the streaming platform and the audio modules installed within the enclosure.

Physical controls and display

The Edition Hub includes a precision control dial surrounded by an illuminated halo, together with six programmable smart buttons. These buttons can provide direct access to favourite music, playlists, radio stations and connected sources.

A large concealed display presents music and system information through the mirrored-glass fascia when required.
