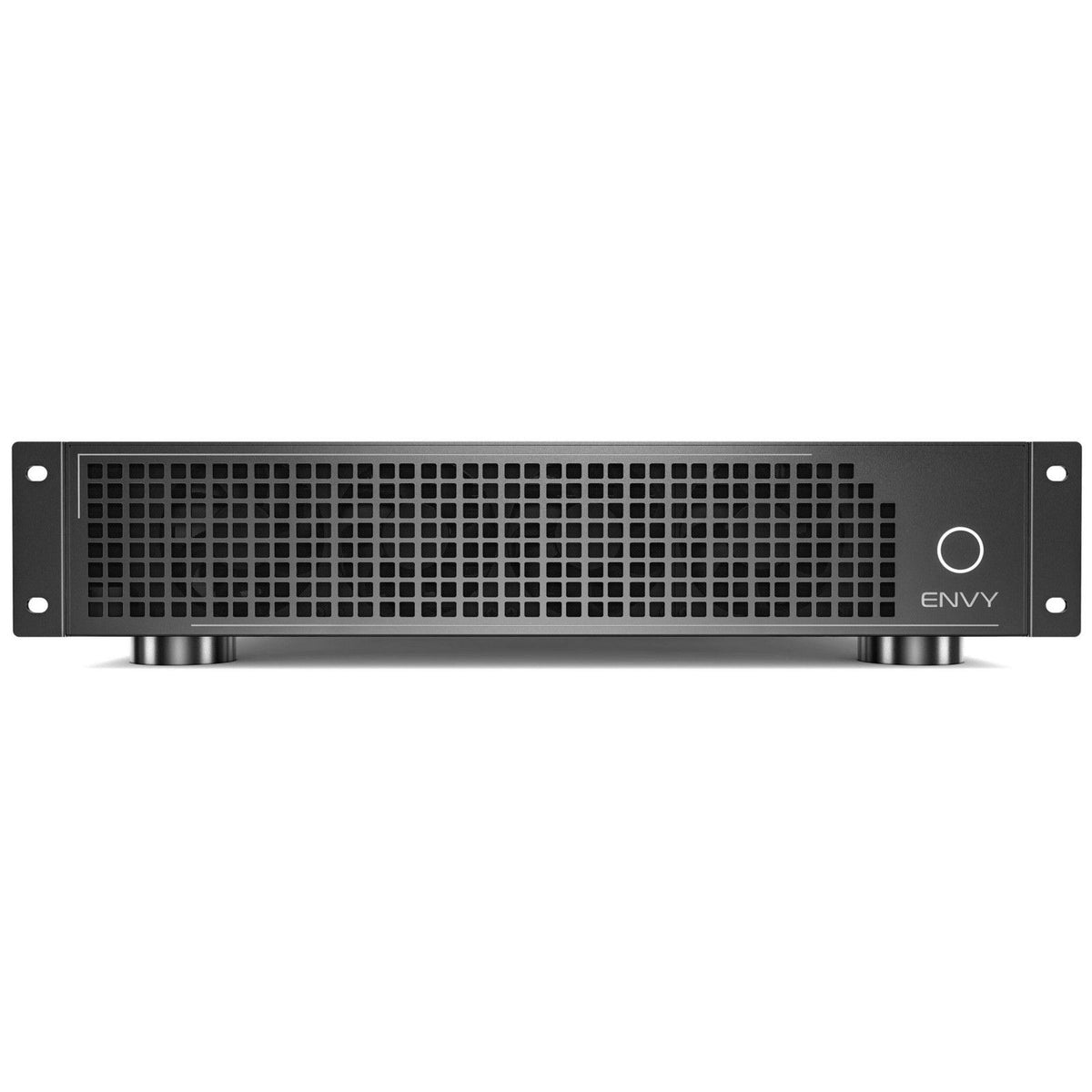

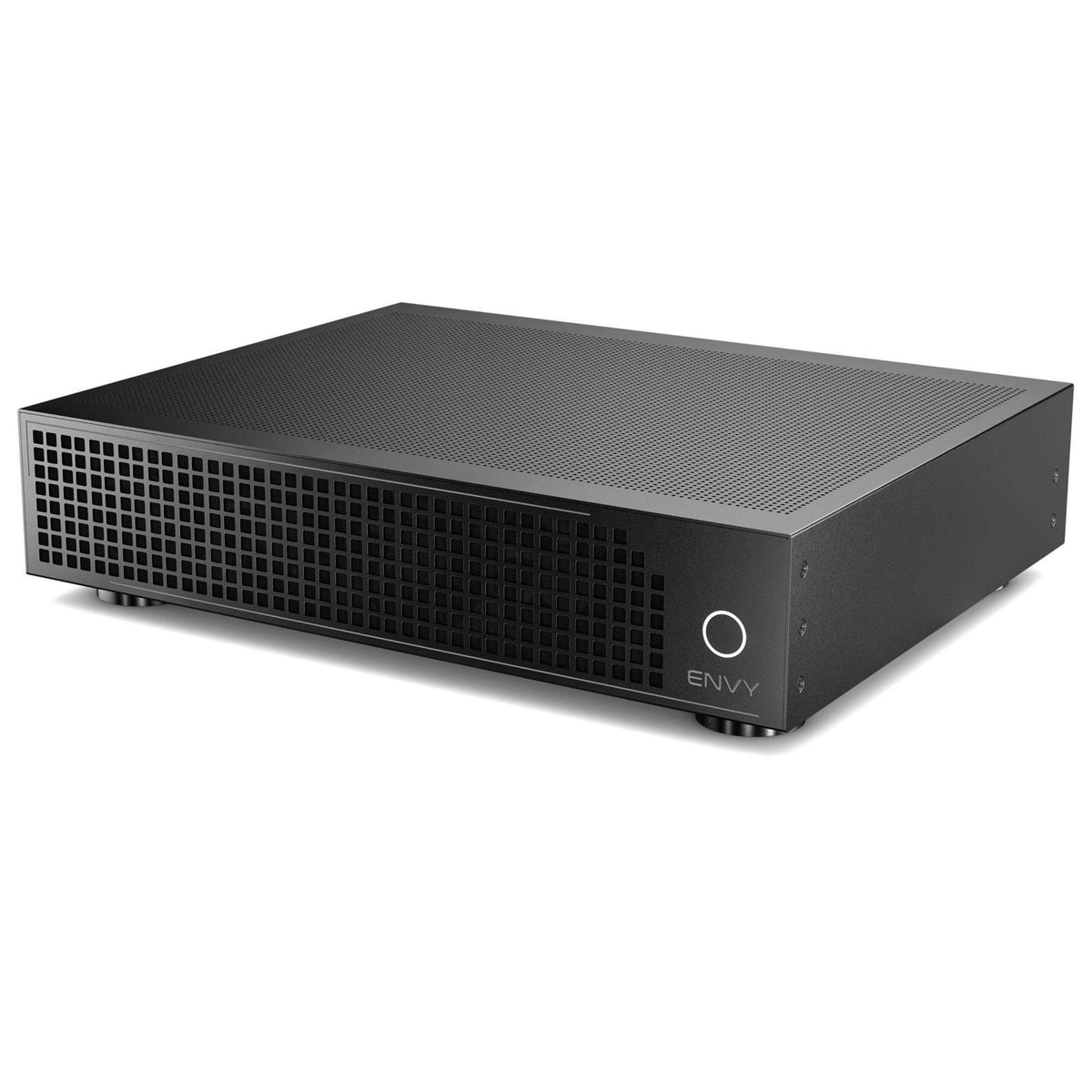

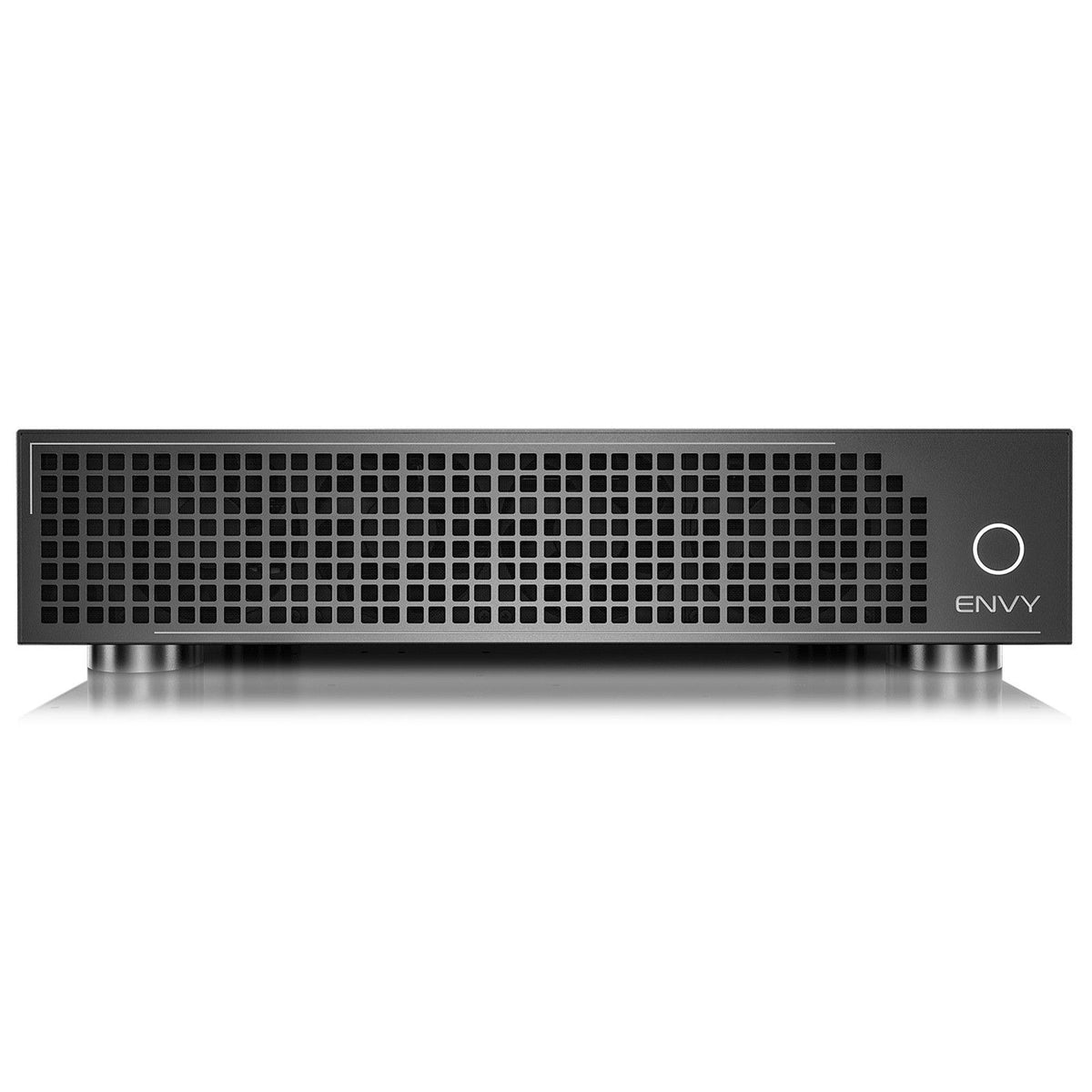

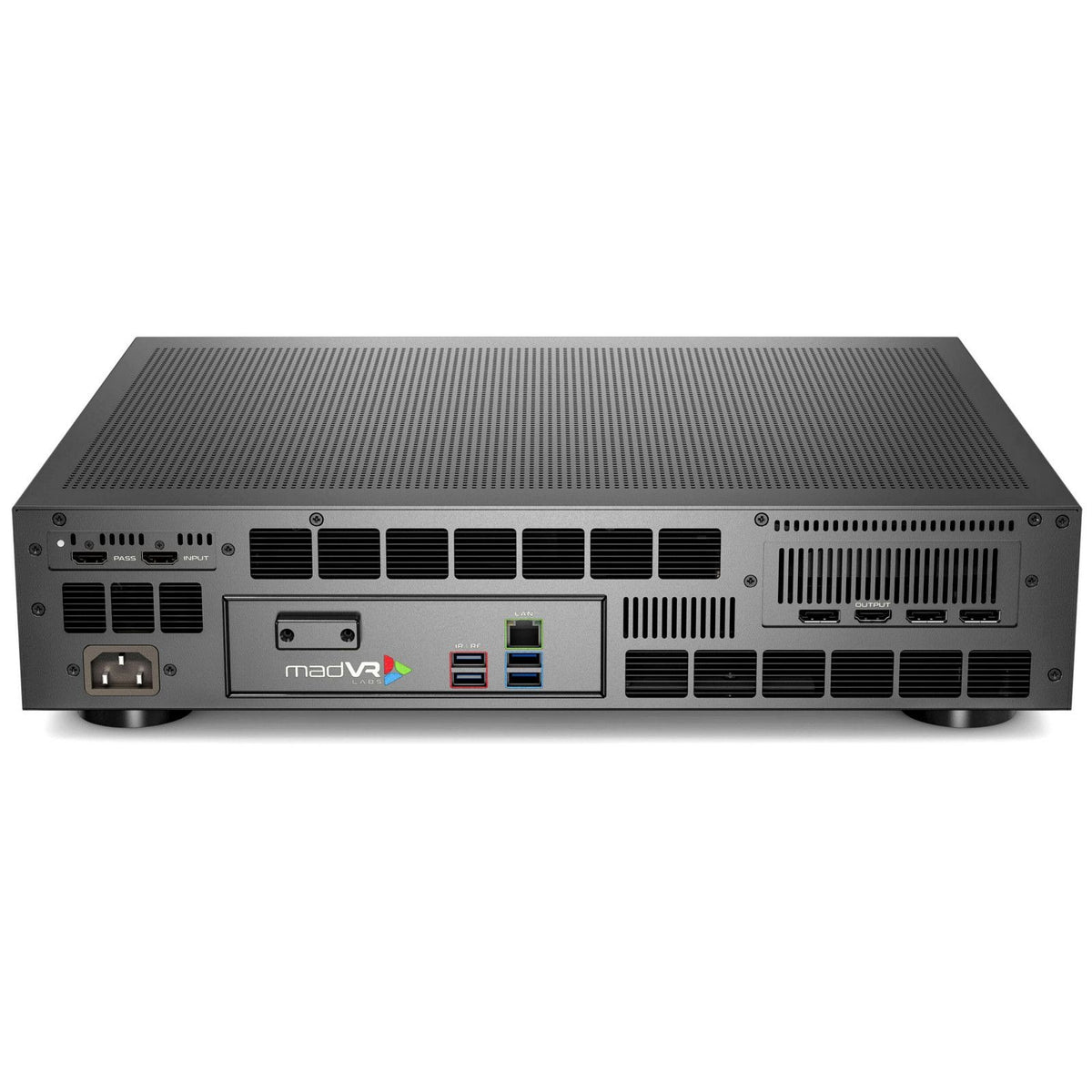

madVR Envy Core MK1 Video Processor

The entry point into the Envy range. Frame by frame HDR tone mapping, AI upscaling and aspect ratio management in the same compact 2U chassis as Core MK2, at the most accessible price in the lineup.

Envy Core MK1 brings madVR's core video processing engine to smaller budgets without cutting the fundamentals. It delivers frame by frame HDR dynamic tone mapping, AI upscaling to 4K and Non Linear Stretch aspect ratio management from a compact 2U chassis that fits any equipment rack.

Core MK1 runs on a 4 core, 8 thread CPU with standard single channel RAM and supports up to 50 calibration profiles. Add the Core Premium Package to unlock AI driven compression artifact, grain, banding and ringing reduction, Dynamic Subtitle Overlay, and to double the warranty from two years to four.

Technical Specifications

Specification	Details
Model	Envy Core MK1 (CORE MK1)
CPU	4 cores, 8 threads; standard single-channel RAM
HDMI Input and Output	HDMI 2.0, 18 Gbps; HDCP 2.2
Pass-Through Port	Zero-latency pass-through port
Maximum Input Signal	12-bit 4:2:2 at 4K60
Maximum Output Signal	12-bit 4:4:4 at 4K60
Upscaling	AI upscaling to 4K60
Enhanced Output Resolution	5K and 8K output with Core Premium Package
3D LUT Calibration	Up to 256³
1D LUT Calibration	4,096-point 1D LUTs
Calibration Profiles	Up to 50 profiles as standard
Chassis	2U rack-mount chassis with rack ears included
Dimensions (W × D × H)	438 × 343 × 104 mm
Power Consumption	60 W–205 W
Power Requirements	100–240 V
Remote Control	RC1 remote included
Warranty	2 years; extendable to 4 years with the Core Premium Package
