Marantz

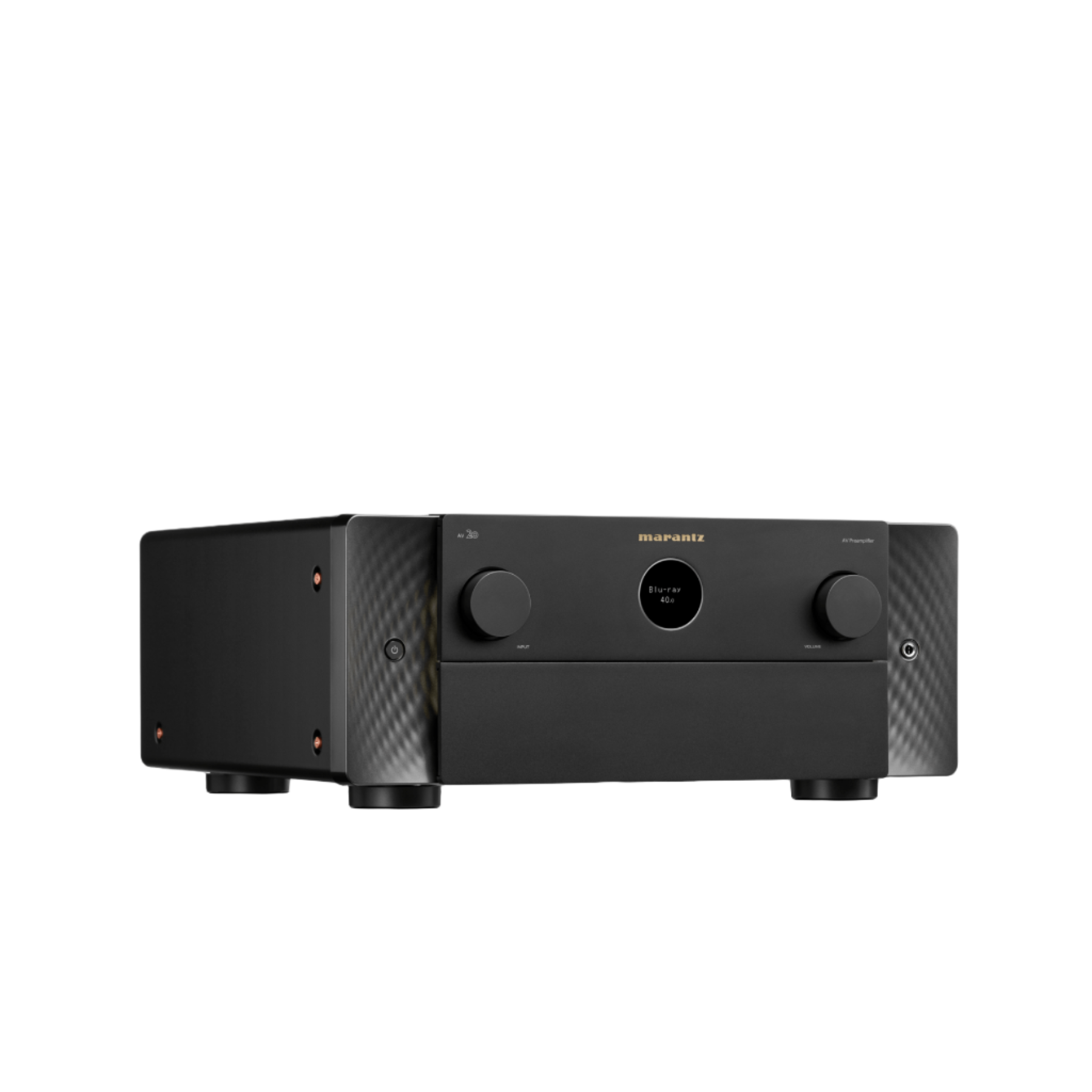

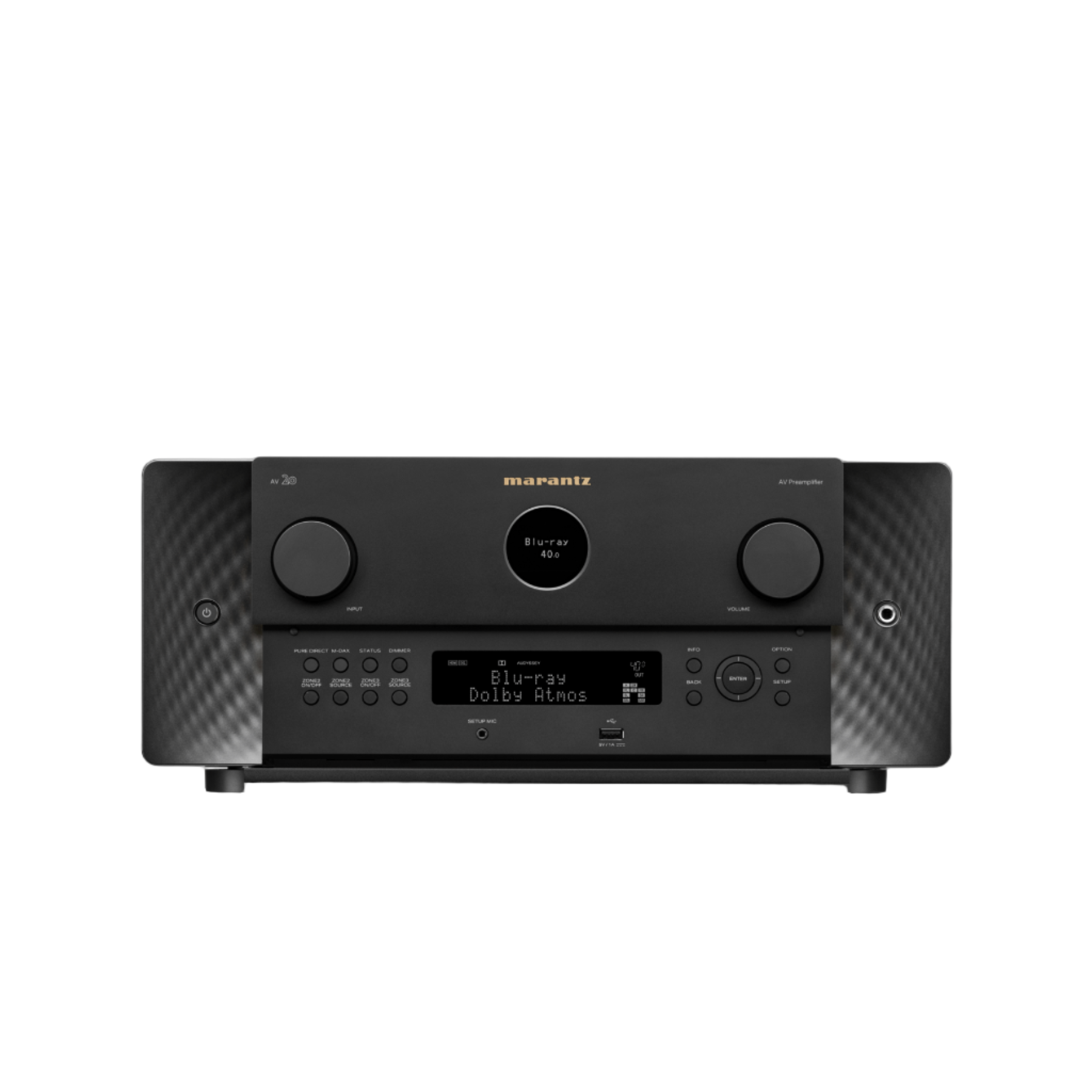

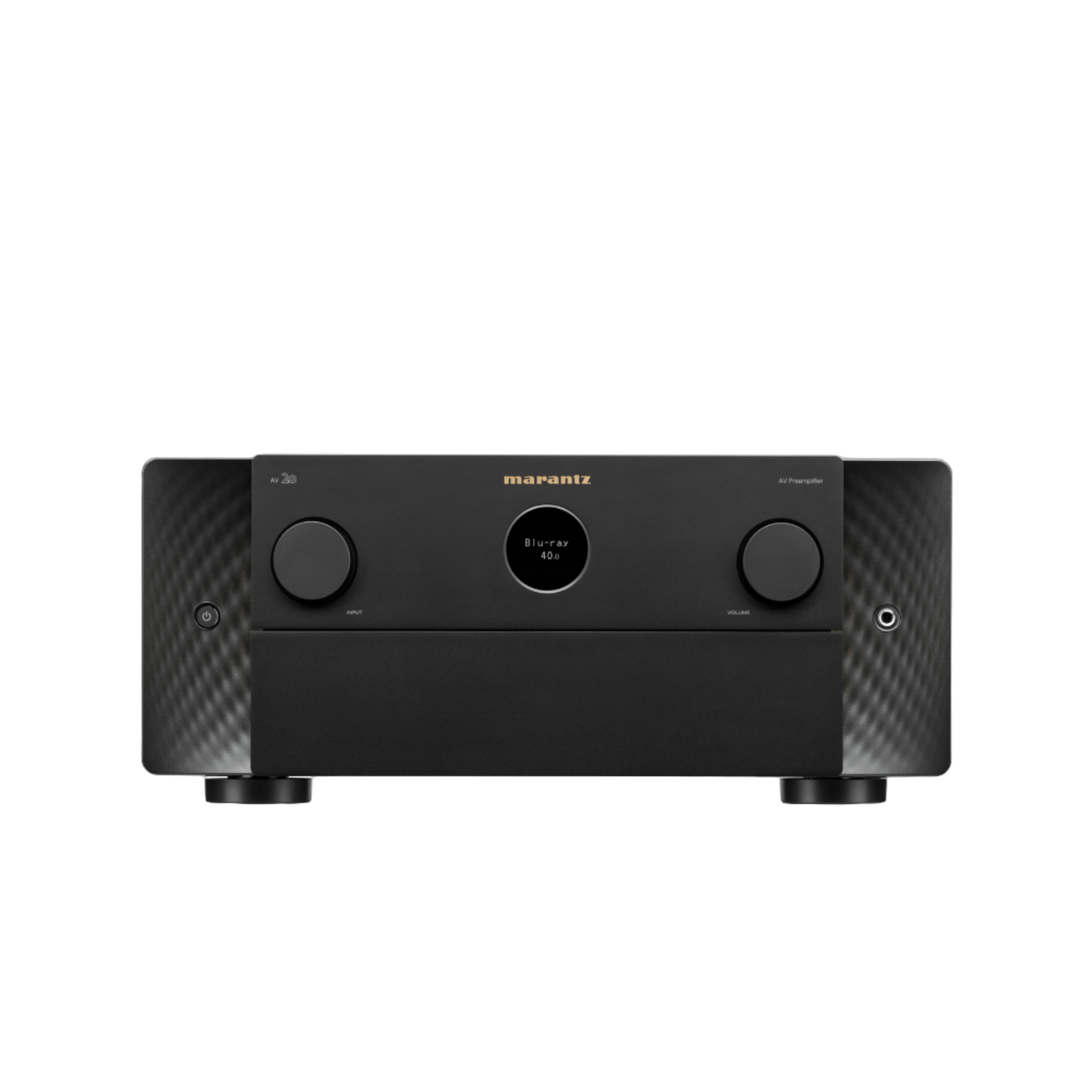

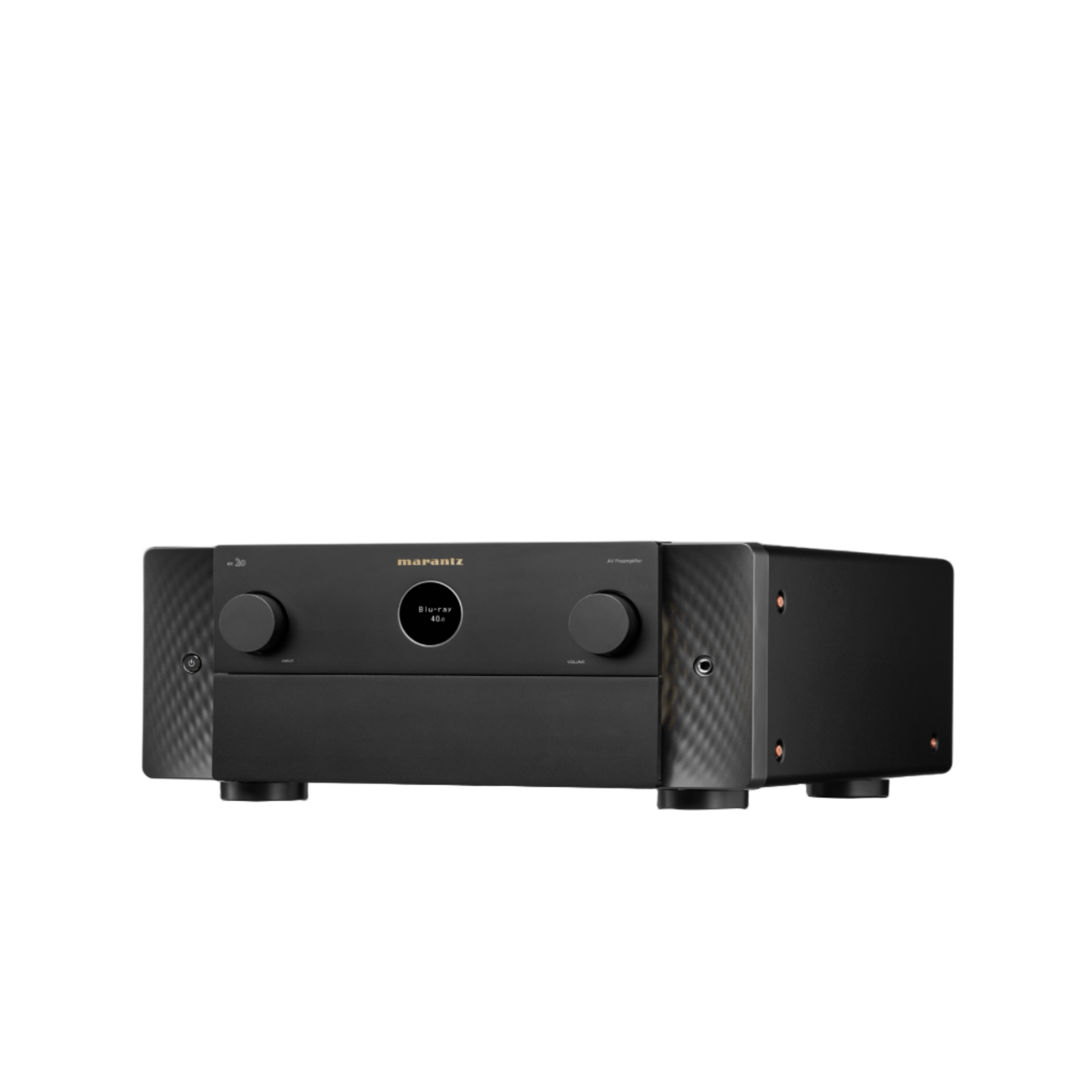

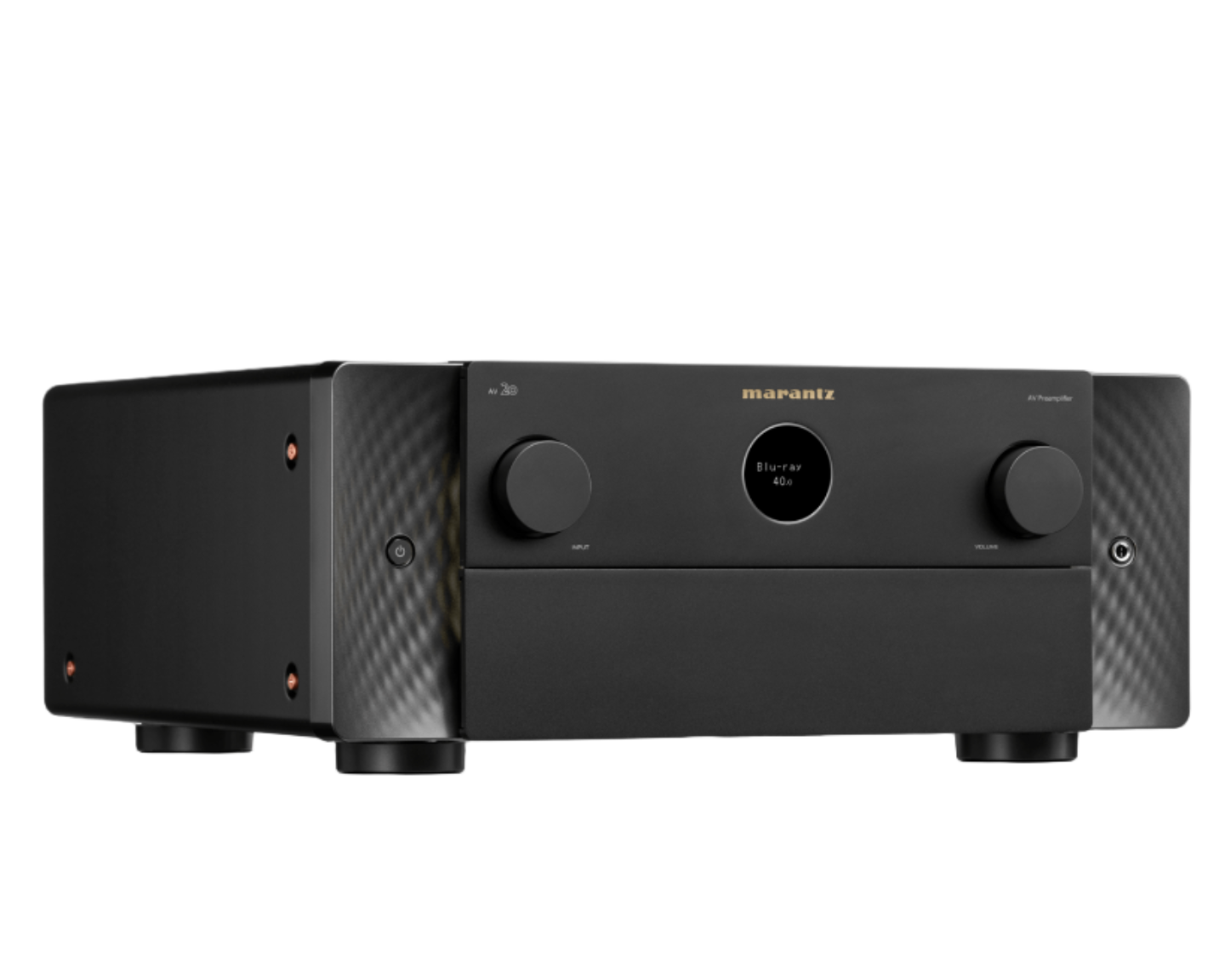

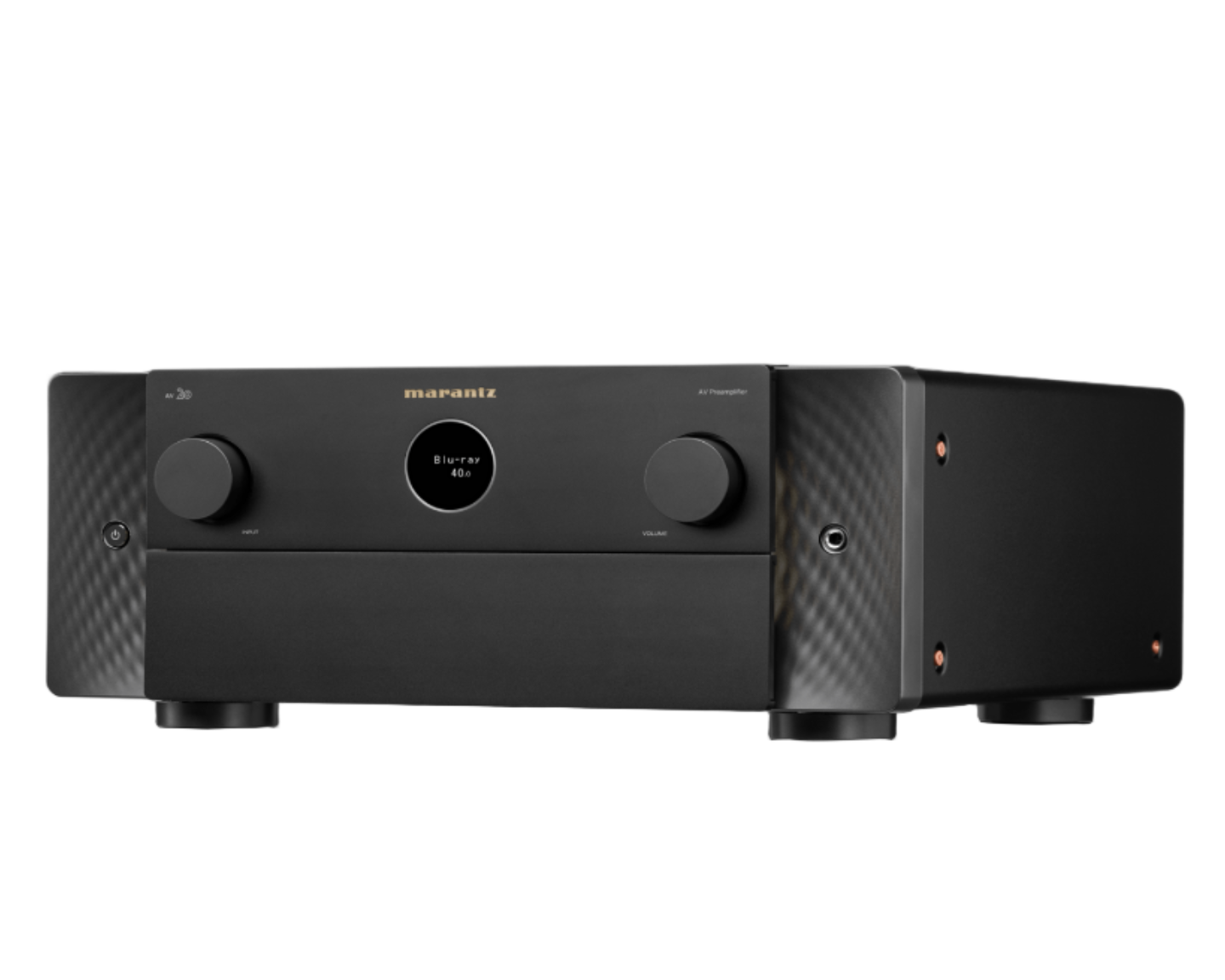

Marantz AV 20 13.4 Channel Preamplifier

Regular price
Rs. 811,930.00
Sale price
Rs. 811,930.00
Regular price
Rs. 1,159,900.00
Get free shipping on your order.
  • Marantz AV 20 13.4 Channel Preamplifier
2 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

The AV 20 stands as the pinnacle of performance and precision in reference-level home theater systems. Designed for audiophiles and home cinema purists, this 13.4 channel balanced AV preamplifier delivers exceptional clarity, depth, and control across every channel. At its core lies Marantz's proprietary HDAM discrete circuitry, ensuring superior analog audio reproduction with minimal distortion. With seven HDMI inputs, all supporting 8K UHD and enhanced by eARC, the AV 20 seamlessly integrates with the latest video and audio technologies. It supports immersive 3D audio formats like Dolby Atmos and DTS:X, bringing true cinematic sound to your living space. Built with authentic, high-quality materials, it reflects both luxury and durability in every detail. With HEOS Built-In, users can enjoy wireless multi-room streaming and app control, making the AV 20 as smart as it is powerful. Finished in an elegant black, it’s a statement piece engineered to elevate any high-end home theater setup.Elevated Listening Begins HereWhen it comes to home theater, Marantz AV Separates bring your movies to life with stunning detail and immersive sound. The AV 20 carries forward this legacy, delivering exceptional cinematic performance paired with the innovative features Marantz is celebrated for. Expertly engineered and wrapped in a timeless design, it’s a reference-level component crafted to elevate every moment of your entertainment experience.


Elevated Listening Begins Here

When it comes to home theater, Marantz AV Separates bring your movies to life with stunning detail and immersive sound. The AV 20 carries forward this legacy, delivering exceptional cinematic performance paired with the innovative features Marantz is celebrated for. Expertly engineered and wrapped in a timeless design, it’s a reference-level component crafted to elevate every moment of your entertainment experience.

Technical Specifications

Audio & Surround Processing

Feature Details
Dolby Dolby TrueHD, Dolby Atmos, Atmos Music, Atmos Height Virtualisation, Dolby Surround
DTS DTS-HD, DTS:X, DTS:X Pro, Virtual:X, Neural:X (13ch)
IMAX Enhanced Yes
Auro 3D / MPEG-H / 360RA Yes / Yes / Yes
Multichannel Stereo Yes
Max Processing Channels 13.4 (Pre-Amp)


Audio Enhancements

Feature Details
Chassis / Power Transformer Copper-Plated / Toroidal
Current Feedback / HDAM Yes / Yes (SA3, monolithic)
Pure Direct / Gold RCA Yes / Yes
Clock Jitter Reducer Yes
Dirac Live (Upgradeable) Yes
Compressed Audio Enhancer MDAX2
Audyssey Technologies MultEQ XT32, Dynamic EQ, Dynamic Volume, LFC


Networking & Streaming

Feature Details
Wi-Fi / Bluetooth / Ethernet Yes / Yes / Yes
HEOS Multi-Room Integrated
Bluetooth Retransmit For Bluetooth Headphones
Apple HomePod Support Yes
Streaming Services Amazon Music, TIDAL, Deezer, Napster, Soundcloud
Audio Formats (Lossy) MP3, WMA, AAC
Audio Formats (Lossless) FLAC, ALAC, WAV (up to 192/24), DSD (2.8/5.6 MHz)
Gapless Playback FLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / Spotify Yes / Yes / Yes
Roon-Ready Yes


Remote & Control Compatibility

Feature Details
Remote App (Smartphones) Marantz AVR Remote
Remote App (Tablets) iOS / Android / Amazon Kindle


HDMI Capabilities

Feature Details
HDMI Inputs / Outputs 7 (Rear) / 3 (2 Main, 1 Zone)
HDMI Version 2.1 (8K/60Hz AB, 4K/120Hz AB)
Pass-through Bandwidth 7 in / 2 out (up to 40 Gbps)
Video Scaling 1080p / 4K → 8K
HDR Support HDR10+, Dolby Vision, HLG, Dynamic HDR
eARC / ALLM / VRR / QFT Yes / Yes / Yes / Yes
Standby HDMI Pass-Through Yes
GUI Overlay / Modern GUI Yes / Yes

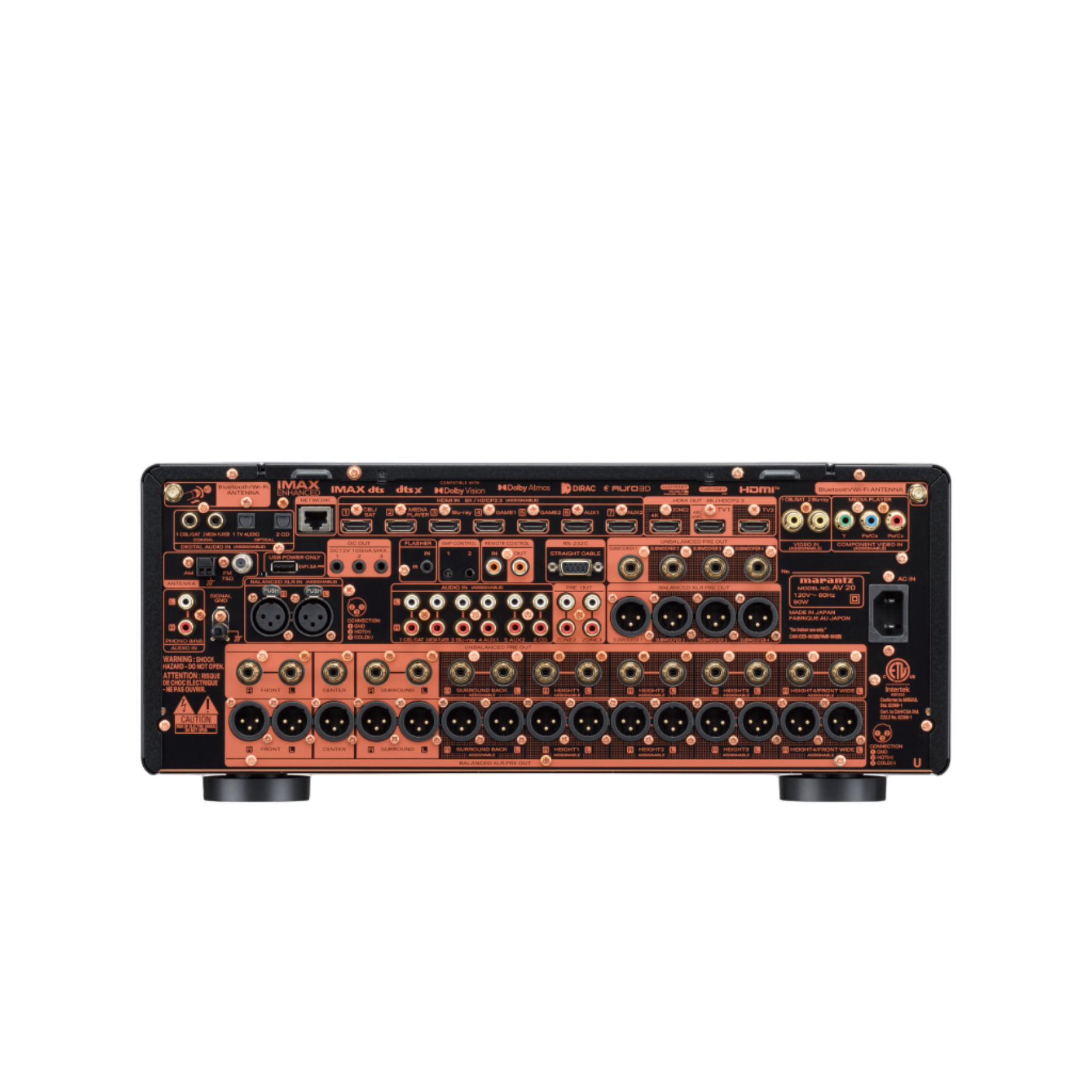

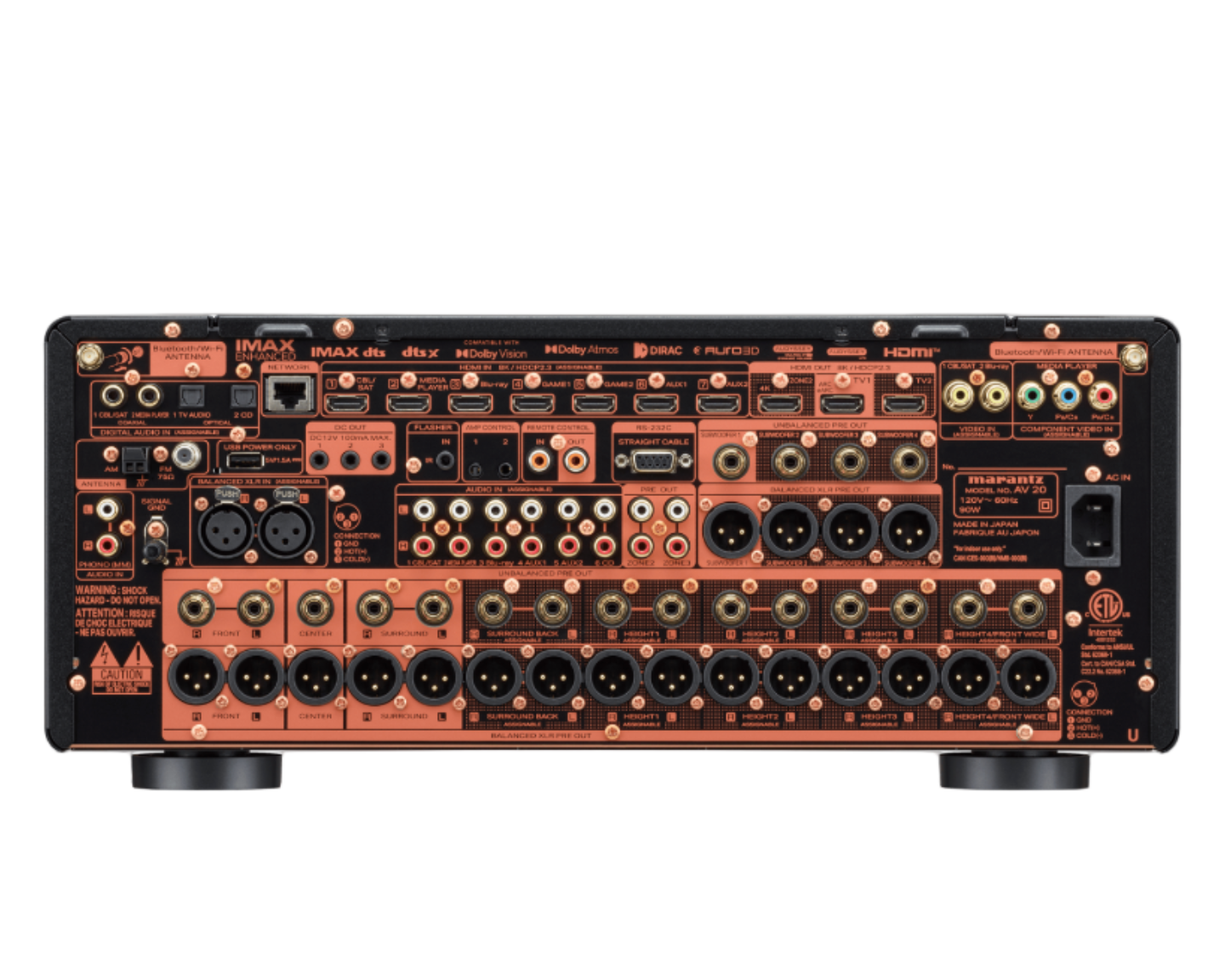

Inputs & Outputs

Connection Type Details
Composite In / Out 2 / 0
Component In / Out 1 / 0
Analog In 6 (including 1 XLR)
Phono (MM) In Yes
Digital In (Optical / Coax) 2 / 2
USB (Front / Audio / Rear) Yes / Yes / Yes
Multichannel Pre-Out Yes (15.4 RCA, 15.4 XLR)
Subwoofer Out 4 (independent, RCA & XLR)
Zone Outputs (HDMI / Analog) Yes / Yes
Zone Audio Sources HDMI, Optical/Coaxial, Network/USB, Analog


System Control & CI Features

Feature Details
Auto Setup / Room Calibration Audyssey MultEQ XT32, Dirac Live (Upgradeable)
Front Display 2-Line FLD, Port Hole OLED
IR / IP / Web / App Control Yes / Yes / Yes / Yes
RS-232 / IR Flasher In Yes / Yes
Remote Bus / DC Triggers Yes / 3
HDMI Diagnostics Yes
Setup Assistant / Smart Select Yes / Yes


General Specifications

Feature Details
Metal Front Panel Yes
System Remote Control RC051SR (Backlit)
Power Consumption 90 W (0.2 W standby, 0.5 W CEC, <2.0 W network)


Dimensions & Weight

Configuration Dimensions (W × D × H)
Antenna Horizontal 17.4 × 18.0 × 7.5 in
Antenna Vertical 17.4 × 18.0 × 10.0 in
Without Antenna 17.4 × 17.2 × 7.5 in
Weight 33.1 lbs
