The Marantz Cinema 40 AV Receiver is a high-performance audio-video receiver designed to provide an immersive home theater experience. It features advanced audio and video processing technologies that support the latest formats, such as Dolby Atmos, DTS:X, and 8K Ultra HD. The receiver is equipped with eight HDMI inputs and three HDMI outputs that support eARC, HDR10, HDR10+, HLG, and Dolby Vision.
The Marantz Cinema 40 AV Receiver is designed to deliver powerful and precise sound with its 9-channel amplification, which can output up to 200 watts per channel. It features Marantz’s HDAM (Hyper Dynamic Amplifier Module) technology, which ensures a clean and accurate sound. The receiver also includes Audyssey MultEQ XT32 room calibration, which optimizes the sound based on the acoustics of your room.
The receiver is compatible with various streaming services, such as Spotify, TIDAL, Amazon Music HD, and Deezer, as well as internet radio stations. It also includes built-in Bluetooth and Wi-Fi connectivity, enabling wireless streaming from compatible devices.

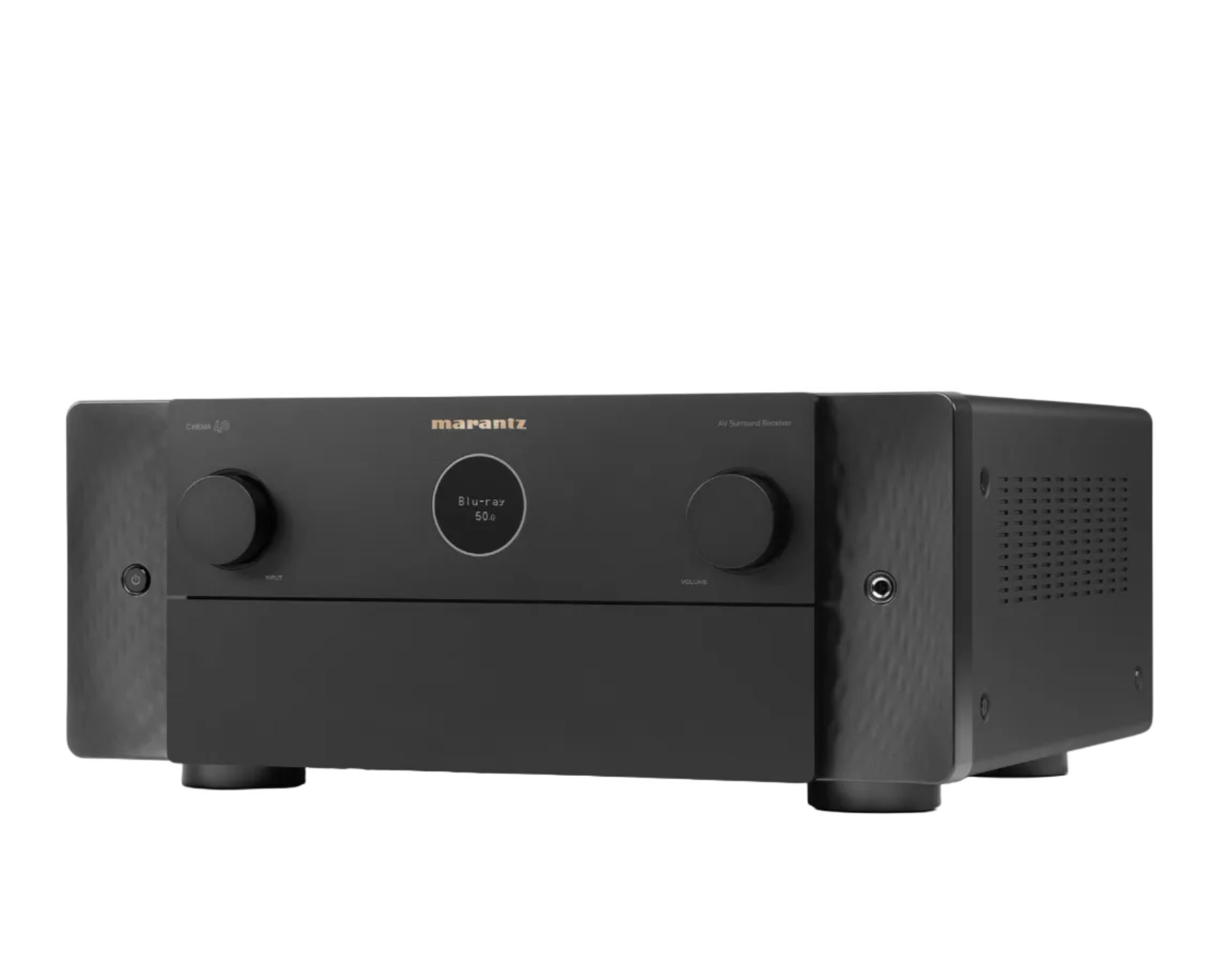

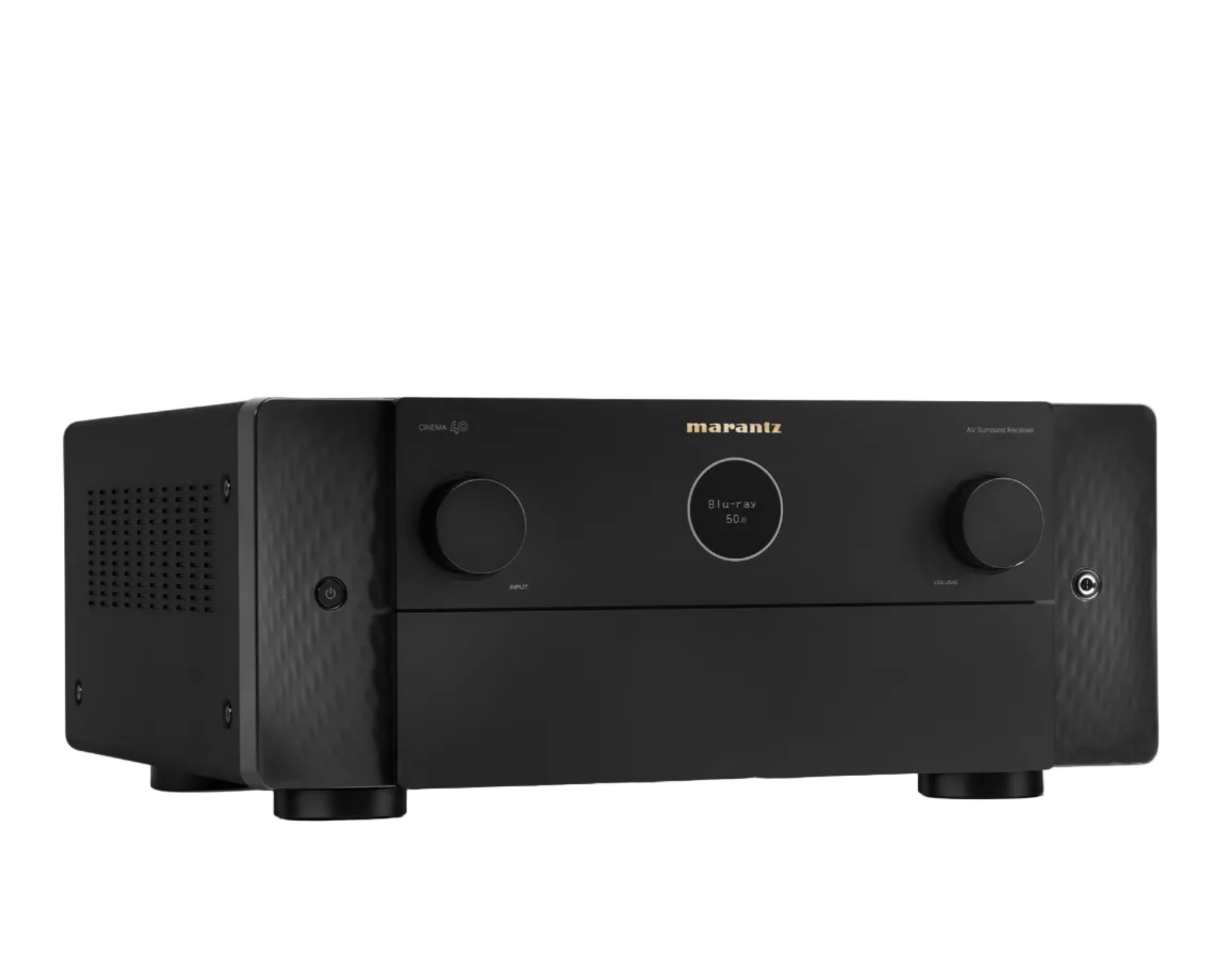

In terms of design, the Marantz Cinema 40 AV Receiver has a sleek and stylish look with a black finish and a clear OLED display. It includes a remote control and can be controlled via the Marantz AVR app, which allows you to adjust settings, stream music, and control your home theater system from your smartphone or tablet.
The Marantz Cinema 40 AV Receiver also supports various voice assistants, including Amazon Alexa, Google Assistant, and Apple Siri. This allows you to control the receiver using voice commands, making it easy to adjust settings or play your favorite music without needing to use a remote.
One of the standout features of the Marantz Cinema 40 AV Receiver is its ability to upscale video content to 8K resolution. This means that even if your TV doesn’t support 8K resolution, you can still enjoy the benefits of this advanced format with compatible content. The receiver also includes HDR10+ and HLG support, which ensures that you get the best possible picture quality from HDR content.
The Marantz Cinema 40 AV Receiver also offers a range of customization options that allow you to tailor the sound to your preferences. It includes a variety of audio modes, including Movie, Music, Game, and Pure Direct, which optimize the sound for different types of content. Additionally, the receiver includes a range of EQ controls and a 13-band graphic equalizer, which allows you to fine-tune the sound to your liking.
The receiver also includes support for AirPlay 2, which allows you to stream music from your Apple devices, and HEOS multi-room audio, which allows you to stream music to compatible HEOS speakers throughout your home. Additionally, the Marantz AVR Remote app allows you to control the receiver and access streaming services from your smartphone or tablet.
Another notable feature of the Marantz Cinema 40 AV Receiver is its support for multiple zones. It can power up to three separate audio zones, allowing you to stream different content to different areas of your home. This makes it easy to enjoy music or movies throughout your entire living space.
The Marantz Cinema 40 av receiver includes a range of other features designed to enhance your home theater experience. It includes a phono input for vinyl enthusiasts, a dedicated game mode that reduces lag and improves the gaming experience, and an Eco Mode that reduces power consumption when the receiver is idle.
The Marantz Cinema 40 AV Receiver is also designed with ease of use in mind. It features a clear and intuitive on-screen interface that makes it easy to navigate through settings and options. The included remote control is also well-designed and comfortable to use, with backlit buttons that make it easy to operate in low-light conditions.
The Marantz Cinema 40 AV Receiver is also built to last, with high-quality components and a robust construction that ensures durability and reliability over time. It comes with a three-year warranty for added peace of mind.
In summary, this is a premium audio-video receiver that delivers exceptional performance, advanced features, and intuitive controls. With its sleek design, powerful amplification, and support for the latest audio and video formats, this receiver is an excellent choice for anyone looking to build a high-end home theater system.
Overall, this is a top-of-the-line audio-video receiver that delivers exceptional sound and video quality, with a range of features and connectivity options that make it a versatile and powerful addition to any home theater system.
Technical Specifications :
Power Amplifier -
| Number of Powered Channels | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | Yes |
| Bi-Amp Drive | assignable |
Multichannel Surround Technologies -
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other | IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo |
| Max Number of Processing (Preamp) Channels | 11.4 |

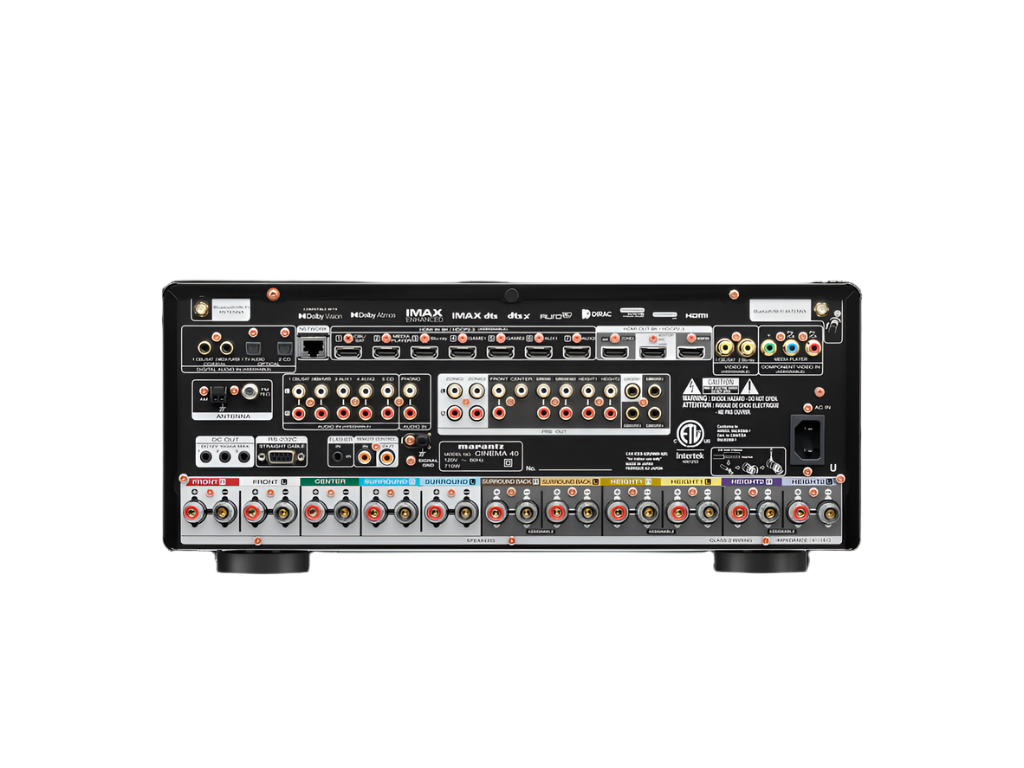

Inputs/Outputs -
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | Yes |
| Analog In / Fixed Level Out | 5 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Multichannel Preamp Out | 11.4 |
| Subwoofer Out | 4 (independent) |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
HDMI -
| Total HDMI Inputs / No. Support 8K | 7 / 7 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Analog to HDMI Video Conversion | Yes |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | 8K @ 60Hz, 4K @ 120Hz |
| Audio Return Channel | ARC, eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | Yes |
| Auto LipSync | Yes |
Performance Technologies -
| Copper Plated Chassis | No |
| Toroidal Power Supply Transformer | No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
Acoustic / Room Correction -
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes / Yes |
| Dirac Live Upgradability | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
Music File Support -
| Lossy Formats | MP3 / WMA / AAC |
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio | 2.8MHz / 5.6MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
Streaming Services -
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | Airplay 2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix |
| Roon tested | Yes |
Network Connectivity -
| Ethernet Ports | Yes |
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration And Control -
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote App, HEOS |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others
| Front Display | 2 line FLD + port hole OLED |
| GUI Languages | 9 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
General
| Availabe colours | Black/Silver-Gold |
| Metal Front Panel | Yes |
| System Remote Control | RC048SR |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO on/off) in W | 65 / 110 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
440x414x185 (440x414x254) 【440x401x185】 |
| Weight in kg | 15.1 |
| What’s in the box | Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
