Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.
Features
The Marantz amplifier is designed to deliver high-fidelity audio with precision and musicality. Its dual-channel configuration, combined with a current feedback topology, ensures clean and dynamic sound reproduction. The Marantz Musical Phono EQ and proprietary HDAM SA3/SA2 circuits enhance detail and clarity across all audio sources. A toroidal power transformer, high-grade audio components, and custom-designed parts provide stable and pure power, while a symmetric PCB layout and aluminum extrusion heat sinks contribute to thermal efficiency. Users can adjust balance, bass, treble, and loudness to tailor the sound, supported by a linear drive power supply, linear volume control, and solid heat sinks. The unit also features a low-noise OLED display for clear monitoring, source direct and power amp direct functions for unaltered audio playback, and a robust triple bottom plate for structural stability.

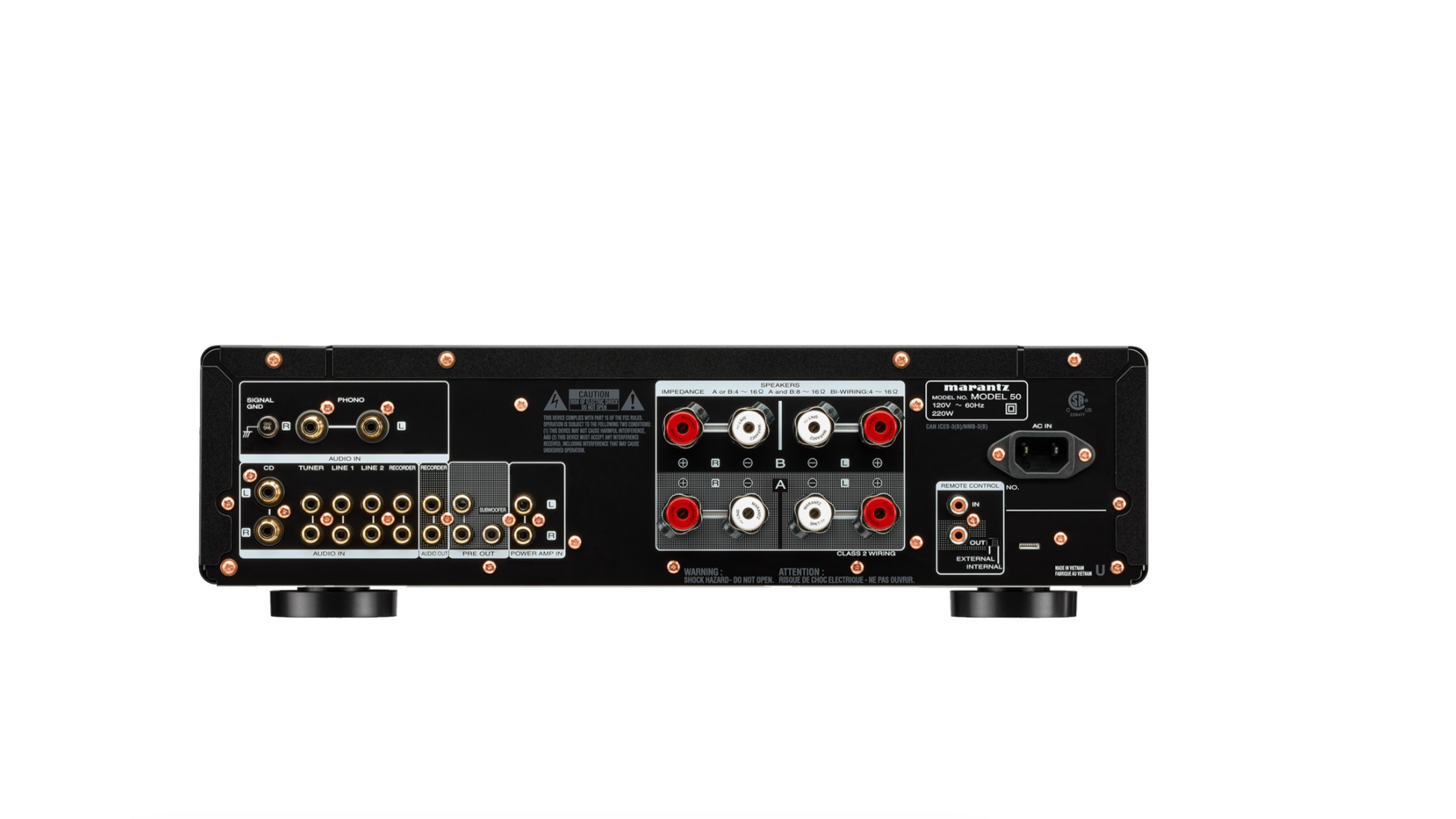

For connectivity, the amplifier offers multiple audio inputs, including phono MM support, and versatile output options like pre-out, main-in, and power amp direct in. Gold-plated speaker terminals and support for dual speaker sets ensure reliable signal transmission. Performance-wise, it delivers 70 W per channel at 8 Ω and 100 W at 4 Ω, with a wide frequency response up to 100 kHz and minimal distortion. High signal-to-noise ratios across inputs ensure a clean listening experience, while adjustable treble and bass allow for personalised tonal shaping.

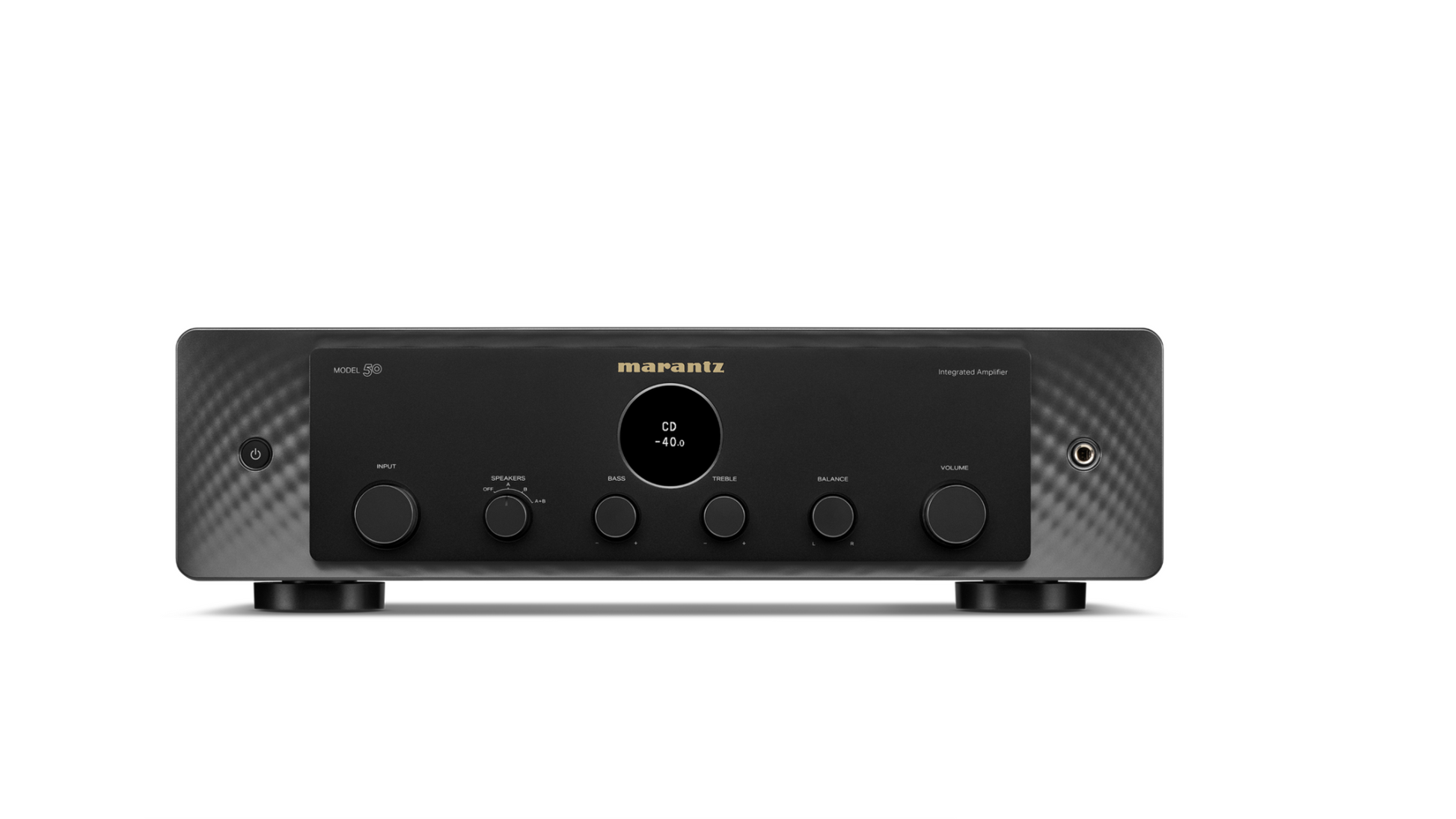

Aesthetically and functionally, the amplifier is built with a metal front panel and available in black or silver-gold finishes. Energy-efficient operation includes auto power-off and a standby consumption of only 0.3 W. The system is easy to integrate into existing setups via its detachable power cable, system remote functionality, and ergonomic dimensions, weighing 14.2 kg.
Technical Specifications
| Feature |
Spec |
| Channels |
2 |
| Current Feedback Topology |
Yes |
| Phono EQ |
Marantz Musical |
| HDAM Version |
SA3, SA2 |
| Power Transformer |
Toroidal |
| High Grade Audio Components |
Yes |
| Customised Components |
Yes |
| Symmetric PCB Layout |
Yes |
| Aluminium Extrusion Heat Sink |
Yes |
| Balance / Bass / Treble / Loudness |
Yes / Yes / Yes / - |
| Linear Drive Power Supply |
Yes |
| Linear Volume Control |
Yes |
| Schottky Diodes |
Yes |
| Solid Heat Sinks |
Yes |
| System Block Shielding |
None |
| Bottom Plate |
Triple |
| Low Noise OLED Display |
Yes |
| Source Direct |
Yes |
| Power Amp Direct |
Yes |
Inputs & Outputs
| Type |
Spec |
| Audio Inputs |
6 |
| Digital Inputs (USB-B / Optical / Coax / USB-A) |
- / - / - / - |
| Phono Input (MM / MC) |
Yes / - |
| Audio Outputs |
1 |
| Balanced In / Out |
- / - |
| Pre-out / Main-in |
Yes + Subwoofer / - |
| Power Amp Direct In |
Yes |
| Gold-Plated Cinch |
Yes |
| Speaker A / B |
Yes |
| Speaker Terminals |
Marantz SPKT-1+ |
| Number of Terminals |
4 |
| D-Bus |
Yes |
| Headphone Out |
Yes |
Performance Specifications
| Feature |
Spec |
| Power Output (8 / 4 Ohm RMS) |
70 W / 100 W |
| Frequency Response |
5 Hz–100 kHz |
| Total Harmonic Distortion |
0.02 % |
| Damping Factor |
100 |
| Input Sensitivity: MM |
1.4 mV / 47 kΩ |
| Input Sensitivity: High Level |
185 mV / 16 kΩ |
| Input Sensitivity: Power Amp Direct In |
1.5 V / 15 kΩ |
| S/N Ratio: MM / MC |
87 dB / - |
| S/N Ratio: High Level |
116 dB (2 V input) |
| S/N Ratio: Power Amp Direct In |
125 dB |
| Treble Control |
±10 dB at 15 kHz |
| Bass Control |
±10 dB at 50 Hz |
General Specifications
| Feature |
Spec |
| Available Colors |
Black, Silver-Gold |
| Metal Front Panel |
Yes |
| Power Consumption |
220 W |
| Standby Consumption |
0.3 W |
| Auto Power Off |
Yes |
| Detachable Power Cable |
Yes |
| Remote Control |
RC003PMND |
| System Remote Function |
Yes |
| Product Dimensions (W x D x H) |
442 x 431 x 130 mm |
| Weight |
14.2 kg |
| Carton Dimensions (W x D x H) |
527 x 517 x 255 mm |
| Carton Weight (incl. product) |
17.5 kg |
