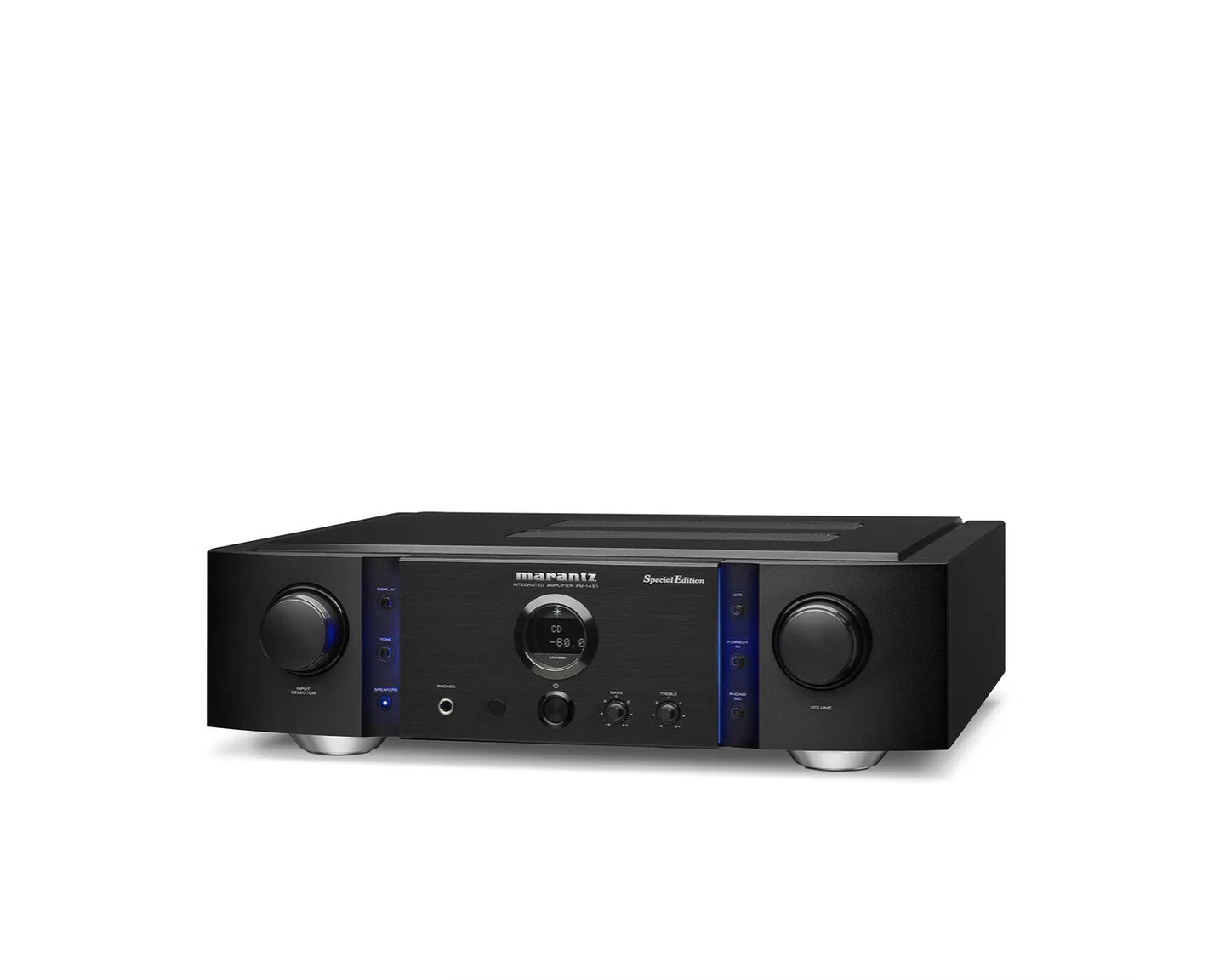

Marantz PM 14S1SE Integrated Stereo Amplifier

Description

New Premium Products from Marantz are always reason for the audiophile community to celebrate. And the new 14 Series Special Edition thrusts the audio experience to new levels because this Special Edition has been lovingly fine-tuned and passionately optimized for High Resolution fi les: marking the new era in music adoration. Available in black or champagne colour, the new 14 Series Special Edition is the epitome of extreme quality and is, quite simply, a masterpiece. As you would expect from such an elite amp, it includes exceptional quality components such as Toroidal transformer and subsystems throughout its construction.

The heavy 5mm thick aluminum top lid and highly rigid feet minimize vibration to guarantee purest audio signal treatment. In addition, it incorporates improved customised components, Marantz own developed HDAMs and the use of a more efficient electrical signal path. These elevate the audio quality to an even more sublime level. The PM-14S1 Special Edition comes with a remote controller, which features a stylish black anodized aluminum top, and which can also control the SA-14S1 Special Edition Player. The final touch of elegance is supplied by the special Marantz-made solid copper speaker terminals, for effortless and powerful signaling to your loudspeakers. This is luxury to the extreme.

Reference Series - Integrated Amplifier

The PM-14S1 integrated amplifier delivers superb sound quality and operational versatility, and features exclusive Marantz technologies such as our HDAM (Hyper Dynamic Amplifier Module) discrete circuitry and current feedback topology. Featuring a massive power supply with a high current toroidal power transformer wound with Oxygen Free Copper secondaries that is rated at 650 VA along with high speed high current Schottky Barrier Diodes in the rectifier circuit, the PM-14S1 is rated at 90 watts per channel into 8 ohms and 140 watts per channel into 4 ohms (both from 20Hz - 20kHz).

A total of 24 HDAM units are employed throughout the amplifier, including the line level stage, phono equalizer stage and the power amplifier stages. The power amplifiers feature separated circuitry and dual massive heat sinks along with multiple discrete high current power transistors to deliver wide dynamic range and stability even with lower impedance speaker loads. The elegant remote control can also control the matching SA-14S1 Super Audio CD/CD player, and there's a power amp direct input that allows the PM-14S1 to be used as a standalone power amplifier for even more system configuration versatility.

Features

The Marantz PM-14S1 Special Edition is a premium integrated stereo amplifier designed for audiophile-grade performance. Delivering 90 watts per channel into 8 ohms and 140 watts per channel into 4 ohms, it provides ample power to drive a wide range of speakers with authority and clarity. Its Current Feedback amplifier ensures ultra-fast, accurate signal handling, while Marantz proprietary HDAM® SA3 circuits enhance musical detail, low distortion, and dynamic precision. The amplifier is housed in a rigid, premium chassis with a 5mm thick aluminum top cover and heavy anti-vibration feet, minimizing mechanical resonance and preserving audio purity. A robust high-current power supply with Schottky diodes, pure copper SPKT-100 speaker terminals, high-quality linear volume control, CCFB MM/MC phono equalizer with V/I servo, toroidal transformer, low-noise LCD, and Power Amp Direct input all contribute to superior performance and integration versatility.

Marantz HDAM Technology

Marantz’s exclusive HDAM technology replaces traditional integrated circuits with discrete circuit components to preserve analog signal purity. This results in wideband audio with expansive dynamic range and an inaudible noise floor. A total of 24 HDAM SA2 and SA3 modules are employed throughout the phono, line-level, headphone, pre-amp, and power amp stages to maintain the highest level of sonic fidelity.

Fully Discrete High Current Amplifier Stages

The power amplifier stages are designed with high-current output devices and segregated circuitry for maximum channel separation. Each stage features massive extruded aluminum alloy heat sinks that dissipate heat silently without fans. Rated at 90W per channel (8Ω) and 140W per channel (4Ω), these stages ensure wide dynamic range, high stability, and consistent performance, even with low-impedance speakers.

Rigid Chassis, Thick Aluminum Top Cover, and Heavy Feet

The PM-14S1 Special Edition begins with a solid foundation. Its rigid chassis, thick aluminum top plate, and heavy feet reduce vibrations and prevent microphonic effects, keeping sensitive audio signals pristine and unaltered.

Multiple Analogue Inputs and Outputs

Connectivity is highly versatile, featuring phono and CD analog inputs, two additional line-level inputs, and dual recorder input/output jacks. A Power Amp Direct input allows the amplifier to operate as a standalone stereo power amp, while stereo pre-amp outputs enable integration with external amplifiers, giving complete system flexibility.

Dedicated Headphone Output

The headphone circuit, built with HDAM discrete modules, delivers exceptional fidelity across a wide range of headphone impedances, including low-impedance models, ensuring a high-quality private listening experience.

Gold-Plated Connectors

All analog input and output connectors are gold-plated to provide optimum signal transfer and long-term reliability.

Customised Speaker Terminals

The carefully amplified audio signal is delivered to speakers through customised pure copper speaker terminals, preserving every nuance and note for an unbroken transmission chain.

Source Direct Mode

For the purest sound, Source Direct mode bypasses unnecessary audio circuits, creating the most direct signal path and maintaining maximum fidelity.

System Remote Control

The included elegant remote control operates both the PM-14S1 Special Edition and the matching SA-14S1 Special Edition Super Audio CD Player. Remote input/output jacks allow additional flexibility for integrated system control.
