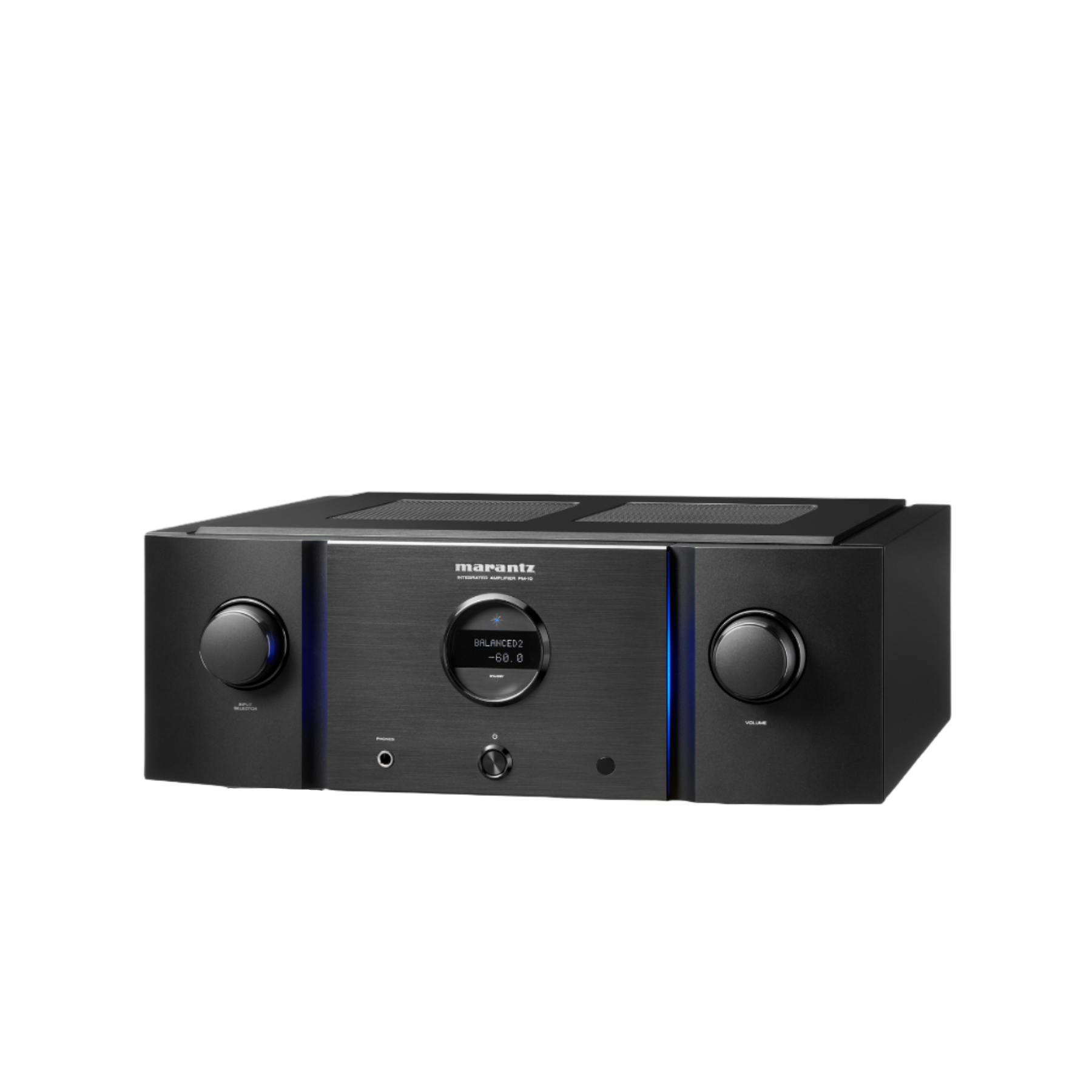

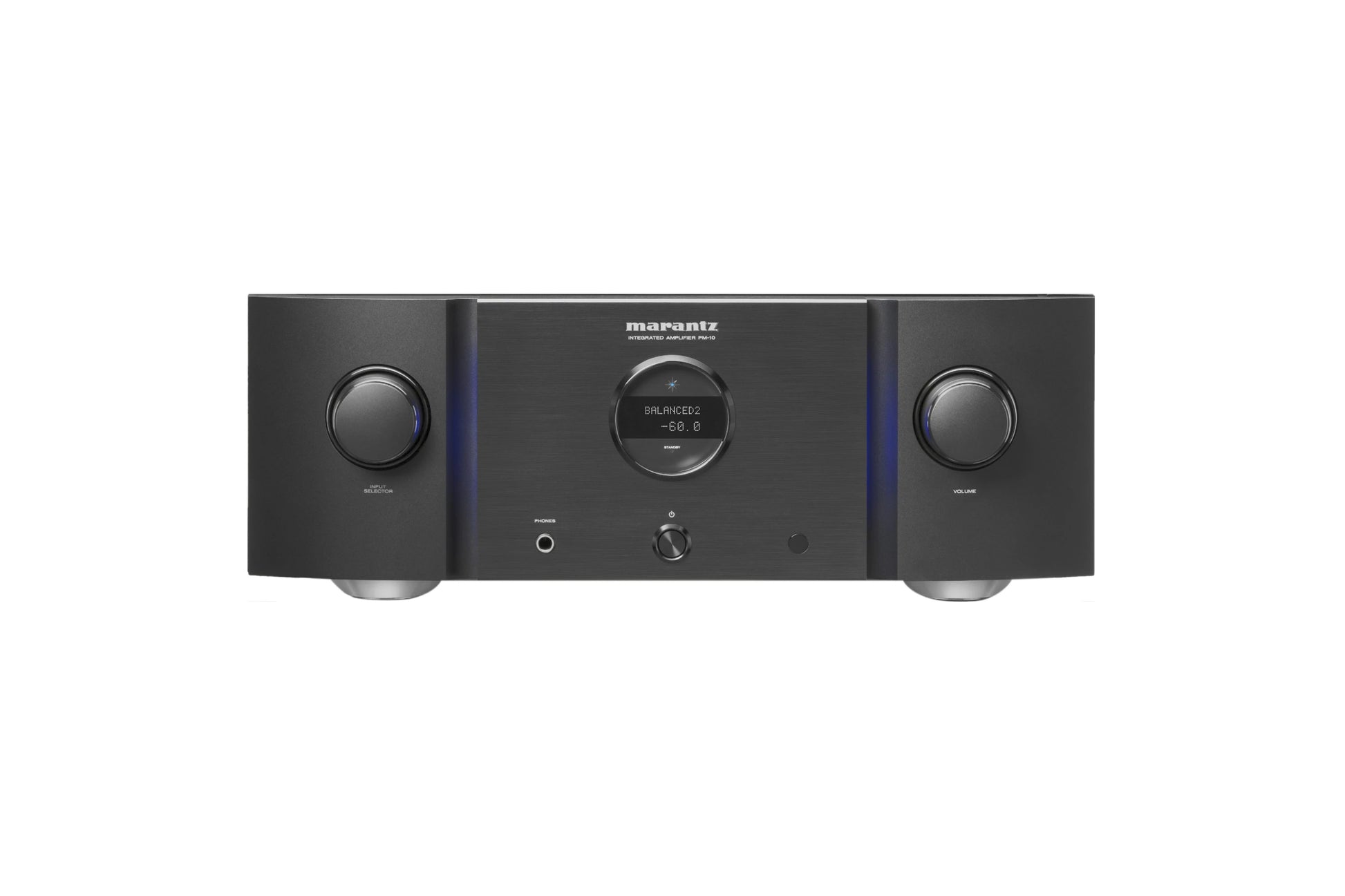

Marantz PM-10 Reference Integrated Amplifier

Optimised Design

Delivering exceptional sound and power requires precision. The PM-10 achieves this by optimizing each section of the amplifier for its specific role—just like in high-end setups using separate preamps and monoblock power amps.



Pure Marantz Sound

Sound Master Tuned

Pure Analog

Built to Perform

Like the partnering SA-10 Super Audio CD/CD player/DAC, the PM-10 is constructed to the highest possible standards, with a double-layered copper-plated chassis for excellent rejection of mechanical and electrical interference, and casework constructed from thick, heavy, non-magnetic aluminum panels. Both products also sit on aluminum machining feet to reduce vibration for you to enjoy your music uninterrupted.

Details & Specifications

Features

Feature	Details
Channels	2
Current Feedback Topology	Yes
Full balanced circuitry architecture	Yes
Double Mono Power Amp construction	Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium	No / No / Yes
Digital in: USB-B / optical / coaxial / USB-A	No / No / No / No
Sample Rate digital In	No
USB-A: DSD / WAV / FLAC / AIFF / ALAC	No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6	No
USB-B PCM sample rate	No
DAC chip	No
Asynchronous mode rear USB	No
Bit-perfect transmission	No
Ground isolator for DAC Mode operation	No
Bluetooth / aptX / NFC	No
Streaming audio from PC	No
Wi-Fi / Wired LAN	No
Internet radio	No
AirPlay Audio Streaming	No
Windows Play to	No
vTuner / Spotify*	No
DLNA certified	No
DSD-Audio network streaming	No
Lossy formats: MP3 / WMA / AAC	No
Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24	No
Gapless Playback	No
Remote APP: iDevice / Android	No
Analog Mode	No

Other Features

Feature	Details
HDAM version	SA3
Power Transformer: Toroidal / El	SMPS
High Grade Audio Components	Yes
Customised Components	Yes
Symmetric PCB Layout	Yes
Aluminium extrusion heat sink	Yes (Separate)
Copper Plated Chassis	Yes
Tri Tone Control (Bass / Mid / Treble)	No
Balance / Bass / Treble / Loudness	Yes / No / No / No
Marantz Musical Digital Filtering	No
Linear Drive Power Supply	Yes (pre-amplifier stage)
Linear volume control	Yes
BI-AMP and Multichannel option	Yes
Shottky diodes	Yes
Input buffer amp (all inputs / CD only)	Yes / No
System block shielding: Copper / metal / none	Yes / No / No
Double Layer Bottom Plate	Yes
Low Noise OELD display	No
Low noise LCD display	Yes
Source Direct	No
Power Amp direct	Yes
5mm aluminium top plate	Yes

Inputs / Outputs

Input / Output	Details
Audio Inputs	7
Digital in: USB-B / optical / coaxial / USB-A	No / No / No / No
Phono Input: MM / MC	Yes / Yes
Audio Outputs	1
Balanced In / Out	2 / No
Pre-out / Main-in	No / No
Power Amp Direct IN	Yes
Gold Plated Cinch	Yes / CD & Phono nickel-plated
Speaker A / B	No
Speaker Terminals	Marantz SPKT-100+
Number of terminals	4
D-Bus	Yes
Floating Control Bus (3.5 mm mono jack x 2)	Yes
Headphone Out	Yes
Headphone Gain Control (low / mid / high)	No

Specifications

Spec	Details
Power Output (8 / 4 Ohm RMS)	200 W / 400 W
Frequency response	5 Hz - 50kHz
Total Harmonic Distortion	0.01%
Damping Factor	500
Input Sensitivity: MM	2.6 mV / 47 kohm
Input Sensitivity: MC	280
Input Sensitivity: High level	400 mV / 20 kohm
Input Sensitivity: Balanced High level	800 mV / 40 kohm
Signal to Noise Ratio: High level	111 dB(2V input/Rated output)
Input Sensitivity: Power Amp Direct IN	1.5 V / 20 kohm
Signal to Noise Ratio: Power Amp Direct IN	113 dB

General

Feature	Details
Available Colors: Gold / Silver / Black / Silver-Gold	Yes / No / Yes / No
Metal Front Panel	Yes
Power Consumption in W	270
Standby Consumption in W	0.3
Auto Power off	Yes
Detachable Power Cable	Yes
Remote Control	RC004PMSA
System Remote Function	Yes
Maximum Dimensions (W x D x H) in mm	440 x 453 x 168
Weight in kg	21.5
