McIntosh C22
- Regular price
- Rs. 813,900.00
- Sale price
- Rs. 813,900.00
- Regular price
-
Couldn't load pickup availability
Description

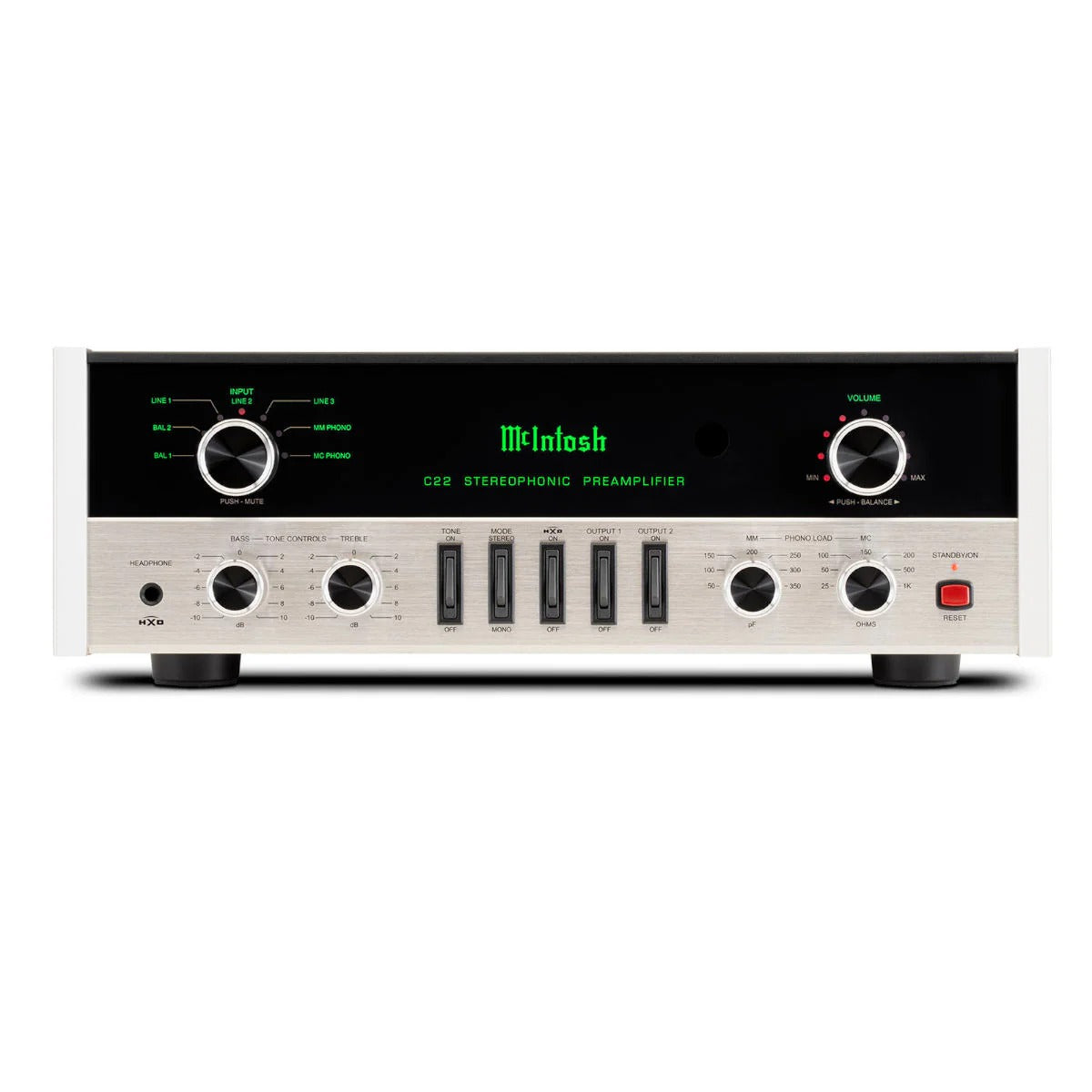

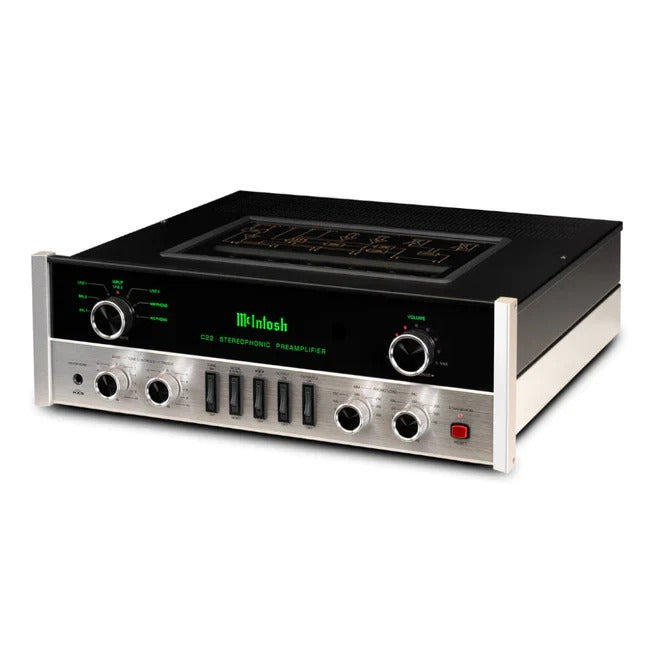

The C22 2-Channel Vacuum Tube Preamplifier Mk V is a fully analog device featuring a classic retro design, utilizing five 12AX7A and one 12AT7 vacuum tubes visible through a glass top panel. As the latest iteration in the revered C22 lineage, it serves as the direct successor to the acclaimed C70 Limited Edition 70th Anniversary model from 2019, combining the high performance of the C70 with the iconic C22 styling, including a signature glass and aluminum front panel. The preamplifier offers a total of seven inputs, including two balanced, three unbalanced, and dedicated Moving Coil and Moving Magnet phono inputs. It provides two pairs each of balanced and unbalanced outputs, allowing signals to be sent to two separate power amplifiers. The front panel includes by passable bass and treble tone controls adjustable in 2dB increments, as well as rotary knobs for impedance and capacitance settings on the phono inputs.
The volume control also adjusts the left-right channel balance, while a ¼” headphone jack is powered by a High Drive headphone amplifier featuring McIntosh’s Headphone Cross feed Director (HXD®) technology, enhancing sound localization when using headphones. The C22 Mk V incorporates Power Control technology with four ports to automate power for connected McIntosh components, along with data ports for controlling source devices via the included remote. Housed in a polished stainless steel chassis with illuminated logos, control knobs, and aluminum end caps, the preamplifier’s black glass and aluminum front panel design offers a timeless aesthetic that complements McIntosh systems from the 1950s to today. For more information, customers are encouraged to contact their local dealer.
Technical specifications
| Category | Spec. |
|---|---|
| Number of Channels | 2 |
| Total Harmonic Distortion | 0.08% |
| Frequency Response | +0, -0.5dB from 20Hz to 20kHz |
| +0, -3dB from 15Hz to 100kHz | |
| Maximum Volts Out | Balanced: 16V RMS / Unbalanced: 8V RMS |
| Sensitivity High Level | Balanced: 900mV / Unbalanced: 450mV |
| Sensitivity Phono (Moving Coil) | 0.45mV |
| Sensitivity Phono (Moving Magnet) | 4.5mV |
| Signal To Noise Ratio (High Level) | 100dB |
| Signal To Noise Ratio (Moving Coil) | 75dB |
| Signal To Noise Ratio (Moving Magnet) | 75dB |
| Voltage Gain (High Level) | 15dB |
| Voltage Gain (Moving Coil) | 60dB |
| Voltage Gain (Moving Magnet) | 40dB |
| Input Impedance | Balanced: 44K ohm, Unbalanced: 22K ohm |
| Balanced Input | 2 |
| Unbalanced Input | 3 |
| Phono Input Moving Coil | 1 (adjustable) |
| Phono Input Moving Magnet | 1 (adjustable) |
| Upgradeable Digital Audio Module | No |
| Digital Coaxial Input | 0 |
| Digital Optical Input | 0 |
| Digital MCT Input | 0 |
| Digital USB Input | 0 |
| HDMI (ARC) Input | 0 |
| Digital AES/EBU Input | 0 |
| Balanced Fixed Output | 0 |
| Balanced Variable Output | 2 |
| Unbalanced Fixed Output | 0 |
| Unbalanced Variable Output | 2 |
| Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
| Input Level Match | No |
| Home Theater PassThru | No |
| Unbalanced Analog Connector Type | Premium gold-plated solid brass |
| Service Port | 0 |
| Network Connection | 0 |
| Tone Controls | Bass and Treble |
| Tone Bypass | Yes |
| Input Assign | No |
| RS232 Control Input | No |
| Power Control Output | 2 Main, 2 Switched |
| Rear Panel Data Port | 5 |
| Rear Panel IR Sensor Input | Yes |
| Multi-Chassis or Single | Single, two layer |
| Output Meters | No |
| Vacuum Tube or Solid State | Vacuum Tube: (5) 12AX7A and (1) 12AT7 |
| Power Consumption (On) | 50 Watts |
| Unit Dimensions (W x H x D) | 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) |
| Unit Weight | 25 lbs (11.3kg) |
| Shipping Weight | 41.4 lbs (18.8kg) |
