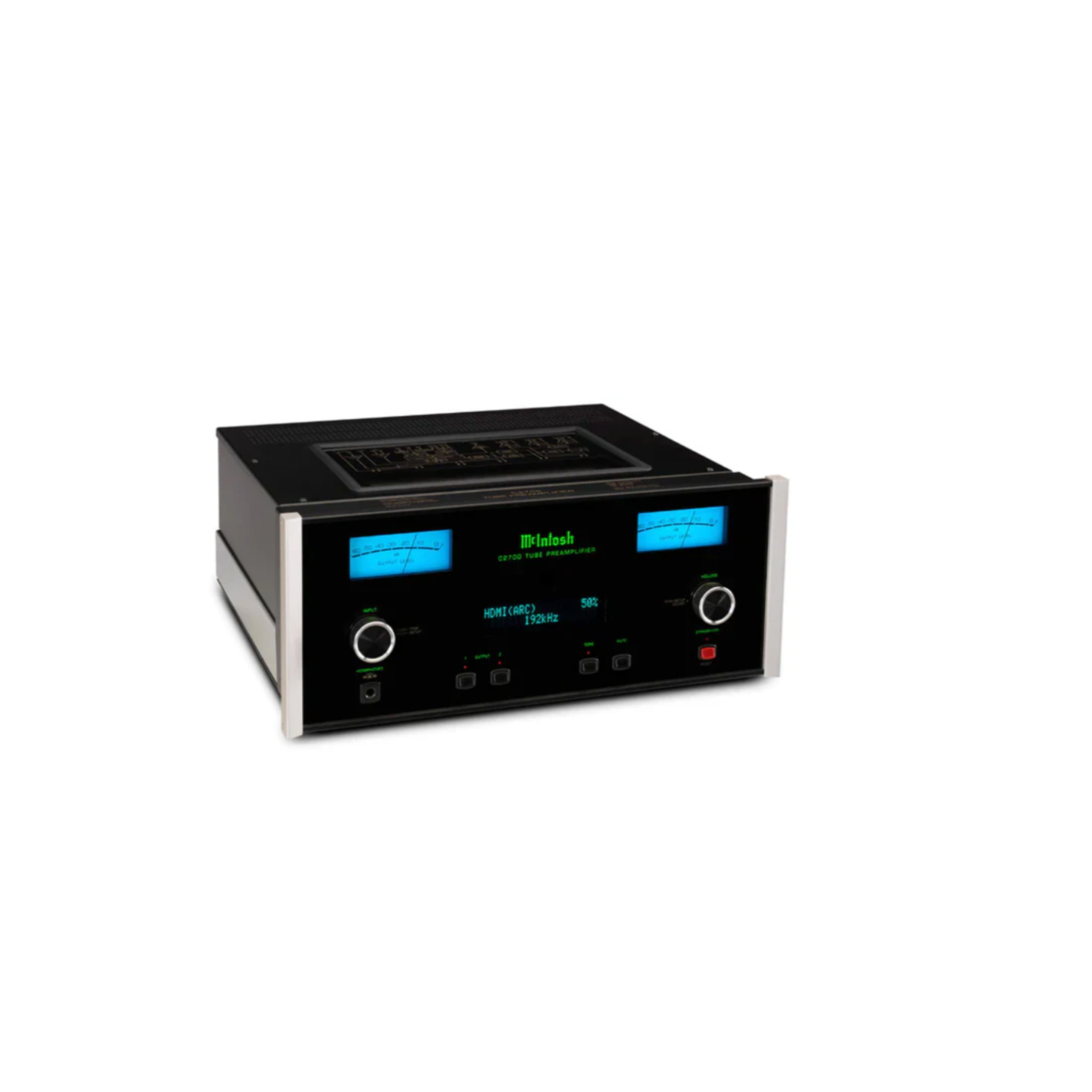

McIntosh C2800 2 Channel Vacuum Tube Preamplifier
- Regular price
- Rs. 1,125,900.00
- Sale price
- Rs. 1,125,900.00
- Regular price
-
Couldn't load pickup availability
Description
The McIntosh C2800 Vacuum Tube Preamplifier stands as a true masterpiece of audio craftsmanship, designed for audiophiles and music lovers who demand exceptional performance and precision. Equipped with six inputs including seven analog, two phono, and seven digital connections the C2800 offers unparalleled versatility to integrate seamlessly with any high-end audio system. At its core, the preamplifier features four meticulously engineered vacuum tubes (three 12AX7A and one 12AT7) that form the foundation of its sonic signature, delivering warm, rich, and immersive sound with minimal noise and distortion. This advanced circuitry harnesses the latest in vacuum tube design to reduce interference to nearly imperceptible levels, elevating the listening experience beyond expectations. The C2800 also includes dedicated features such as a subwoofer output, a processor loop, and compatibility with the McIntosh Connect app for effortless control. Supporting high-resolution audio formats up to 24-bit/192kHz and DSD512, and verified by Roon and Control4 certifications, it meets the needs of modern digital audiophiles. Every aspect of the C2800 exemplifies McIntosh’s legendary commitment to engineering excellence, making it a revered centrepiece in any sophisticated audio setup.
Inputs In Abundance
With its 9 analog and 7 digital inputs (16 total inputs), the C2800 will become the nucleus of your home audio system. There are 3 balanced and 4 unbalanced analog inputs, plus 2 phono inputs that can be configured for either Moving Coil or Moving Magnet phono cartridges to connect your turntable(s). Both phono inputs feature adjustable Gain in 6dB steps from 40dB to 64dB as well as RIAA equalization.
Our DA2 Digital Audio Module houses the 7 digital inputs and is powered by an audiophile-grade Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). The DA2 offers a variety of inputs, including an audio-only HDMI Audio Return Channel (ARC)1 input that will give your TV sound new life when played through your home stereo system. Multi-channel audio formats from Dolby® and DTS® will be expertly converted to two-channel audio for an enthralling listening experience.
The DA2 has 6 other digital inputs: 2 coaxial, 2 optical, 1 USB, and 1 MCT. The coax and optical inputs decode digital music up to 24-bit/192kHz for high resolution audio playback, while the USB input supports DSD512 and DXD 384kHz. And to get the best sound quality from the high definition audio on your SACD collection, the MCT input offers a secure, custom DSD connection when paired with our MCT series of SACD/CD Transports. The entire DA2 module is upgradeable and could be replaced by a future module should new digital technologies become available.
Return Of The Processor Loop
The C2800 features the return of the Processor Loop, something not available on the last few generations of McIntosh preamplifiers. The Processor Loop allows you to insert an external signal processor (such as our MQ112 Environmental Equalizer or MEN220 Room Correction System), dynamic range expanders, or other devices without having to place it between the preamplifier and power amplifier(s). This is usually more convenient and can allow for better performance.
Network Connected For Control And Updates
In addition to using the included remote control or the front panel controls, the C2800 can be connected to your network which will unlock control options offered through our complimentary Connect app. Designed for both Android and Apple devices, the Connect app can be used to control key functions of the C2800 including volume control as well as input and output selection.
The McIntosh C2800 Vacuum Tube Preamplifier combines advanced features for exceptional sound and ease of use. It offers precise 1dB adjustments for bass and treble, remembers tone settings per input, and includes a High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) technology for immersive listening. Seamless home theater integration, Power Control for connected components, and remote control Data Ports enhance convenience. Electromagnetic input switching ensures noiseless operation, while level trim and a precise digital attenuator provide smooth volume control. With fully regulated power supplies, an R-core transformer, and an eco-friendly power management system, the C2800 delivers stable, high-quality performance with impressive energy efficiency.
Elevate Your Auditory Journey

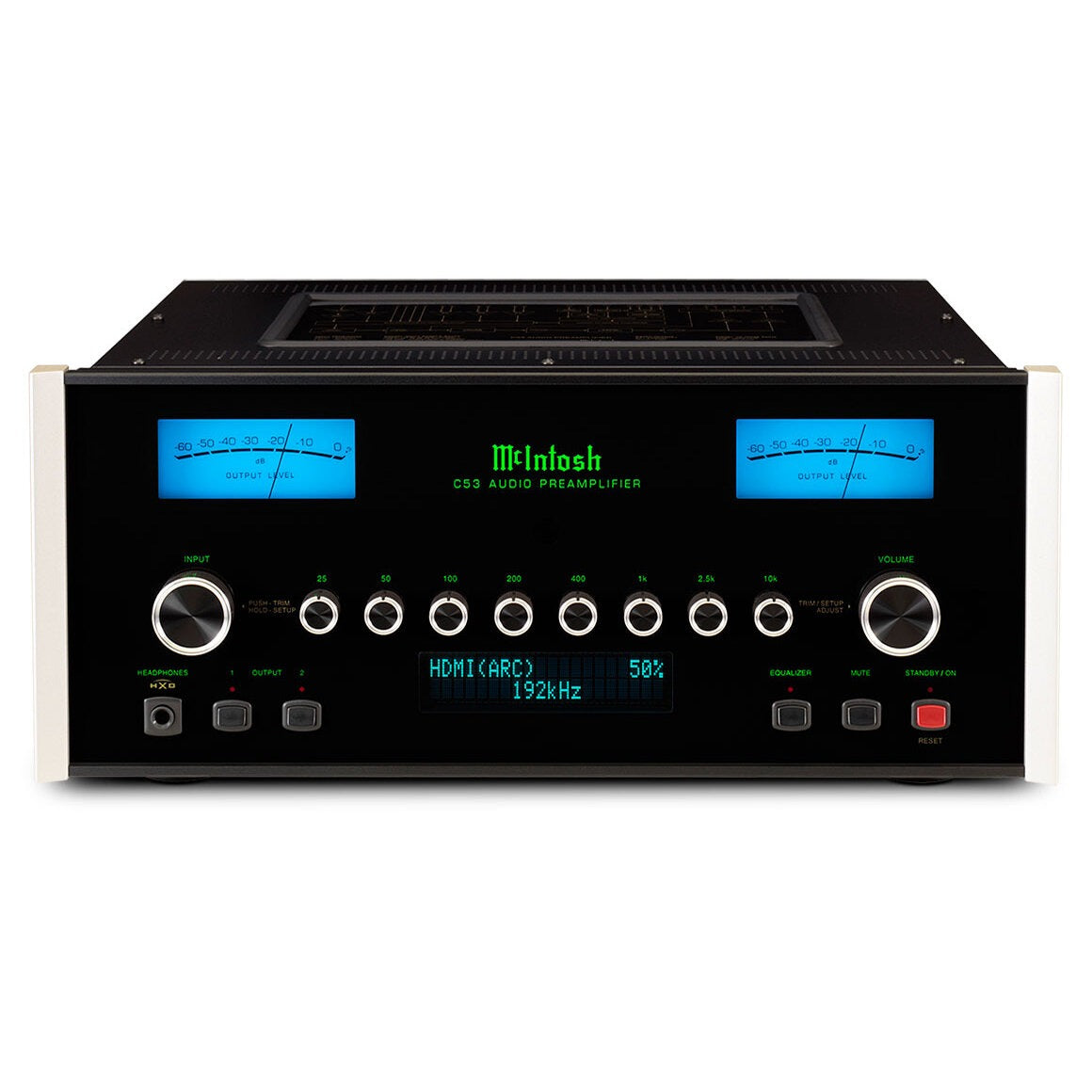

All this cutting-edge audio technology resides within the iconic McIntosh design a black glass front panel adorned with blue meters, rotary knobs, and an illuminated logo. The polished stainless steel chassis adds a touch of elegance, making it a perfect companion for amplifiers, CD players, turntables, and more. With the C2800, experience the warmth and richness that only vacuum tubes can offer, elevating your listening experience to new heights.
Technical Specifications
Electronic Specifications
| Specification | Details |
|---|---|
| Number of Channels | 2 |
| Total Harmonic Distortion (THD) | 0.08% |
| Frequency Response | +0, -0.5 dB (20Hz to 20kHz)+0, -3 dB (15Hz to 100kHz) |
| Maximum Output (Balanced / Unbalanced) | 16V RMS / 8V RMS |
| Input Sensitivity (High Level) | Balanced: 900mV Unbalanced: 450mV |
| Input Sensitivity (Phono MC) | 0.45mV |
| Input Sensitivity (Phono MM) | 4.5mV |
| Signal to Noise Ratio (High Level) | 100dB |
| Signal to Noise Ratio (Phono MC) | 75dB |
| Signal to Noise Ratio (Phono MM) | 75dB |
| Voltage Gain (High Level) | 15dB |
| Voltage Gain (Phono MC) | Selectable: 40, 46, 52, 58, 64dB |
| Voltage Gain (Phono MM) | Selectable: 40, 46, 52, 58, 64dB |
| Input Impedance | Balanced: 44kΩUnbalanced: 22kΩ |

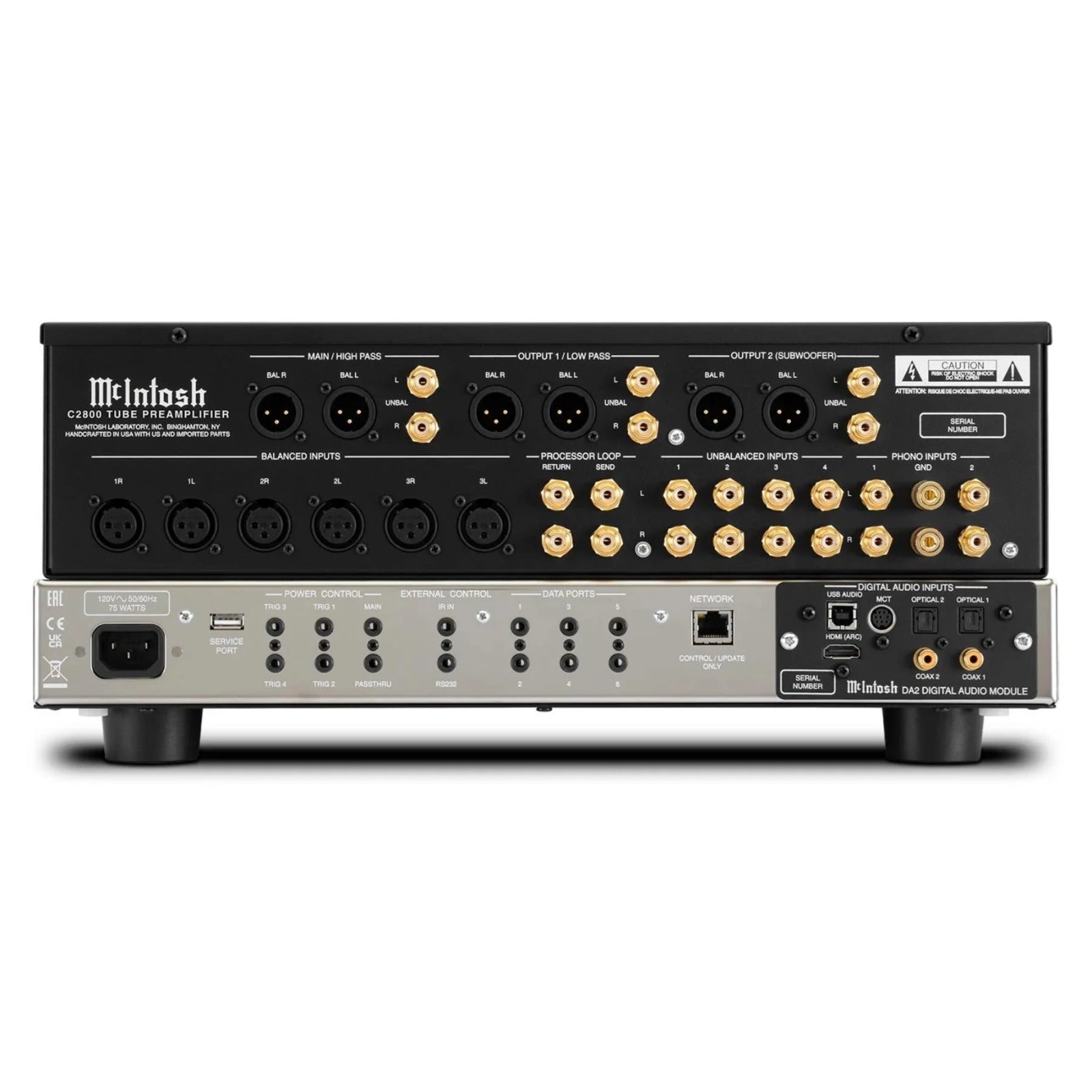

Connectivity
| Input / Output | Details |
|---|---|
| Balanced Inputs | 3 |
| Unbalanced Inputs | 4 |
| Phono Inputs (MC/MM) | Up to 2 total (user-configurable as either MC or MM) |
| Balanced Variable Outputs | 3 |
| Unbalanced Variable Outputs | 3 |
| Balanced/Unbalanced Fixed Outputs | 0 |
| Headphone Output | 1/4" High Drive with HXD® |
| Input Level Match | Yes, ±6dB |
| Home Theater PassThru | Yes |
| Unbalanced Connector Type | Premium gold-plated solid brass |
| Service Port | 1 |
| Network Connection | 1 |
Digital Connectivity
| Digital Input Type | Quantity |
|---|---|
| Upgradeable DAC Module | Yes – DA2 Module Included |
| Digital Coaxial Inputs | 2 |
| Digital Optical Inputs | 2 |
| Digital MCT Input | 1 |
| Digital USB Input | 1 |
| HDMI (ARC) Input | 1 |
| AES/EBU Input | 0 |
Control Features
| Feature | Details |
|---|---|
| Tone Controls | Bass and Treble |
| Tone Bypass & Input Assign | Yes |
| RS232 Control Input | Yes |
| Power Control Outputs | 1 Main, 4 Trigger |
| Rear Panel Data Ports | 6 |
| Rear Panel IR Sensor Input | Yes |
Construction & Architecture
| Feature | Details |
|---|---|
| Chassis Design | Single-Chassis, Dual-Layer |
| Vacuum Tube or Solid State | Vacuum Tube (3 × 12AX7A, 1 × 12AT7) |
| Output Meters | Yes |
Weights & Dimensions
| Measurement | Value |
|---|---|
| Unit Dimensions (W × H × D) | 17.5" x 7.625" x 16.5"(44.45 cm x 19.4 cm x 41.9 cm) |
| Unit Weight | 28 lbs (12.5 kg) |
| Shipping Weight | 43.5 lbs (19.7 kg) |
Power
| Specification | Value |
|---|---|
| Power Consumption (On) | 75 Watts |
