McIntosh MA252 2 Channel Hybrid Integrated Amplifier
- Regular price
- Rs. 562,900.00
- Sale price
- Rs. 562,900.00
- Regular price
-
Couldn't load pickup availability
Description

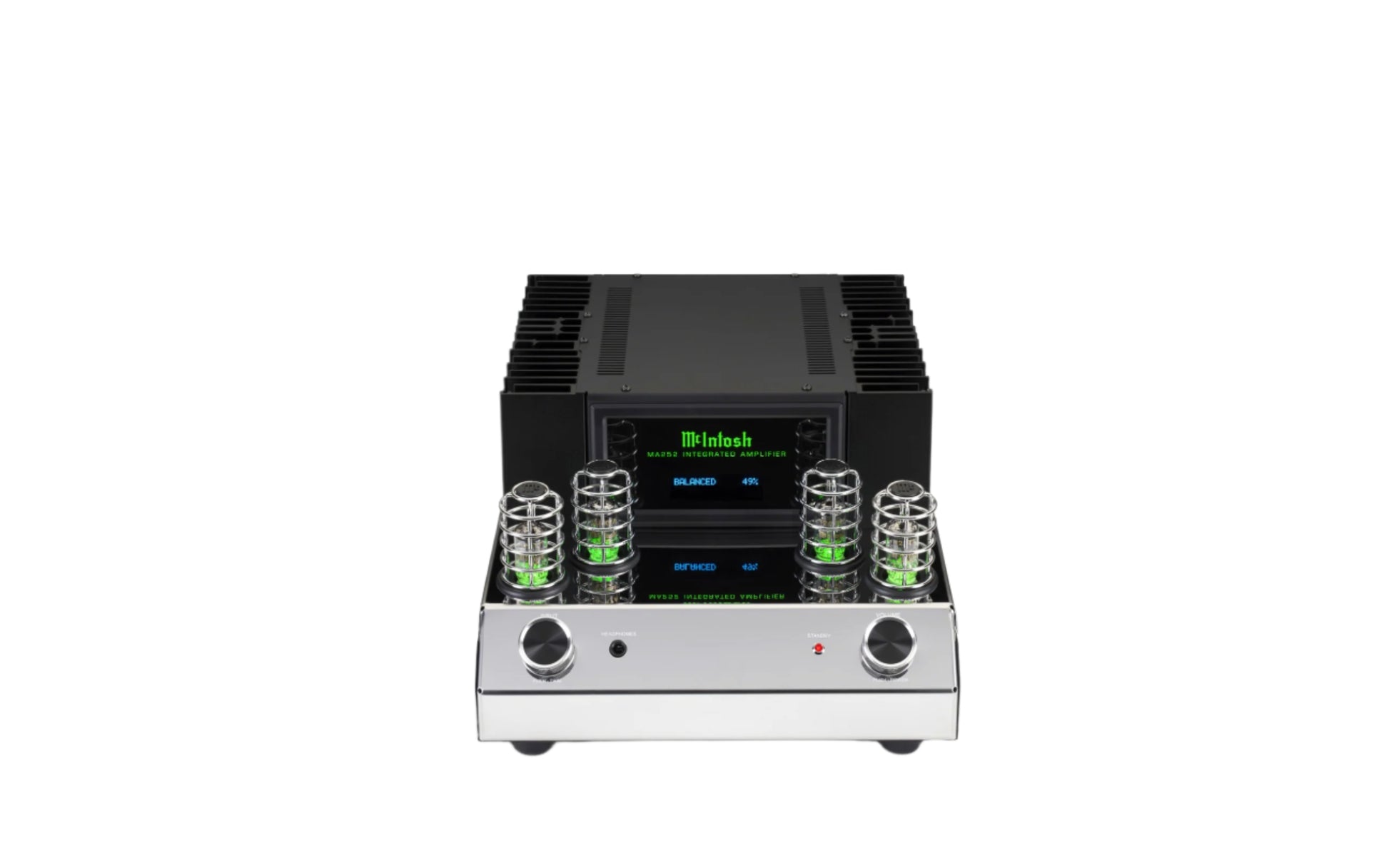

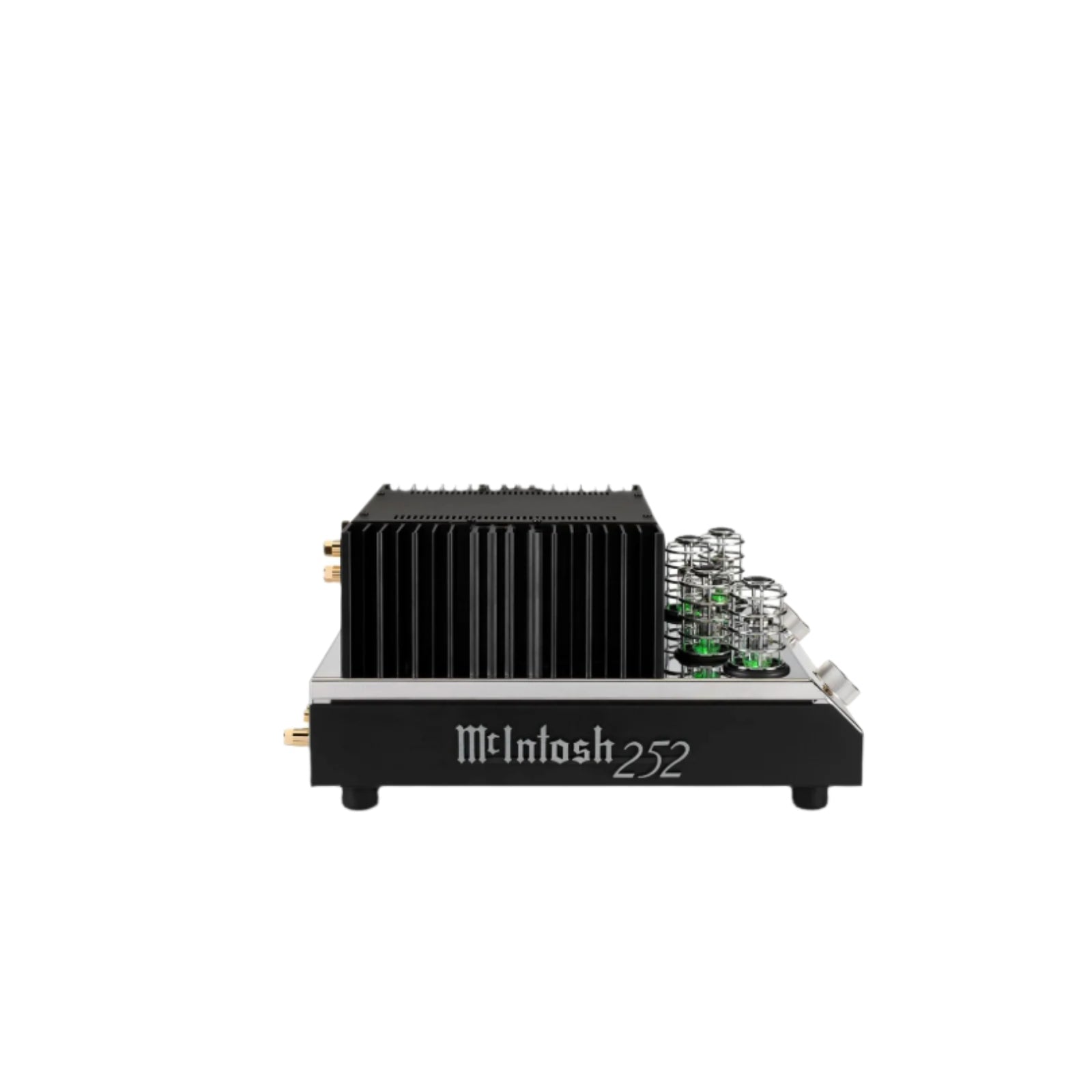

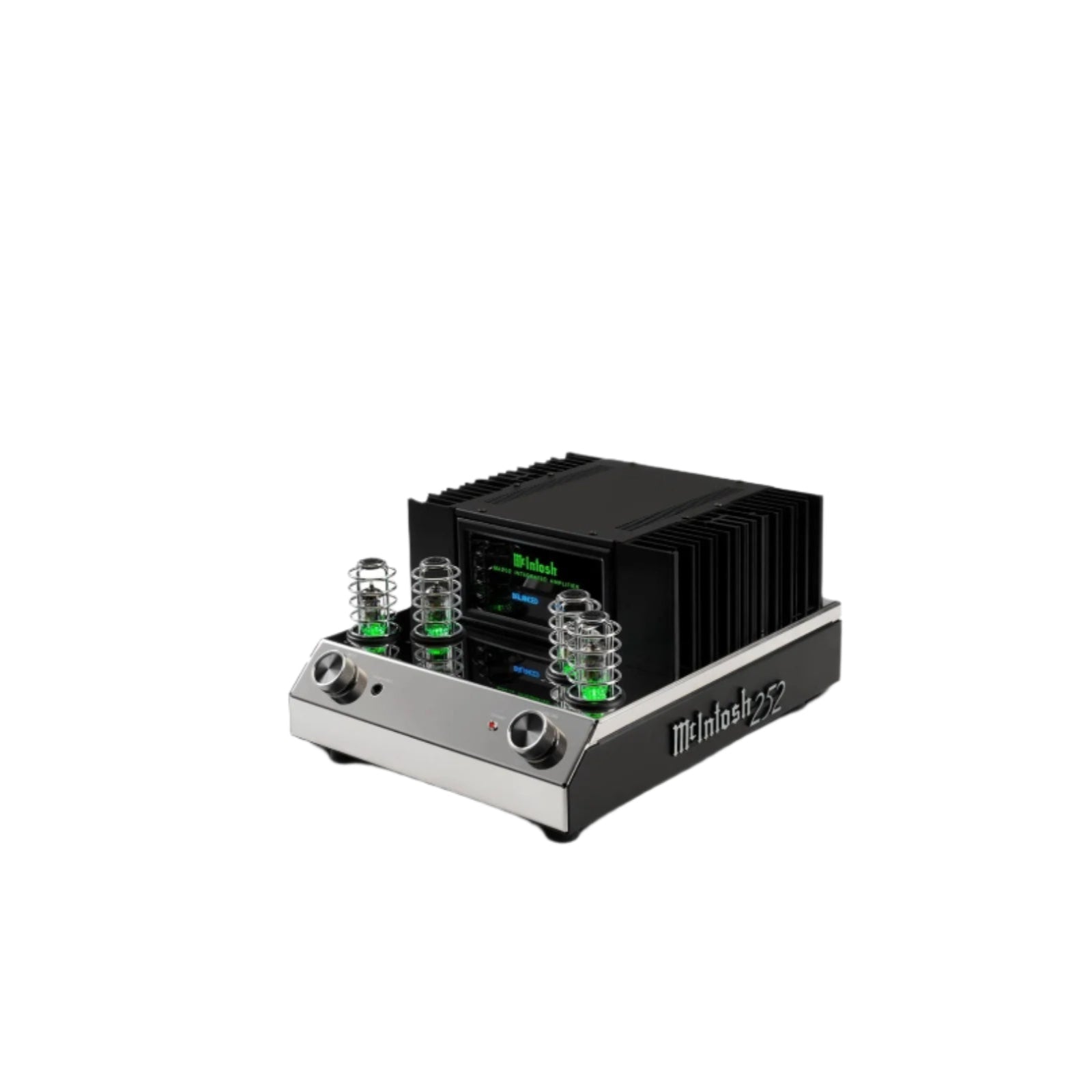

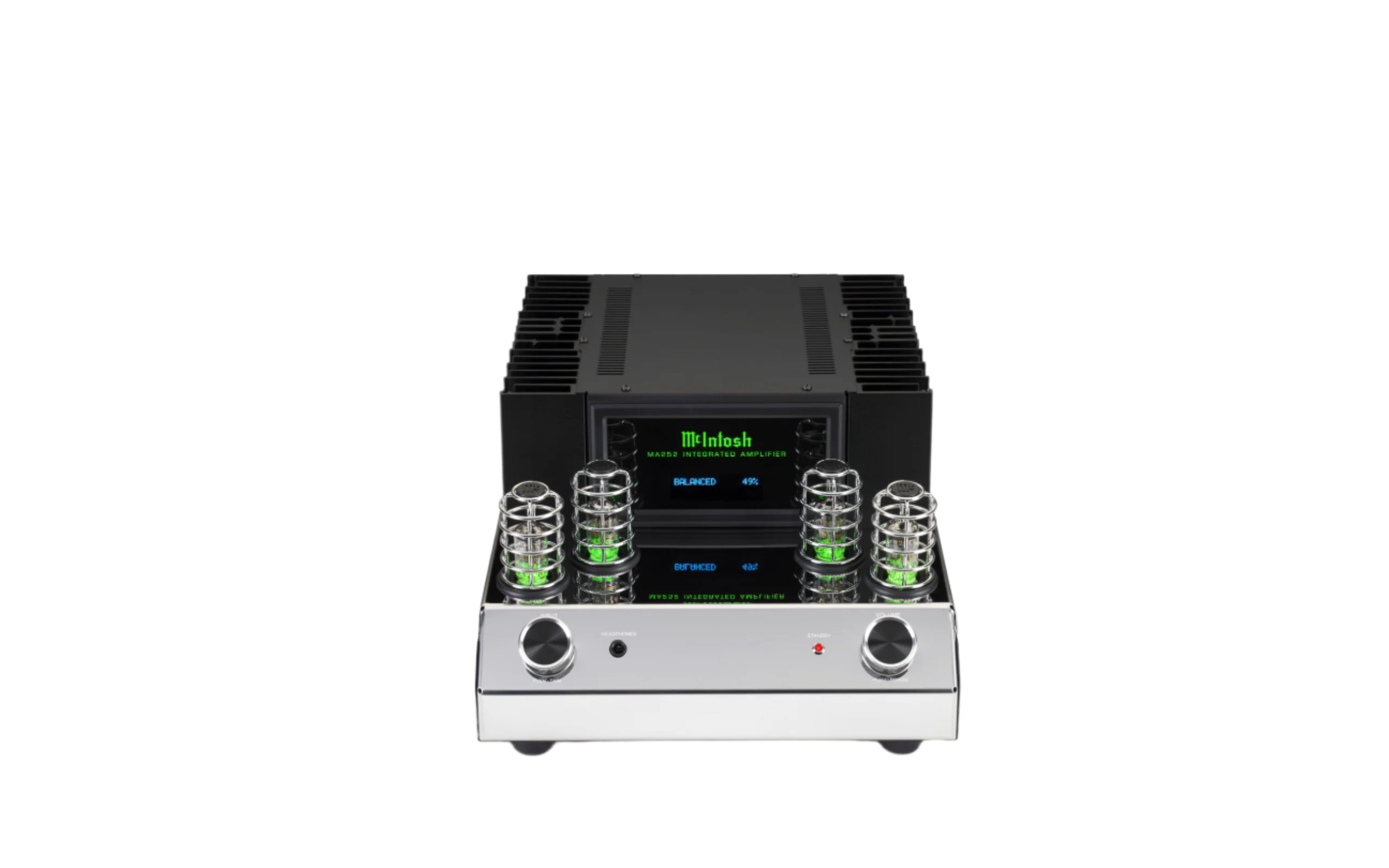

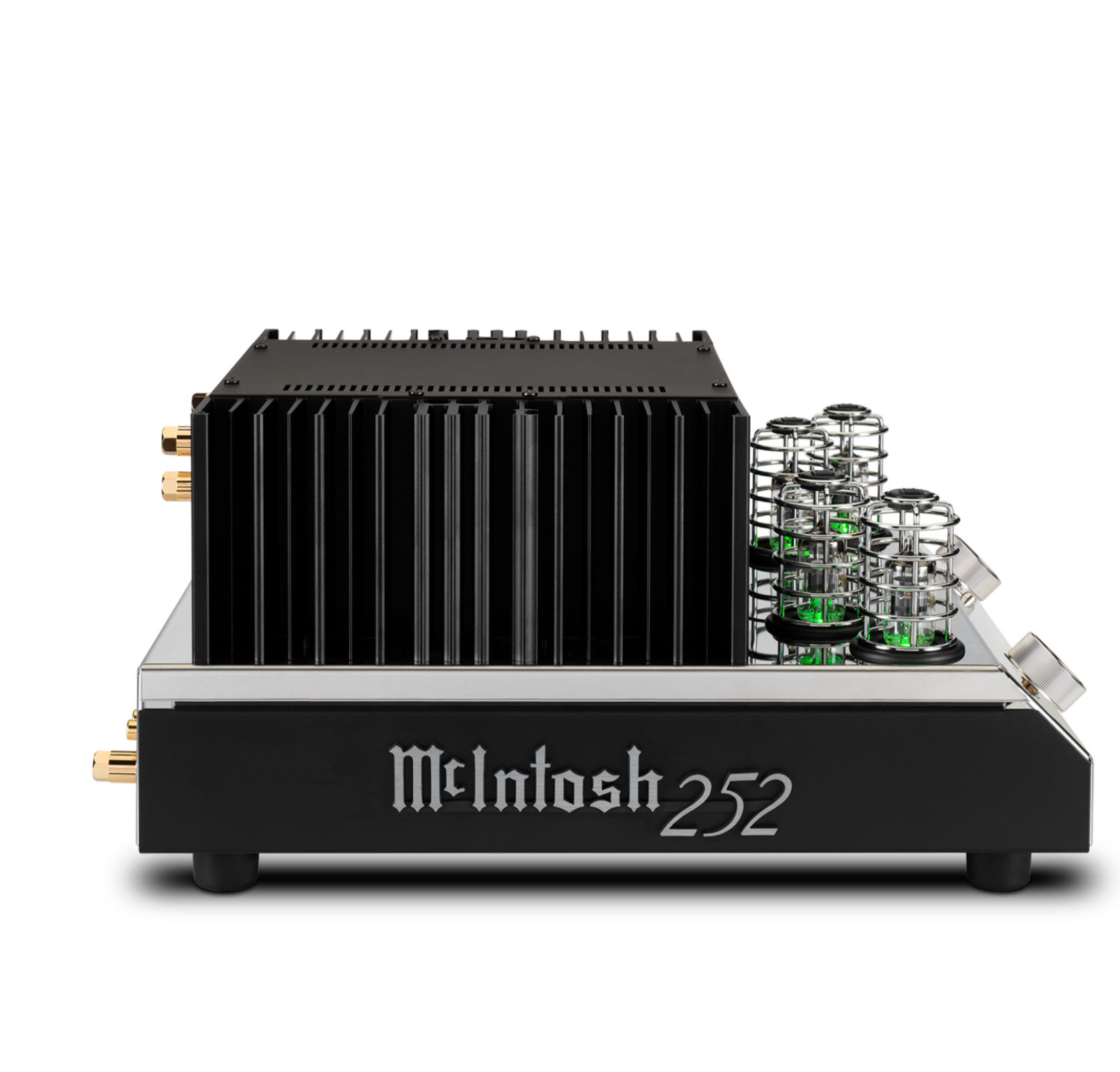

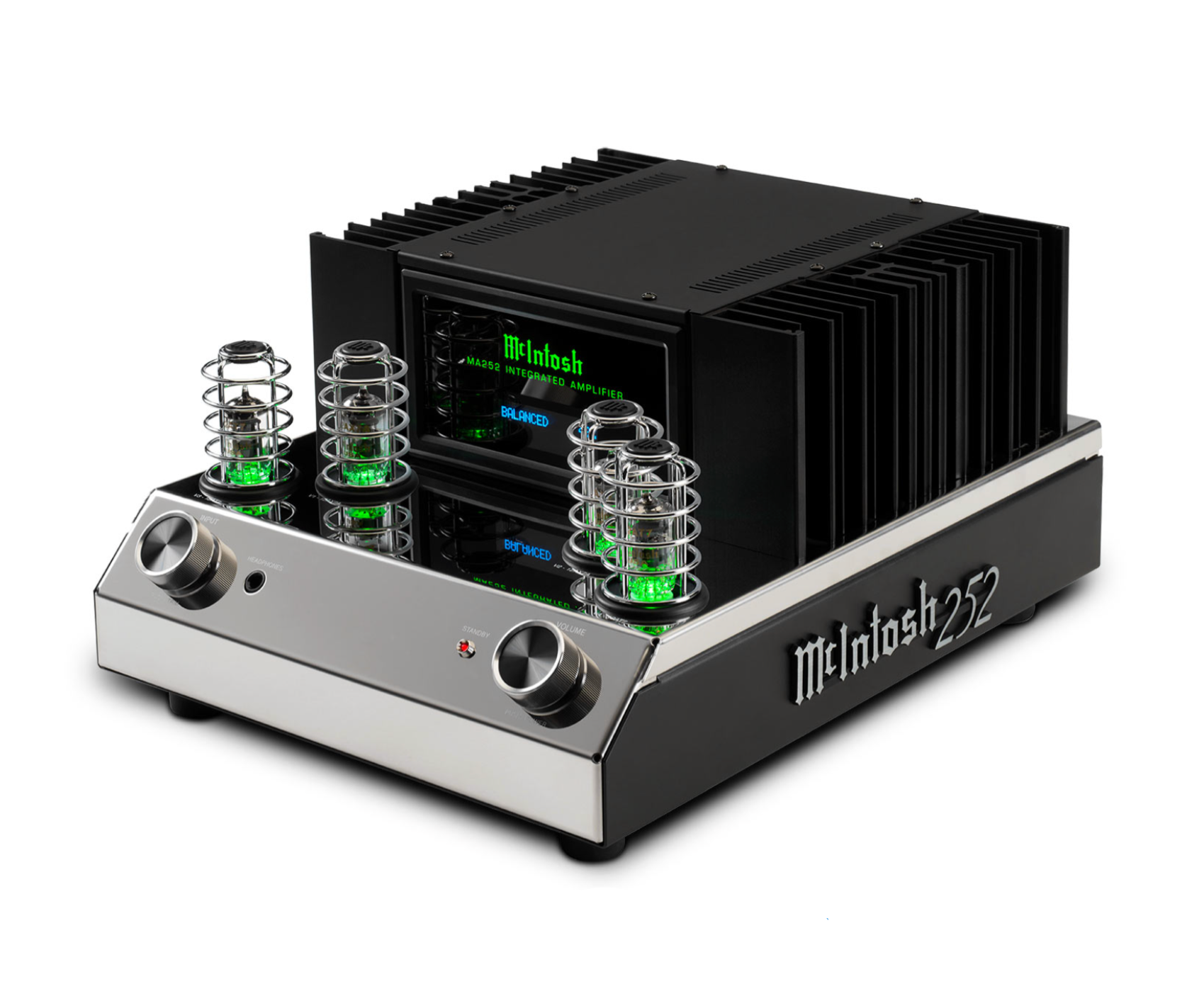

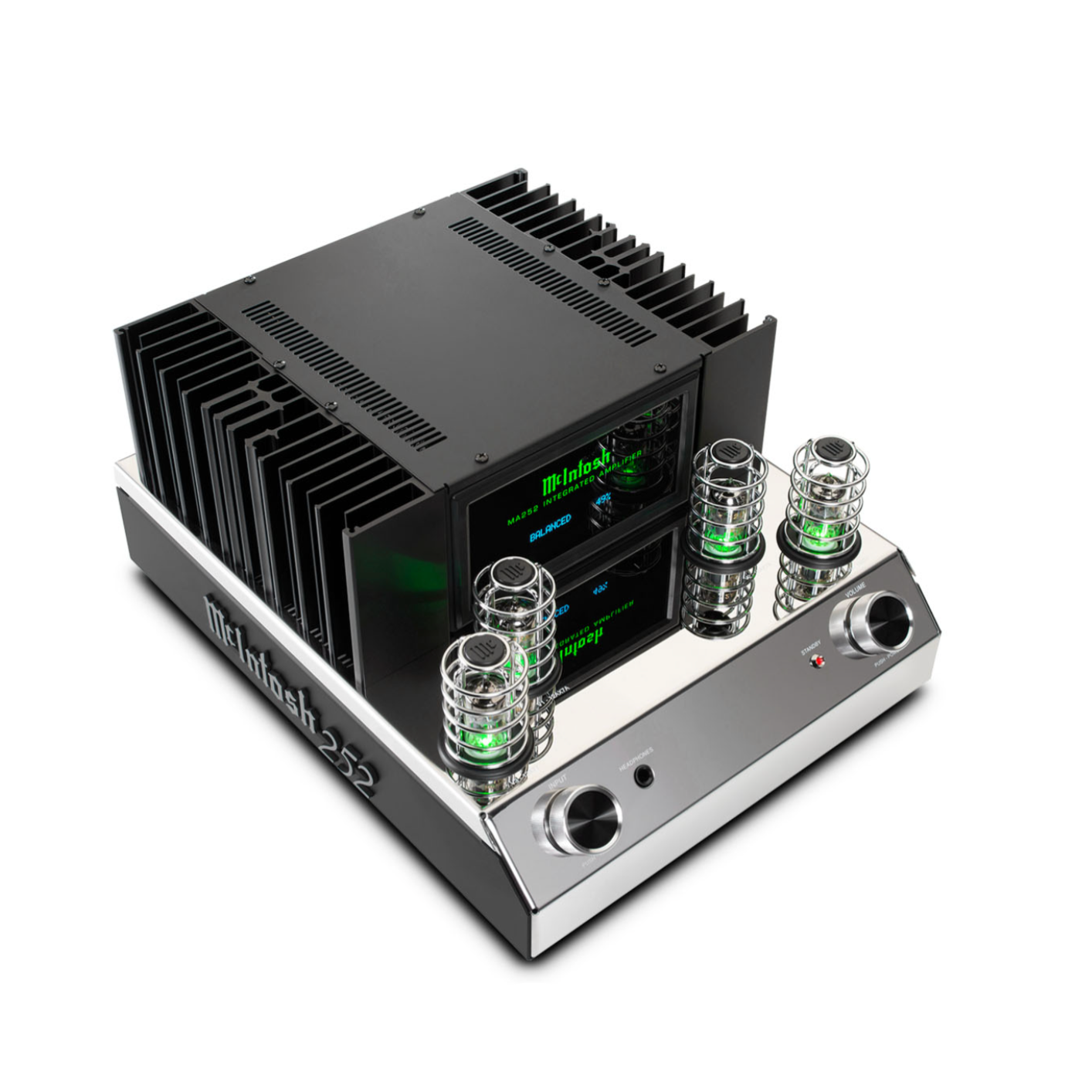

The McIntosh MA252 is a 2-channel hybrid integrated amplifier that marks McIntosh’s first venture into hybrid amplification, blending classic design with modern performance. Inspired by the iconic MC275 Vacuum Tube Amplifier, the MA252 features Hybrid Drive™ technology, which combines the warmth and musicality of vacuum tubes with the power and precision of solid-state circuits. Its preamplifier stage utilizes two 12AX7a and two 12AT7 vacuum tubes, housed in protective cages for both aesthetic and functional purposes.
The solid-state output stage is direct coupled and delivers 100 watts per channel into 8-ohm speakers or 160 watts per channel into 4-ohm speakers, offering robust performance for a wide range of systems. This is a fully analog design, equipped with one balanced, two unbalanced, and one Moving Magnet phono input, allowing turntable compatibility. Each input can be custom-named for ease of use, and bass and treble tone controls provide personalised sound shaping. A dedicated subwoofer output is also included for integrating a powered subwoofer, enhancing low-frequency performance and offering greater system flexibility.
Technical Specifications
| Specification | Value |
|---|---|
| FTC Power Output Rating | 100 W |
| Power Output per Channel | 100 W into 8 ohms, 160 W into 4 ohms |
| Number of Channels | 2 |
| Rated Power Band | 20Hz to 20kHz |
| Total Harmonic Distortion (THD) | 0.03% |
| Dynamic Headroom | 1.8dB |
| Frequency Response (+0, -0.5dB) | 20Hz to 20kHz |
| Frequency Response (+0, -3dB) | 10Hz to 100kHz |
| Damping Factor | >200 (8 ohms), >100 (4 ohms) |
| Output Type | Direct Coupled |
| Output Meters | No |
Input Sensitivity & Impedance
| Specification | Value |
|---|---|
| Sensitivity (Phono Moving Coil) | N/A |
| Sensitivity (Phono Moving Magnet) | 3.0mV |
| Sensitivity (High Level Balanced / Unbalanced) | 0.6V / 0.3V |
| Sensitivity (Power Amp Input) | N/A |
| Input Impedance (Balanced / Unbalanced) | 20K / 20K ohms |
| Maximum Output (Unbalanced) | 8V |
Signal-to-Noise Ratio (SNR)
| Specification | Value |
|---|---|
| SNR (Phono Moving Coil) | N/A |
| SNR (Phono Moving Magnet) | 80dB |
| SNR (High Level) | 97dB |
| SNR (Power Amp Input) | N/A |

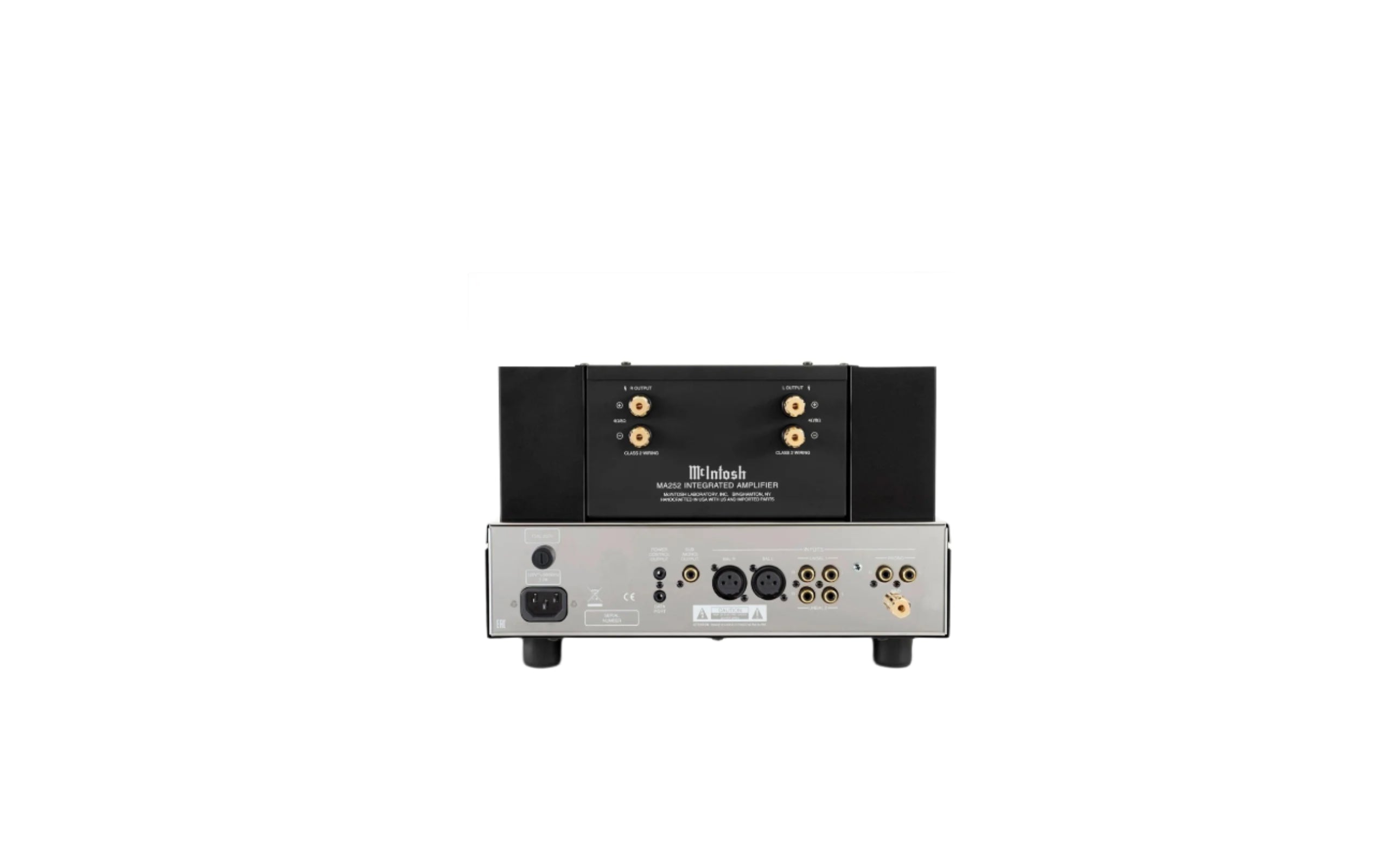

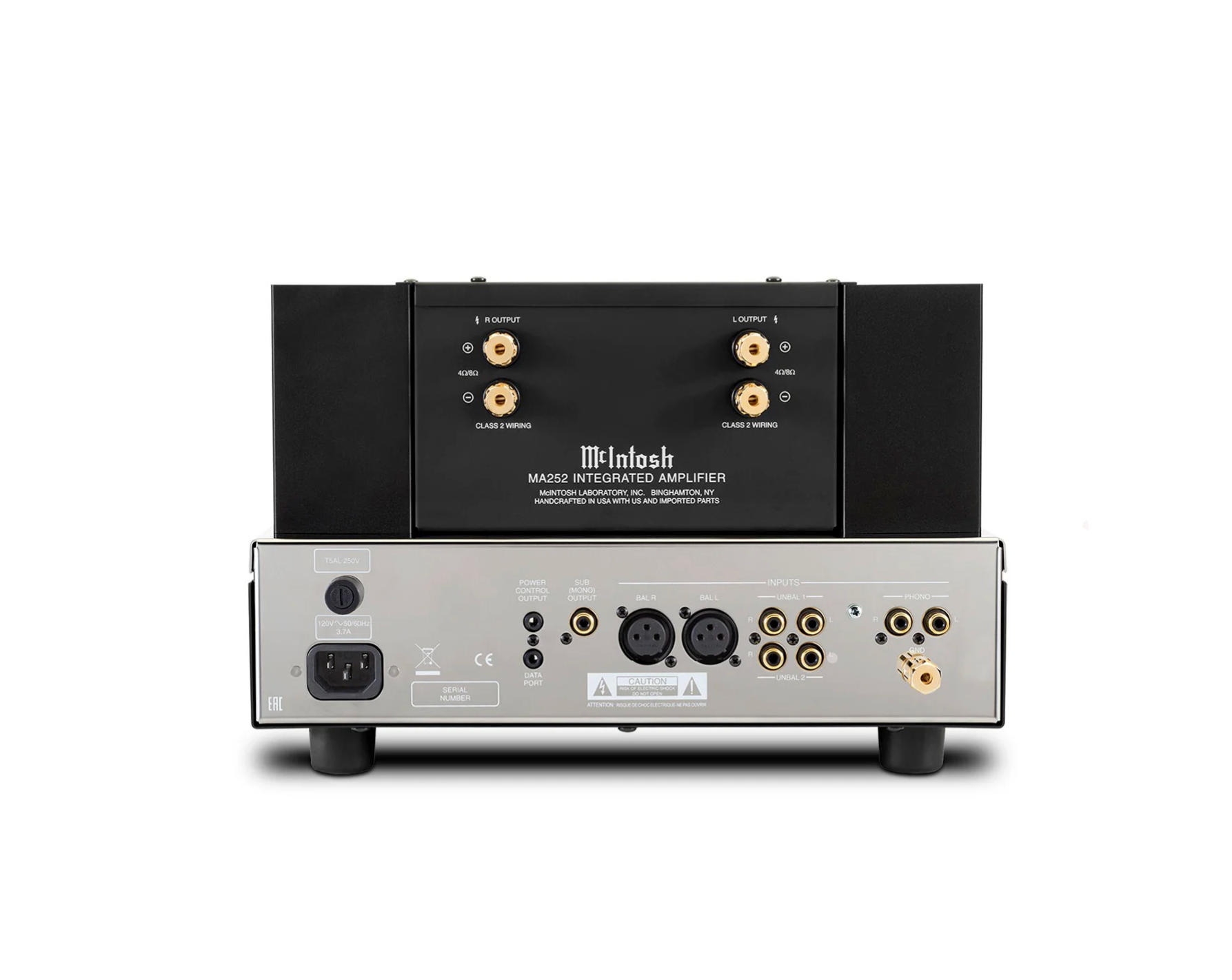

Connectivity
|
Connection Type |
Value |
|---|---|
| Balanced Inputs | 1 |
| Unbalanced Inputs | 2 |
| Phono Input (Moving Coil / Magnet) | 0 / 1 (fixed loading) |
| Headphone Output | 1/4" High Drive |
| Subwoofer Output | 1 (mono) |
| Balanced Variable Output | 0 |
| Unbalanced Fixed Output | 0 |
| Unbalanced Variable Output | 0 |
| HDMI (ARC) Input | 0 |
| Digital Inputs (USB / Optical / Coaxial / MCT) | 0 |
| AM/FM Tuner Option | No |
| Home Theater PassThru | No |
| Analog Connector Type | Standard |
| Speaker Binding Post Type | Standard |
| Service Port | 0 |
Digital Audio Specifications
| Specification | Value |
|---|---|
| Upgradeable Digital Audio Module | No |
| DAC Type | N/A |
| Digital Input Sample Rates | N/A |
Control Features
|
Specification |
Value |
|---|---|
| Tone Controls | Bass and Treble |
| Tone Bypass and Input Assign | Yes |
| RS232 Control Input | No |
| Power Control Output | 1 |
| Rear Panel Data Port | 1 |
| Rear Panel IR Sensor Input | No |
| Input Level Match | Yes |
Design & Construction
| Specification | Value |
|---|---|
| Preamplifier Section | Vacuum Tube |
| Power Amplifier Section | Solid State |
| McIntosh Monogrammed Heatsinks™ | Yes |
| Chassis Type | Dual Layer |
| Chassis Finish | Polished Stainless Steel |
| Power Requirement | 120V 50/60Hz, 3.7A |
| Standby Power Consumption | <0.5 Watts |
Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12" x 7-5/8" x 16-1/2" (30.5 x 19.4 x 41.9 cm) |
| Unit Weight | 28 lbs (12.7 kg) |
| Shipping Weight | 37 lbs (16.8 kg) |
