McIntosh Labs MA7200 2-Channel Integrated Amplifier

Regular price
Rs. 956,900.00
Sale price
Rs. 956,900.00
Regular price
Get free shipping on your order.
  • McIntosh Labs MA7200 2-Channel Integrated Amplifier
2 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

The McIntosh MA7200 is a high-performance 2-channel integrated amplifier that delivers 200 watts per channel, making it a powerful centrepiece for a high-end stereo audio system. Designed for both analog and digital audio lovers, the MA7200 offers a total of 14 inputs, including 8 analog (5 unbalanced, 1 balanced, and dedicated Moving Coil and Moving Magnet phono inputs for turntables) and 6 digital (2 coaxial, 2 optical, 1 USB, and 1 proprietary MCT input for use with McIntosh’s MCT500 SACD/CD transport).The digital inputs are housed in the DA1 Digital Audio Module, which features an advanced 8-channel, 32-bit DAC operating in Quad Balanced mode. This module enables high-resolution audio playback and future-proofs the unit through its modular design it can be easily upgraded to the DA2 Digital Audio Module, which is available through authorized dealers. The USB input supports PCM up to 32-bit/384kHz, as well as DSD256 and DXD 384kHz, ensuring compatibility with a wide range of high-resolution audio formats. The coaxial and optical inputs handle up to 24-bit/192kHz.

To enhance user experience, each input can be custom-named, allowing for intuitive control and seamless system integration. With its powerful amplification, wide input flexibility, and upgradeable digital section, the MA7200 is designed to provide exceptional audio quality today and stay relevant in the future.

Technical Details

Electronic Spec

Specification Value
FTC Power Output Rating 200 W
Power Output per Channel 200 W into 2, 4, or 8 ohms
Number of Channels 2
Rated Power Band 20Hz to 20kHz
Total Harmonic Distortion 0.005%
Dynamic Headroom 2dB
Frequency Response (+0, -0.5dB) 20Hz to 20kHz
Frequency Response (+0, -3dB) 10Hz to 100kHz
Damping Factor >40


Input Sensitivity & Impedance

Specification Value
Sensitivity (Phono Moving Coil) 0.25mV
Sensitivity (Phono Moving Magnet) 2.5mV
Sensitivity (High Level Balanced / Unbalanced) 0.5V / 0.25V
Sensitivity (Power Amp Input) 1.4V
Input Impedance (Balanced / Unbalanced) 20K / 20K ohms
Maximum Output (Unbalanced) 8V


Signal-to-Noise Ratio (SNR)

Specification Value
SNR (Phono Moving Coil) 80dB
SNR (Phono Moving Magnet) 82dB
SNR (High Level) 95dB
SNR (Power Amp Input) 113dB

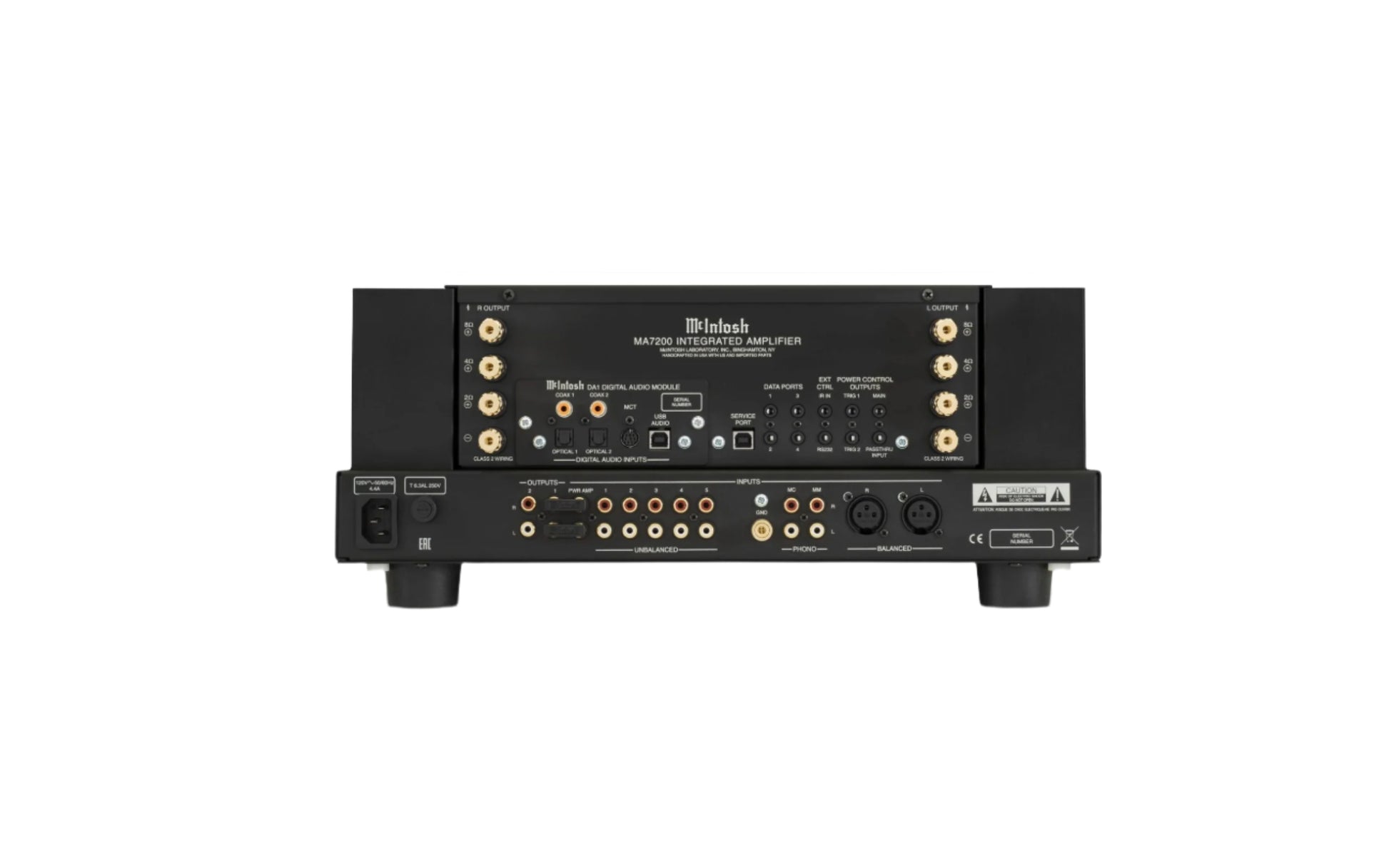

Connectivity

Connection Type Value
Balanced Inputs 1
Unbalanced Inputs 5
Phono Inputs (Moving Coil / Moving Magnet) 1 (adjustable) / 1 (fixed)
Upgradeable Digital Audio Module Yes (DA1 installed, DA2 upgrade available)
Digital Coaxial Inputs 2
Digital Optical Inputs 2
Digital MCT Input 1
Digital USB Input 1
HDMI (ARC) Input 0
Balanced Variable Output 0
Unbalanced Fixed Output 0
Unbalanced Variable Outputs 2
Subwoofer Output 0
Headphone Output 1/4" High Drive with HXD®
AM/FM Tuner Option No
Home Theater PassThru Yes
Service Port 1


Digital Audio Specifications

Specification Value
DAC Type 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate 24-bit / 44.1kHz to 192kHz
Digital Optical Input Sample Rate 24-bit / 44.1kHz to 192kHz
Digital MCT Input Sample Rate 16-bit / 44.1kHz (CD), DSD64 (SACD)
Digital USB Input Sample Rate 32-bit / 44.1kHz to 384kHz (PCM), DSD64, DSD128, DSD256, DXD 352.8kHz, DXD 384kHz


Control Features

Feature Value
Tone Controls Bass and Treble
Tone Bypass and Input Assign Yes
RS232 Control Input Yes
Power Control Output 1 Main, 2 Trigger
Rear Panel Data Ports 4
Rear Panel IR Sensor Input Yes
Input Level Match Yes


Design & Construction

Feature Value
Vacuum Tube or Solid State Solid State
Output Type Autoformer™
Output Meters Yes
Dual Layer Chassis Yes
Chassis Finish Black painted steel
McIntosh Monogrammed Heatsinks™ Yes
Power Requirement 120V 50/60Hz, 4.4A
Standby Power Requirement <0.25 Watts


Dimensions & Weight

Measurement Value
Unit Dimensions (W x H x D) 17-1/2" x 7-5/8" x 18-3/4" (44.5 x 19.4 x 47.6 cm)
Unit Weight 75 lbs (34.1 kg)
Shipping Weight 93 lbs (42.3 kg)
